MeCan Medical Best Quality Blood Gas Analyzer Factory,Every equipments from MeCan gets passed strict quality inspection,and final passed yield is 100%, we are very professional and we will provide the best service to you.
Quantity: | |
---|---|

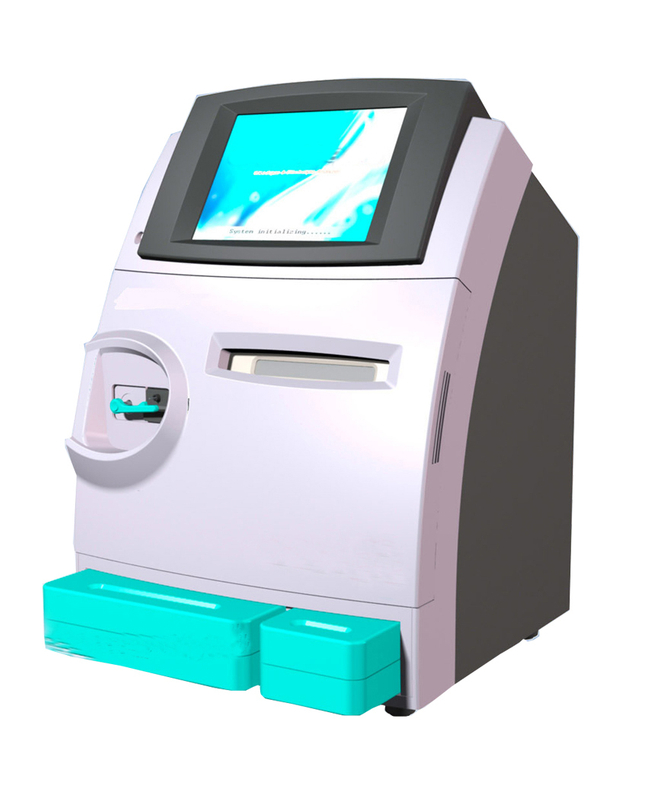

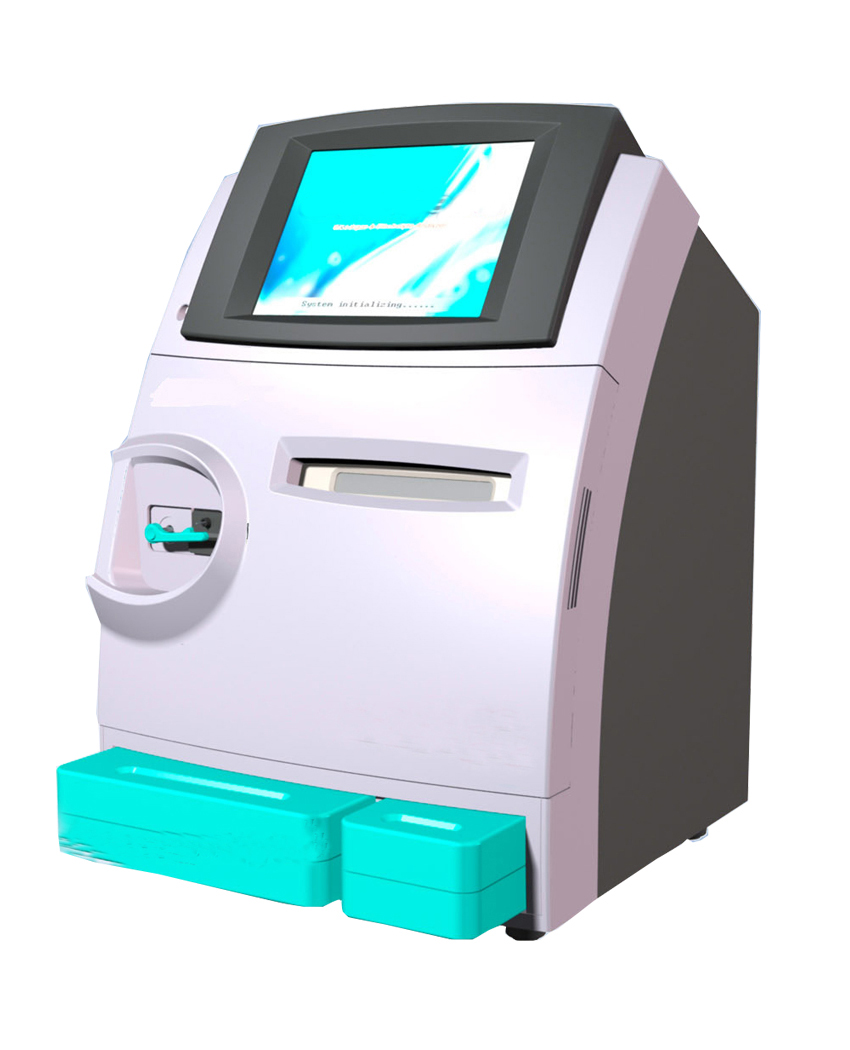

Medical blood gas analyzer
Specification
Sample Type
Whole blood, Serum, Plasma, Dialysate, CSF
Model name & test items
BG-800 ( pH/pCO2/pO2/K+/Na+/CI-/Ca++/Hct )
BG-800A(pH/ pCO2/ pO2 /Hct )
BG-800B ( pH/pCO2/pO2/K+/Na+/CI-/Hct )
BG-800E ( pH/pCO2/pO2/K+/Na+/CI-/Ca++/Hct /Glu/Lac)
BG-800Q ( pH/pCO2/pO2/K+/Na+/CI-/Ca++/Hct Auto QC)
BG-800AQ ( pH/pCO2/pO2/Hct Auto QC)
BG-800BQ ( pH/pCO2/pO2/K+/Na+/CI-/Hct Auto QC)
Measured Parameters
Analyte | Measuring range | Unit |
pH(CH) | 6.000-9.000 | |
pCO2 | 1.607-26.67 | kpa |
8.0-200.0 | mmHg | |
pO2 | 0-106.7 | kpa |
0-800.0 | mmHg | |
K | 0.5-15.0 | mmol/L |
Na+ | 20.0-200.0 | mmol/L |
CI- | 20.0-200.0 | mmol/L |
Ca++ | 0.3-5.0 | mmol/L |
Hct | 12.0-65.0 | % |
B.P. | 500-800 | mmHg |
Glucose | 1.1-66.7 | Mmol/L |
Lactate | 0.4-30.0 | Mmol/L |
Working environment
Working temperature:15℃~30℃
Storage environment:5℃~45℃
Power supply:100-240V~±10&,50/60±1Hz
Power:150VA
Dimension (Length*width*Height) :420mm×623mm×410mm
Weight:25KG
Main Characteristics
Multi-combination parameters
Self-made maintenance free electrodes
Both for syringes & capillary
35UL for capillary, 95UL for whole blood
1 min from the aspiration to result
Long-lasting fluid system
All-in-one design calibrate cartridge
Cartridge expiration alarm & residue
Preheats reagents & sample
Optional Auto QC cartridge with H/M/L level
Data storage >5,000
Colorful touch screen with high resolution
Friendly operation interface
Infrared human-detector
Rich data management interface
Battery backup
Build-in thermal printer
Convenient bar-code system management
Economic cost per test
The quality management of MeCan Medical is attached 100% importance. From the selection of the raw materials to the finished products, each step of inspection is strictly conducted and followed to meet the regulation of gifts and crafts.
Medical blood gas analyzer
Specification
Sample Type
Whole blood, Serum, Plasma, Dialysate, CSF
Model name & test items
BG-800 ( pH/pCO2/pO2/K+/Na+/CI-/Ca++/Hct )
BG-800A(pH/ pCO2/ pO2 /Hct )
BG-800B ( pH/pCO2/pO2/K+/Na+/CI-/Hct )
BG-800E ( pH/pCO2/pO2/K+/Na+/CI-/Ca++/Hct /Glu/Lac)
BG-800Q ( pH/pCO2/pO2/K+/Na+/CI-/Ca++/Hct Auto QC)
BG-800AQ ( pH/pCO2/pO2/Hct Auto QC)
BG-800BQ ( pH/pCO2/pO2/K+/Na+/CI-/Hct Auto QC)
Measured Parameters
Analyte | Measuring range | Unit |
pH(CH) | 6.000-9.000 | |
pCO2 | 1.607-26.67 | kpa |
8.0-200.0 | mmHg | |
pO2 | 0-106.7 | kpa |
0-800.0 | mmHg | |
K | 0.5-15.0 | mmol/L |
Na+ | 20.0-200.0 | mmol/L |
CI- | 20.0-200.0 | mmol/L |
Ca++ | 0.3-5.0 | mmol/L |
Hct | 12.0-65.0 | % |
B.P. | 500-800 | mmHg |
Glucose | 1.1-66.7 | Mmol/L |
Lactate | 0.4-30.0 | Mmol/L |
Working environment
Working temperature:15℃~30℃
Storage environment:5℃~45℃
Power supply:100-240V~±10&,50/60±1Hz
Power:150VA
Dimension (Length*width*Height) :420mm×623mm×410mm
Weight:25KG
Main Characteristics
Multi-combination parameters
Self-made maintenance free electrodes
Both for syringes & capillary
35UL for capillary, 95UL for whole blood
1 min from the aspiration to result
Long-lasting fluid system
All-in-one design calibrate cartridge
Cartridge expiration alarm & residue
Preheats reagents & sample
Optional Auto QC cartridge with H/M/L level
Data storage >5,000
Colorful touch screen with high resolution
Friendly operation interface
Infrared human-detector
Rich data management interface
Battery backup
Build-in thermal printer
Convenient bar-code system management
Economic cost per test
The quality management of MeCan Medical is attached 100% importance. From the selection of the raw materials to the finished products, each step of inspection is strictly conducted and followed to meet the regulation of gifts and crafts.
