  • Type:Skin Analyzer

  • Place of Origin:CN;GUA

  • Certification:ISO

  • Brand Name:MeCan

  • Model Number:MCR-9B

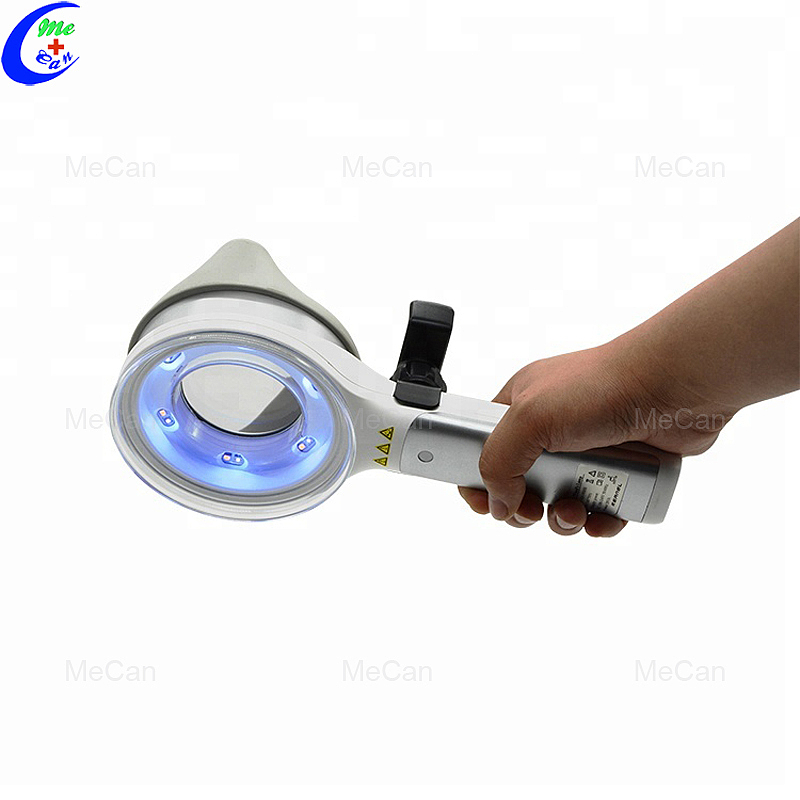

Portable Medical 365nm Woods Lamp for Skin Analysis


Product Description

What is woods lamp?

Wood’s Lamp is currently used as a screening procedure in dermatology offices. It was invented by Robert Williams Wood in 1903, but the light was not originally created for dermatology. It wasn’t until 1925 that a Wood’s Lamp had a dermatological application when Margarot and Deveze used the light to detect fungal infections in the hair .Normal skin will not glow under the lamp, but infected skin will fluoresce. Wood’s Lamp is a common, first step method towards diagnosing skin infections in the United States.

What is application of our medical woods lamp?

The Wood's lamp test is done to help to detect several conditions affecting the skin, including:Bacterial infections, Fungal infections, Ectoparasites infestations, Skin coloring changes.Some skin diseases  such as vitiligo, acne and host of other cause the skin to fluoresce Vitiligo, Bacterial Infections, excema, Porphyria, Erythasma, Alopecia, Tinea Versicolor Fungus &Fungal Infections, Head Lice and their nits, Fluoresce under black light Ringworm, Scabies, Child abuse/bruising can often be discerned with the wood's lamp.

1. Pigment abnormal skin disease
2. Infectious skin disease
3. erythroderma desquamativum
4. Neuropsychiatric disorders
5. Some metabolic skin diseases
6. diagnosis and definition of scope of skin lesions of certain tinea corporis and cruris,marla folliculitis disease
7. Certain metabolic skin disease

What are features of our woods lamp skin analysis?

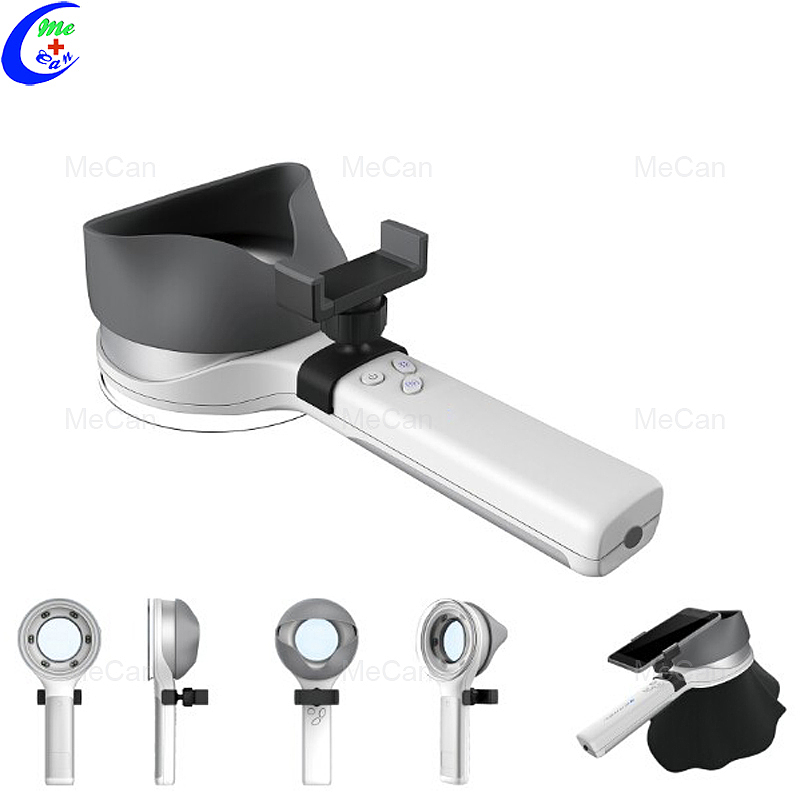

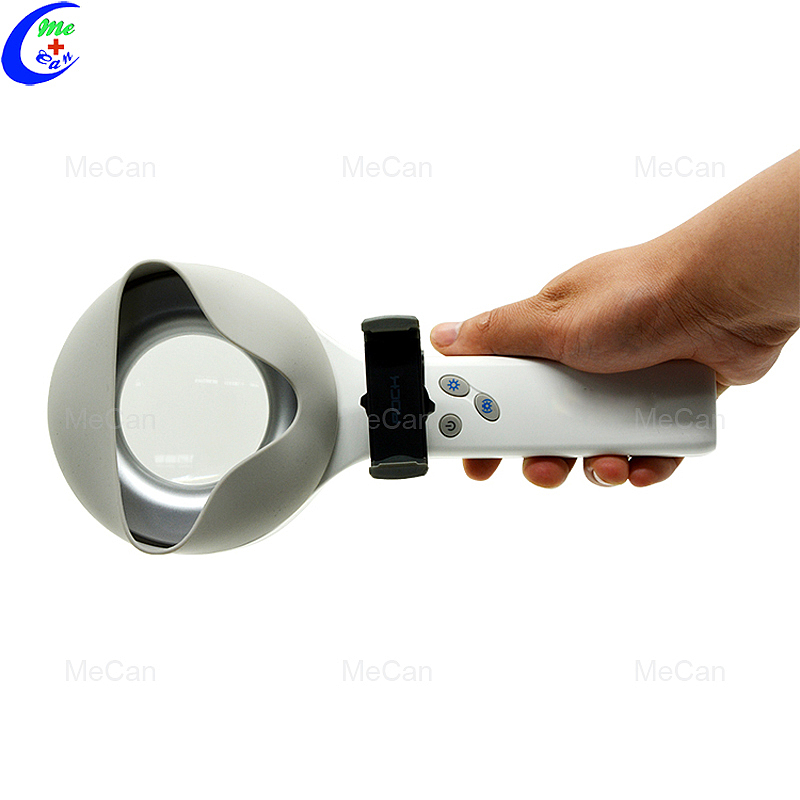

a. Observation Window+Shade Cloth, User can observe and take photos clearly in normal environment
b. Rechargeable Lithium Battery, Getting rid of the power cord, more convenient to carry and use, more suitable for home use
c. UVA Light+White Light(LED), Low power consumption, long life. It is not only used for the examination of various skin diseases, but also can be used for other medical examination illumination.
d. Eye-protecting Glass to avoid UV radiation on the human eye damage
e. Adjustable Brightness
f. Mobile Phone holder (Optional)

What is specification of our  woods lamp for skin?

Power Supply Mode Inside power
Power adapter
Battery Specification
Battery standby time
Charging period
Security Classification typeⅡ,built-in battery
Power Rating 28VA
Visual Lens Diameter ø65mm±5mm
Working Distance 5cm±1cm
Light Source UVA light+White light
Output Wavelength 320nm-400nm  (Peak wavelength365nm)
Lamp Life ≥15000h
UV radiation intensity 0.6-2.5mW/cm2
Illuminance ≥1200Lux
Visual lens magnification times 2times±20%
Dustproof and waterproof level IP22


Ø Small size, light weight, easy for patient to carry;
Ø  Products using UVA light source, which can be used to detect pigment abnormalities, skin infections, porphyry in metabolism abnormalities. Avoiding chemical grinding excessively, and grasping the treatment of skin diseases timely.
Ø  Hand-held and simple operation, flexible irradiation area, easy to grasp
Ø  Equipped with observation window and shade cloth, physicians also can be clearly observed and photographed under normal circumstances;
Ø  With UVA and white light two LED light source, make longer life, not only for a variety of skin diseases, can also be used for other medical examination lighting.
Ø  Observation Windows using opaque ultraviolet magnifying lens, can avoid the ultraviolet radiation damage to the human eyes.

Ø  Optional mobile phone camera support, easy for users to shoot pathology images, can grasp the development of disease and treatment, can be used in the field of medical research and teaching.

Ø Internal power:DC6~8.4V >0.5A
Ø The power adapter:AC 100-240V,50/60Hz±2%
Ø Battery:18650 7.4V 2.2Ah
Ø Charging time:6h (Power reached85%)
Ø battery endurance:2.5h
Ø Input power:28A
Ø Structure: Hand-held
Ø Visual lens diameter: ø65mm±5mm
Ø Working distance:5cm±1cm
Ø Output wavelength:320-400nm(Peak wavelength:365nm±3nm)
Ø UV radiation intensity:0.6~2.5mW/cm2
Ø illumination:≥1200Lux
Ø Visible lens magnification: 2 times±20% Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
