Cremation Machine Cremation Furnace Crematory Equipment Human Body Incinerator
During incineration, the body is exposed to a column of flames produced by a furnace fueled by natural gas, oils, propane, etc.
As the corpse is placed in the machine, the container burns down.
Next, the heat dries the body, burns the skin and hair, contracts and chars the muscles, vaporizes the soft tissues, and calcifies the bones so that they eventually crumble.
The bodies are mostly burned around half a hour. There is no smell and no smoke at all because the emissions are processed to destroy the smoke and vaporize the gases that would smell.
Our crematories machine have fourth afterburner to help burn the body completely.
Our cremators adapt the latest combustion technology, four times burning technology ensure the emissions purified.

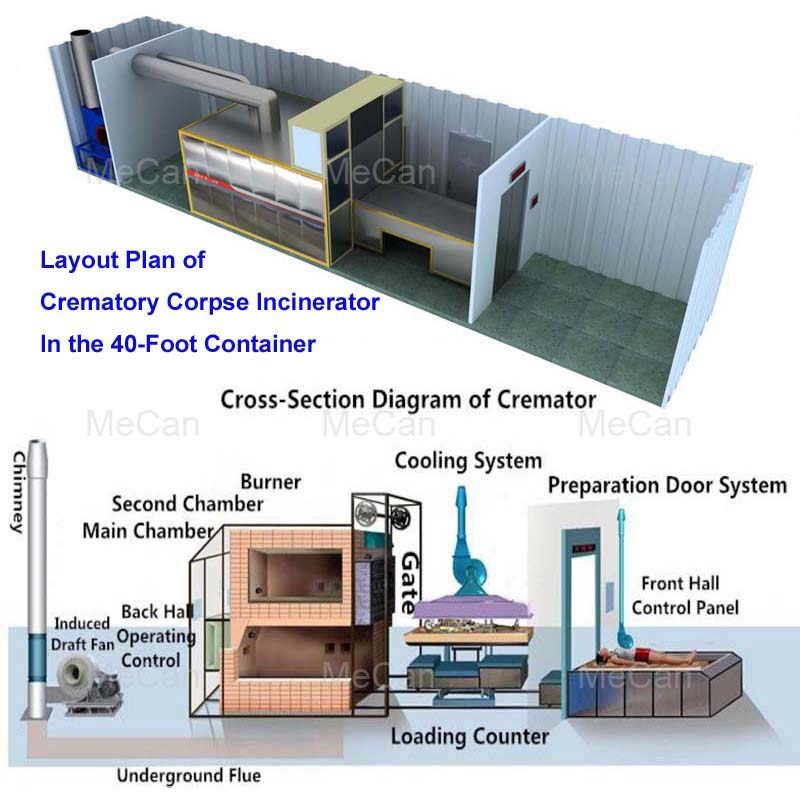

First Time Combustion is direct combustion inside the primary chamber. Integrated with hot blast oxygen supply (300ºC), most smoke and gas get burned as spontaneous combusting of corpse and enforced by the main burner supporting at times.
Second Time Combustion: The smoke and gas substance released from the primary chamber gathered in the secondary burning and multiple collision take place, decomposition and oxidation of that harmful substances speedup this way and by the special construction of the secondary burning chamber.
Third Time Combustion is the strengthen combustion of the gas and smoke. Burner starts work to strengthen the burning if temperature under 700ºC,otherwise above 700ºCthe high temperature gas and smoke burn itself matched with the suitable amount of oxygen.
Fourth Combustion occurred in the gas way and underground smoke channel, gas and gas substances flameless burned totally before injection into the atmosphere.
Cremation, as an option for the final disposition of a deceased person, has been around for thousands of years. While the beginnings of cremation involved somewhat primitive methods for achieving the end result, modern times and technology have given rise to a more standardized version of the process. Our company manufacture human size cremators that reduce the amount of time necessary to complete the cremation to less than half an hours.
Dead Body Burning Machine Price Cremation Incinerator
Model:MC-ND01
Main Features：
During incineration, the body is exposed to a column of flames produced by a furnace fueled by natural gas, oils, propane, etc.
As the corpse is placed in a casket or paper container , the container burns down.
Next, the heat dries the body, burns the skin and hair, contracts and chars the muscles, vaporizes the soft tissues, and calcifies the bones so that they eventually crumble.
The bodies are mostly burned around half a hour. There is no smell and no smoke at all because the emissions are processed to destroy the smoke and vaporize the gases that would smell.
Our crematories machine have fourth afterburner to help burn the body completely.
Specification：
| Dimensions(L*W*H)MM | Single bed 5300*2400*3200 |
| Furnace size (L*W*H)MM | 2200*800*700 |
| Main combustion chamber combustor | 400,000 kcal |
| Secondary combustion chamber combustor | 100,000 kcal |
| Working temperature of main combustion chamber | 700-900 degree |
| Can withstand the highest temperature | 1200 degree |
| Secondary combustion chamber temperature | 900-1100 degree |
| Can withstand the highest temperature | 1400 degree |
| Temperature control method | Automatic |
| Fuel | Light diesel |
| Voltage | 220V or 380V(customizable) |
| Fan power | <4kw |
| Total installed power | <10kw |
| Average energy consumption | 5-10KG/pcs |
| Incineration bed control method | electric |
| Ignition method | automatic |
| Continuous cremation time | 35-50minutes/set |
| Average cooling time | 15-20minutes/set |
| Machine noise | Less than 65 decibels |
| Design life | 15 years |
| Material used | Shell: overall high-grade stainless steel, high-alumina refractory bricks are used in the furnace, and ceramic fiber is used in the insulation layer. |

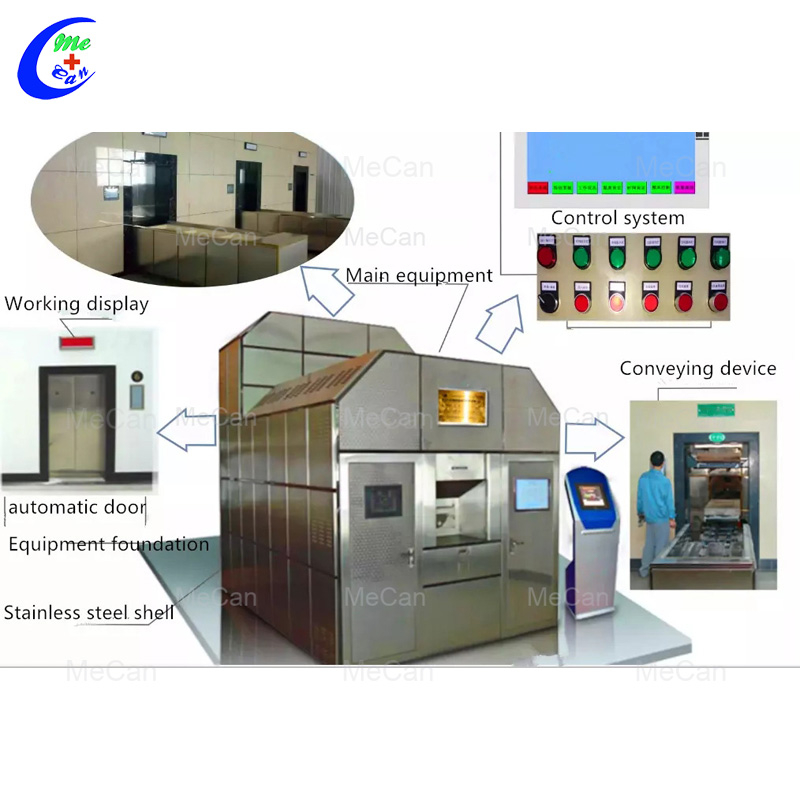

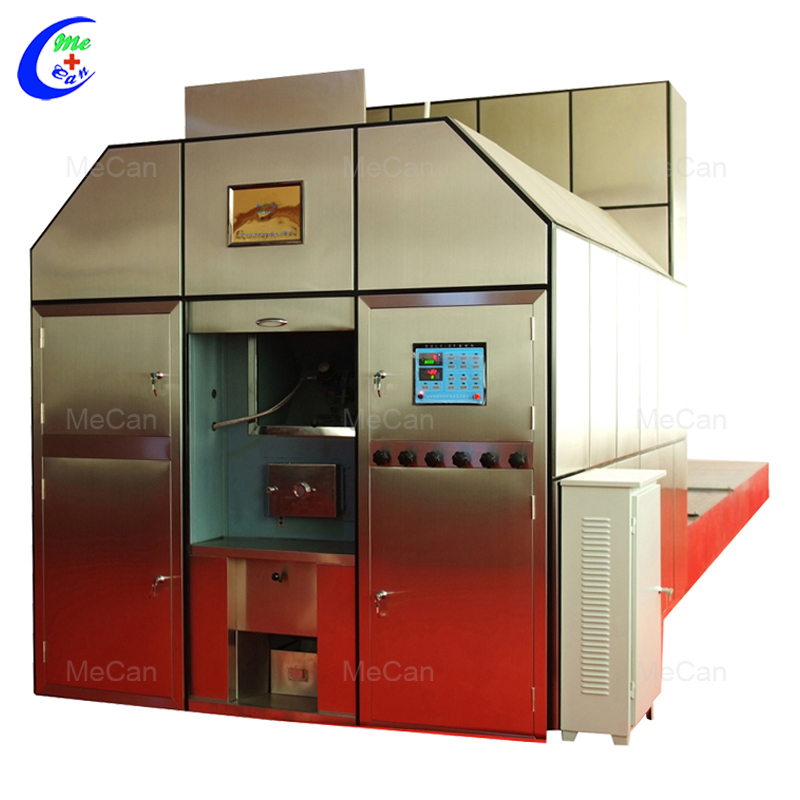

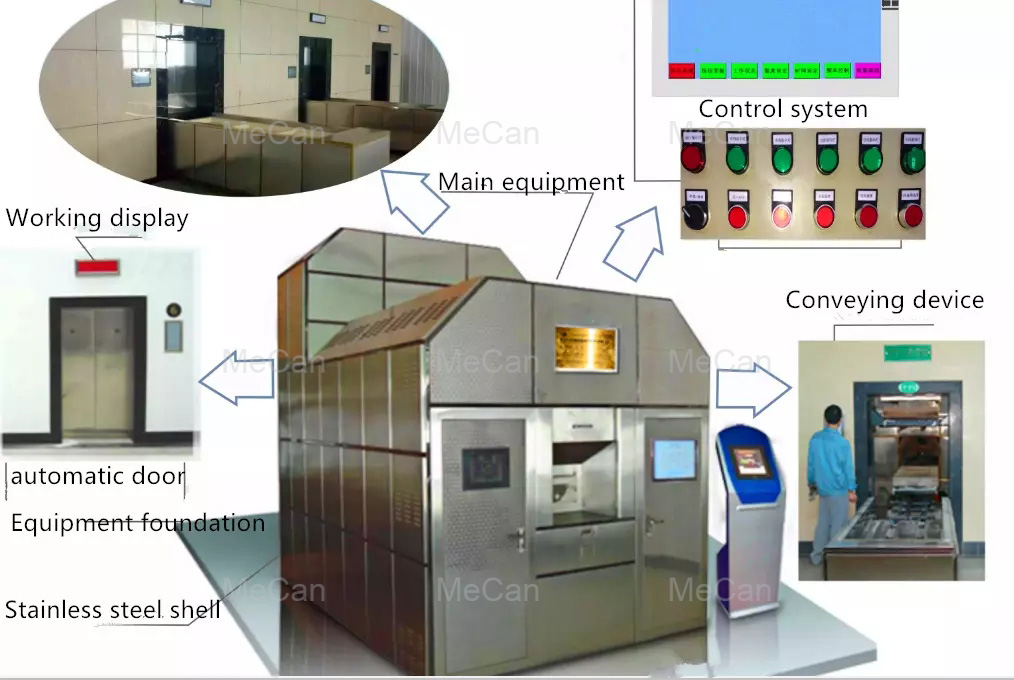

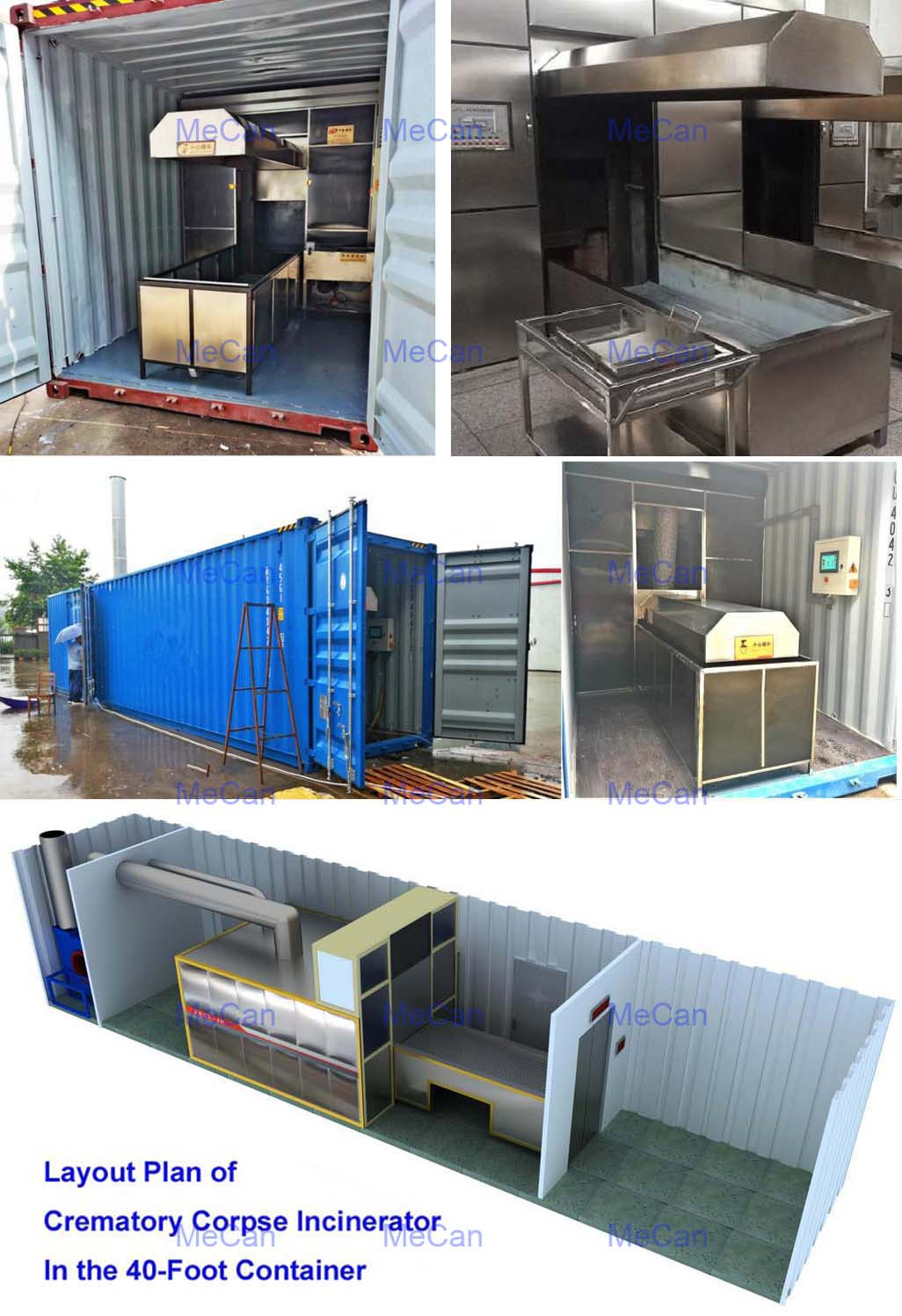

more pictures of our MC-ND01 cremation furnace:
