Customized -86 Degree Lab Deep Refrigerator Chest Ultra Low Temp Laboratory Freezer manufacturers From China

MeCan Medical Customized -86 Degree Lab Deep Refrigerator Chest Ultra Low Temp Laboratory Freezer manufacturers From China,More than 20000 customers choose MeCan. Every equipments from MeCan gets passed strict quality inspection,and final passed yield is over 99.9%.

Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Place of Origin:CN;GUA

  • Instrument classification:Class II

  • Brand Name:MeCan

  • Model Number:MCF-DW-HW138/328/400/438/668

-86 Degree  Lab Deep Refrigerator Chest Ultra Low Temp Laboratory Freezer

Model:  MCF-DW-HW138/328/400/438/668

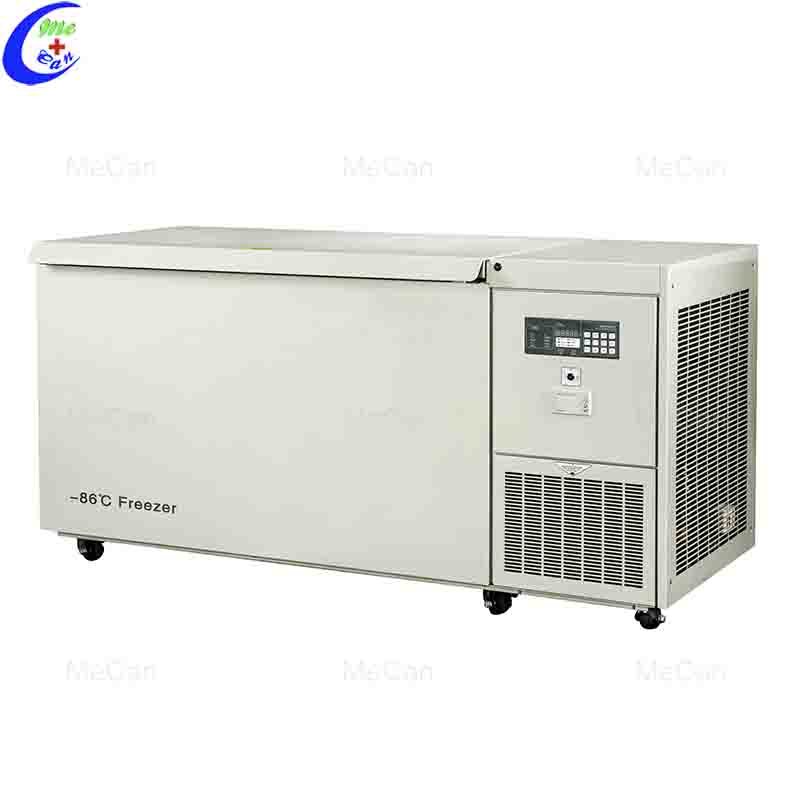

DW-HW328-1 .jpg

DW-HW138-2 .jpgHL668 .jpgDW-HL668-4 .jpg



Specs list of the -86 Degree Chest Ultra Low Temp Laboratory Freezer:

Model

Capacity

External size

(WxDxH) mm

Inside size

(WxDxH) mm

Input power

Weight

(N.W. / G.W.

MCF-DW-HW138

138 liters

890x1320x1009

470*570*490

800W

230/250KG

MCF-DW-HW328

328 liters

890x2005x1009

470*1200*582

1500W

300/320KG

MCF-DW-HW400

400 liters

890x2005x1009

470*1200*582

1500W

300/320KG

MCF-DW-HW438

438 liters

890x2005x1009

540*1270*590

1500W

320/340KG

MCF-DW-HW668

668 liters

1150x2050x1009

815*1200*660

2500W

340/360KG



Control System of the -86 Degree Chest Ultra Low Temp Laboratory Freezer:

Microprocessor-based temperature control system,inside temperature ranging from -10~-86

Can be set freely,  controlling precision is 1.Digital temperature display.

Keyboard lock and password protected configuration page, Delayed start and safe stop interval between restart and being terminated.



Audible and visual alarm: High or low temperature alarm, Power failure alarm, Low battery alarm, Door ajar alarm,   Filter blocking alarm, system failure alarm.

With temperature printer, record 7days data. 72 hour battery back up for printer and controller display.

Power supply: 220V /50Hz 1 phase, can change as 220V 60HZ or 110V 50HZ or 110V 60HZ



Structure Design of the -86 Degree Chest Ultra Low Temp Laboratory Freezer:

Chest type, Stainless steel interior, Outer is painted steel panel, 4units Casters for easy handing

Rotatable assistant door handle, top door with key lock.

Two times foaming technology, double seal design. 155mm extra thickness heat insulation.

Optional: chart recorder, CO2 back up, storage racks, boxes, remote alarm system.



Refrigerator System of the -86 Degree Chest Ultra Low Temp Laboratory Freezer:

Unique refrigeration circulation and unipolar compressor oil-lubricated technology.

China patient technology of mixture refrigeration, which composed of R134a, R404a, R23, R24, N2, R600a and more, CFC free.

Why choose us ?




MeCan Medical  has gone through some important production stages. They cover the preparation of raw materials, parts machining, plating and anodizing, assembly, and testing.

FAQ

1.Technology R & D
We have a professional R&D team that continuously upgrades and innovates products.
2.Quality Control (QC)
we have a professional quality control team to ensure that the final pass rate is 100%.
3.What is your payment term?
Our payment term is Telegraphic Transfer in advance,Western union, MoneyGram,Paypal, Trade Assurance,ect.

Advantages

1.MeCan offer professional service,our team is well-tained
2.MeCan Focus on medical equipments over 15 years since 2006.
3.OEM/ODM, customized according to your requirements.
4.Every equipments from MeCan gets passed strict quality inspection,and final passed yield is 100%.

About MeCan Medical

Guangzhou MeCan Medical Limited is a professional medical and laboratory equipment manufacturer and supplier. For more than ten years, we engage in supplying competitive price and quality products to many hospitals and clinics, research institutions and universities. We satisfy our customers by offering comprehensive support, purchase convenience and in time after sale service. Our main products include Ultrasound Machine, Hearing Aid, CPR Manikins, X-ray Machine and Accessories, Fiber and Video Endoscopy, ECG&EEG Machines, Anesthesia Machines, Ventilators, Hospital furniture, Electric Surgical Unit, Operating Table, Surgical Lights, Dental Chairs and Equipment, Ophthalmology and ENT Equipment, First Aid Equipment, Mortuary Refrigeration Units, Medical Veterinary Equipment.
