-86 Degree Upright Ultra low Temperature Freezer
  • -86 Degree Upright Ultra low Temperature Freezer

-86 Degree Upright Ultra low Temperature Freezer

Model NO.:
Model: MCF-DW-HL538
Price:
USD 1000.00-99999.00 / unit
Delivery:
FOB
Minimum order quantity:
1 unit
Supply Ability:
5000 unit / Month
Country of Origin:
Guangzhou Shenzhen Shanghai Hong Kong
SEND INQUIRY NOW
  • Place of Origin:CN;GUA
  • Instrument classification:Class II
  • Brand Name:Mecan
  • Model Number:Model: MCF-DW-HL538

-86 Degree Upright Ultra low Temperature Freezer



Specs list:



Model

Capacity

External size.

(WxDxH) mm

Inside size

(WxDxH) mm

Input power

Weight

(N.t / G.t)

DW-HL100CE

100 liters

720x793x1000

450*450*500

800W

120/140KG

DW-HL218CE

218 liters

940x840x1552

582x470x768

1000W

225/250KG

DW-HL328CE

328 liters

940x840x1999

580x450x1200

1500W

320/350KG

DW-HL388CE

388 liters

940x840x1999

740x450x1200

1800W

330/360KG

DW-HL528S CE

538 liters

940x840x1999

662x600x1330

2000W

360/380KG

DW-HL668CE

668 liters

996x1075x1997

815x667x1200

2700W

400/420KG

DW-HL768CE

758liters

996x1190x1997

930x665x1200

2700W

420/450KG

DW-HL828

CE

828liters

1230x996x2056

930x710x1308

3200W

430/460KG

   DW-HL508

          CE

(Double door and system)

508 liters

1200x882x2011

Up:

880*570*516

Down:

880x580x516

2000W

320/340KG

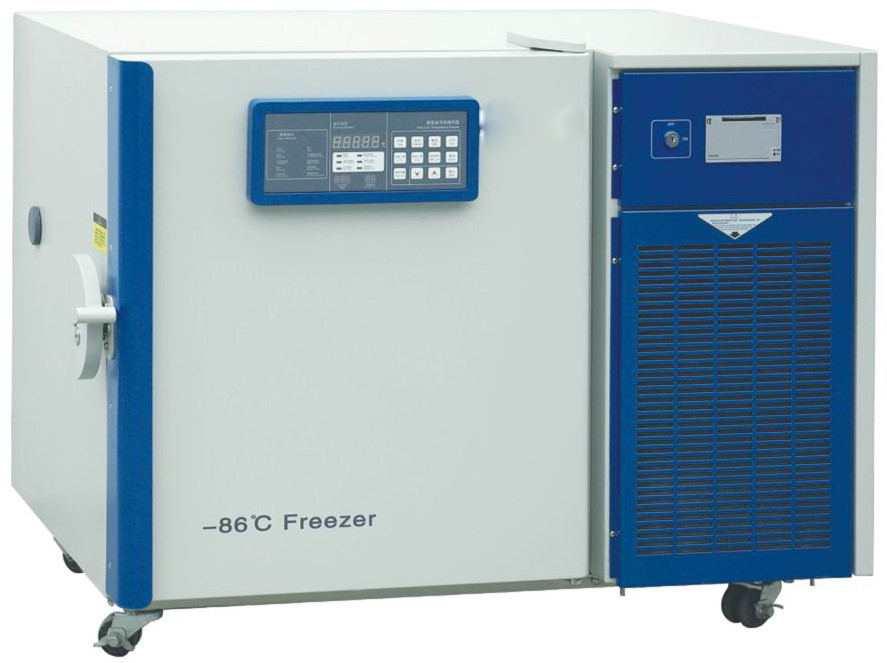

Photo for DW-HL100 CE

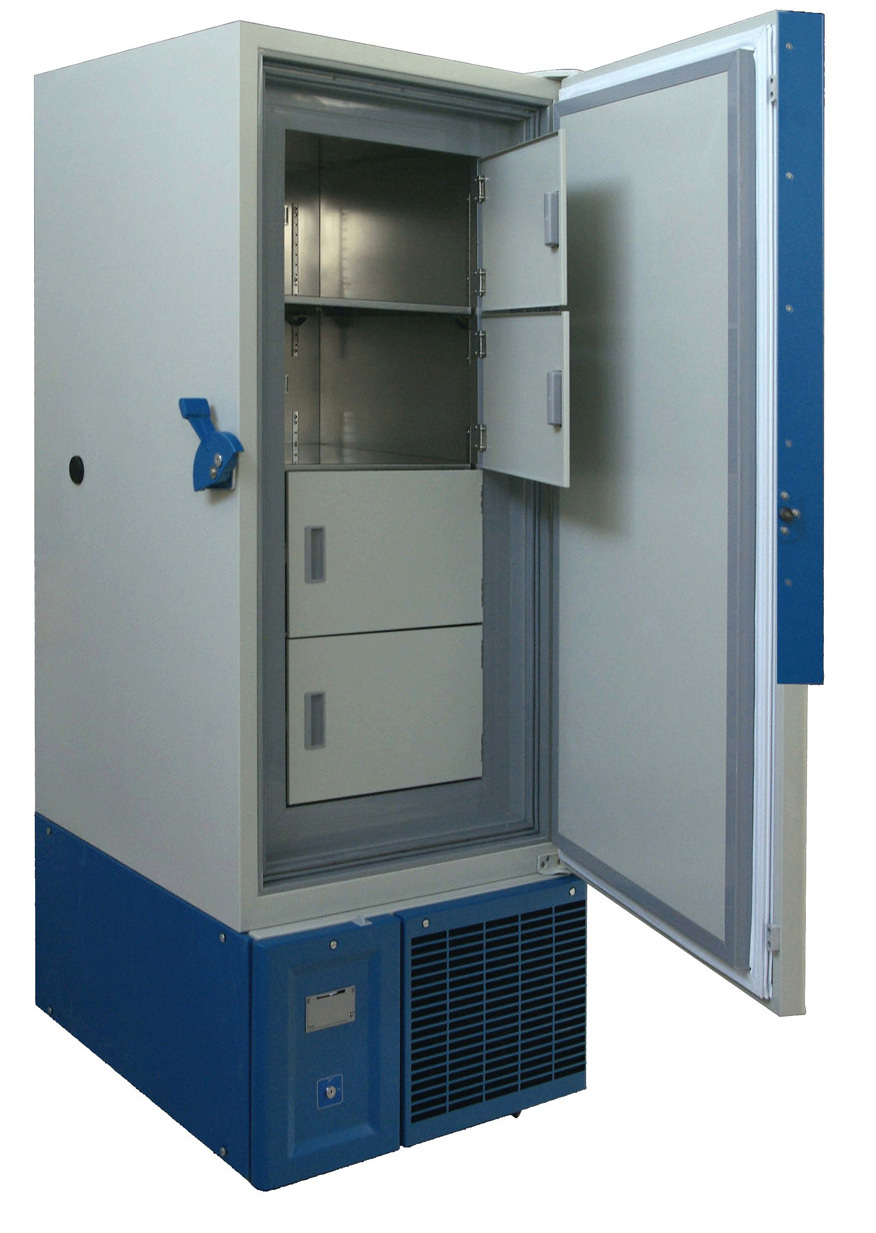

Photo for DW-HL 218 CE

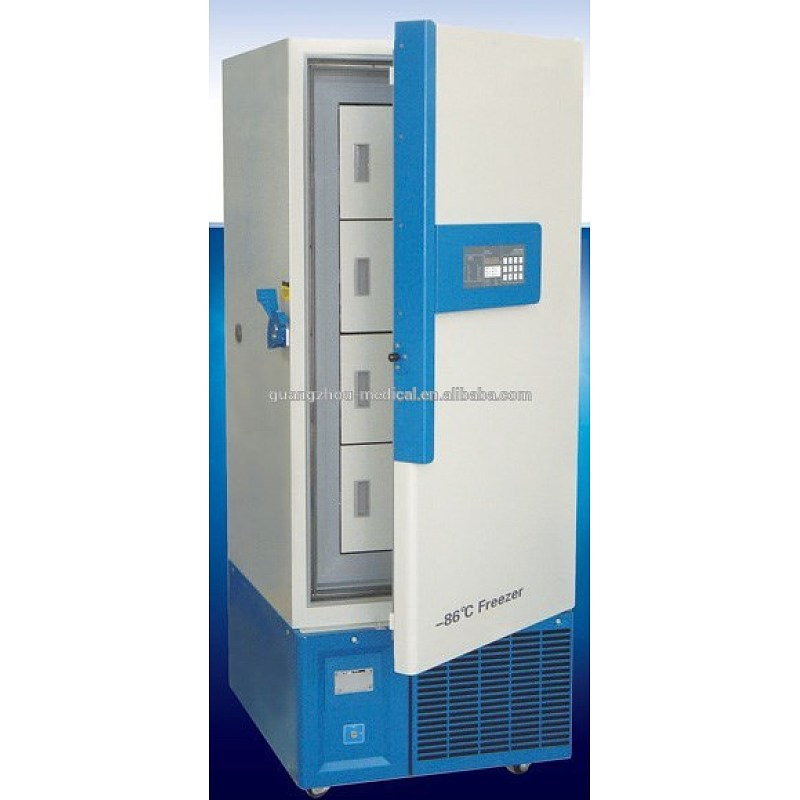

Photo for DW-HL328 CE,DW-HL388 CEandDW-HL538 CE

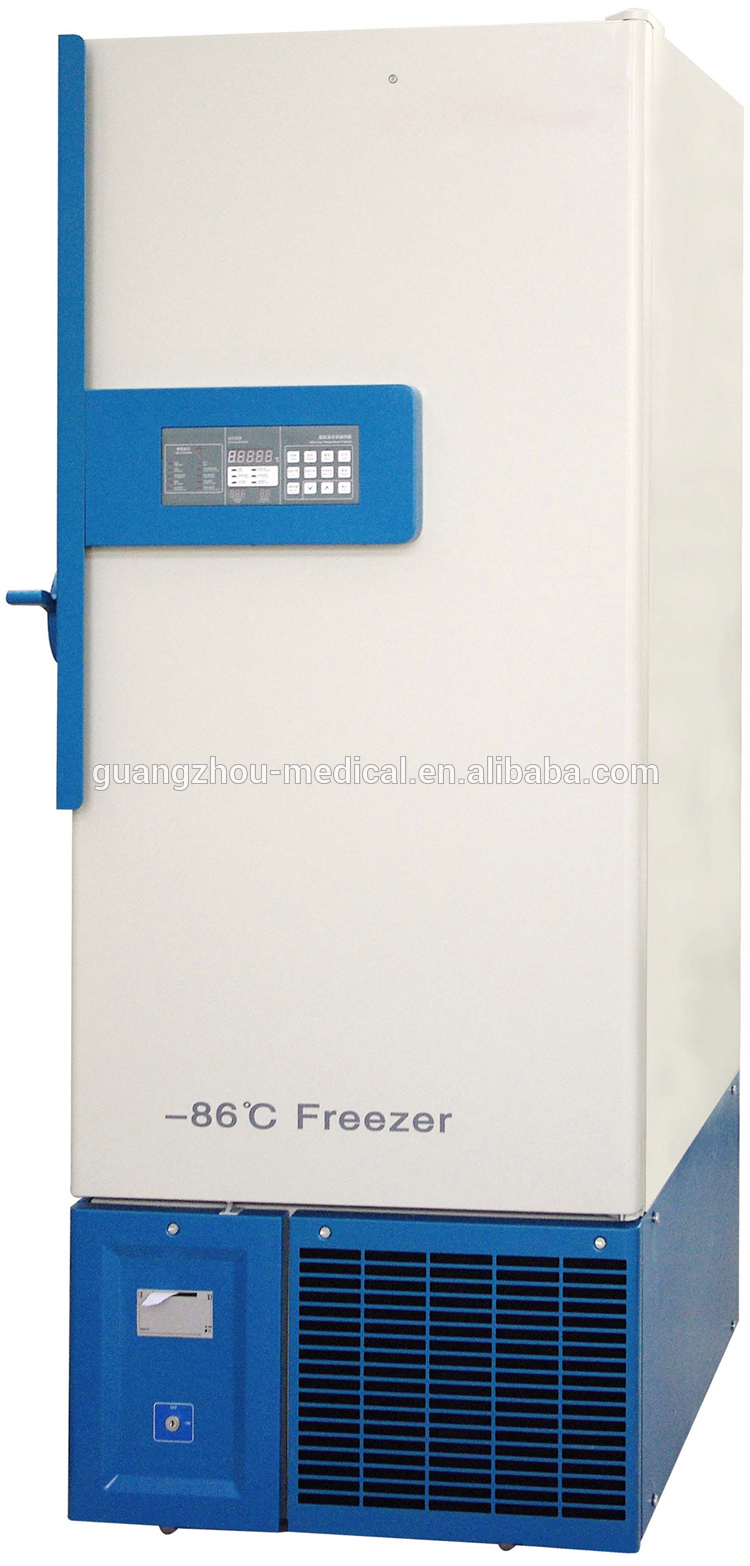

Photo for DW-HL668 CE andDW-HL768 CE








Photo for DW-HL828 CE








Photo for DW-HL508 CE




Structure Design of -86 Degree Upright Ultra low Temperature Freezer :
Inside temperature ranging from -10℃~-86℃ can be set freely,
controlling precision is 1℃
Upright type: Stainless steel interior, Outer is painted steel panel
Front opening lockable door with full height handle
155mm foaming insulation (DW-HL538 is 100mm with VIP board)
Vacuum release port
Inner 3 shelves Stainless steel with inner door (DW-HL100/218 is 2shelves)

to reduce noise and improve the cooling
temperature come to -86℃ steady.
2-4 hours come to -86℃.very fast



Control System of  Ultra low Temperature Freezer :

Microprocessor-based temperature control system, platinum resistance sensors
Digital temperature display
Keyboard lock and password protected configuration page
Audible and visual alarm:
High or low temperature alarm, Power failure alarm, Low battery alarm, Door ajar alarm, Filter blocking alarm,system failure alarm
With temperature printer, record 7days data.
72 hour battery back up for printer and controller display
4units Casters for easy handing
Mixture gas with R134a, R404a, R23, R24, N2, R600a and more, CFC free
Certificate: CE mark for DW-HL328/538, ISO9001, ISO14001, ISO13485
Power supply: 220V /50Hz 1 phase, can change as 220V 60HZ or 110V 50HZ or 110V 60HZ
Optional: chart recorder, CO2 back up, storage racks, boxes





-86C 218L 328L 388L 538L668L 768L 828Lps1.jpg

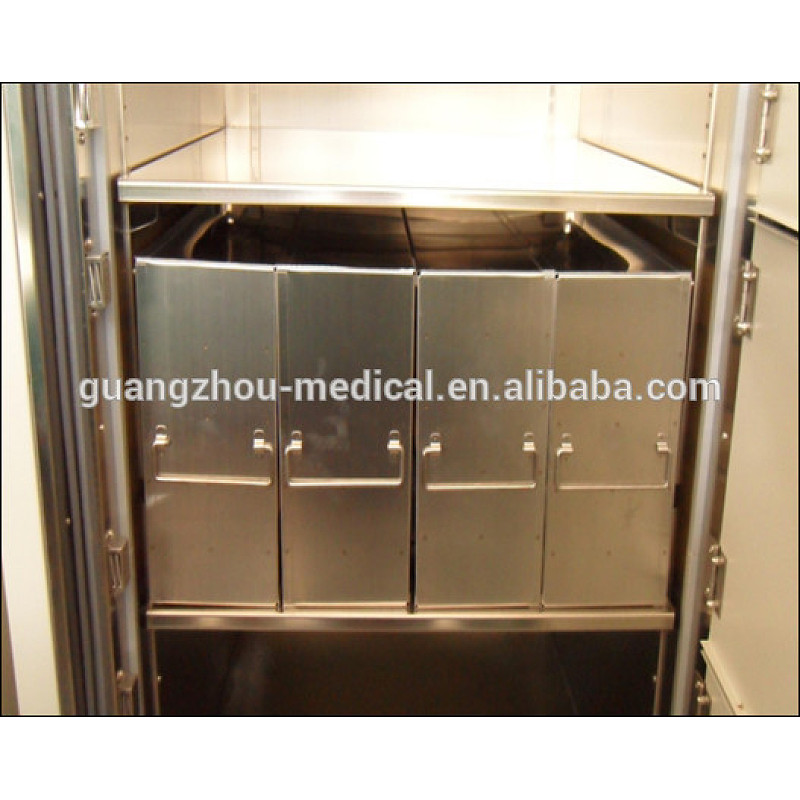

Storage racks:

DW-HL218 rack size: D140mm,L415mm,H280mm 6units inside, 120units box(2”)

DW-HL388 rack size: D140mm,L550mm,H225mm   12units inside,240units box

DW-HL538 rack size: D140mm,L550mm,H280mm   16units inside,320units box

DW-HL668 rack size: D140mm,L550mm,H280mm  20units inside,400units box

DW-HL768 rack size: D140mm,L550mm,H280mm  24units inside,480units box

DW-HL828 rack size: D140mm,L550mm,H320mm  24units inside,720units box
