1 & 2 Channels Electric Coagulation Meter Portable Blood Coagulometer
  • 1 & 2 Channels Electric Coagulation Meter Portable Blood Coagulometer

1 & 2 Channels Electric Coagulation Meter Portable Blood Coagulometer

Model NO.:
MCL-CA51 / 52
USD 1000.00-99999.00 / unit
Minimum order quantity:
1 unit
Supply Ability:
3000 unit / Month
Country of Origin:
Guangzhou, Shenzhen, Shanghai, Hong Kong
Stock Time:
3 ~ 5 Working days Days
  • Place of Origin:CN;GUA
  • Model Number:MCL-CA51 / 52
  • Brand Name:MeCan
  • Type:Blood Analysis System
  • Instrument classification:Class II

1 & 2 Channels Electric Coagulation Meter Portable Blood Coagulometer




Model 1:  MCL-CA51   Single Channel

Model 2:  MCL-CA52    Two  Channels

Model 3:  MCL-CA54   Four  Channels


Test Items
PT, APTT,  TT,  Fib,  RepT,  VT
AT-Ⅲ,  Protein-S,  Protein-C,  LA,  Hep


Model 1:  MCL-CA51   Single Channel Coagulometer (All in Emglish)

Single Channels Coagulometer.jpg

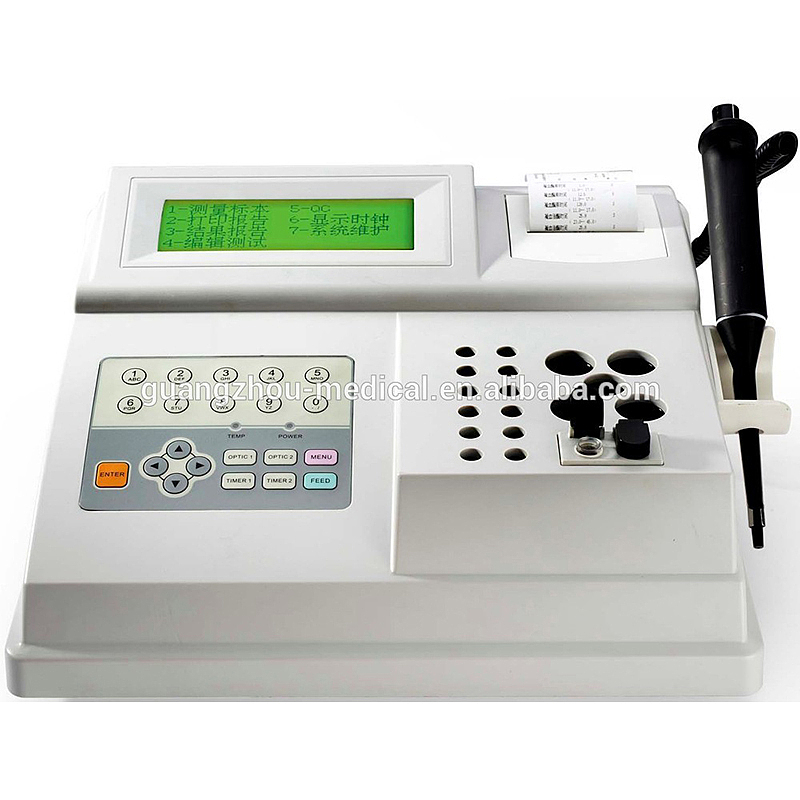

Model 2:  MCL-CA52  TWO Channels Coagulometer  (All in Emglish) Electric coagulation meter.jpg


Model 3:  MCL-CA53   Four Channels Coagulometer  (All in Emglish)

4 Channels Electro Blood Coagulation Analyzer Machine meter with Reagent instrument.jpg



Specifications of the  1 & 2 Channels Electric Coagulation Meter Portable Blood Coagulometer:

Test Method: Dispersionlight nephelometric analysis
Test Principle: The highest point on first order differentiation, Percentage analysis
Zero point correction: auto track the zero point, eliminate the interference of sample and reagent
Wavelength: 470nm

Light Source: Cold Lamp with high brightness and long lifetime
Detector: unique Dispersion light detector with high sensitivity and repeatability,immunized the effect
on result of jaundice,hemolysis,chyle and turbidity on plasma
Test Channel: each channel is independent, one or more,same or different items can be tested

Incubator: Provide reagent and sample with stable incubator,
Incubator Temperature:37±0.2℃
Measure trigger: Auto trigger the measurement through configured pipette
Item modify: easy to add or edit items, easy to set the items parameters

Calibration: single-point calibration; multipoint calibration; auto store and match with calibration curve
Quality control: auto draw the quality figure
Reagent: Open reagent system
Reagent volume: ≤40μL
Sample volume: ≤40μL

Memory: Save more than 10000 samples results, and auto recovering the results when power is off during working .
Repeatability: CV≤5%
Calculative item: S,%,PTR,INR,Fib can be get through PT, This leads to lower the cost of reagent
Printer: Inner thermal printer,can be connected to external printer

Information edit: easy to input and edit the detail information of patients
Interface: RS-232 serial port,can be connected to external printer and computer

Working Environment: Temperature:10℃~30℃;Humidity:≤70%RH

Voltage: 85-264V,Auto adapt according to the input voltage
Power : ≤80W
Quality System: Recognized by CE, TUV and CMD.

Standard Packing suitable for deliver by sea or by air
CA51: G.W.: 4KG Packing Size: 36*36*26cm
CA52: G.W.: 7KG Packing Size: 44*42*35cm
CS54: G.W.: 8KG Packing Size: 44*42*35cm


Lab Analyzer

We provide different kinds of Laboratory Analyzer. Some are shown in the following pictures. For more infomation, please refer to our webside:




Our Advantage

1. One stop supplier for medical equipments and laboratory equipments in Guangzhou
2. More than 2000 hospitals have become our partners
3. Superior quality with factory price
4. Quick reply and considerate service
5. CE,ISO,FDA Certificate
6. Fast delivery by air, sea or in other ways
7. More than 10 years in medical machines supply business
8. Exported to more than 109 countries
9. Warranty time: AT LEAST 12 months and Over 8 years' technical and accessories-change support
10.Excellent and immediate after-sale service



1. From the Biomedical Engineer of Senegal.

hello, the installation of the RX unit was a success. all is ok and i have a very good picture.



2. From Dr. Salman Hasan, Doctor from Nigeria

Hello we have installed the radio and we are really satisfied with its operation.


3. From Dr. Emma Adapoe, Ghana, Africa.

 Mecan Medical Company Limited:

I have tried them for their honesty

I have tested their products for Good Quality

I have experienced their Good and and nice service and customer relations

I endorse Mecan because they stand the test of time.


Please contact us and let’s talk details for the  1 & 2 Channels Electric Coagulation Meter Portable Blood Coagulometer .
