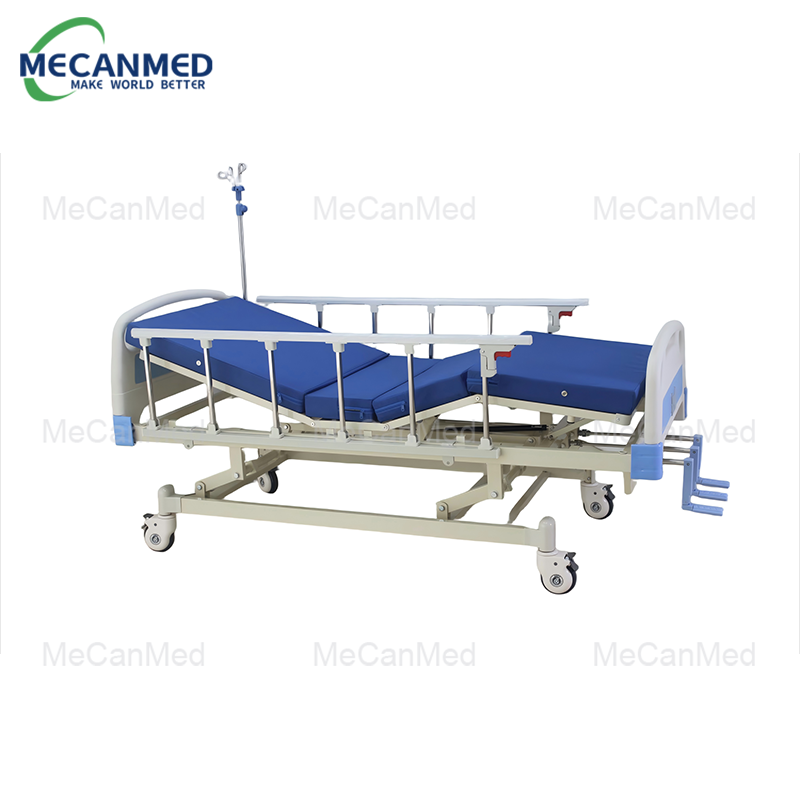

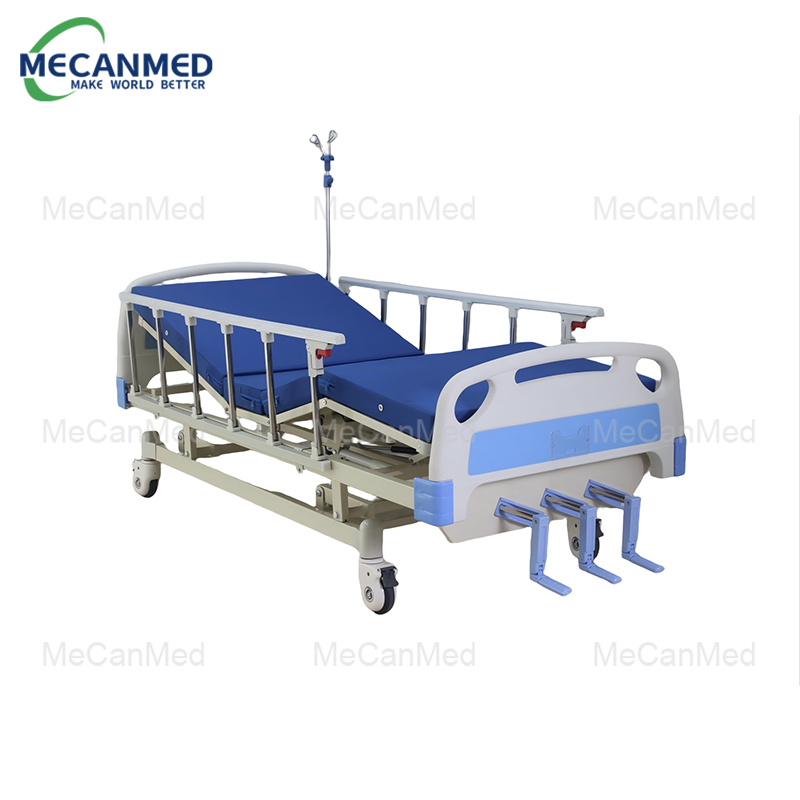

Medical Manual Hospital Three Crank Bed
Model:MCF0014
Description
The Manual Three Crank Hospital Bed is engineered to deliver dependable patient support with smooth mechanical adjustment and durable construction. Designed for hospitals, clinics, and long-term care settings, it offers flexible positioning, ergonomic handling, and enhanced bedside safety.
Key Features
Flexible Three-Crank Adjustment
Independent controls for back-rest (80° ± 5°), knee-rest (40° ± 5°), and height adjustment (250 mm range)
Concealed crank system with built-in limit protection for safe and quiet operation
High-strength ABS crank handles with comfortable grip
Enhanced Patient Safety
Full-length anti-pinch aluminum alloy side rails
Six stainless-steel support posts, durable and non-deforming
Rails fold flush without dropping below mattress level to prevent slipping
Strong & Stable Bed Structure
Boat-shaped frame made from 1.2 mm cold-rolled steel
Load capacity ≥ 250 kg without deformation
Mattress platform with vent holes for airflow and anti-slip stability
Clinical Convenience
Multiple drainage bag hooks and IV pole sockets
Quick-release head & foot boards with patient info card slot
Under-bed clearance ≥430 mm for cleaning and equipment access
High-Quality Components
One-piece PP head/foot boards—fade-resistant, anti-aging
Dual-layer rustproof coating with antibacterial protection
5-inch central-locking casters for smooth, quiet movement
Optional: Bedside cabinet, over-bed table, telescopic IV pole
Technical Specifications
Dimensions: 2060 × 970 × 500–750 mm
Mattress Platform: 1900 × 850 mm
Load Capacity: ≥ 250 kg
Caster Size: 5-inch central-locking system
Material: Cold-rolled steel + PP boards + aluminum alloy rails
Why Choose This Manual Hospital Bed?
This manual three crank hospital bed offers the ideal balance of stability, adjustability, and cost efficiency, making it a dependable solution for medical facilities seeking long-lasting performance with easy mechanical operation.
