Quality 25KW U-Arm Digital X-Ray Machine Manufacturer | MeCan Medical

25KW Digital X-Ray Machine  compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.MeCan Medical summarizes the defects of past products, and continuously improves them.

Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

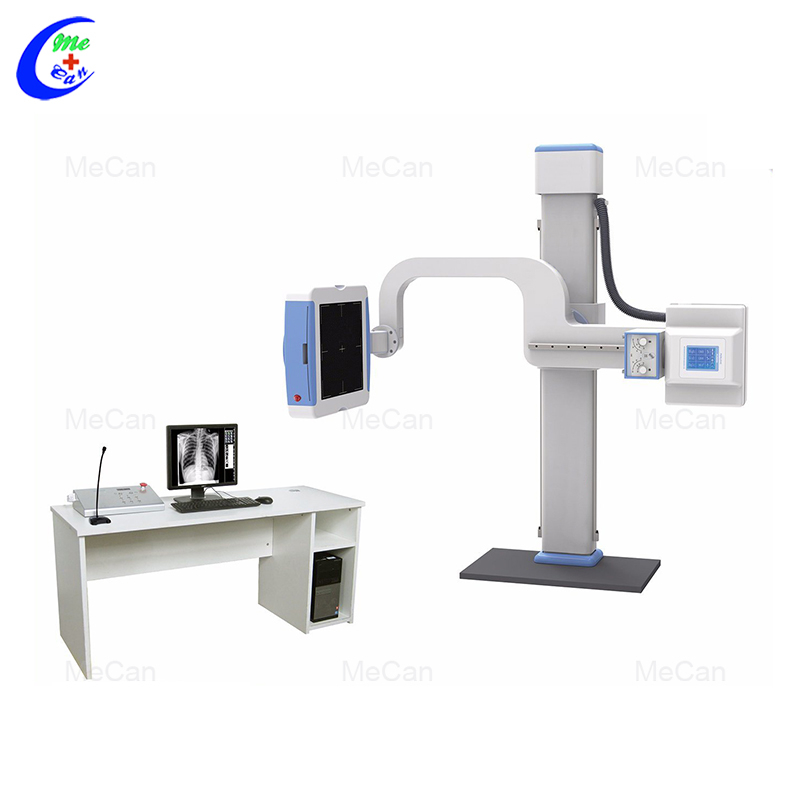

High Frequency 25KW U-Arm Digital X-Ray Machine

Model: MCX-D014


I. Application:

This machine is applied to take radiography on every part of human body, such as head, limbs, chest, limbs and abdomen and etc.


II. Specification:

High-frequency X-ray machine Output power 25kW
Main inverter frequency 40kHz
X-ray tube Dual-focus X-ray tube Small focus:0.6  Large focus:1.3
Output power 11kW/32kW
Anode Capacity 80kJ(107kU)
Anode Angle 15°
Speed of rotating anode 3000rpm
Tube Current 200mA
Tube voltage 40-125kV
mAs 0.4-360mAs
AEC Option
Digital Image System Digital Detector Field of view 17”*17”
Pixel 3K*3K
Ultimate spatial resolution 3.7LP/mm
Pixel size 143um
Output grayscale 14bit
Imaging time ≤9s
Image Workstation Acquisition module Inside enhancement module
Image information management Dicomimage transmission
Dicomfilm printing
Dicomimage storage(hard disk, compact disk)
Mechanical structure  and performance U-arm Vertical movement range ≥1250 mm(motorized control)
Focus-screen movement range ≥800mm(motorized control)
Rotation range -40°-+130°(motorized control)
Detector rotation -40°-+40°
Photography table (Optional) Table size 2000mm*650mm
Table height ≤740mm
Transverse movement 200mm(electromagneticlock)
Longitudinal movement 100mm(electromagnetic lock)
Power supply 380V 50/60Hz


III. Product Details

1. Type of generator and X-ray tube:

Advanced 40kHz high frequency high voltage type generator, realize 1ms instant exposure, high performance.

Three exposure method free change: KV, mAstwo adjustment, KV,mA, s three adjustment, to satisfy different habit of different doctors.

Rotate double anode 0.6/1.3, with high heat capacity of 107KHU

Digital micro-processed closed loop control and malfunction alarming system to reduce the dose of X-ray, protect the patients and doctors very well.

LCD touch screen, beautiful appearance and convenience to operate.


2.Flat Panel Detector

Apply with domestic brand Flat panel detector, which could give perfect digital images directly.

3K×3K Acquisition matrix, 143um pixels size, and 3.7Lp/mm ultimate spatial resolution, with DQE values ≥70%

17〞×17〞Large acquisition area and with the non-center processing technology, no matter the center and border, the quality of the image is the same.

The detector could be rotated ±45 degree along the axis direction, to satisfy the different photograph requirement of every body parts, such as Ankle joint, lateral spine

The detector has the self-protection function.It can stop to move when it detect the distance in front of the barrier.


3. Digital Working Station:

Case registration:Auto registration,equipped with DicomWorklist SCU. To simplify the input process for doctors,greatly reduce the amount of labour and greatly improve the working efficiency

ImageAcquisition: Automatic window adjustment, Automatic cropping, Automatic transmit.

Image Processing: Tissue equilibrium, W/L adjustment, Gamma correction, interest district, reversed phase, noise reduction, smooth, sharpen, pseudo color, edge extraction, shadow compensation, filter nuclear, single window, dual-window, four windows, movement, right rotated 90°,left rotated 90°,level mirror image, vertical mirror image, magnifying glass, image zooming, reset, layer information, label character, drawing label, length measurement, angle measurement, rectangular length, rectangular area, elliptic length, elliptic area.

Dicom Image Transmit, Dicom Image Storage, Dicom Image viewing, Dicom Image printing.

Convenient to connected to the PACS system


4. Operation System:

Be equipped with19〞LCD high resolution monitor screen,the delicate and richness degree of image is far higher than the normal medical monitor.International advanced level.

These features can make the doctor diagnose more accurate and smooth.

Human graphical touchable screen.Just need a slight click on the human body position and shape,the parameters can be set easily.

Be equipped with the microphone and remote exposure control.The doctor can control outside the operating room.

Be equipped with various set of infrared facilities to protect the machine from the mis-operation of the doctors.

Optional the operating room.Battery power supplied, Infrared unlock

Optional CODONICS, digital printer.


5. Mechanical Movement:

The self-designed and manufactured electric U-arm mainframe can move up and down, and rotate in a wide range, which can satisfy the requirements of multi-site photography.

Adopting original Italian geared motor, the features are reliable performance,lower noise,longer service life.

The unique three three-dimension and three independent control system,can achieve one-key reposition.

For Close-distance Range,the operator can operate the machine by the film key on the combined generators and X-ray tube;For Middle distance Range,can operate by the hand controller;For Long-distance Range can operate by the touchable LCD screen outside the operating room


IV. Standard Configurationt

Name Qty
New design U arm frame 1 unit
High voltage high generator 1 unit
Digital workstation 1 set
19" LCD display  1 unit
Electric cabnit 1 unit
Collimator 1 unit
17"*17" flat panel detector 1 unit
X ray tube assembly 1 unit


V. Optional: U-arm radiography table

1. Equipped with build-in battery for motorized movement.

2. Infrared sensor design, feet trigger, release your hands.

3. Low-absorption table top materials.

4. Sensor type electromagnetic lock for table top movement.

5. All-direct movement tabletop, easy to position.


More details of MCX-D014 Digital X-Ray Machine


The product features excellent noise reduction performance. When sound waves travel through the panels, its fiberglass fibers or foam pores will vibrate and increase friction.
