- Type:Blood Analysis System
- Place of Origin:China(Mainland)
- Instrument classification:Class II
- Brand Name:Mecan
- Model Number:MCL-KT6400

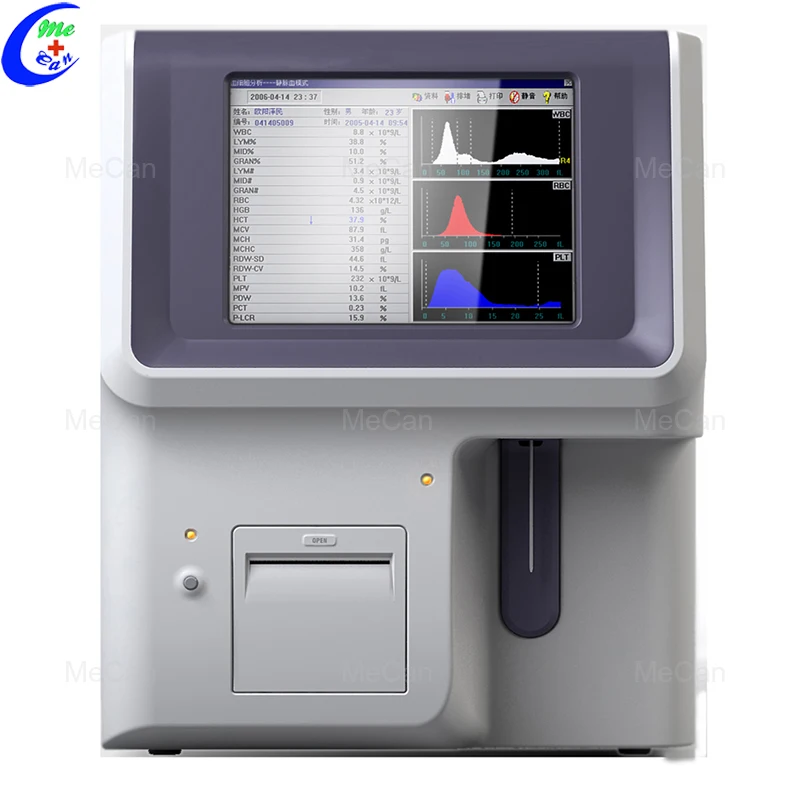

3 Part-Diff BloodTest Machine Fully Automatic Auto Hematology Analyzer
Model: MCL-KT6400

Flexible and Easy To Use
1.Fully automatic analysis cycle
2.Automatic internal and external probe cleaning
3.High Reliability and Safety
Total Solution For QC and Calibration
1.Comprehensive QC programs including L-J , auto draw and print QC graph
2.Automatical and manual calibration
3.Unique calibration program with fresh blood
Customizable software is available
1.Huge storage of 30,000 patient with histogram
2.Easy to check the patien data
3.Programmable multi-format printout
This machine is with 3 diff,20parameters with 3 histogram.
Parameter:WBC, Lymph#, Mid# , Gran#, Lymph%, Mid%, Gran%, RBC, HGB, HCT, MCV, MCH,MCHC,
RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, WBC Histogram, RBC Histogram, PLT Histogram
Specifications:
Test principle | Electrical resistence for counting and Cyanide free method for HGB |
Clot clear | High voltage burn and high pressure flush |
Sample volume | whole blood: 9.8μl,prediluted:20μl |
Aperture diameter | WBC:100μ m, RBC,PLT: 70μ m |
Chambers | Two chambers |
Throughput | 60 samples /hour |
Language: | English, Spanish, French, and Chinese. |
Reference range type | newborn, children, male, female and general. |
Display | 10.4 inch color touch screen, show all parameters and histograms |
Input and output | USB, keyboard, mouse, Parallel Port,RS232 serial port, can be connected to the network by external computer |
Working Environment | Temperature:10℃~35℃, Humidity: ≤85% RH |
Voltage | AC 110 V~240V,50Hz/60 Hz±1Hz ,Auto adapt according to the input voltage |
Dimension | 370mm×435mm×472mm |
Net weight | 30Kg |
Performance
Parameter | Linearity | Precision(CV%) |
WBC(109/L) | 0.3~99.9 | 2.5(7.0~15.0) |
RBC(102/L) | 0.20~8.0 | 2(3.5~6.0) |
HGB(g/L) | 10~250 | 1.5(110~180) |
MCV(FL) | | 0.5(80.0~110.0) |
PLT(109/L) | 10~99.9 | 5(150~500) |
Carry over | WBC≤2% RBC≤1% HGB≤2% PLT≤2% |
