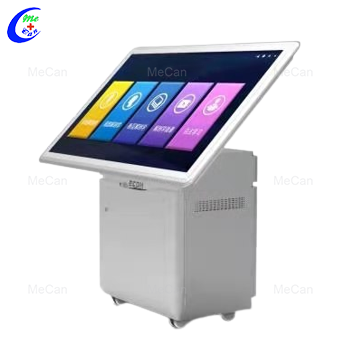

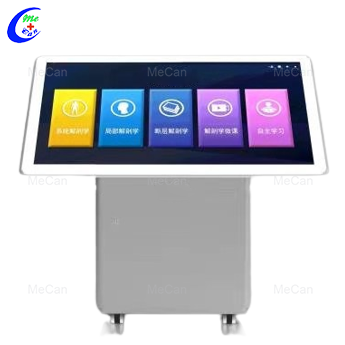

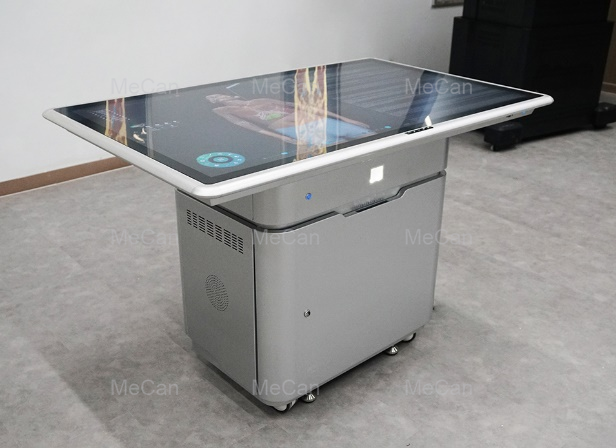

3D Human Anatomy Model Overview:
Welcome to our 3D Human Anatomy Model, a cutting-edge virtual simulation tool designed for medical learning and clinical applications. This product combines advanced technology to provide rich features to help you delve into human anatomy, offer reference material, support clinical applications, and provide bilingual support in both Chinese and English.
|
3D Human Anatomy Model Features:
1. High-Resolution SD Data and Detailed Display: Our model offers high-resolution SD data ensuring precise representation of anatomical structures. You can easily explore the microstructures of various parts of the human body.
2. Touch Control Operation and Virtual Simulation:
Utilizing touch screen controls, you can freely rotate, zoom in, and zoom out the model for a better understanding of different anatomical structures. The virtual simulation feature immerses you in the internal workings of the human body for in-depth exploration.
3. Clinical Application Assistance and Study Reference:
Whether you're a medical student, a physician, or a medical researcher, our product becomes your invaluable assistant. It can be used for clinical diagnosis, surgical planning, as well as medical education and research.
4. Bilingual Support (Chinese-English) and Wide Applicability:
This product supports both Chinese and English, making it accessible to users globally. It benefits not only the medical field but also educational institutions and research organizations.
5. Digital Microscopic Structures:
In addition to overall anatomical structures, our product provides digital microscopic structures, allowing you to delve deep into the tiny tissues and cellular structures of the human body.
6. Virtual Simulation Teaching System for Human Embryology:
Our product includes a virtual simulation teaching system for human embryology, providing students with an in-depth understanding of embryonic development and supporting medical education.
|
3D Human Anatomy Model Specifications
Certification | CE, FCC,ISO |
Computer Workstation | I7 above generation 10 /64G DDR4 3200 /2T NVME SSD /RTX3080 above 10G /win10 |
Operation Voltage | 110V~240V 50/60HZ |
Operation Temperature: | 0°~40° |
Lifting System | Maximum Rotation 45 ° |
Technical Specifications of LCD Panel | High Transparency Glass | Thickness 6mm,Transmittance≥97% |
Size | 55" |
Panel Brand | LG |
Panel Type | a-si TFT-LCD |
Resolution | 3840*2160 |
Brightnees (typ)/(min) | 700 cd/㎡ (typ.) |
Contrast Ratio | 1200:1 |
Response Time | 6ms (typ.) |
Pixel Pitch | 0.105×0.315 (H×V) |
Visual Angle | 89/89/89/89 |
Refresh Frequency | 60HZ |
Colour | 16.7M |
Display Area | 1209.6(H) × 680.4(V) |
Capacitive Screen | Response Time | First click<16ms |
Touch Points | 40 points |
System Stability | No drift, no change with the environment |
Touch Diameter | 5 mm |
Touch Accuracy | Touch area：95%，touch accuracy：± 2mm |
Communication Protocol | TUIO, Flash, Windows 8/7 Multi-touch HID |
Motherboard Parameters 4K | Interface: V by one 60Hz |
Resolving Power: 3840x2160@60HZ |
Input Interface：HDMI(2.0)、DVI、USB、VGA |
Output Interface: audio output, V by one |
Operation Voltage: DC+12V；+5V；+5Vstb；(+/-0.2V) |
