Intro to 4 Channels Electro Blood Coagulation Analyzer, automatic coagulation analyzer MeCan Medical

MeCan Medical Intro to 4 Channels Electro Blood Coagulation Analyzer, automatic coagulation analyzer MeCan Medical,MeCan provide one-stop solutions for new hospitals,clinics,labs and universities,has helped 270 hospitals,540 clinics,190 vet clinics to set up in Malaysia,Africa,Europe,etc.we can save your time,energy and money.

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Place of Origin:CN;GUA

  • Model Number:MCL-CA54

  • Brand Name:MeCan

  • Type:Blood Analysis System

  • Instrument classification:Class II

4 Channels Electro Blood Coagulation Analyzer, automatic coagulation analyzer



Coagulometer /  Blood Coagulation Analyzer



Model 3:  MCL-CA54    Four  Channels

Model 1:  MCL-CA51   Single Channel

Model 2:  MCL-CA52   Two  Channels



Test Items
PT, APTT,  TT,  Fib,  RepT,  VT
AT-Ⅲ,  Protein-S,  Protein-C,  LA,  Hep

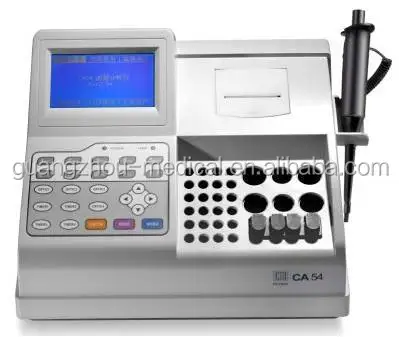

Model 3:  MCL-CA54    Four  Channels

Blood Coagulation Analyzer

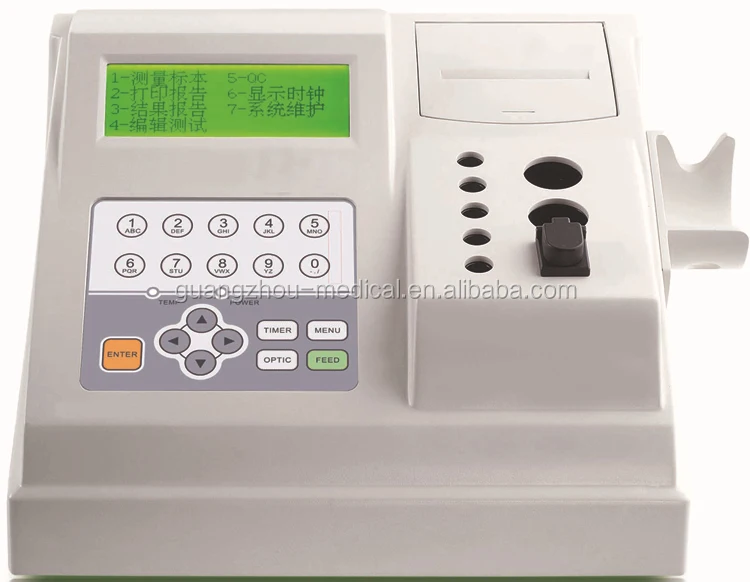

Model 1:  MCL-CA51   Single Channel Coagulometer

Single Channels Coagulometer.jpg

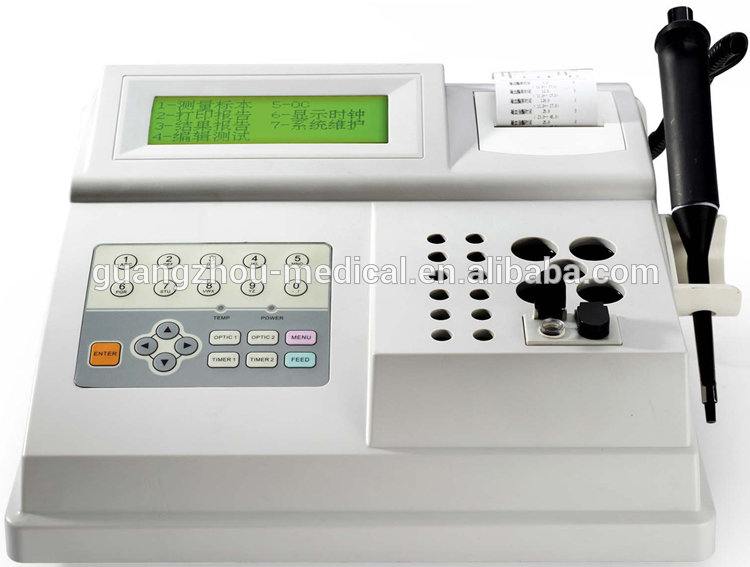

Model 2:  MCL-CA52   TWO Channels Coagulometer

 Electric coagulation meter.jpg







Specifications for  4 Channels Electro Blood Coagulation Analyzer, automatic coagulation analyzer

Test Method: Dispersion light nephelometric analysis
Test Principle: The highest point on first order differentiation, Percentage analysis
Zero-point correction: Auto track the zero point, eliminate the effect of sample and reagent
Wavelength: 470nm


Light Source: Cold Lamp with high brightness and long lifetime
Detector: Unique dispersion light detector with high sensitivity and repeatability, immunized the effect
on result of jaundice,hemolysis,chyle and turbidity on plasma
Test Channel: 4 channels,each channel is independent, one or more same or different items can be test
Simultaneously


Incubator: Provide 28 incubators for reagent and sample
Incubator Temperature:37±0.2℃
Measure trigger: Auto trigger the measurement through configured pipette
Item modify: easy to add or edit items, easy to set the items parameters


Calibration: single-point calibration; multipoint calibration; auto store and match with calibration curve
Quality control: Auto draw the QC figure
Reagent: Open reagent system


Reagent volume: ≤40μL
Sample volume: ≤40μL


Memory: Save more than 10000 samples results, and auto recover the results when power is off during
Working condition
Repeatability: CV≤5%


Calculative item: S, %, PTR, INR, Fib can be get through PT, This leads to lower the cost of reagent
Printer: Inner thermal printer,can be connected to external printer
Information edit: easy to input and edit the detail information of patients


Interface: RS-232 serial port,can be connected to external printer and computer
Working Environment: Temperature:10℃~30℃;Humidity:20%RH-80%RH
Voltage: AC 85V~264V,Auto adapt according to the input voltage


Power : ≤80W
Quality System: Recognized by CE TUV and CMD

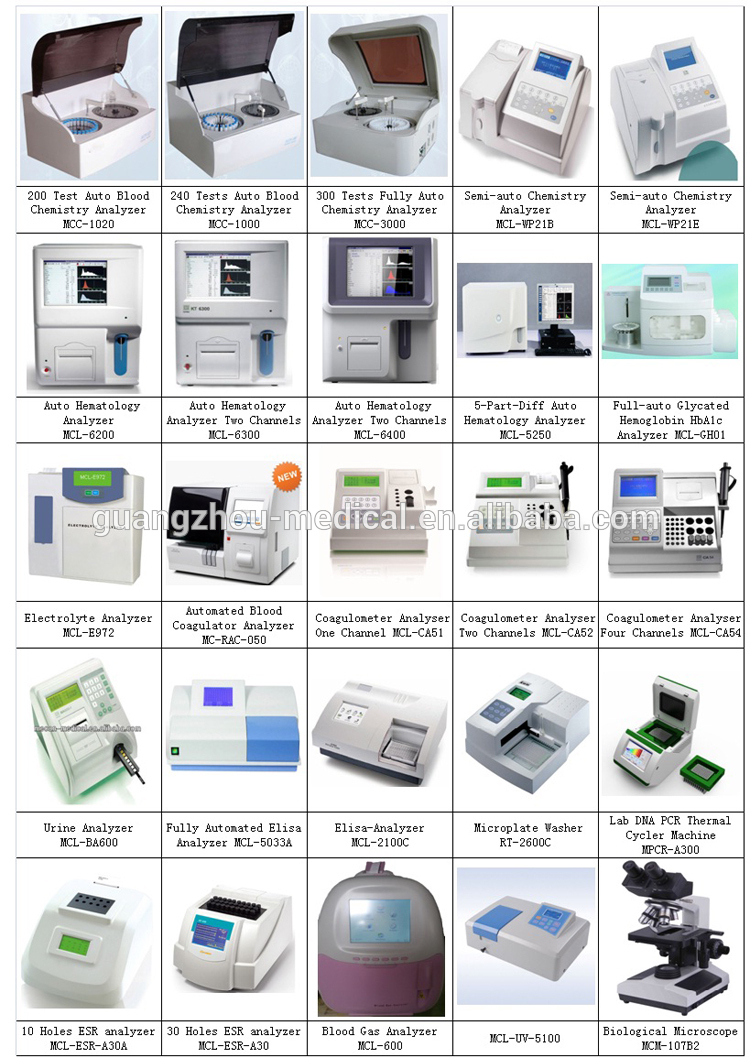

Lab Analyzer
