MX-056A15
MeCan
5.6kW Mobile X-ray Machine with Li-battery
Model Number: MX-056A15
This 5.6kW Mobile X-ray Machine with Li-battery boasts a wide range AC input with integrated APFC and an improved circuit optimization design, allowing it to function with a power supply of 110V-240V. It also features soft switching technology, with a switching frequency of up to 200KHz, producing excellent quality images with support for 5.6kW and 320mAs exposure.

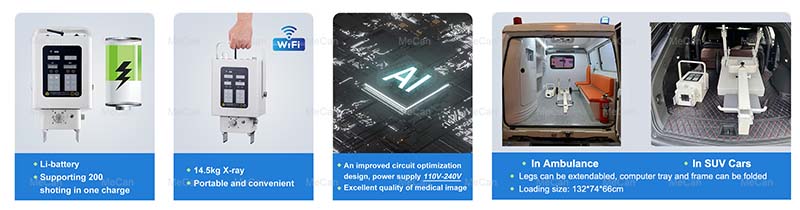

Features of 5.6KW Battery Powered Mobile x Ray Equipment
1. Wide range AC input with APFC integrated, an improved circuit optimization design, power supply 110V-240V.
2. Soft switching technology, switching frequency is up to 200KHz.
3. Support 5.6kW and 320mAs exposure, excellent quality of medical image.
4. Support remote monitor with wireless communication integrated.
5. Big capacity li-battery pack, Achieving outdoor continuous working time of 8 hours or supporting 200 shoting in one charge.
6. Power density up to 275W/L.
7. High degree of software intelligence:filament automatic calibration, dual-filament automatic selection and complete fault diagnosis.
8. Operator panel seperated as human and veterinary according to different purpose.
9. Portable and convenient, portable x ray unit: 14.5kg only
10. Legs can be extendabled, computer tray and frame can be folded, the loading size: 132*74*66cm, it is can be loaded in the Ambulance and SUV Cars.
Specification of our 5.6KW mobile xray equipment:
Power | 5.6KW(li-battery) |
Power Supply | Single-phase 220V 50/60Hz (wire diameter>4mm2,internal resistance<0.5Ω) |
Li-battery | DC 48.1V 288.6wh(48. 1V/6AH), supporting 200 shoting in one charge |
Working Frequency | 80-200KHz |
mA | 32-100mA |
mAs | 0.1-320mAs |
KV | 40-125kv |
Exposure time | 2ms-10000ms |
Tube focus | 1.8*1.8mm |
Anode heat capacity | 42kHU |
Mobile x ray stand | MXM-MS3 |

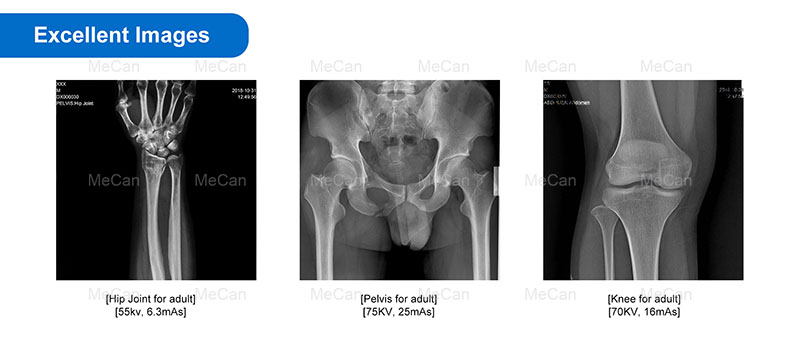

Test image
