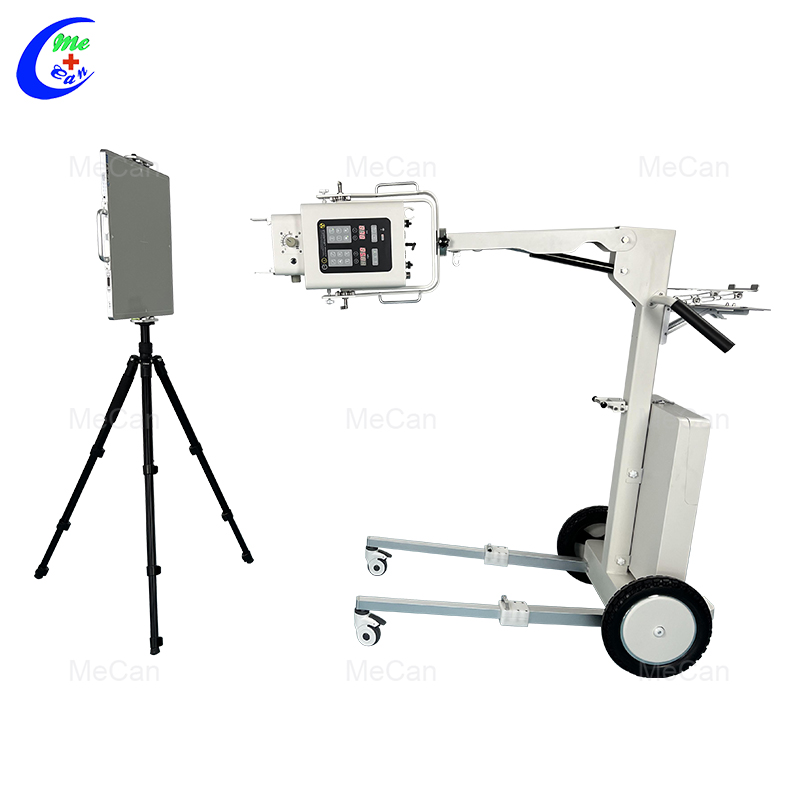

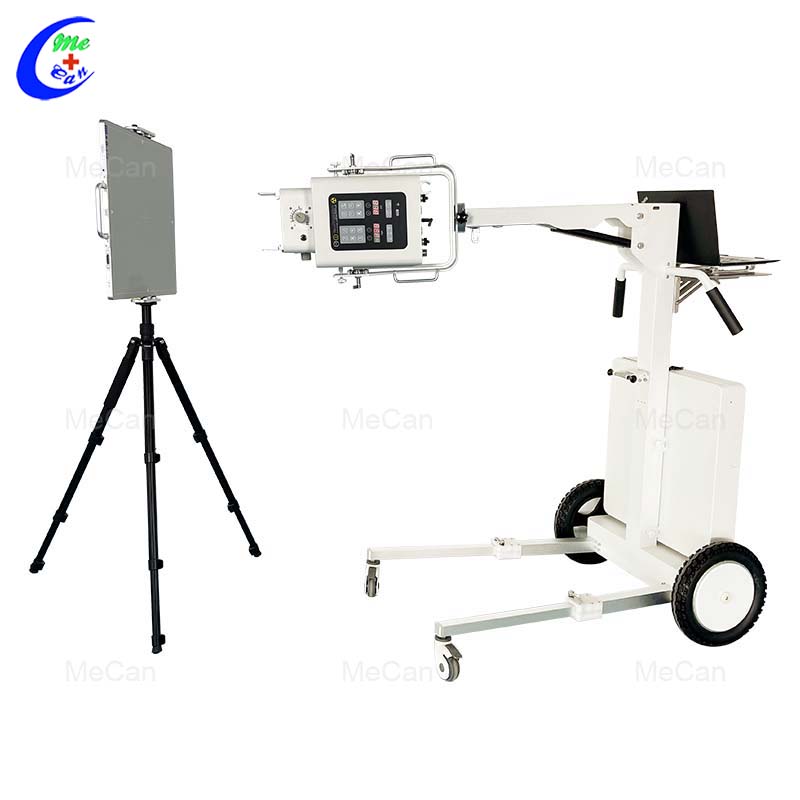

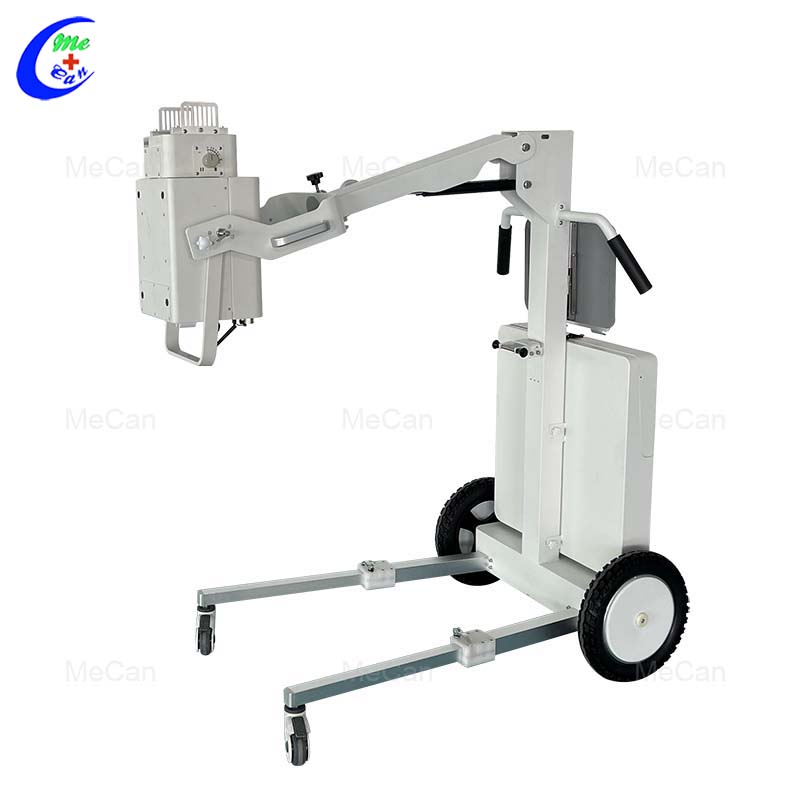

5.6kW Portable DR Powered by A High-Capacity Li-Battery

The 5.6kw Mobile DR X Ray Equipment is mainly applied to orthopaedic hospital and animal hospital. With high resolution, fast imaging time and powerful performance, this portable X-ray device is also suitable for emergency room, ICU, and other medical institutions. Its advantages include portability, easy operation, and high image quality, making it an ideal choice for medical professionals.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • MX-DR056A15

  • MeCan

5.6kW Portable DR powered by a High-Capacity Li-Battery

Model Number: MX-DR056A15


5.6kw Mobile DR X Ray


MeCan Medical is a leading specialty manufacturer of high-quality Mobile Digital X Ray Machines. Our range of products includes state-of-the-art 5kw direct digital radiography systems, 5.6kw mobile dr x ray machines, 32kw mobile DR machines, and 50kw mobile DR machines. Our cutting-edge technology enables us to deliver exceptional image quality and precise diagnostic results.


Features of Our 5.6kW Portable DR

1.Wide range AC input with APFC integrated, an improved circuit optimization design, power supply 110V-240V.
2. Soft switching technology, switching frequency is up to 200KHz.
3. Support 5.6kW and 320mAs exposure, excellent quality of medical image.
4. Support remote monitor with wireless communication integrated.
5. Big capacity li-battery pack, Achieving outdoor continuous working time of 8 hours or supporting 200 shoting in one charge.
6. Power density up to 275W/L.
7. High degree of software intelligence:filament automatic calibration, dual-filament automatic selection and complete fault diagnosis.

8. Operator panel seperated as human and veterinary according to different purpose.
9. Portable and convenient, portable x ray unit: 14.5kg only
10. Legs can be extendabled, computer tray and frame can be folded, the loading size: 132*74*66cm, it is can be loaded in the Ambulance and SUV Cars.

Features of 5.6KW Loadable X Ray Machine with Li-battery


Specification of our 5.6kW Portable DR:

Power

5.6kW(li-battery)

Power Supply

Single-phase 100-220V 50/60Hz (wire diameter>4mm2,internal resistance<0.5Ω), DC: 48V,240.5Wh

Li-battery

DC 48.1V 288.6wh(48. 1V/6AH), supporting 200 shooting in one charge

Working Frequency

80-200KHz

mA

32-100mA

mAs

0.1-320mAS

KV

40-125kv

Exposure time

2ms-10000ms

Tube focus

1.8*1.8mm

Anode heat capacity

20kHU

Mobile x ray stand

MX-MS3

Flat Panel Detector


Image size

17*17 inch (14*17 for (option)

Pixels Matrix

140μm

A/D Conversion

16bits

Spatial Resolution

3.6 Lp/mm

Software

Professional Software

Computer

R5-5500U/8G/256G


Wired Flat Panel Detector or wireless Flat Panel Detector can be optional

More details of Flat Panel Detector for Human


Flat Panel Detector


Parameter

MX-FPD3543H

MX-FPD3543WL

MX-FPD4343H

MX-FPD4343WL

Type

a-Si+ Csl

Image size

35*43cm

35*43cm

43*43cm

43*43cm

14*17 inch

14*17 inch

17*17 inch

17*17 inch

Pixel pitch(µm)

140µm

Pixels Matrix

2560*3072

2560*3072

3072*3072

3072*3072

A/D(bit)

16bit

spatial resolution

3.6 LP/mm

3.6 LP/mm

3.6 LP/mm

3.6 LP/mm

Weight

3.0kg

3.0kg

3.7kg

4.5kg

Dimensions (cm)

38.3*46*1.5

38.3*46*1.5

46*46*1.5

46*46*1.5

Water tightness

IP54

IP54

IP54

IP54

Battery stand by

No

7H

No

7H

wireless

No

yes

No

yes



The MX-MS3 foldable stand, suitable for ambulance and outdoor

5.6kw DR Mobile X Ray Machine put in a car


Test image of our 5.6kW Portable DR

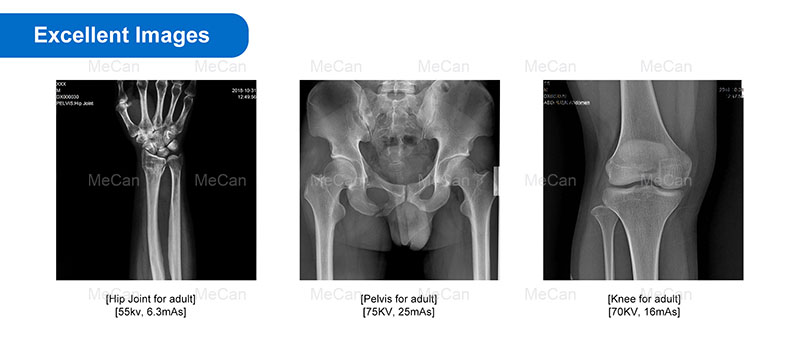

Excellent Images of Digital Mobile Radiography MX-DR056A14



Size of mobile x ray stand MX-MS3

Size of mobile x ray stand MX-MS3


At MeCan Medical, we take pride in our ability to provide customized solutions to meet the specific needs of our clients. We offer OEM services to help you create a product that is tailored to your unique requirements. Our team of experienced professionals will work closely with you to understand your needs and develop a solution that exceeds your expectations.



With a commitment to quality and innovation, MeCan Medical is dedicated to providing our clients with the best possible products and services. Contact us today to learn more about our Mobile Digital X Ray Machines and how we can help you meet your imaging needs.
