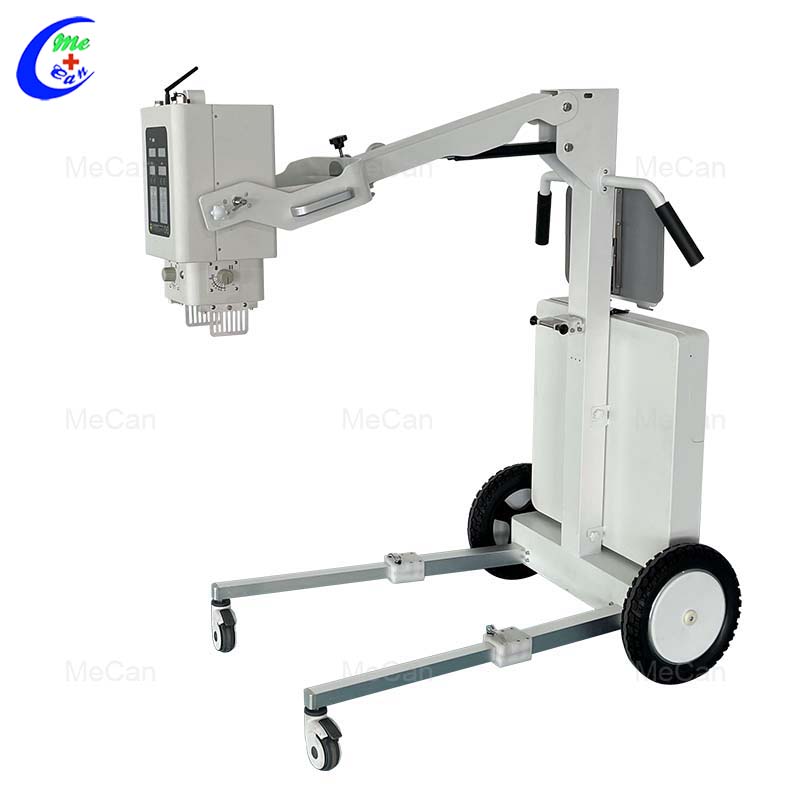

5.6kW Vet Portable Mobile DR with Li-battery
Model Number: MX-VDR056A15
5.6kW Vet Portable Mobile DR with Li-battery is a highly portable and intelligent x-ray unit, ideal for veterinary clinics and hospitals. It features a wide range of AC inputs, soft switching technology, and a big capacity Li-battery pack for up to 8 hours of outdoor use. With a power density of up to 275W/L, it supports excellent quality medical images, and its operator panel is separated for human and veterinary use. Weighing only 14.5kg, it is easy to transport and load into ambulances and SUV cars, making it a convenient and powerful solution for medical professionals.

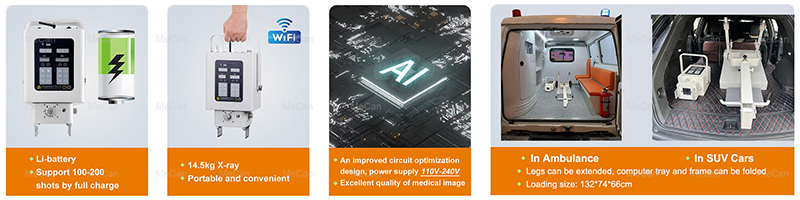

Features of DR 5.6KW Vet X Ray Machine with Li-battery
1. Wide range AC input with APFC integrated, an improved circuit optimization design, power supply 110V-240V.
2. Soft switching technology, switching frequency is up to 200KHz.
3. Support 5.6kW and 320mAs exposure, excellent quality of medical image.
4. Support remote monitor with wireless communication integrated.
5. Big capacity li-battery pack, Achieving outdoor continuous working time of 8 hours or supporting 200 shoting in one charge.
6. Power density up to 275W/L.
7. High degree of software intelligence:filament automatic calibration, dual-filament automatic selection and complete fault diagnosis.
8. Operator panel seperated as human and veterinary according to different purpose.
9. Portable and convenient, portable x ray unit: 14.5kg only
10. Legs can be extendabled, computer tray and frame can be folded, the loading size: 132*74*66cm, it is can be loaded in the Ambulance and SUV Cars.
Specification of our portable x ray equipment for vet:
Power | 5.6KW(li-battery) |
Power Supply | Single-phase 220V 50/60Hz (wire diameter>4mm2,internal resistance<0.5Ω), DC: 48V,240.5Wh |
Working Frequency | 80-200KHz |
mA | 32-100mA |
mAs | 0.1-320mAS |
KV | 40-125kv |
Exposure time | 2ms-10000ms |
Tube focus | 1.8*1.8mm |
Anode heat capacity | 20kHU |
Mobile x ray stand | MX-MS3 |
Flat Panel Detector |
|
Image size | 17*17 inch (14*17 for (option) |
Pixels Matrix | 140μm |
A/D Conversion | 16bits |
Spatial Resolution | 3.6 Lp/mm |
Software | Professional Software |
Computer | R5-5500U/8G/256G |

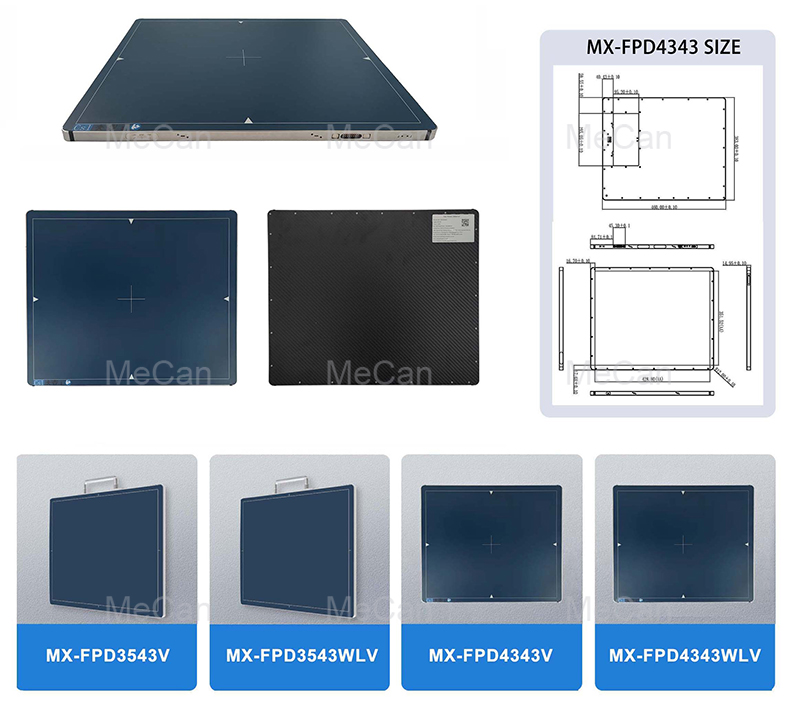

Wired Flat Panel Detector or wireless Flat Panel Detector can be optional
Parameter | MX-FPD3543V | MX-FPD3543WLV | MX-FPD4343V | MX-FPD4343WLV |
Type | a-Si+ Csl |
Image size | 35*43cm | 35*43cm | 43*43cm | 43*43cm |
14*17 inch | 14*17 inch | 17*17 inch | 17*17 inch |
Pixel pitch(µm) | 140µm |
Pixels Matrix | 2560*3072 | 2560*3072 | 3072*3072 | 3072*3072 |
A/D(bit) | 16bit |
spatial resolution | 3.6 LP/mm | 3.6 LP/mm | 3.6 LP/mm | 3.6 LP/mm |
Weight | 3.0kg | 3.0kg | 3.7kg | 4.5kg |
Dimensions (cm) | 38.3*46*1.5 | 38.3*46*1.5 | 46*46*1.5 | 46*46*1.5 |
Water tightness | IP54 | IP54 | IP54 | IP54 |
Battery stand by | No | 7H | No | 7H |
wireless | No | yes | No | yes |
Test image of our Mobile DR X Ray Machine
FAQ：
1. What is the weight of the 5.6kW Vet Portable Mobile DR with Li-battery?
The weight of this product is only 14.5kg.
2. What is the range of AC input for this portable x-ray unit?
The product features a wide range AC input, with power supply from 110V-240V.
3. What is the capacity of the Li-battery pack and how long can it support outdoor use?
The Li-battery pack has a big capacity and can support up to 8 hours of outdoor use or 200 shots in one charge.
