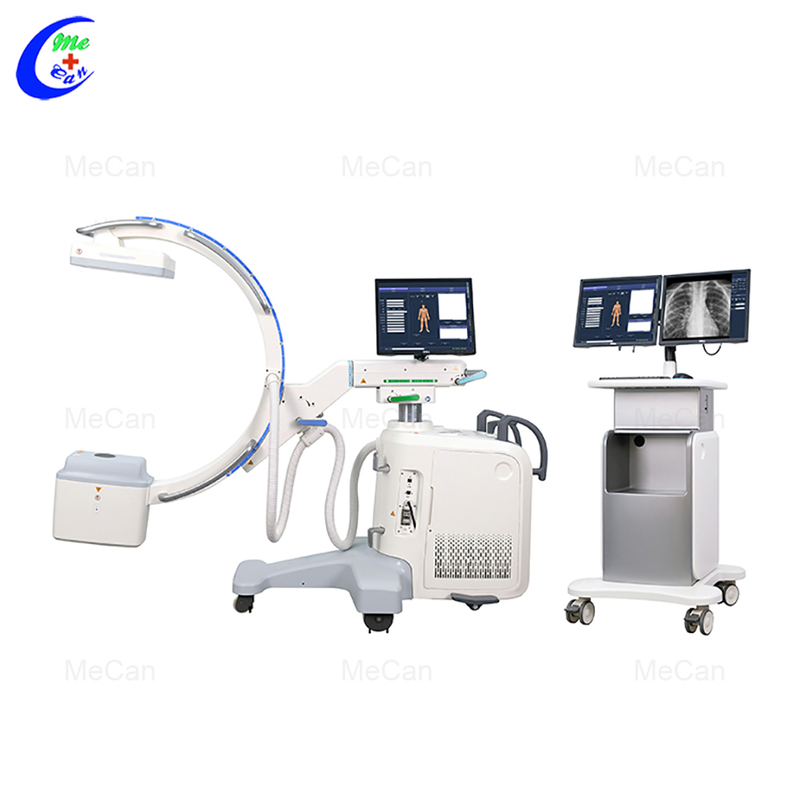

5KW Digital Mobile Surgical X-Ray C-Arm Machine compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.MeCan Medical summarizes the defects of past products, and continuously improves them.
Availability: | |
---|---|
Quantity: | |
Model: MCI0577
MeCan Medical 5.0kW Medical High Frequency C-Arm X-Ray System, known as real-time fluoroscopy in surgery, is widely used in the following areas:
1, orthopedics: bone, reset, nailing
2, surgery: to remove foreign bodies, heart catheter, implantation of pacemakers, part of the interventional treatment, part of the imaging and Local photography and body work.
Fetures:
1,small radiation dose, low risk of infection, small footprint easy to move .
2,With automatic exposure control, direct fluoroscopy is possible without pre-setting in continuous fluoroscopy and pulsed fluoroscopy.
3, Because of the 360 self-balancing frame,MCI0577 can hover at any angle, which is convenient for intraoperative positioning and can avoid sudden sliding causing surgical accidents.
Parameters:
X-Ray | Detector | ||
Power | 5 kW | Resolution | 2.4 lp/mm |
KV | 40~125 kV | Active Matrix | 1024 *1024 pixels |
40~110 kV | Pixel Pitch | 205μm | |
mA | Continuous:6.3mA | Removable grid | Yes |
Pulsed :32mA | Active area | 210mm*210mm | |
Digital spot:100mA | Interface | 1G Ethernet | |
ms | 10ms-1600ms | Mainframe | |
Mas | 0.2mAs-100mAs | Length | 188.6cm |
X-ray Type | Rotating | Height | 156.3cm |
Focal spots | 0.3/0.6 mm | Width | 85.3cm |
C-Arm | Weight | 280kg | |
SID | 100cm | Workstation | |
Free space in arc | 78.4cm | Height | 153cm |
Depth in arc | 64cm | Width | 85cm |
Orbital rotation | 150° (117°/-33°) | Depth | 66cm |
Lateral rotation | 360° (±180°) | Weight | 40kg |
Wig/wag | ±15° | Image transmission | Wired/Wireless |
Horizontal travel | 20cm | Exposure | Wired/Wireless |
Vertical travel | 40cm |

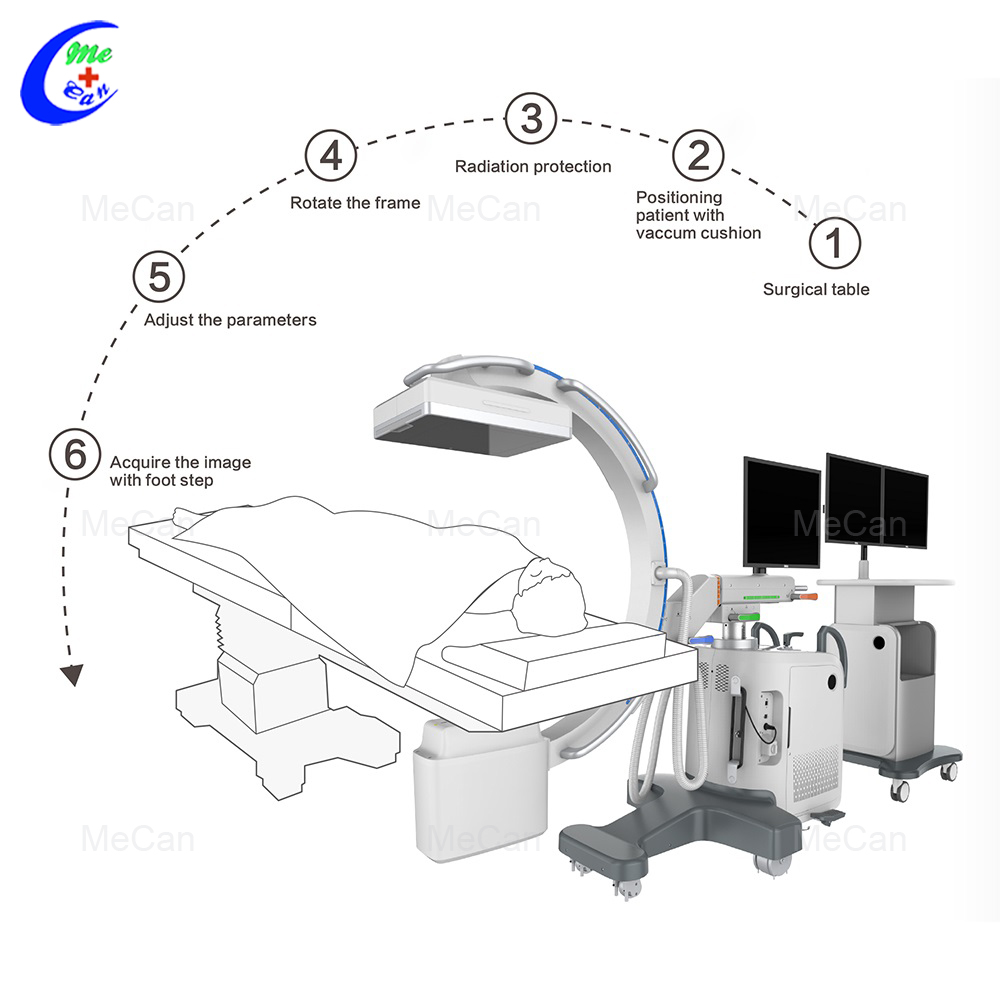

Application of MCI0577 5KW C-Arm X-Ray Machine

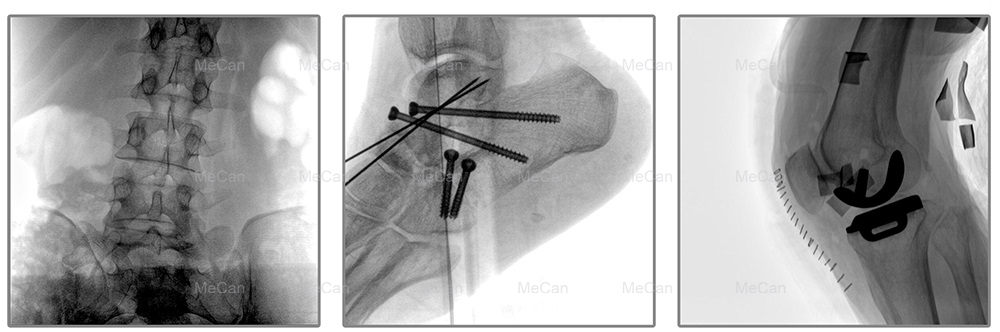

Diagnosis Image of MCI0577 5KW Digital C-Arm X-Ray Machine

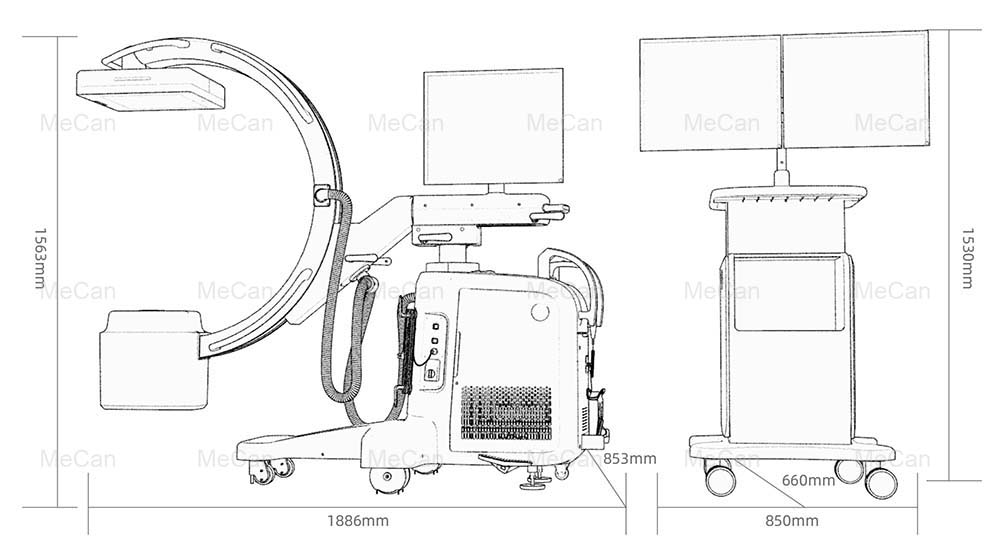

Dimension of MCI0577 C-Arm X-Ray Machine
Every equipments from MeCan gets passed strict quality inspection,and final passed yield is 100%.
OEM/ODM, customized according to your requirements.
More than 20000 customers choose MeCan.
MeCan offer professional service,our team is well-tained
