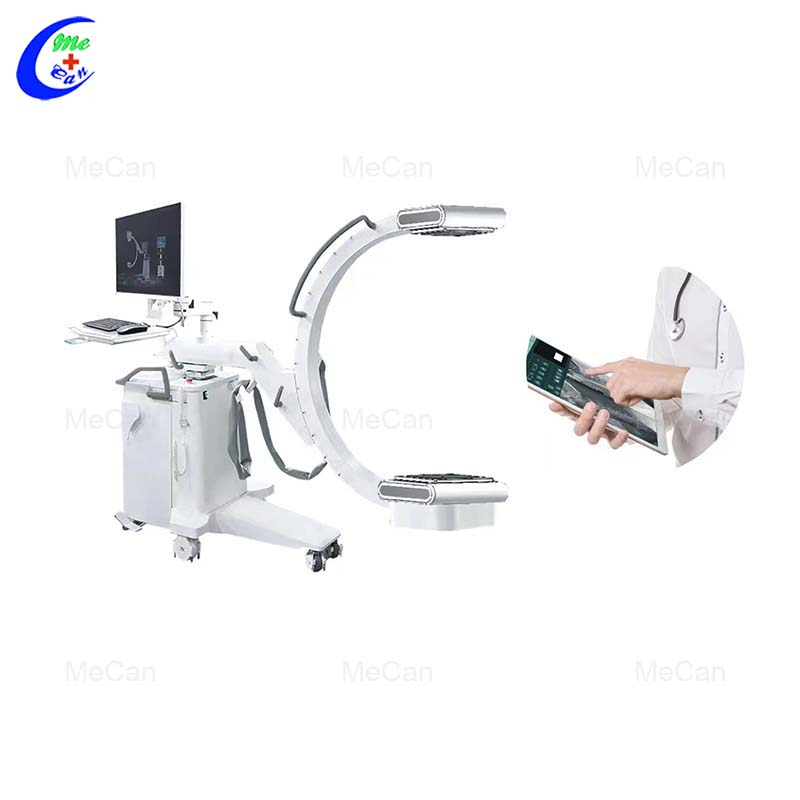

5kW Dynamic Digital C-Arm
Model: MCI0577
MCI0577 C-arms can be used in various medical procedures, including orthopedic surgeries, vascular surgeries, neurosurgeries, pain management procedures, and gastrointestinal procedures.
Features of our Dynamic Digital C-Arm:
1. Our Digital c arm surgery machine adopts a precise full balance design that allows the C-arm can be freely locked at any position, for easy operation and safe use;
2. Large opening and high-strength C-arm design can provide greater operating space for your operation. Professional tube design for flat C-arm to provide enough space for your position;
3. This C arm device has a split, integrated design, handheld iPad, a variety of modes to choose from, and is free to provide convenient services for your use.
Specifications:
Flat panel detector | |
1. Detector type | TFT whole-panel amorphous silicon flat-panel detector |
2. Detection panel size | 210mm*210mm |
3. Detector acquisition pixel matrix | 1024*1024 |
4. Vector pixel spacing | 200 um |
5. Detection spatial resolution | 2.5LP / mm |
6. Pixel gray scale | 16Bit |
7. Acquisition frame frequency | 30fps |
High frequency and high pressure generator | |
1. Maximum output power | 5kW |
2. Input power supply | 220VAC |
3. Photographic voltage | 40~125kV |
4. Photographic tube current range | 10~100mA |
5. Exposure time range | 1ms-5000ms |
6. mAs range | 0.1mAs-200mAs |
7. perspective voltage | 40~120kV |
8. Continuous perspective | mA:0.5-5mA |
9. pulse perspective mA | 10-30 mA |
10. Pulse perspective frame frequency | 1-30 frames |
11. Failure self-diagnosis and display | Yes |
X-ray bulb tube assembly | |
1. Focus design | 0.3mm/0.6mm |
2. Max. KV | 125kV |
3. Anode target angle | 12 |
Physical construction | |
1. C arm vertical displacement (electric) | 400mm |
2. C arm horizontal displacement (manual) | 200mm |
3. C arm rotation displacement (manual) | ± 200° |
4. C arm horizontal pendulum displacement (manual) | ± 12.5° |
5. C arm raildisplacement (manual) | -30 °± 5°~ + 90 °± 5° |
6. C arm arc depth | 650mm |
7. S.I.D | 1000mm |
Filter grille and beam limiter | |
1. Grid | aluminum grid |
2. Size | 2323cm |
3. Filter grid ratio | 100:1 |
4. Line / inch | 215C |
5. Filter grid focus | 1000MM |
6. Electric C arm special beam limiter. | Yes |
Work station | |
1. CPU | intel i7, More than 3GHz |
2. Host memory | 16GB DDR3 1600 of high-speed memory |
3. Hard drive | large-capacity high-speed hard drive 1T / 7200rpm |
4. Workstation monitor | IPS LCD monitor |
5. Communication network card and network interface | 1000M network card, 1000M network interface, Jumbo Frames: 9K |
6. DICOM3.0 interface | Yes |
7. Windows 10 64 bit SP1 (Professional Edition or higher) | Yes |
Excellent clinical images of our Digital C Arm
