Portable DR with Touch Screen | Mobile Digital X-ray System
Model Number: MX-DR050B12
Product Overview
The Portable DR with Touch Screen is a high-performance digital radiography system engineered for rapid imaging in hospitals, emergency sites, and mobile clinical environments. Designed for human medical use, this unit integrates high-frequency X-ray generation with an intelligent touch-screen control interface, enabling clinicians to perform examinations efficiently across multiple patient conditions.
Its lightweight mechanical structure and flexible multi-axis tube movement allow operators to conduct bedside radiography, trauma assessment, and departmental imaging with minimal repositioning. This system is particularly suited for settings that require mobility and real-time diagnostic support, including emergency response, disaster relief, and routine ward rounds.
Use for the Body Parts
The Portable DR provides preset imaging parameters for a wide range of anatomical regions, ensuring consistent and high-quality exposure:
Head / Neck
Thoracic / Chest
Rib / Lumbar / Spine
Elbow / Forearm / Wrist
Belly / Pelvis
Femur / Knee / Foot
Preset values reduce manual adjustment time and support faster workflow in time-critical medical environments.
Application Scenarios
This Portable X-ray System is designed for diverse clinical and emergency use cases:
Hospitals & outpatient departments
Military medical teams
Disaster response & field medical rescue
Orthopedics & trauma centers
Infirmaries and mobile health stations
Private clinics & community healthcare
Bailiff and on-site monitoring systems
Public health emergency units
Its compact structure and high mobility enable reliable imaging wherever fixed radiography equipment is unavailable.

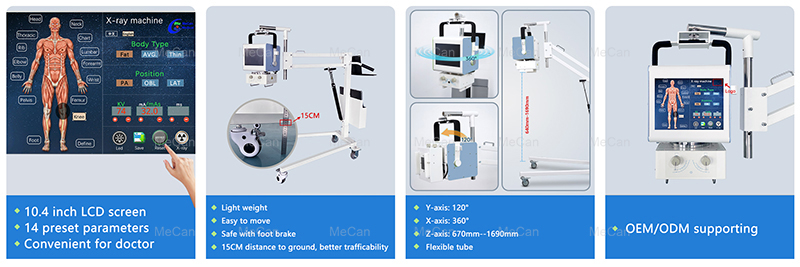

Key Features
1. Touch-Screen Control Panel (10.4-inch LCD)
The integrated 10.4-inch LCD touch interface displays imaging parameters, body-part presets, and positioning guidance. This enhances operator workflow and minimizes training requirements.
2. Multiple Preset Exposure Parameters
The system includes 14 preset imaging programs tailored to major anatomical regions. These presets optimize exposure consistency and reduce adjustment complexity during high patient throughput.
3. Lightweight Construction & Enhanced Mobility
The Portable DR is engineered for smooth maneuverability within hospital corridors and emergency sites.
Easy to move
Stable positioning with the foot brake
15 cm ground clearance for improved travel over uneven surfaces
4. Multi-Axis Tube Motion
Flexible tube mechanics support accurate positioning for diverse imaging angles:
Y-axis rotation: 120°
X-axis rotation: 360°
Z-axis vertical movement: 670 mm – 1690 mm
This expanded motion range enables clinicians to adjust the beam direction without moving the patient.
5. High-Precision Output Control
The system supports stable high-frequency radiation output, producing consistent imaging quality for chest, extremity, and orthopedic examinations.
6. Built-in Self-Protection & Auto Diagnosis
During abnormal operations, the machine automatically activates protection mechanisms and displays diagnostic alerts to help reduce equipment downtime and safeguard components.
7. OEM / ODM Customization
Customization is available for interface configurations, housing design, and workflow optimization, supporting hospitals, medical organizations, and brand partners.
Technical Highlights:
Power | 5KW |
Power Supply | Single-phase 220V 50/60Hz (wire diameter>4mm2,internal resistance<0.5Ω) |
Working Frequency | 30kHz |
mA | 32-100mA |
mAs | 0.32-315mAs |
KV | 40-110kv |
Exposure time | 0.01-6.3s |
Tube focus | 1.8*1.8mm |
Anode heat capacity | 42kHU |
Mobile stand | MX-MS2 |
Flat Panel Detector |
|
Image size | 17*17 inch (14*17 for (option) |
Pixels Matrix | 140μm |
A/D Conversion | 16bits |
Spatial Resolution | 3.6 Lp/mm |
Software | Professional Software |
Computer | R5-5500U/8G/256G |

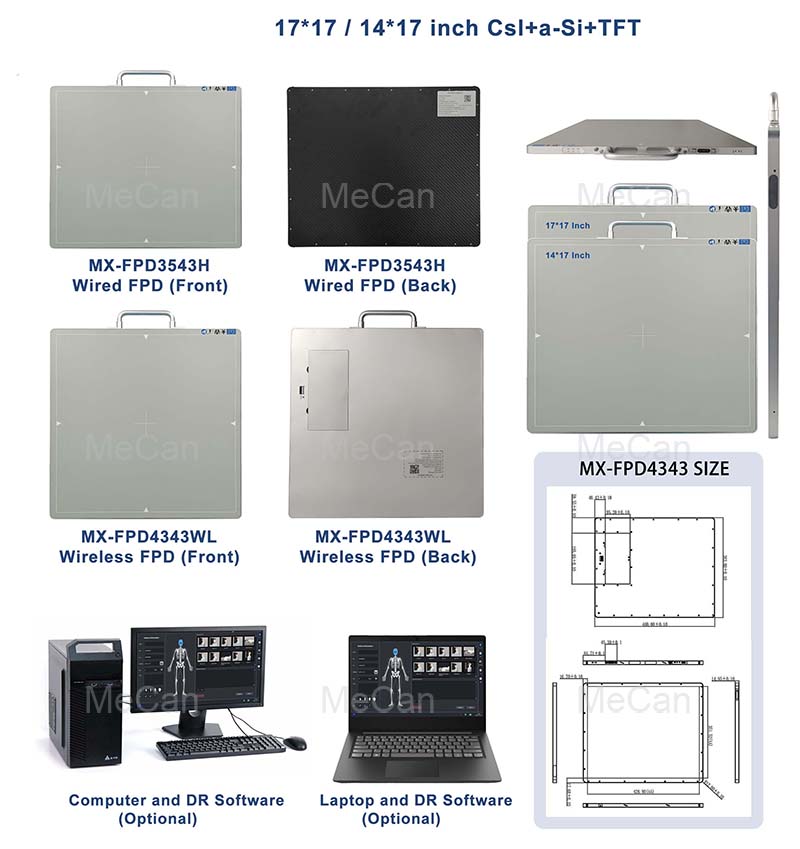

DR system for portable x ray machine
Test image of our Portable X Ray Machine

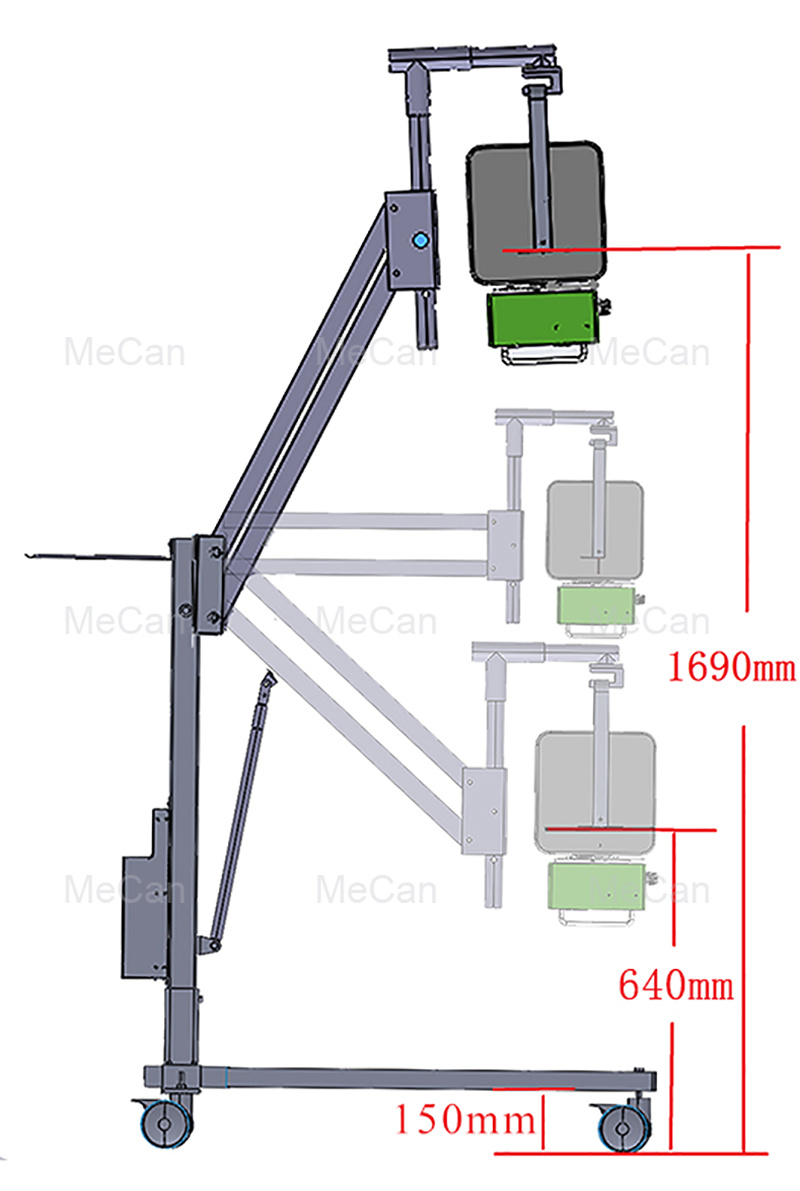

Size of our Portable Digital X Ray Machine
