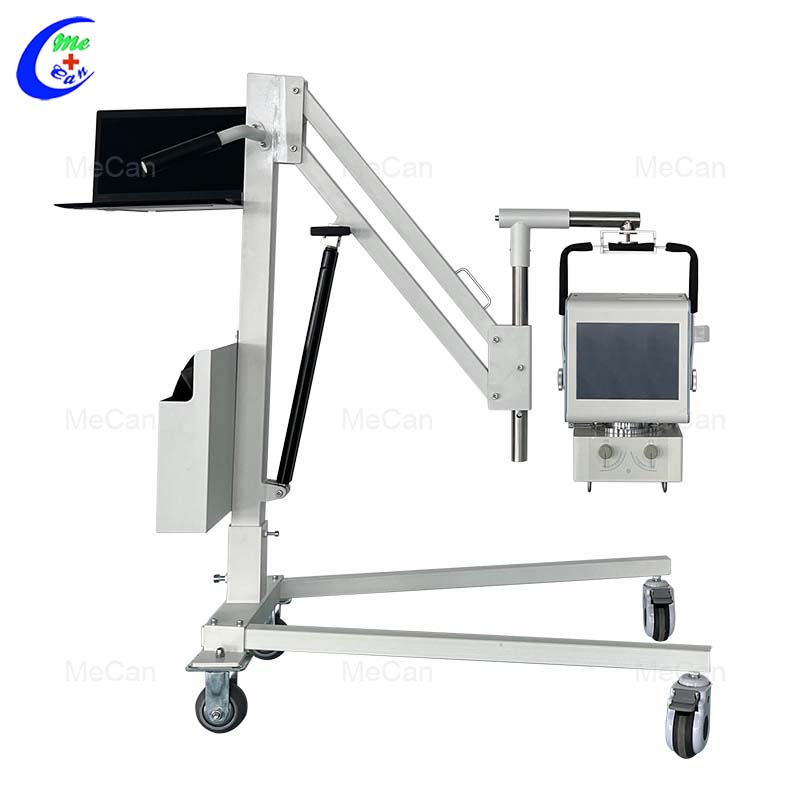

5kW Vet Portable X Ray Machine
Model: MX-V050B12
Product Overview：
The 5kW Vet Portable X-Ray Machine is a high-frequency diagnostic imaging system designed for fast, flexible, and accurate examinations in veterinary applications. With its compact structure and lightweight design, the unit is ideal for mobile diagnostics, field rescue scenarios, and clinics requiring a versatile imaging solution for extremity examinations. This portable system supports high-quality digital imaging for small animals, large animals, and emergency cases.
Designed for reliable performance in demanding environments, the machine operates efficiently in veterinary hospitals, field operation sites, farms, stadiums, and mobile rescue missions, ensuring stable radiographic output wherever fast diagnostic support is required.
Key Features

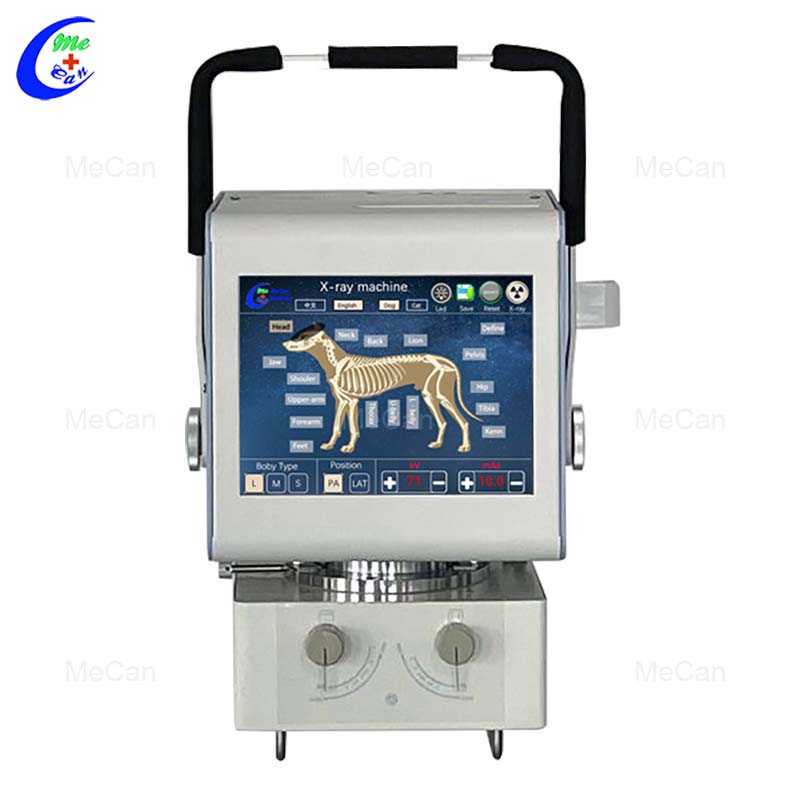

1. 10.4-inch LCD Touch Screen
The integrated 10.4-inch LCD screen delivers intuitive control and real-time visualization, enabling veterinarians to manage parameters with precision and speed.
2. 16 Preset Imaging Parameters
With 16 built-in presets, the system reduces manual adjustment time and ensures consistent image quality across a wide range of veterinary diagnostic scenarios. These presets are optimized for common anatomical regions and animal types.
3. Lightweight and Highly Mobile
Engineered for mobility, the Portable X Ray Machine for Vet features a compact chassis that allows easy repositioning in clinics and rapid deployment in outdoor or emergency operations.
4. High-Precision Output Control
The unit delivers precise tube voltage and current regulation, providing stable radiation output and sharper diagnostic results. This supports better imaging consistency, especially for extremity examinations.
5. Enhanced Maneuverability
With a 15 cm ground clearance, the machine achieves improved trafficability on uneven surfaces, making it suitable for barns, fields, or rugged field rescue environments.
6. Safe and User-Friendly Operation
The integrated foot brake system ensures secure positioning during imaging. This feature enhances operator safety while allowing stable radiography.
7. Expanded Tube Angle Range
The X-ray tube allows flexible movement across multiple axes:
This wide-angle mobility enhances adaptability to animals of different sizes and examination positions.
8. Self-Protection & Auto-Diagnosis
The system includes a built-in self-protection mechanism and auto-diagnosis function that alerts operators when operational abnormalities occur, helping reduce downtime and protect internal components.
9. OEM/ODM Support
To meet various clinical or brand requirements, customization services are available, including interface configuration, functional adjustments, and housing customization.
Specifications of Vet Portable X Ray Machine
Power | 5kw |
Power Supply | Single-phase 220V 50/60Hz (wire diameter>4mm2,internal resistance<0.5Ω) |
Working Frequency | 30kHz |
mA | 32-100mA |
mAs | 0.32-315mAs |
KV | 40-110kv |
Exposure time | 0.01-6.3s |
Tube focus | 1.8*1.8mm |
Anode heat capacity | 42kHU |

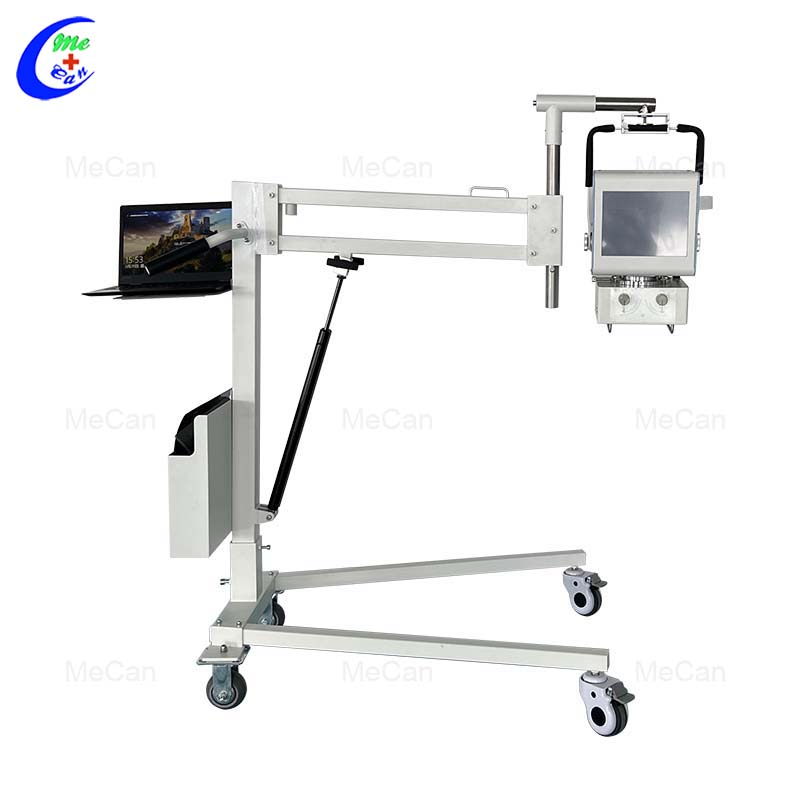

Mobile x ray stand | MX-MS2 |
Flat Panel Detector |
|
Image size | 17*17 inch (14*17 for (option) |
Pixels Matrix | 140μm |
A/D Conversion | 16bits |
Spatial Resolution | 3.6 Lp/mm |
Software | Professional Veterinary Software |
Computer | R5-5500U/8G/512G |
Touch screen for animals:
Touch screen for Cats
Touch screen for Dogs
Test images of our Digital Portable Veterinary X Ray Machine
