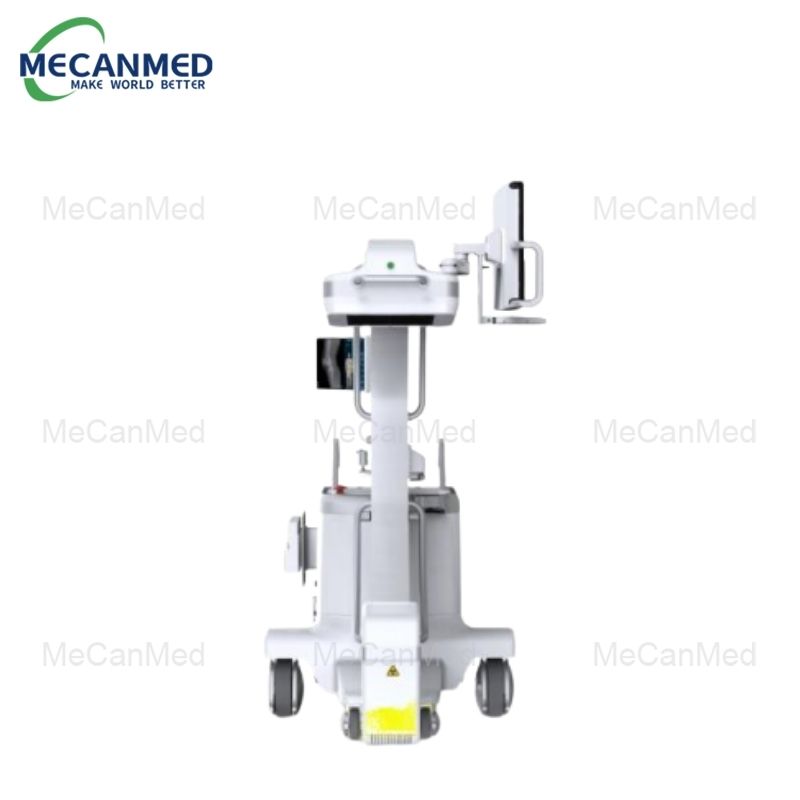

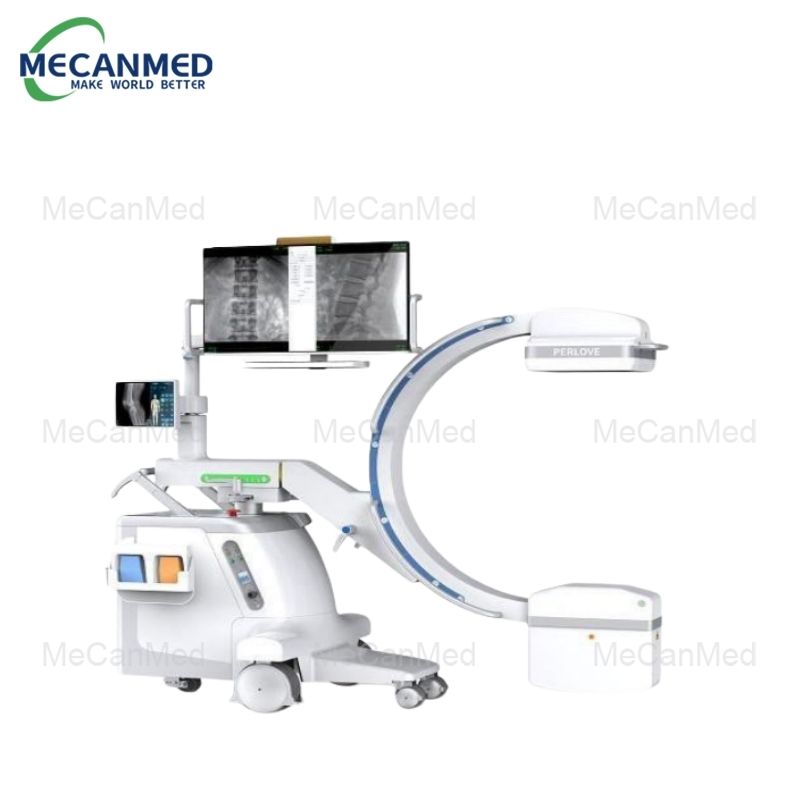

5kW Mobile Digital FPD C-arm X-ray System

Model:MCI0033

C-Arm X-Ray for Surgical Precision

This cutting-edge Mobile FPD C-Arm System features a powerful 5kW generator and 9×9" flat-panel detector (FPD), providing high-resolution real-time imaging with 65,536 grayscale levels. With its compact, integrated design, this C-arm X-ray machine optimizes operating room space while reducing radiation exposure by up to 60% compared to conventional systems.

Key Features of Our FPD C-Arm X-Ray System

1.Superior Imaging Technology

• Dynamic Flat-Panel Detector (FPD): 21×21cm field of view with 3.2LP/mm resolution for distortion-free images.

• 110kHz High-Frequency Inverter: Ensures stable X-ray output with low-dose pulse fluoroscopy (as low as 0.3mA).

• 65,536 Grayscale Imaging: Captures finer soft-tissue and bone details than traditional image intensifiers.

2. Enhanced Mobility & Workflow

• Compact, Motorized C-Arm: Moves seamlessly with ±180° rotation and 400mm vertical adjustment.

• 32" 4K Touchscreen Monitor: Ultra-wide display for multi-angle image review.

3. Radiation Safety Innovations

• Smart Pulse Technology: Reduces radiation dose by 60% without compromising image quality.

• Electric Collimator: Adjusts beam limits to minimize scatter radiation.

• Dose Monitoring (DAP): Real-time display ensures ALARA compliance.

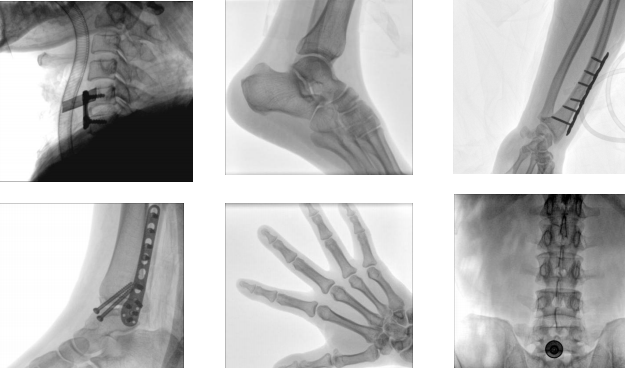

Clinical Applications of Mobile FPD C-Arm System

• Orthopedic Surgery: Hip/knee/spine interventions

• Trauma Care: Real-time fracture reduction imaging

• Pain Management: Guided nerve blocks and injections

• Vascular/Urology: Minimally invasive procedures
