Professional 64 128 Slice CT Scanner Manufacturer | MeCan Medical

64 128 Slice CT Scanner compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.MeCan Medical summarizes the defects of past products, and continuously improves them.


facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

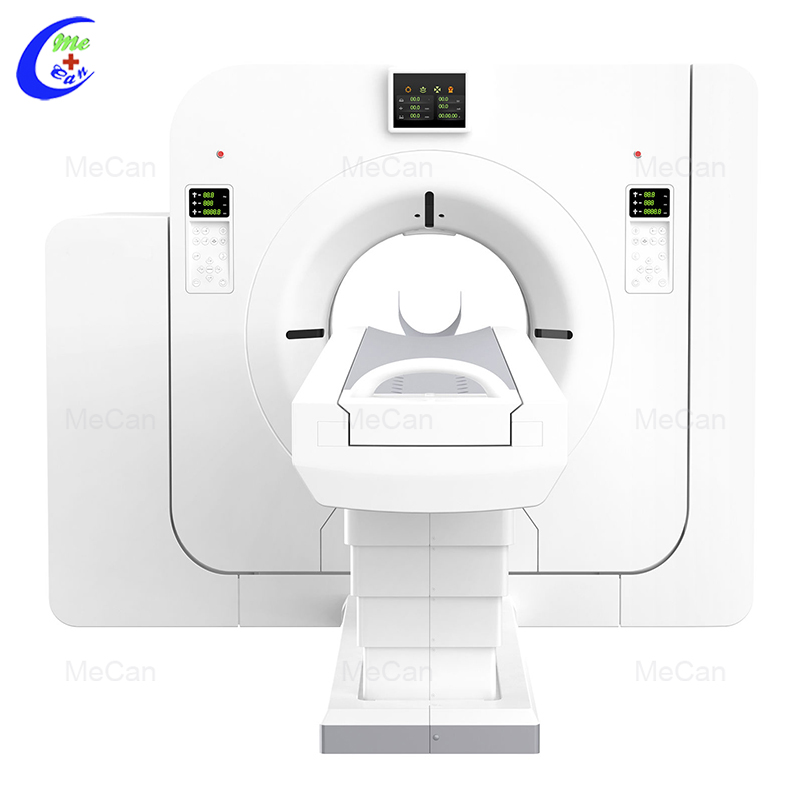

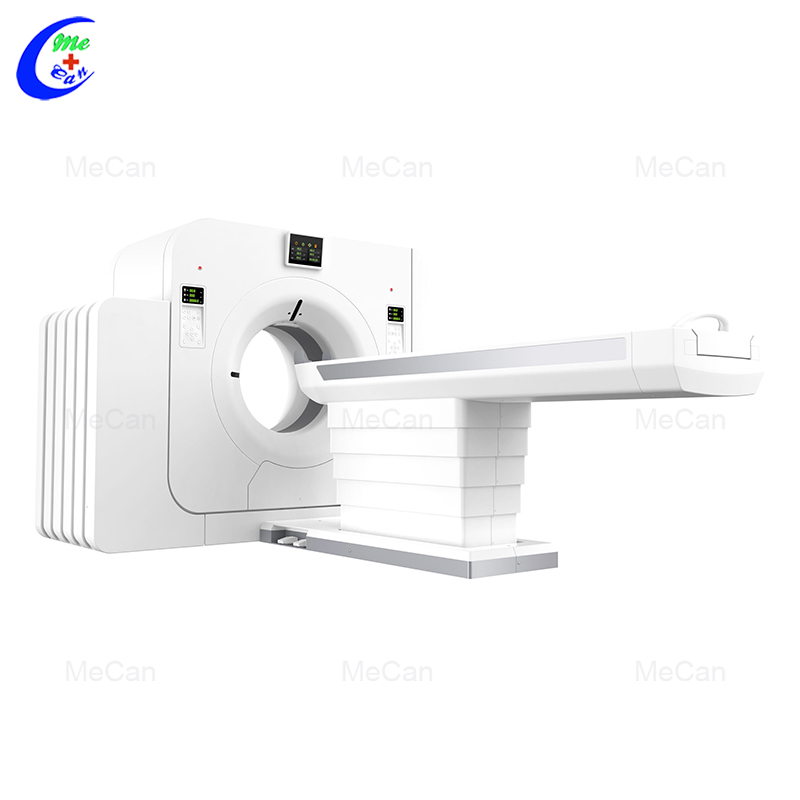

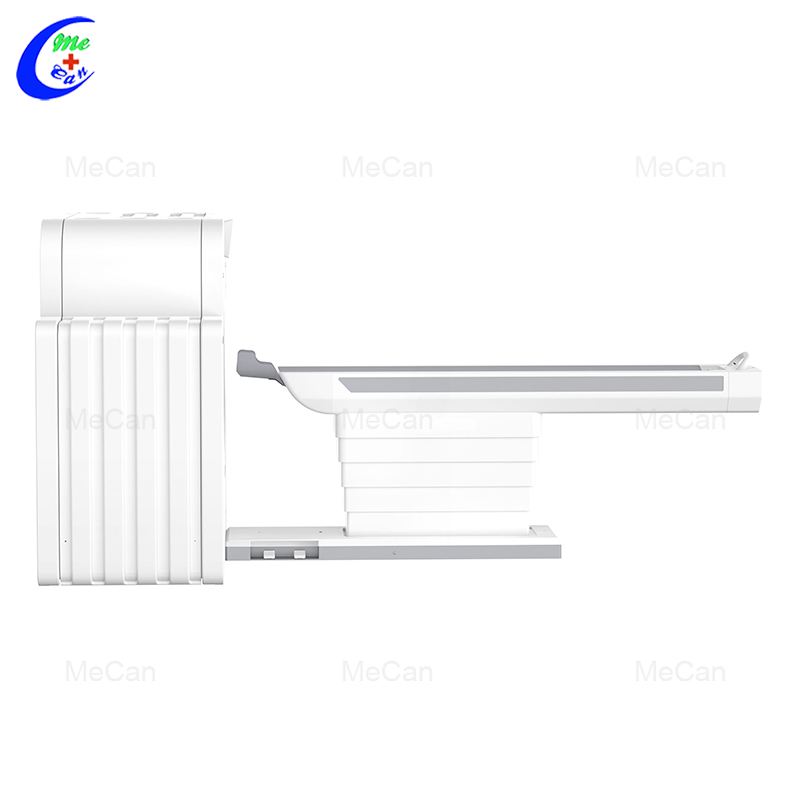

64 128 Slice CT Scanner


MCI0010 128 slices CT scanner is designed with superior specifications including a 4cm-wide detector, 8M flying spot tube, and 80kw high voltage generator, empowering challenging applications including cardiac scan.


Power: 80 kW

Gantry Bore: 70 cm

Scan Speed: 179.5mm/s


1.40 mm Z-axis coverage and 8 M tube allow the high scanning efficiency.

2.3D multi-frequency acquisition technology enables superior image quality with 128 slices per rotation.

3.The Detector guarantees sufficient sampling per rotation with low afterglow and reduced artifacts.

4.NanoDose Iterative (NDI) and intelligent mA (imA) algorithms enable lower dose while preserving image quality.

5.1024 x 1024 Mega-pixel matrix fully displays details of lesions.

6.AI-empowered workflow provides easy and comfortable operation.

7.Robust hardware allows stable running.

Specification of 64/128 Slice CT Scanner:

Model MCI0009 64 slices MCI0010 128 slices
Aperture 70cm 70cm
Slices/360° 64 128
Power rate 80KW 80KW
The fast rotation time 0.39s/360° 0.39s/360°
Longest scanning time 100s 100s
Tilt ±30° ±30°
X-tube heat capacity 8.0 MHU 8.0 MHU
KV range 80-140kV 80-140kV
MA range 10-630mA 10-630mA
Table motion range 1800mm 1800mm
Longest scanning range 1700mm 1700mm
Table elevation range 500mm 500mm
Table weight load 205kg 205kg
Detector rows 64 64
Detectors coverage in Z-axis 10mm 10mm
Number of detectors per row 704 704
Detector Z-axis coverage 40mm 40mm
Pitch range 0.25-1.75 0.25-1.75
Thickness 0.625mm 0.625mm
Image Reconstruction matrix 1024×1024 1024×1024
Image display matrix 1024×1024 1024×1024
Spatial resolution: 20LP/cm@0%MTF 20LP/cm@0%MTF
VR Yes Yes
MPR Yes Yes
CPR Yes Yes
SSD Yes Yes
MIP Yes Yes
MinP Yes Yes
Iteration Yes Yes
Comprehensive Clinical Application Optional Clinical Application(Cardiac Software Package, ECG-Mod Coronary Dose Adjustment)  Include Cardiac Software Package, ECG-Mod Coronary Dose Adjustment

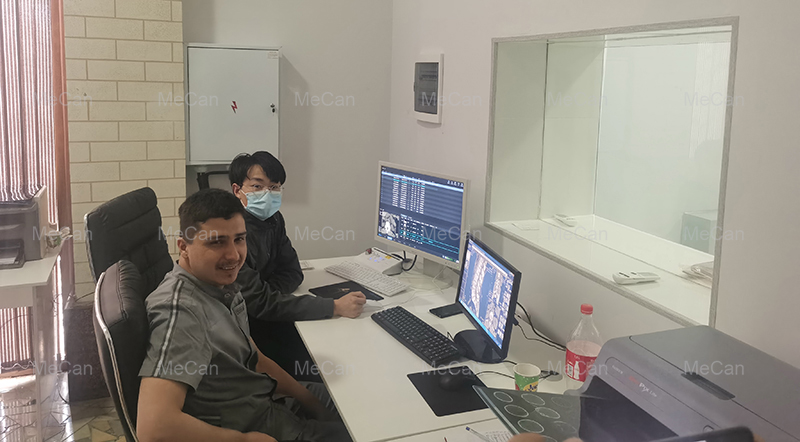

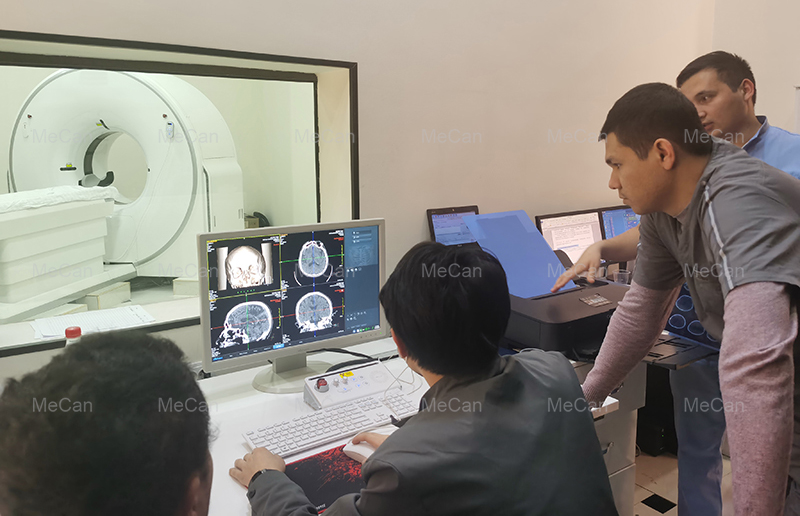

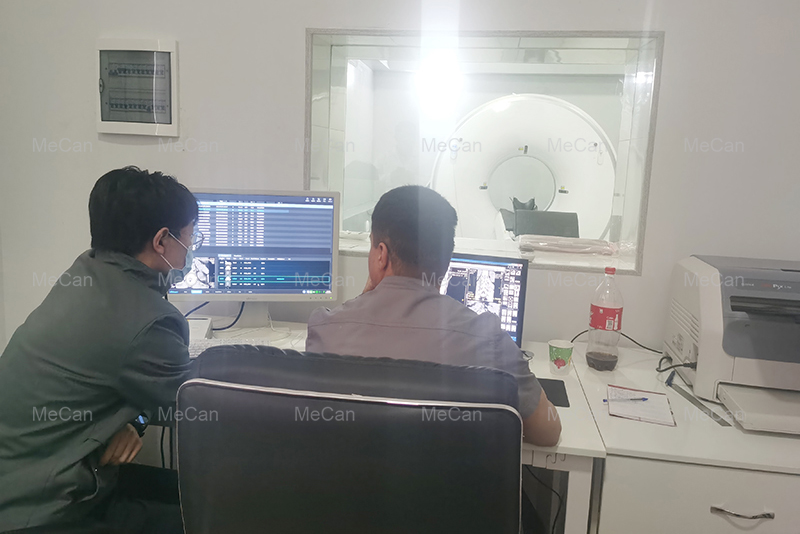

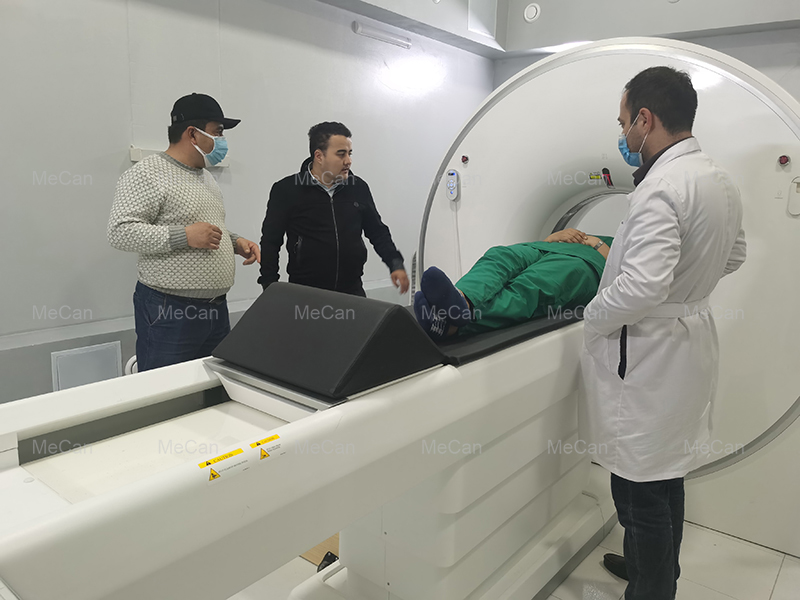

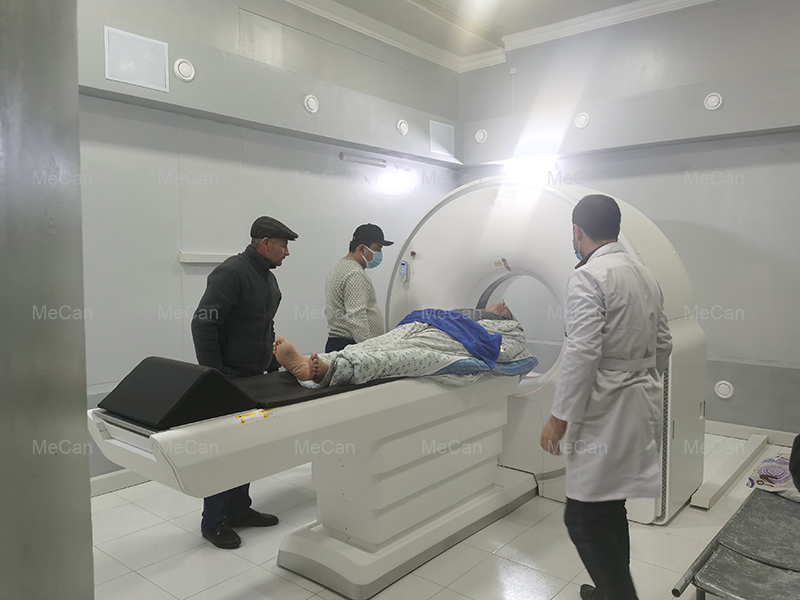

Cases of our CT scanner

The product enjoys a good reputation for the characteristics of a wide range of applications.


1.What is your after-sales service?
We provide technical support through operating manual and video, Once you have questions, you can get our engineer's prompt response by email,phone call, or training in factory. If it's hardware problem, within the warranty period, we will send you spare parts for free, or you send it back then we repair for you freely.
2.What is your lead time of the products?
40% of our products is in stock, 50% of the products need 3-10 days to produce, 10% of the products need 15-30 days to produce.
3.Technology R & D
We have a professional R&D team that continuously upgrades and innovates products.


1.Every equipments from MeCan gets passed strict quality inspection,and final passed yield is 100%.
2.OEM/ODM, customized according to your requirements.
3.MeCan provide one-stop solutions for new hospitals, clinics, labs and universities, has helped 270 hospitals, 540 clinics,190 vet clinics to set up in Malaysia, Africa, Europe, etc. we can save your time, energy and money.
4.MeCan Focus on medical equipments over 15 years since 2006.
