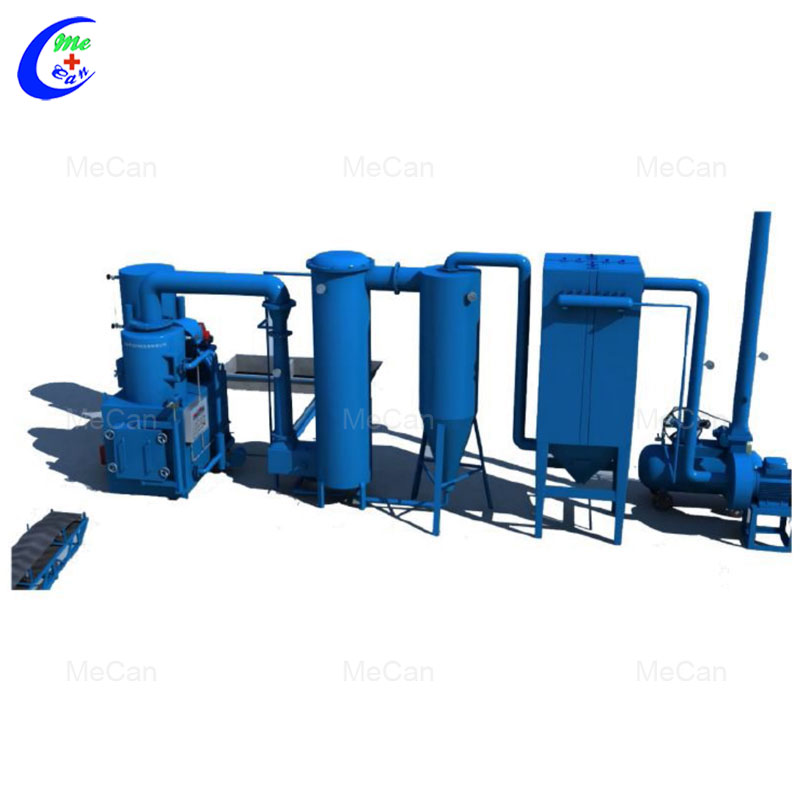

Medical Waste Incinerator with Wet Gas Treatment System

Model: MCFS-500G


1. Specifications

1).Smokeless and no harmful to environment.

2).Continuously and fully burning.

3).Simple operation.



2. Advantage

1) Long lifetime

2) Totally enclosed operation

3) Suitable for treating infectious waste

4) Avoid secondary pollution

5) Simple operation



3. Main features

1) Both gas-motivated and oil-motivated are all can be preferred according to customers` needs.

2) Gasified incineration is used for burning syringe, paper waste, bandage, absorbent cotton and other medical wastes.

3) Daily waste can be burned once by gasified incineration.

4)Gasified incineration, mixed incineration and burnout treatment ensures low emission standard of dust (lower than International standard).

5) Totally enclosed operation is suitable for treating infectious waste to avoid secondary pollution.



4. Application

1) Hospitals

2) Hotels

3) Stations

4) Industries


Detail Information of our Medical Waste Incinerator

Applicable hospital size

(number of beds)

600-800beds

Burning Ability

500kg/time (daily incineration 3-6 times)

Size of the Burner

3m*2m*4.8m

Volume of the Burner

Gasification room 3.5m3, secondary buming room 1.5m3, drift a long buming room 0.3m3

Third Burner

Optional

Size of the filling entrance

1080mm*1280mm

Chimney

Height 14m out-radius¢460mm

Blower

Power 1.1kw 0.55kw

Combustion-support combustion machines

Power 0.22kw,fuel consumption 7-14kg/h

Re-burning machine

Power 0.37kw,fuel consumption 15-26kg/h

Running voltage

220V or 380V


Standard Configuration of our MCFS-500G Medical Waste Incinerator

No

Name

Amount

Specifications

Notes

1

Incinerator

1

A3 steel refractories

Main part

2

The 2 combustion chamber and the combustion chamber mixed

1

A3 steel refractories



Installed in the main body

3

Electric box

1


The main body

4

Fluegas purification system

1

A3 steel refractories



Installed in the main body

5

Combustion burner

1

BTL-14

The main body

6

Reburning burner

1

BTL-28G

The main body

7

blower

1

1650W/220V/380V

The main body

8

Ash rake

1

¢200mm×4000mm

MeCan Medical

9

Pump

1


The main body

10

fuel tank

1


The main body

11

fuel tank bracket

1

¢600mm*2200mm

MeCan Medical

12

Chimney

2

¢460mm*10000mm

¢460mm*5000mm

MeCan Medical

13

Filter switch

5


The main body

14

Thermocouple

2

1200℃

The main body

15

Operational procedures

1


The main body

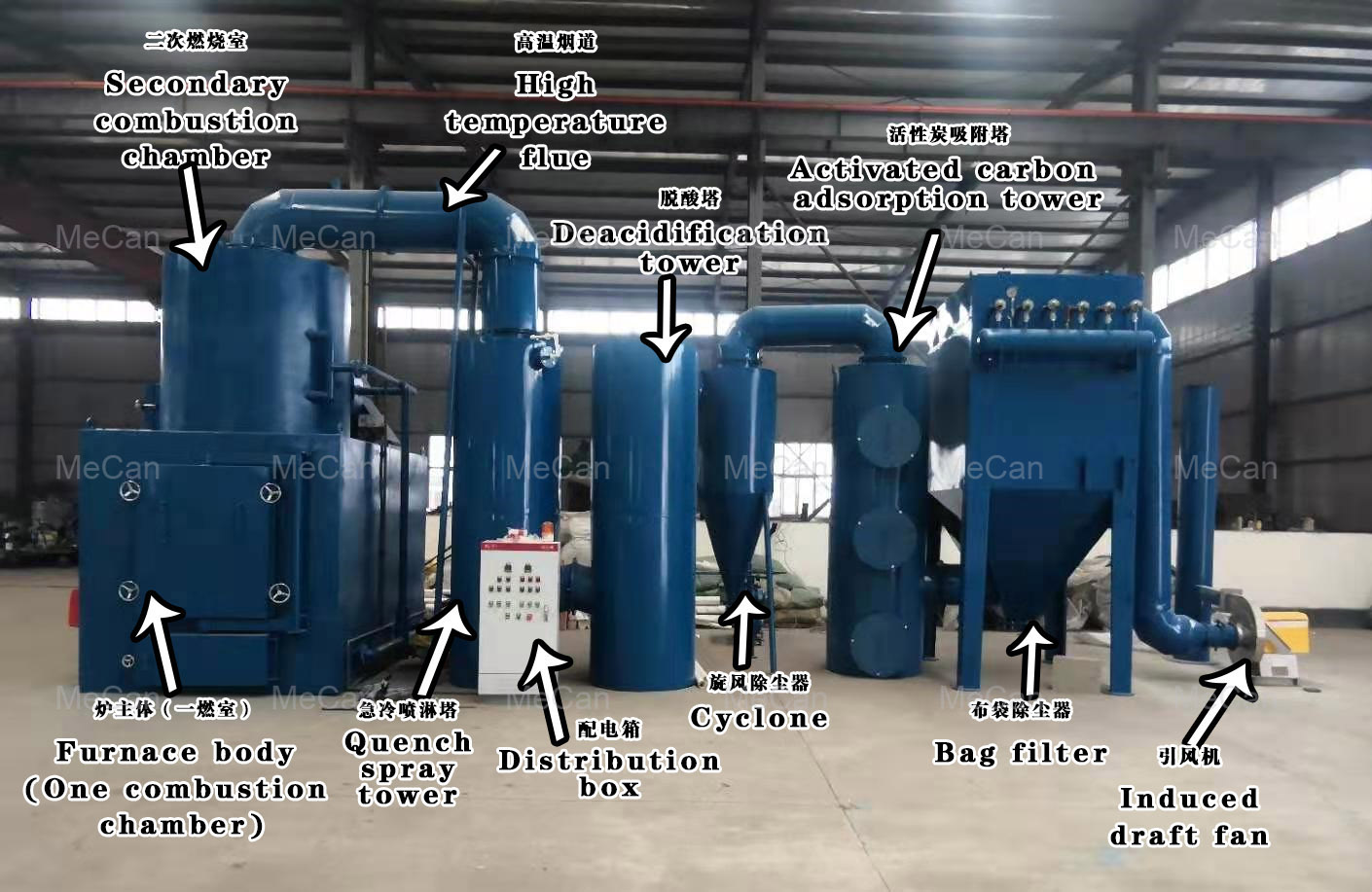

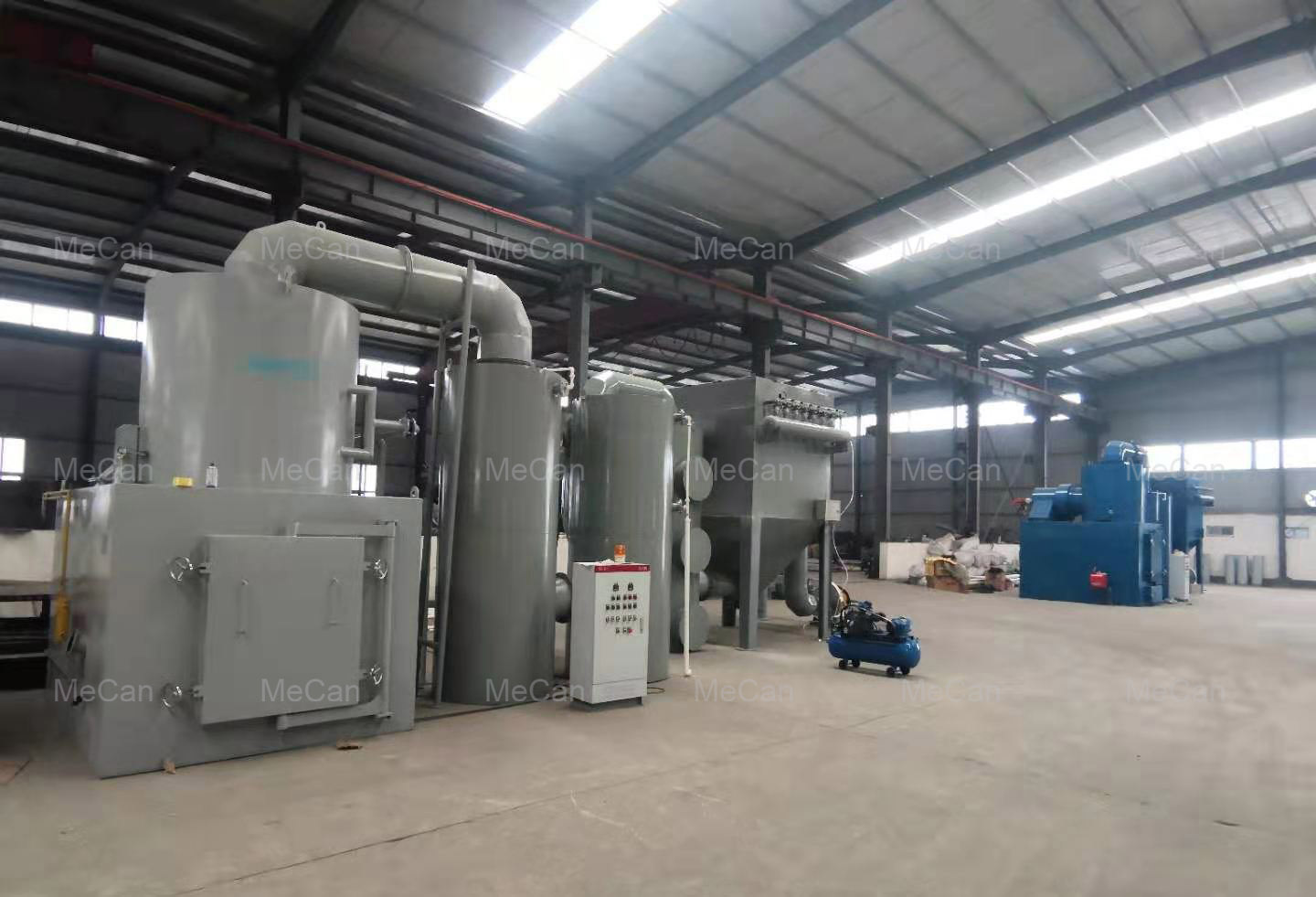

G Series Medical Waste Incinerator with Wet Gas Treatment System, including the spray tower, deacidification tower, cyclone dust collector, bag filter and activated carbon adsorption.

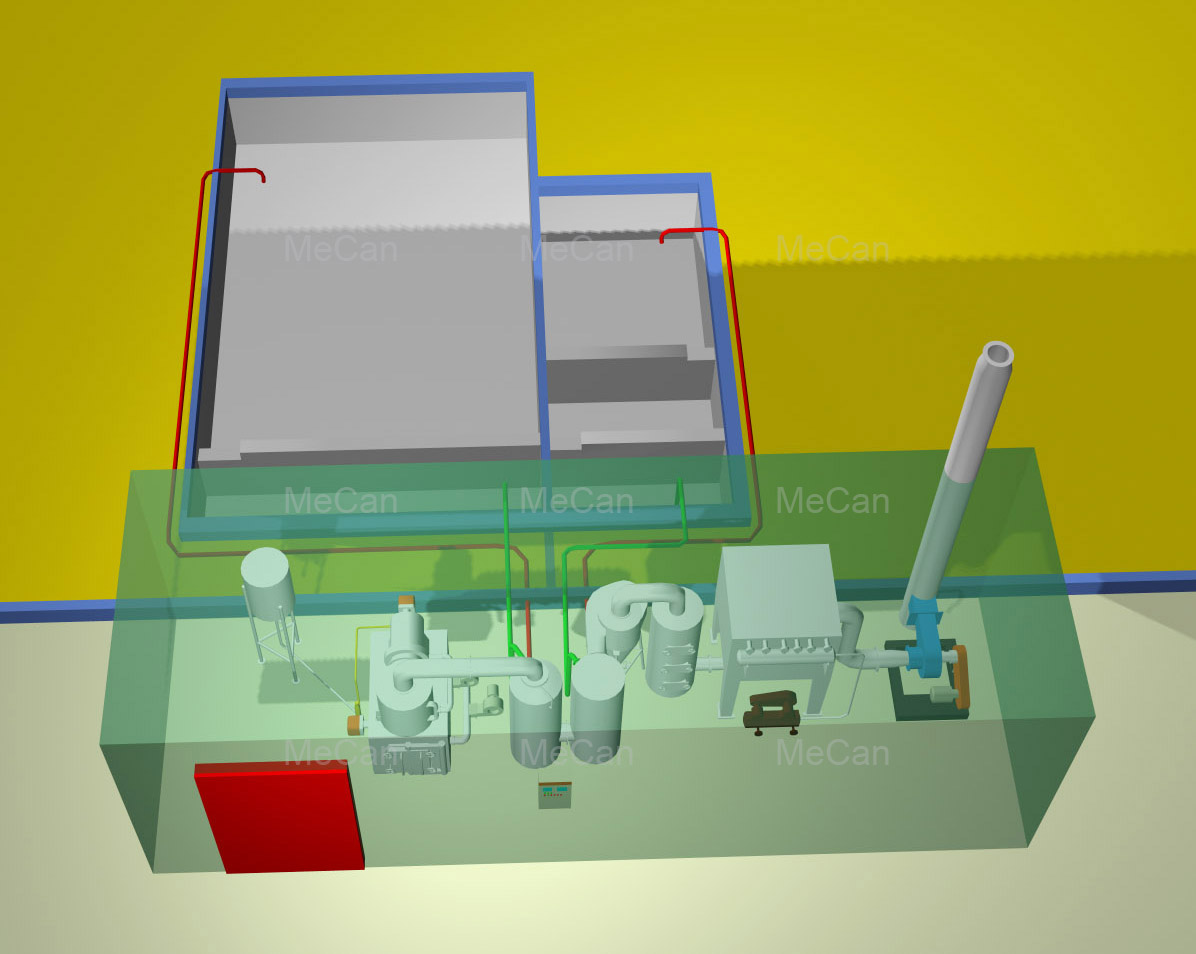

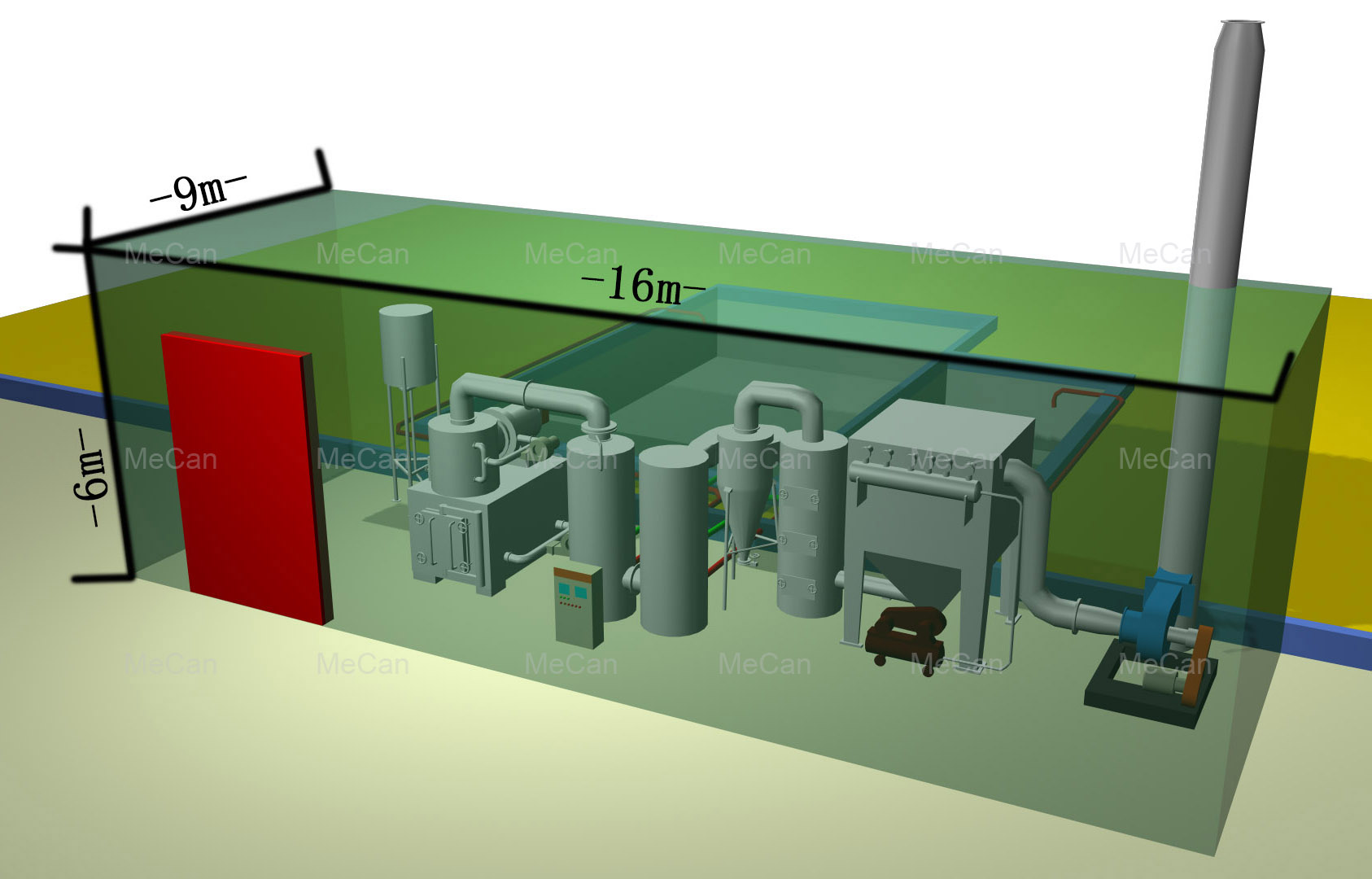

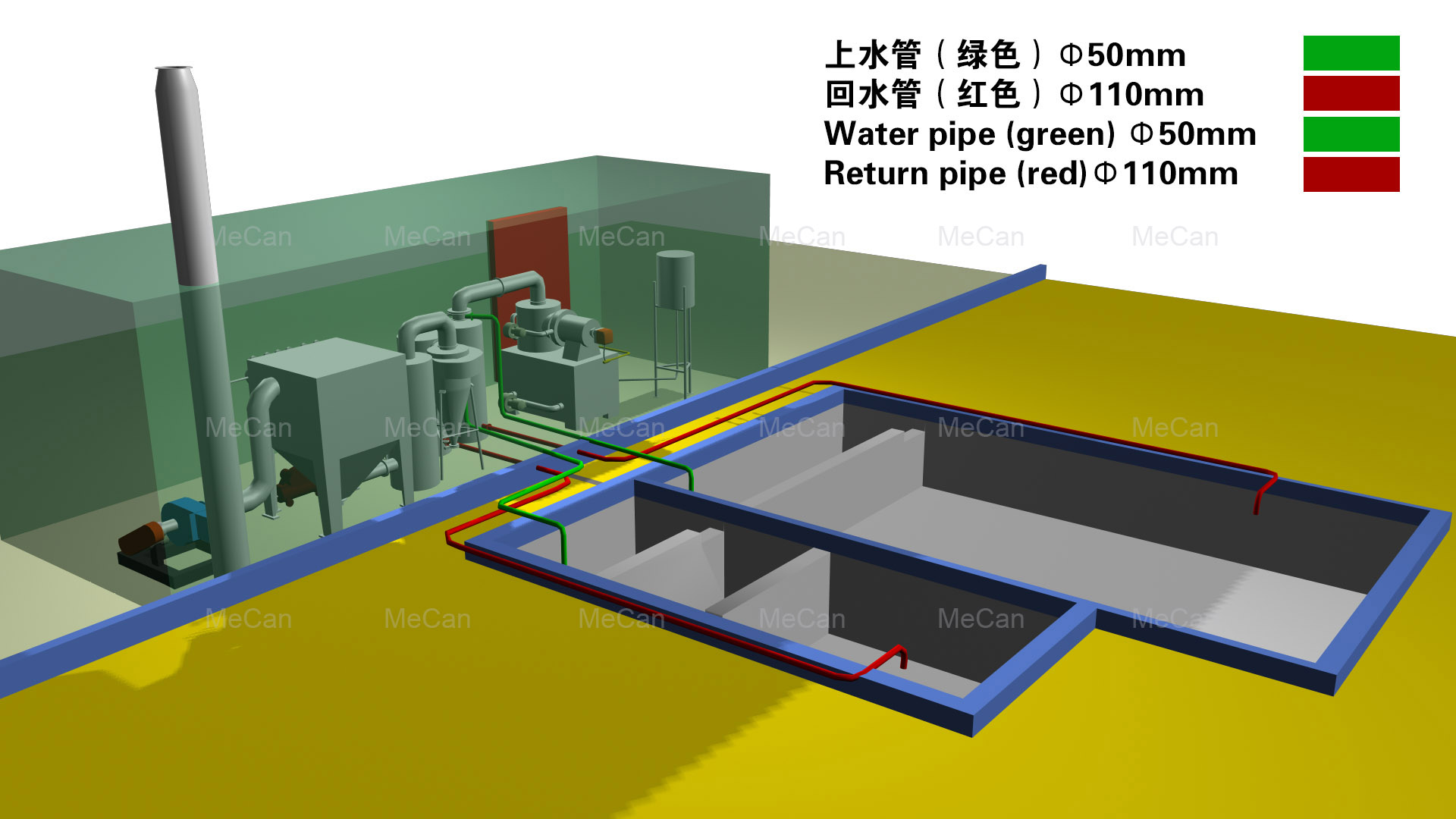

Layout of Medical Waste Incinerator in Room

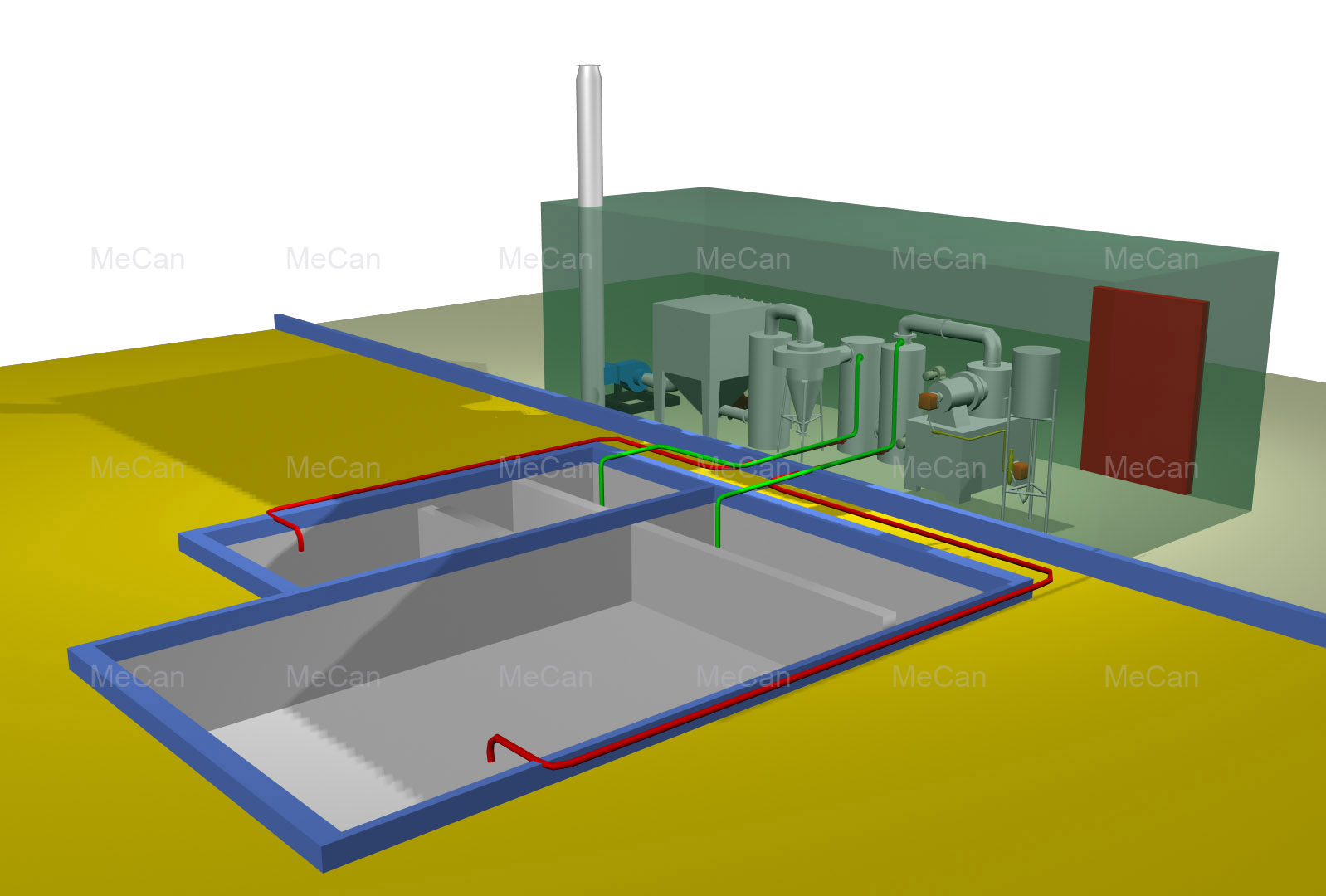

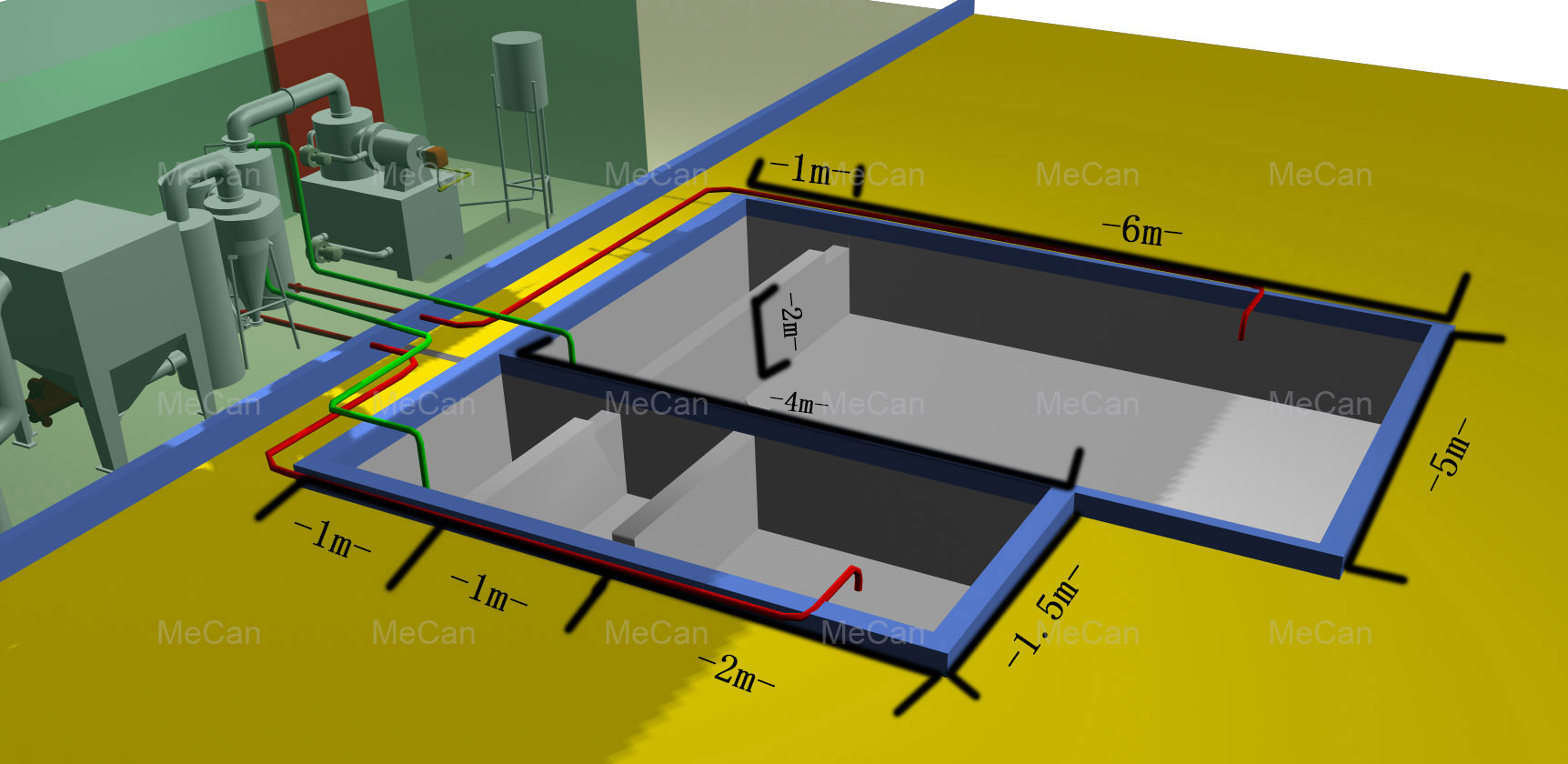

Medical Waste Incinerator and circulating water cooling pool


Automatic feeding cart of Medical Waste Incinerator (Optional)


Lading the Medical Waste Incinerator in the container (Please click the picture to visit the video)

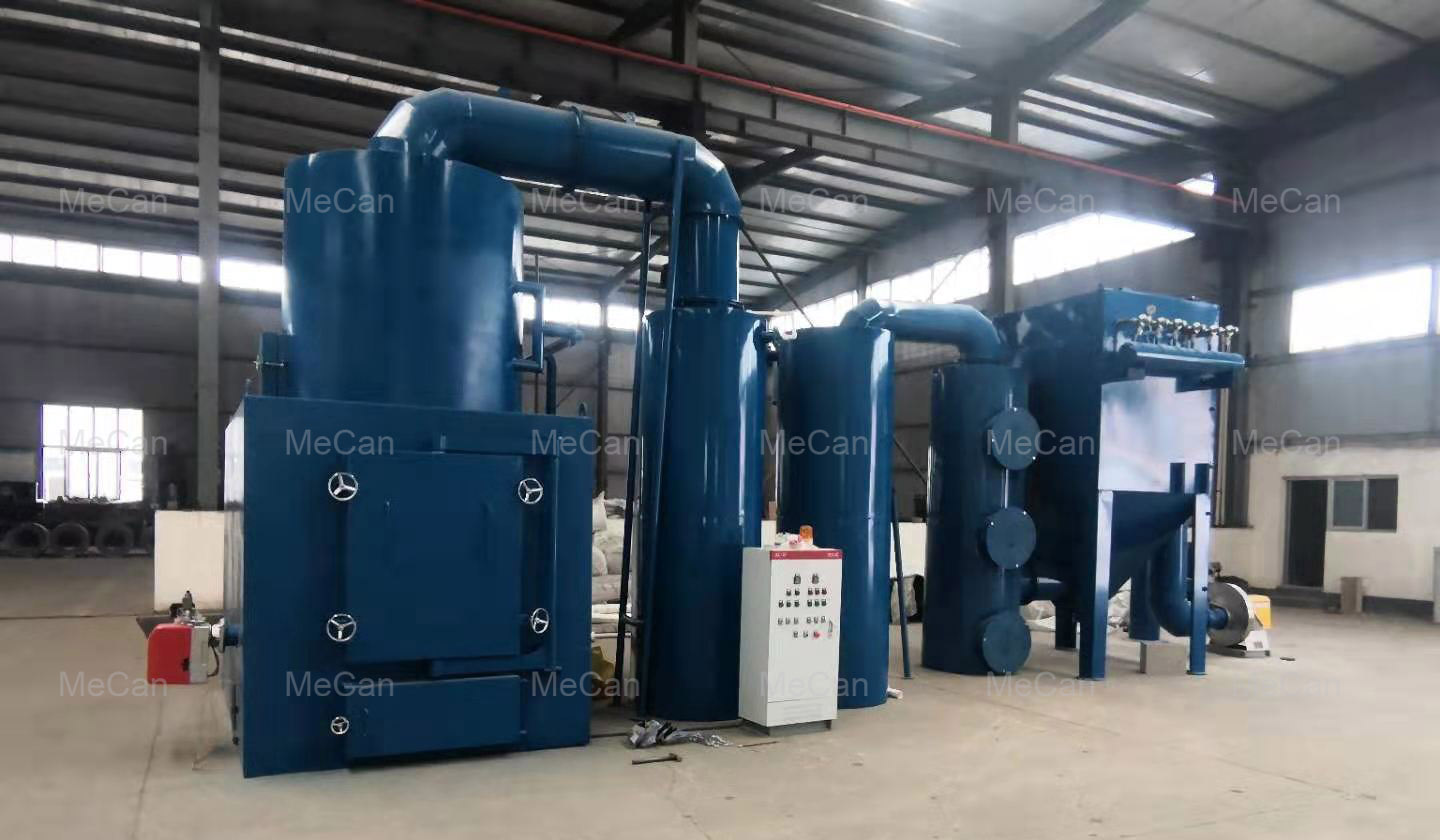

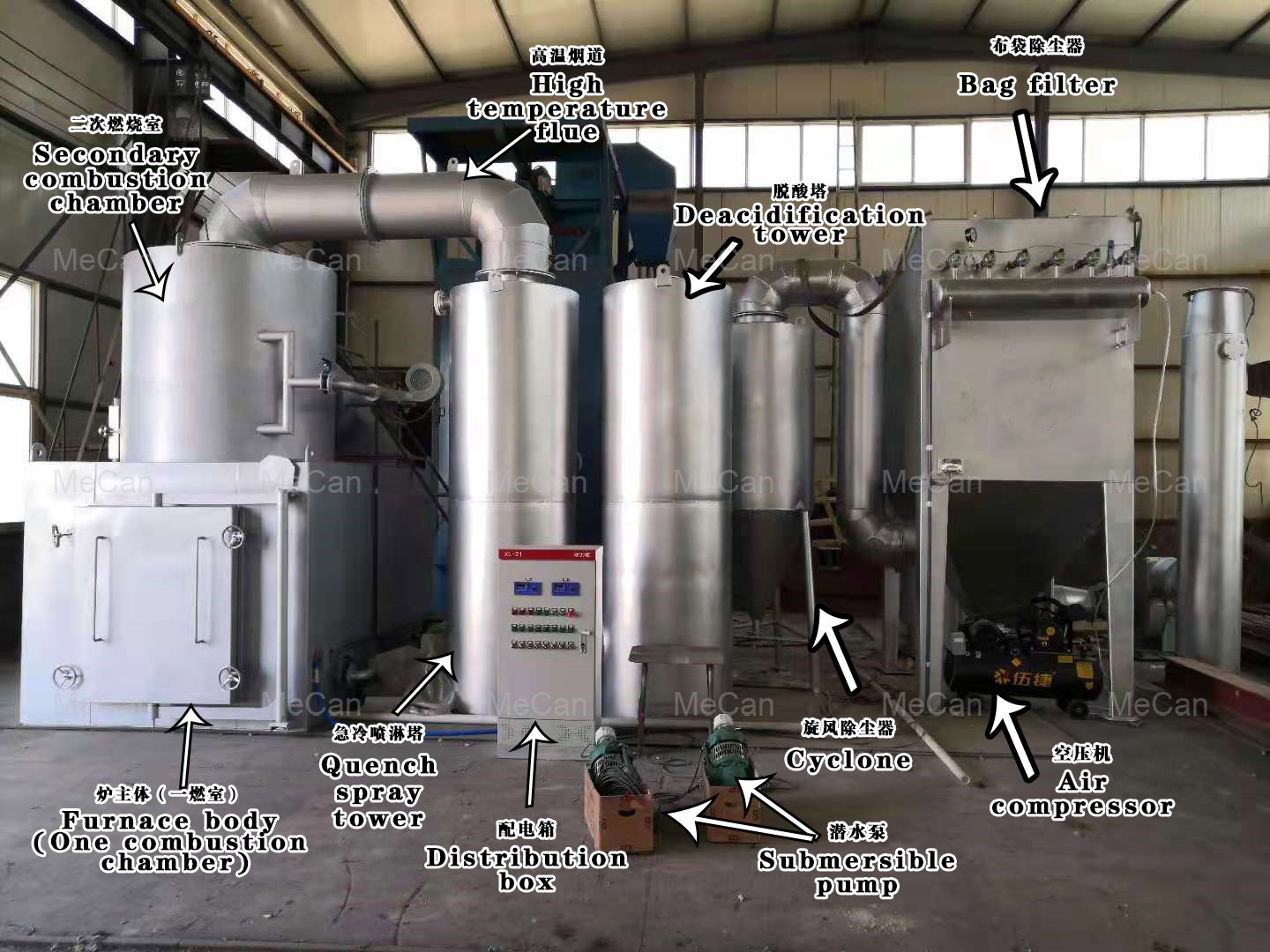

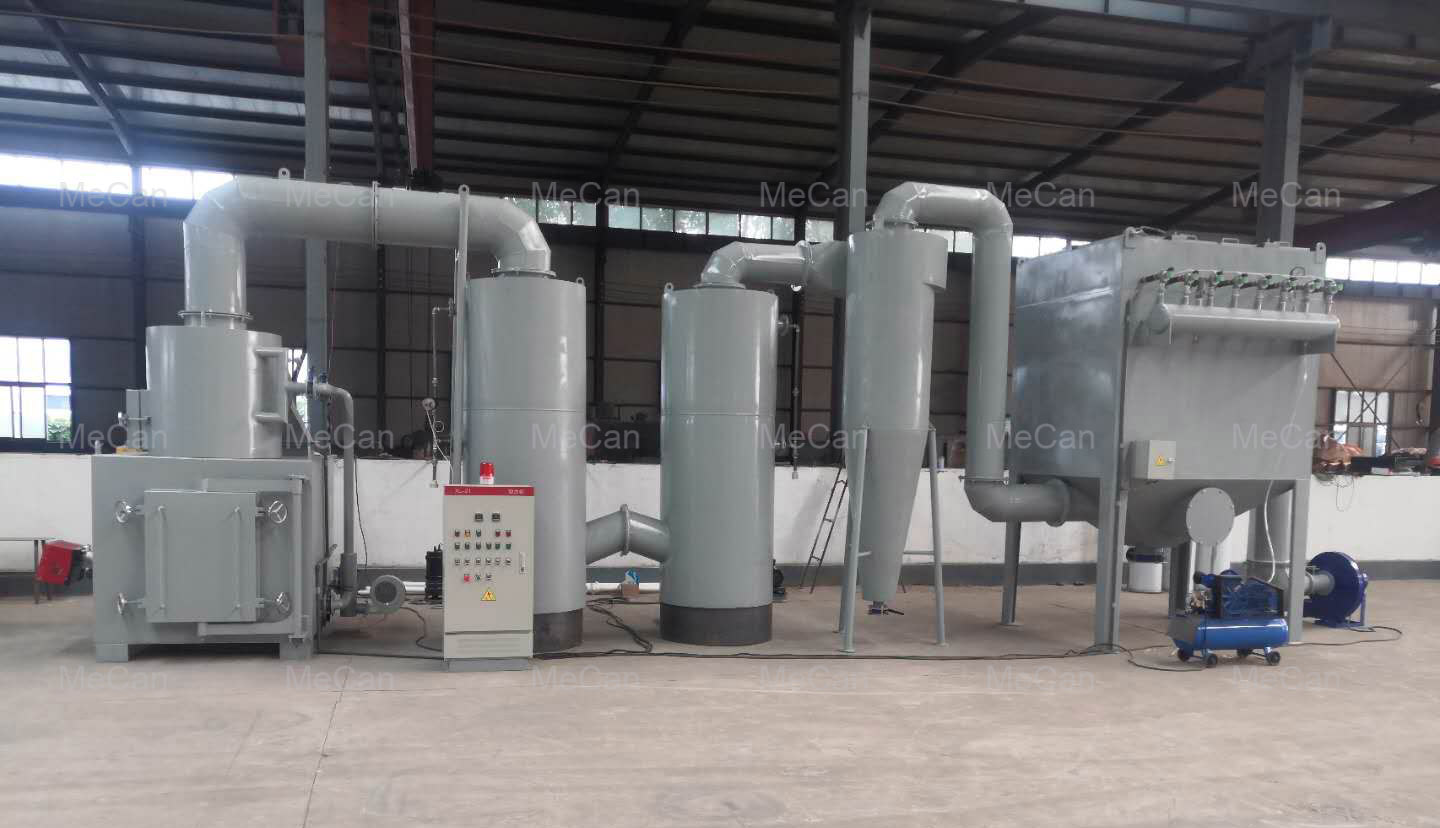

Real products' pictures of our medical waste incinerator


Some Case of our Medical Waste Incinerator


Feedback of our Medical Waste Incinerator from Botswana


Other types of our Medical Waste Incinerator H series

H series Medical Waste Incinerator series including the Venturi processor (Quick cooling tower), cyclone dust collector,etc.


Dry exhaust gas treatment series Medical Waste Incinerator

Mobile Medical Waste Incinerator 20kg/hour or 30kg/hour

MCFS-20M 20kg/hour


MCFS-30M 30kg/hour


By the way, we have many kinds of incinerators, such as waste incinerator sterilization system, industrial incinerator and its components, if you interested in it, please contact us now.


The product has a clean surface. It is constructed with antibacterial materials that effectively repel and destroy infectious organisms.
