MX-050B12
MeCan
China Medical Equipment X-ray System
Model: MX-050B12
Introduction of Digital X Ray Machine:

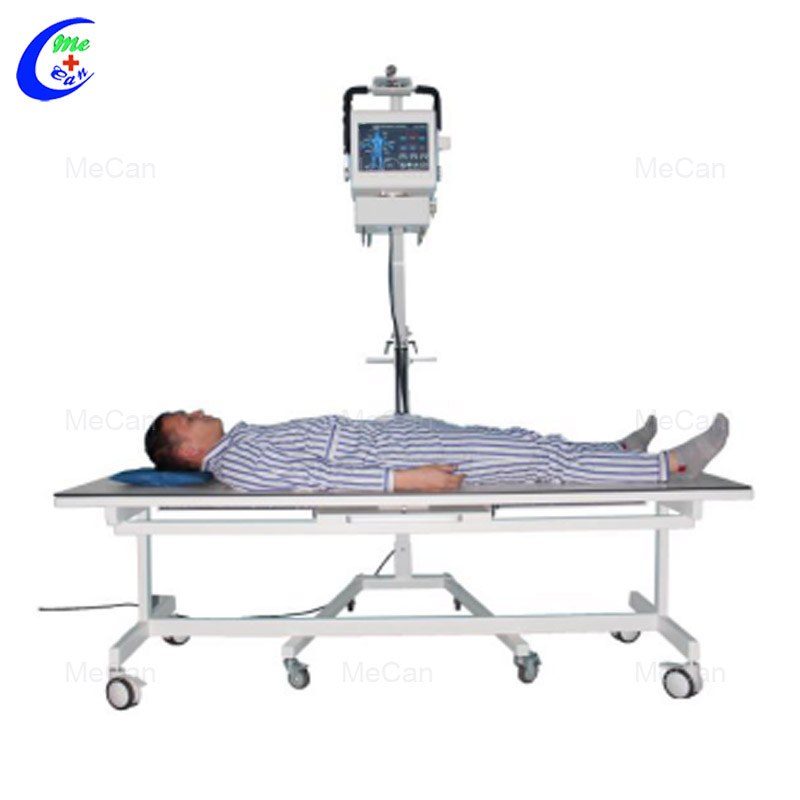

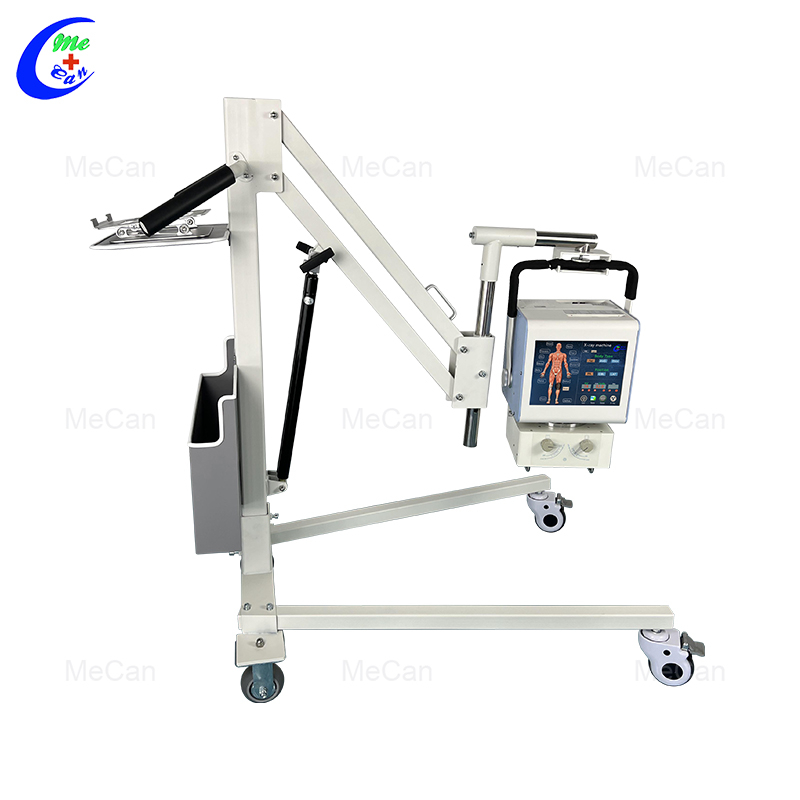

The main structure of MX-050B12 portable X-ray machine is composed of X-ray machine mainframe (including electrical control system, operation panel, X-ray source component, high voltage generator, and collimator), hand brake and power cord. The operation panel adopts a LCD touch key, a key sound prompts and a direct embedding on the X ray main shell. The overall appearance of the machine is shown in Figure.
Parameter:
aggregate capacity | 5KW |
service voltage | 220V |
power requirement | Single phase 3 wire system 220 V/50HZ (line diameter >4 mm2; internal resistance <0.5Ω) |
mA | 32-100 mA |
mAs | 0.32--315mAs stepper R'10/ 0.4mAs |
KV | 40-110 KV step 1 KV |
exposure time | 0.01~6.3s |
focal spot size | 0.6*0.6 mm/1.8*1.8mm dual focus |
Speed and heat capacity | 42KHU |
Generator frequency | 30Khz |
Table model | 3543A(14*17 inch)/4343A(17*17 inch) |
Imaging area | 14*17 inch |
Pixel size | 140um |
A/D conversion | 16bits |
spatial resolution | 3.6lp/mm |
software | Special Medical Software |
computer configuration | R3-4300U processor ,8 G memory ,256 G solid state hard disk |
