Best Aluminum Ambulance Stretcher, Hospital Patient Transfer Stretcher Trolley Supplier

MeCan Medical Best Aluminum Ambulance Stretcher, Hospital Patient Transfer Stretcher Trolley Supplier,Every equipments from MeCan gets passed strict quality inspection,and final passed yield is 100%. High and low lifting system: using imported hydraulic cylinder to control, the quality is more stable.
5. Bed board: adopt anti-fold special material, higher strength and no deformation. The central control brake linkage rod is formed by an integrated round tube to ensure higher strength. If you want to know more, please contact in time.



Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Aluminum Ambulance Stretcher, Hospital Patient Transfer Stretcher Trolley

Model:MCF0007

Features:

1. The length of the bed is 1880mm, the width of the bed is 620mm, the height is 560 ~ 890mm, the back lift is 0 ~ 75°, the knee lift is 0 ~ 40°, the tilt adjustment is -18° ~ 18°.

2. Safe working load: 220KG

3. Back lifting system: Controlled by silent gas spring.

4. High and low lifting system: using imported hydraulic cylinder to control, the quality is more stable.

5. Bed board: adopt anti-fold special material, higher strength and no deformation.

6. Frame: Made of high-quality steel.

7. Guardrails: PP resin molded guardrails on both sides, with a height of 300mm, are safer for patients, and can also be fixed horizontally, increasing the width of the bed, so that the infusion person’s arms have a comfortable place; and it has double safety locks for locking to prevent Misoperation improves the safety of operation.

8. The guardrail panel is equipped with an angle display to facilitate the understanding of the rising angle of the back during nursing; there are grooves in the middle of the guardrail panels on both sides to prevent the catheter from slipping off and facilitate infusion drainage. The aluminum die-casting one-piece guardrail bracket has higher strength, humanization and better appearance.

9. Casters: Four casters with a diameter of 200mm are used in the central lock. The four corners of the cart are equipped with a caster control system. One foot brakes and the four wheels are fixed at the same time.

10. The central control brake linkage rod is formed by an integrated round tube to ensure higher strength.

11. Independent central fifth wheel system: both sides of the cart are equipped with control pedals, and the center fifth wheel can travel freely when retracted; when in use, it is in the "straight" state (the height of the pedal is 105mm, passing Better performance), overcome the inertial force during the transportation process, effectively control the forward direction, and make the transportation process safer.

12. There is an integrated tray under the bed, which can put oxygen cylinders, which is easy to use, and the tray can bear 10Kg.

13. Equipped with infusion stand storage rack, fixed storage infusion stand.

14. Mattress: The surface of the fabric is waterproof, which is easy to clean, equipped with zippers, and the outer fabric can be washed.


Specification:


Item
Technical requirement
Size
length
1880mm
Width
620mm

Range of motion
High-low
560~890mm
Back lift
0~75°
Knee lift
0~40°
tilt
-18°~ 18°

Main material
Bed board, frame
Bed board:Compact laminate board. frame:Aluminum alloy pressing and high quality steel.
mattress
Surface material: PU polyester
Inner core material: polyurethane foam
Diameter of Caster
200mm
Size for Oxygen bottle holder
Diameter 140mm Max 4L
Safe working load
220kg

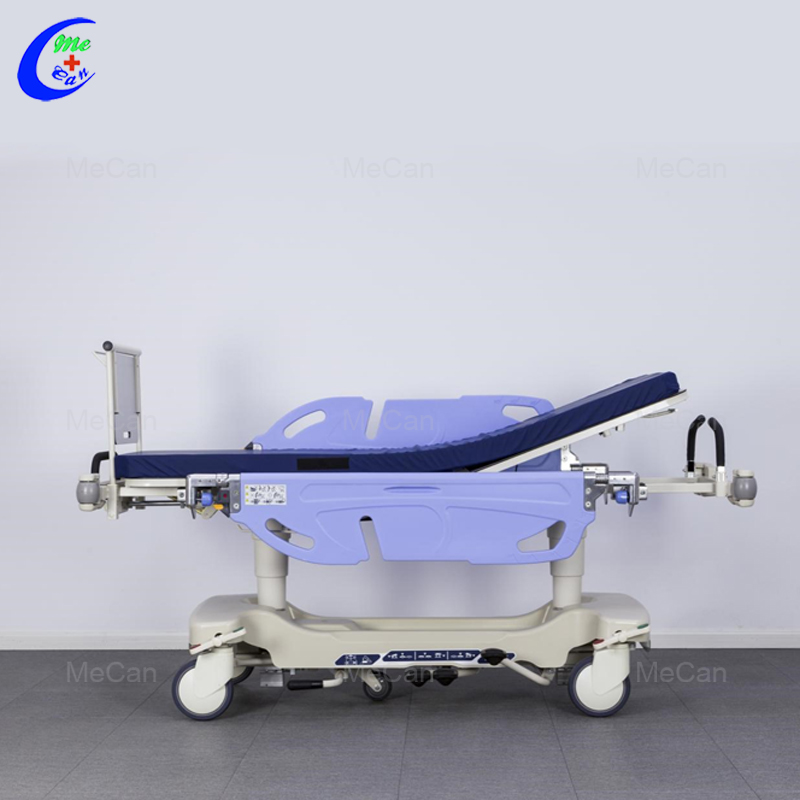

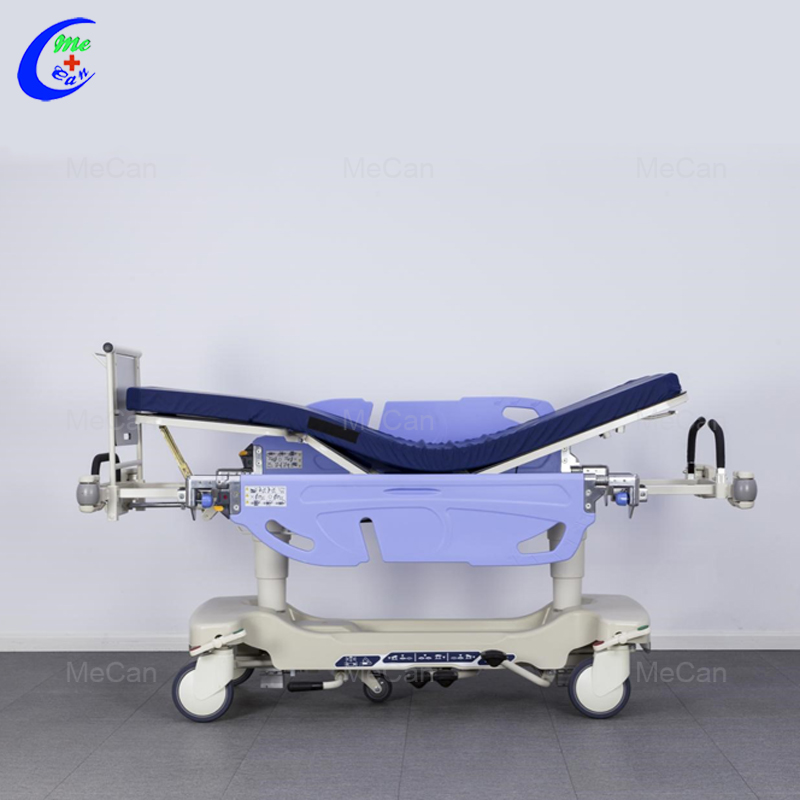

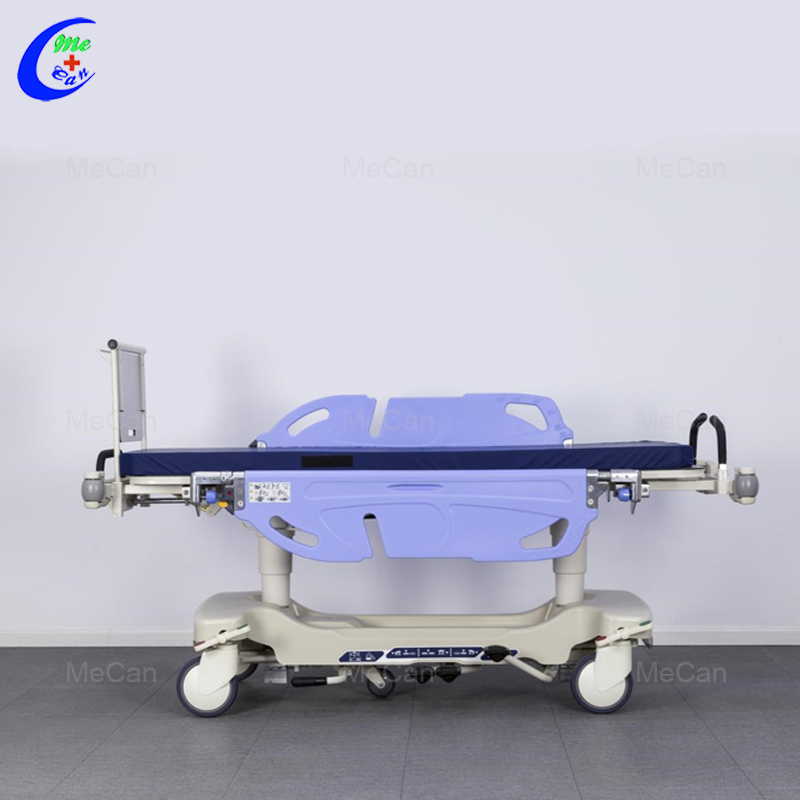

more pictures of MCF0007 Patient Transfer for Hospital:





FAQ

1.Technology R & D
We have a professional R&D team that continuously upgrades and innovates products.
2.What is your warranty for the products?
One year for free
3.Quality Control (QC)
we have a professional quality control team to ensure that the final pass rate is 100%.

Advantages

1.Every equipments from MeCan gets passed strict quality inspection,and final passed yield is 100%.
2.OEM/ODM, customized according to your requirements.
3.MeCan offer professional service,our team is well-tained
4.More than 20000 customers choose MeCan.
