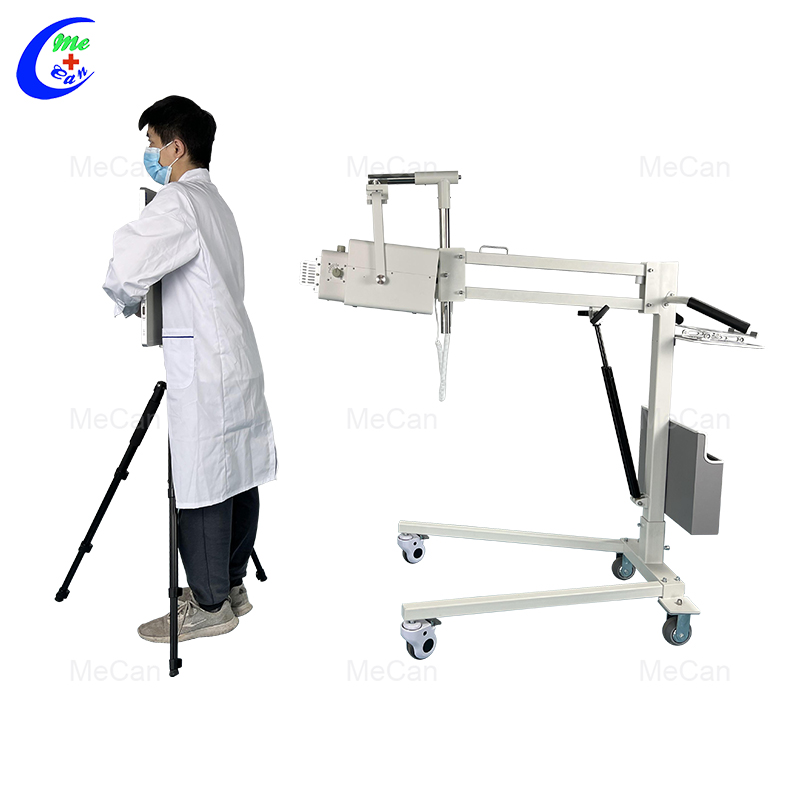

Portable 5.6kW X-ray Machine with Li-Battery Suitable for Mobile Medical Applications

Portable 5.6kW X-ray Machine with Li-Battery Suitable for Mobile Medical Applications

Model Number: MX-056A14

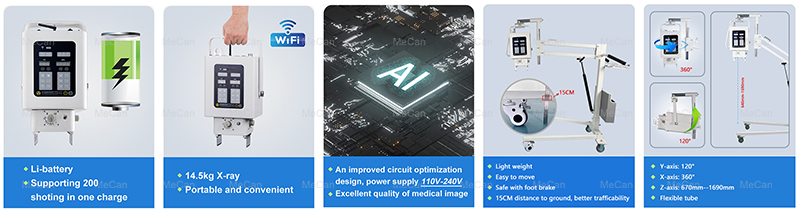

Features of Portable X Ray System with Li-battery

1. Wide range AC input with APFC integrated, an improved circuit optimization design, power supply 110V-240V.

2. Soft switching technology, switching frequency is up to 200KHz.

3. Support 5.6kW and 320mAs exposure, excellent quality of medical image.

4. Support remote monitor with wireless communication integrated.

5. Big capacity li-battery pack, Achieving outdoor continuous working time of 8 hours or supporting 200 shoting in one charge.

6. Power density up to 275W/L.

7. High degree of software intelligence:filament automatic calibration, dual-filament automatic selection and complete fault diagnosis.

8. Operator panel seperated as human and veterinary according to different purpose.

9.Portable and convenient, portable x ray unit: 14.5kg only

10.Light weight and easy to move

11.Safe with foot brake

12.15CM distance to ground, better trafficability

13.Tube Angle: Y-axis: 120°, X- axis: 360°, Z- axis: 670mm-- 1690mm

14.Remote Control Exposure

15.Horse, dog and cat can be changing-over

Specification of our Portable DR X Ray System:

Power	5.6kw(li-battery)
Power Supply	Single-phase 220V 50/60Hz (wire diameter>4mm2,internal resistance<0.5Ω), DC: 48V,6AH
Working Frequency	80-200KHz
mA	32-100mA
mAs	0.1-320mAs
KV	40-125kv
Exposure time	2ms-10000ms
Tube focus	1.8*1.8mm
Anode heat capacity	42kHU

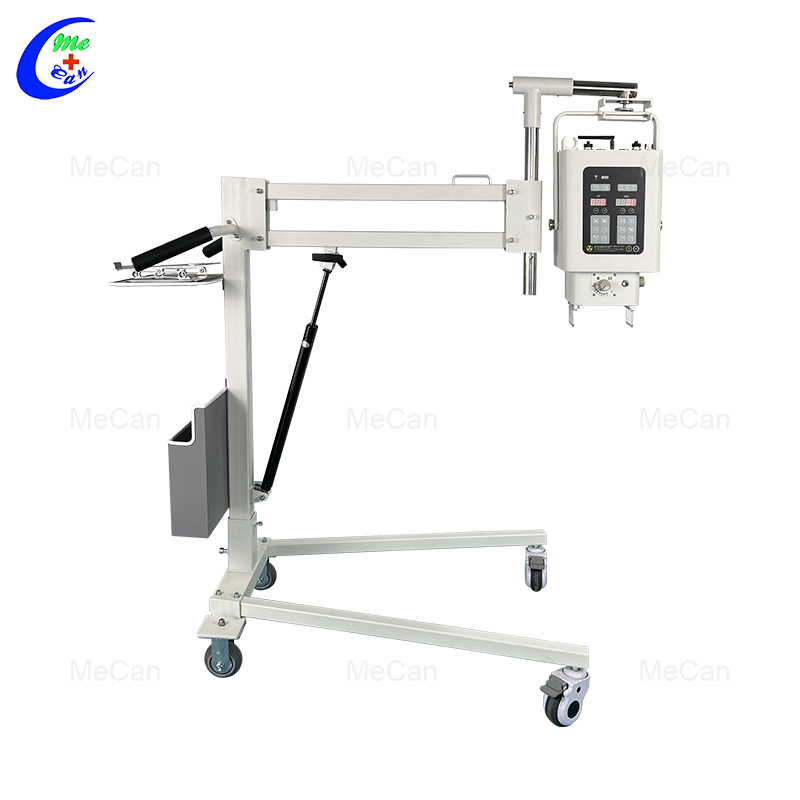

Mobile x ray stand	MXM-MS2

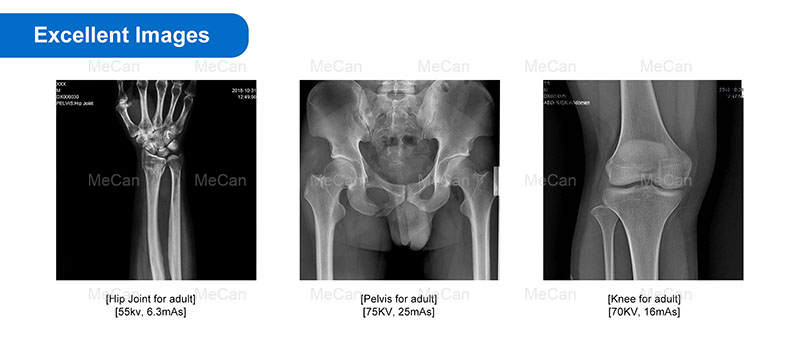

Test image of our Mobile DR X Ray Machine
