MeCan Medical China Mobile X Ray Machine Portable X-Ray Machine for Human manufacturers - MeCan Medical,OEM/ODM, customized according to your requirements. The Machine portable digital high frequency x-ray unit is mainly suitable for extremities check, especially for rescues or diagnosis in field operation sites, battlefields, stadiums, animal clinics, etc.
Availability: | |
---|---|
Quantity: | |
MX-056A12
MeCan

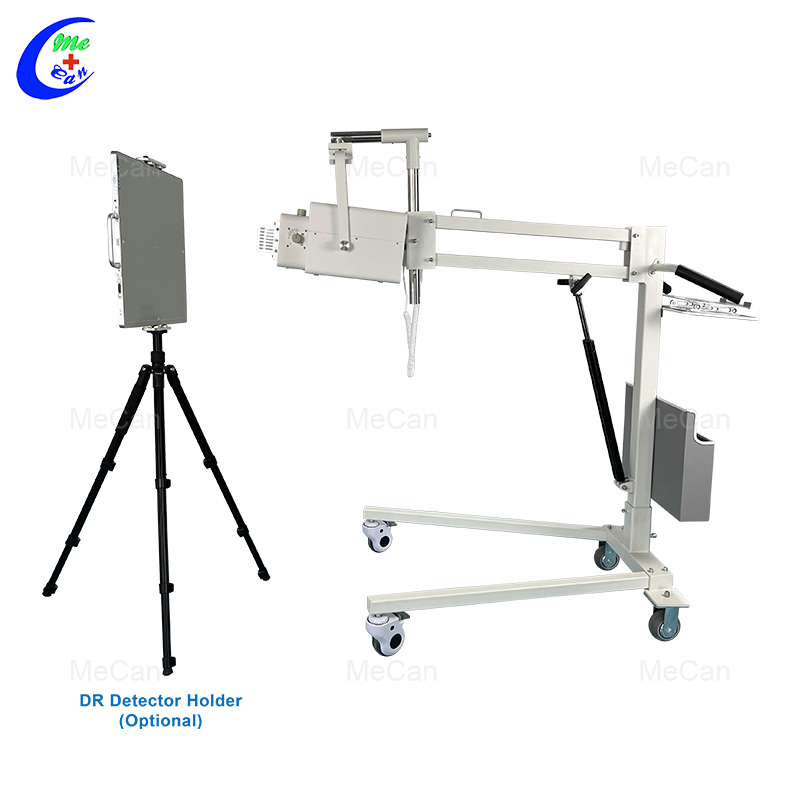

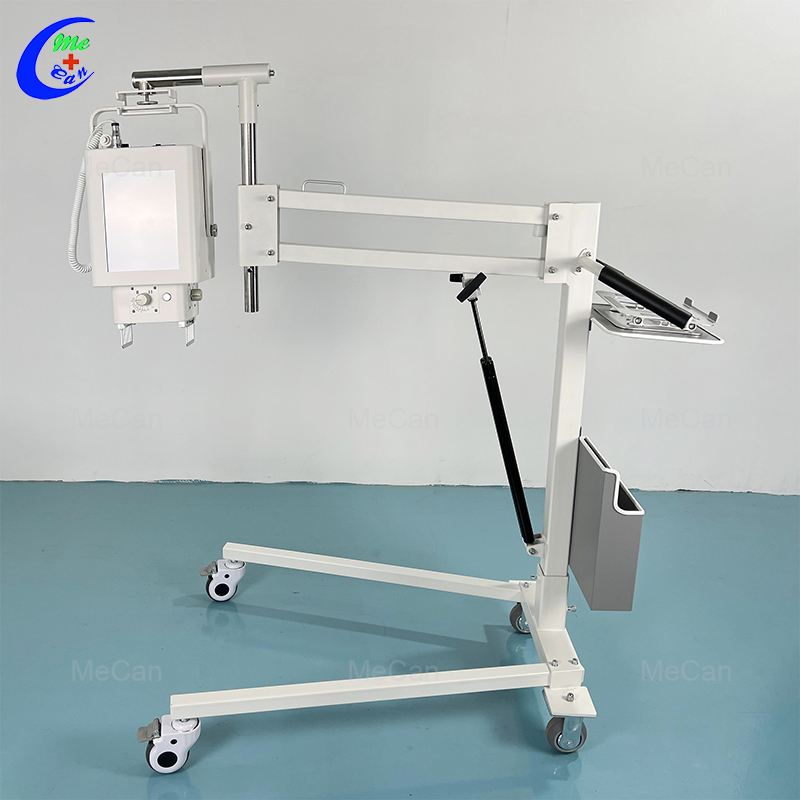

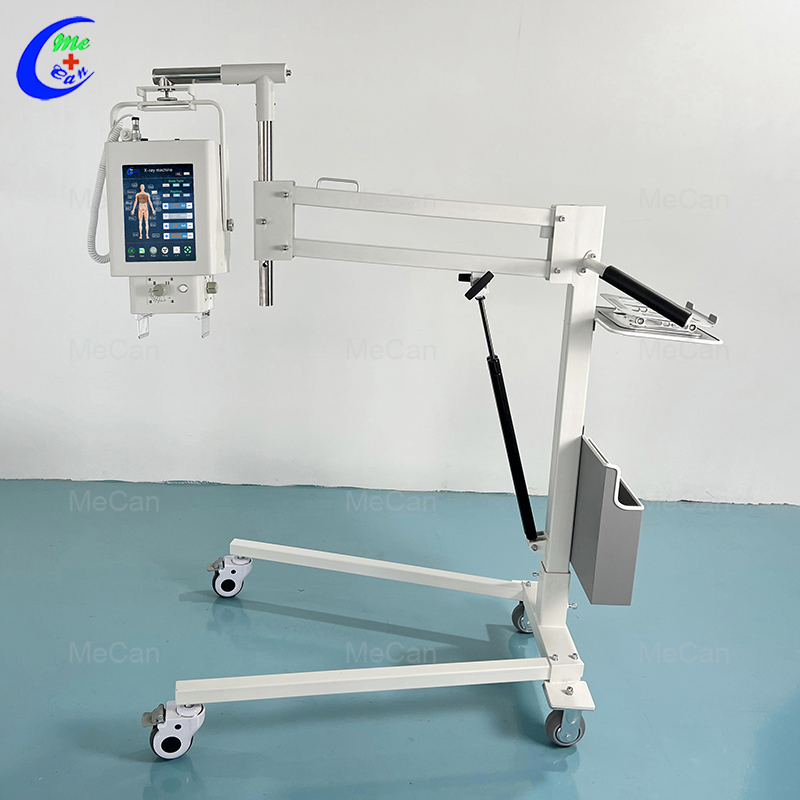

5.6KW Portable Digital X Ray Machine for Human
Model: MX-056A12
The 5.6kw Portable Digital X Ray Machine is a versatile and user-friendly medical imaging equipment that provides high-quality digital radiography. It is ideal for diagnosing bone fractures, joint dislocations, and other orthopaedic conditions, as well as for conducting non-invasive exams on small and large animals. Its lightweight and compact design make it easy to transport and operate in various clinical settings, ensuring efficient and accurate diagnoses.
Features of 5.6KW Portable Digital X Ray Machine
1.10.4 inch LCD screen
2.14 preset parameters
3.Convenient for doctor
4.Light weight
5.Easy to move
6.Safe with foot brake
7.15CM distance to ground, better trafficability
8. X-ray tube rotation and movement:
Y-axis: 120°,X-axis: 360°, Z-axis: 670mm--1 690mm
9. OEM/ODM supporting
10. Support 5.6kW and 320mAs exposure.
11. Operator panel seperated as human and veterinary according to different purpose.
Specification of our Portable Digital X Ray Machine:
Power | 5.6KW |
Power Supply | Single-phase 220V 50/60Hz (wire diameter>4mm2,internal resistance<0.5Ω), |
Working Frequency | 80-200KHz |
mA | 32-100mA |
mAs | 0.1-320mAs |
KV | 40-125kv |
Exposure time | 2ms-10000ms |
Tube focus | 1.8*1.8mm |
Anode heat capacity | 42kHU |
Mobile x ray stand | MX-MS2 |
Test image of our Portable Digital X Ray Machine
5.6KW Portable Digital X Ray Machine for Human
Model: MX-056A12
The 5.6kw Portable Digital X Ray Machine is a versatile and user-friendly medical imaging equipment that provides high-quality digital radiography. It is ideal for diagnosing bone fractures, joint dislocations, and other orthopaedic conditions, as well as for conducting non-invasive exams on small and large animals. Its lightweight and compact design make it easy to transport and operate in various clinical settings, ensuring efficient and accurate diagnoses.
Features of 5.6KW Portable Digital X Ray Machine
1.10.4 inch LCD screen
2.14 preset parameters
3.Convenient for doctor
4.Light weight
5.Easy to move
6.Safe with foot brake
7.15CM distance to ground, better trafficability
8. X-ray tube rotation and movement:
Y-axis: 120°,X-axis: 360°, Z-axis: 670mm--1 690mm
9. OEM/ODM supporting
10. Support 5.6kW and 320mAs exposure.
11. Operator panel seperated as human and veterinary according to different purpose.
Specification of our Portable Digital X Ray Machine:
Power | 5.6KW |
Power Supply | Single-phase 220V 50/60Hz (wire diameter>4mm2,internal resistance<0.5Ω), |
Working Frequency | 80-200KHz |
mA | 32-100mA |
mAs | 0.1-320mAs |
KV | 40-125kv |
Exposure time | 2ms-10000ms |
Tube focus | 1.8*1.8mm |
Anode heat capacity | 42kHU |
Mobile x ray stand | MX-MS2 |
Test image of our Portable Digital X Ray Machine
