MX-V056A15
MeCan

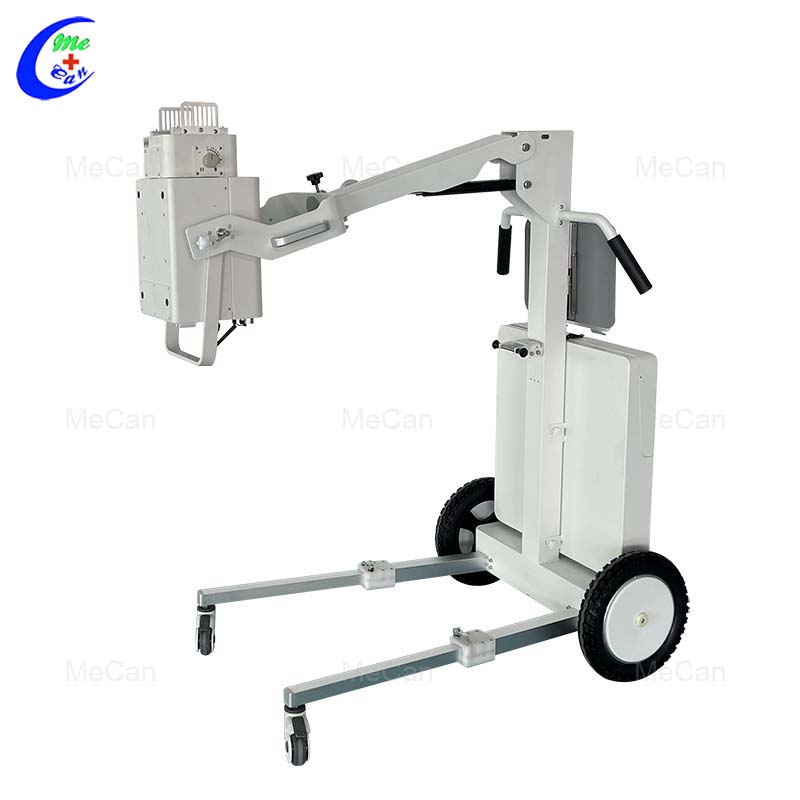

Vet Portable X-Ray Machine with Mobile Battery
Model Number: MX-V056A15
Features of 5.6kW Vet Portable X Ray Machine
1. Wide range AC input with APFC integrated, an improved circuit optimization design, power supply 110V-240V.
2. Soft switching technology, switching frequency is up to 200KHz.
3. Support 5.6kW and 320mAs exposure, excellent quality of medical image.
4. Support remote monitor with wireless communication integrated.
5. Big capacity li-battery pack, Achieving outdoor continuous working time of 8 hours or supporting 200 shoting in one charge.
6. Power density up to 275W/L.
7. High degree of software intelligence:filament automatic calibration, dual-filament automatic selection and complete fault diagnosis.
8. Operator panel seperated as human and veterinary according to different purpose.
9. Portable and convenient, portable x ray unit: 14.5kg only
10. Legs can be extendabled, computer tray and frame can be folded, the loading size: 132*74*66cm, it is can be loaded in the Ambulance and SUV Cars.
Specification of our 5.6kW Vet Portable X Ray Machine:
Power | 5.6KW(li-battery) |
Power Supply | Single-phase 220V 50/60Hz (wire diameter>4mm2,internal resistance<0.5Ω), DC: 48V,6AH |
Working Frequency | 80-200KHz |
mA | 32-100mA |
mAs | 0.1-320mAs |
KV | 40-125kv |
Exposure time | 2ms-10000ms |
Tube focus | 1.8*1.8mm |
Anode heat capacity | 42kHU |
Mobile x ray stand | MXM-MS3 |
Power | 5.6KW(li-battery) |
Power Supply | Single-phase 220V 50/60Hz (wire diameter>4mm2,internal resistance<0.5Ω), DC: 48V,6AH |
Working Frequency | 80-200KHz |
mA | 32-100mA |
mAs | 0.1-320mAs |
KV | 40-125kv |
Exposure time | 2ms-10000ms |
Tube focus | 1.8*1.8mm |
Anode heat capacity | 42kHU |
Mobile x ray stand | MXM-MS3 |
Test image of our 5.6KW battery powered mobile vet x ray equipmengt
More Picture about 5.6KW battery powered portable vet x ray equipmengt
Vet Portable X-Ray Machine with Mobile Battery
Model Number: MX-V056A15
Features of 5.6kW Vet Portable X Ray Machine
1. Wide range AC input with APFC integrated, an improved circuit optimization design, power supply 110V-240V.
2. Soft switching technology, switching frequency is up to 200KHz.
3. Support 5.6kW and 320mAs exposure, excellent quality of medical image.
4. Support remote monitor with wireless communication integrated.
5. Big capacity li-battery pack, Achieving outdoor continuous working time of 8 hours or supporting 200 shoting in one charge.
6. Power density up to 275W/L.
7. High degree of software intelligence:filament automatic calibration, dual-filament automatic selection and complete fault diagnosis.
8. Operator panel seperated as human and veterinary according to different purpose.
9. Portable and convenient, portable x ray unit: 14.5kg only
10. Legs can be extendabled, computer tray and frame can be folded, the loading size: 132*74*66cm, it is can be loaded in the Ambulance and SUV Cars.
Specification of our 5.6kW Vet Portable X Ray Machine:
Power | 5.6KW(li-battery) |
Power Supply | Single-phase 220V 50/60Hz (wire diameter>4mm2,internal resistance<0.5Ω), DC: 48V,6AH |
Working Frequency | 80-200KHz |
mA | 32-100mA |
mAs | 0.1-320mAs |
KV | 40-125kv |
Exposure time | 2ms-10000ms |
Tube focus | 1.8*1.8mm |
Anode heat capacity | 42kHU |
Mobile x ray stand | MXM-MS3 |
Power | 5.6KW(li-battery) |
Power Supply | Single-phase 220V 50/60Hz (wire diameter>4mm2,internal resistance<0.5Ω), DC: 48V,6AH |
Working Frequency | 80-200KHz |
mA | 32-100mA |
mAs | 0.1-320mAs |
KV | 40-125kv |
Exposure time | 2ms-10000ms |
Tube focus | 1.8*1.8mm |
Anode heat capacity | 42kHU |
Mobile x ray stand | MXM-MS3 |
Test image of our 5.6KW battery powered mobile vet x ray equipmengt
More Picture about 5.6KW battery powered portable vet x ray equipmengt
