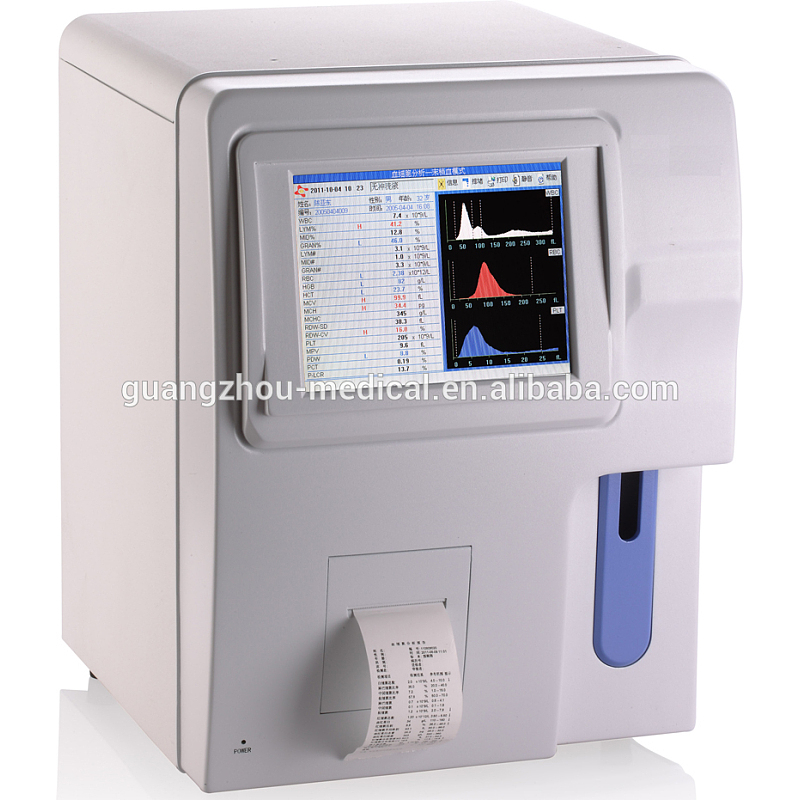

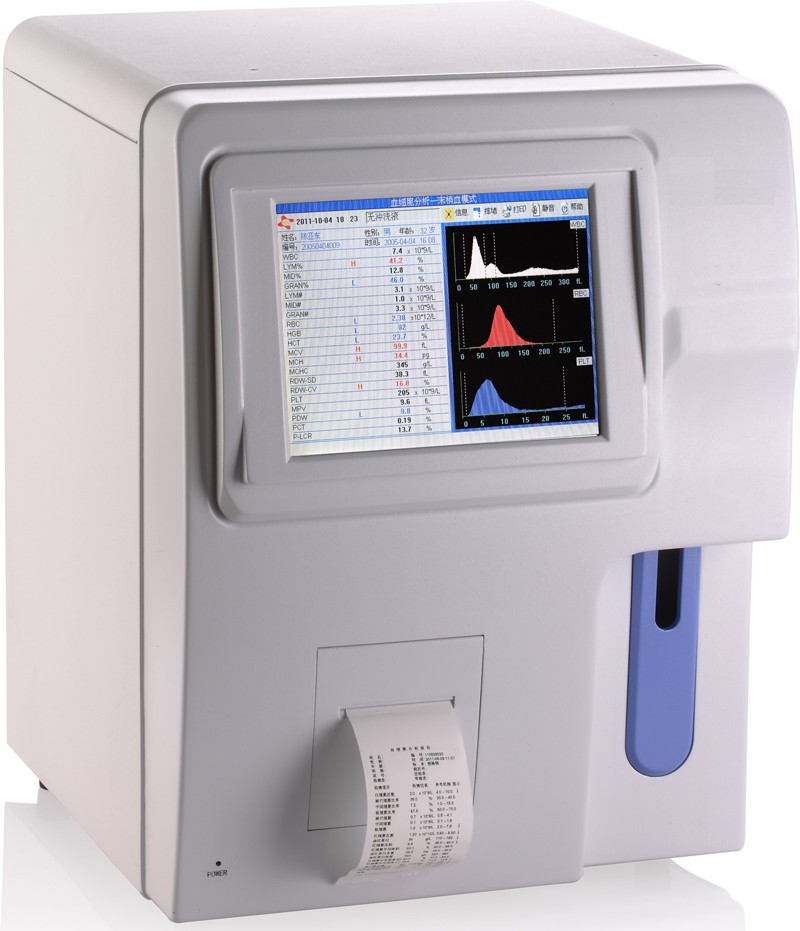

Auto Hematology Analyzer
Model: SK-9000
3-part differentiation of WBC, 23 parameters, Double channels counter
Volume measurement by time ,not wrong warning
Adanced valve technology,long life
RS232 interface, PC connecting
up to 60 samples test per hour
Electrical resistance for counting and SFT method of Hemaglobin
Low sample comsumption : venous 9.8 ul, capillary 9.6 ul, prediluted 20 ul for twice testing one time
8.4” color TFT, Windows interface all testing parameter displayed simultaneously
Windows operation system graphical buttons mouse and keyboard operation
Double convolution and intelligent fitting
Automatic diluting , Mixing , rinsing and clog clearing
Automatically sample probe cleanning (inside and outside)
Large storage capacity: up to 10,000 samples +3 histograms

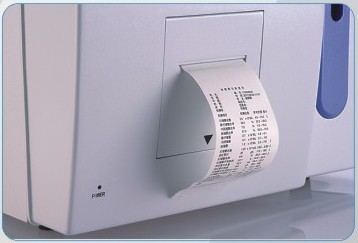

Internal thermal-sensitive printer or external printer.
RS232 interface, PC connecting
Main Technical Specifications
Methodology: Electrical resistance for counting, hemiglobincyanide method and SFT method for hemoglobin
Parameter: 3-part differentiation of WBC; 20 parameters and 3 color histograms (WBC, RBC, PLT)
Work mode : Single Channel + unique Hemoglobin test system
Sample volume: 9.6μL for Venous and capillary mode, 20μL for prediluted mode
Throughput: More than 35 samples per hour, operatable 24 hours a day, auto sleeping and waking-up functions
Storage: up to 100000 sample results including histograms can be stored, convenient for inquiry and management of history data
Operation langue: English
QC control : X-B, L-J, X , SD, CV %
Refrence Value Setting : Male , Female, Children, Neonate

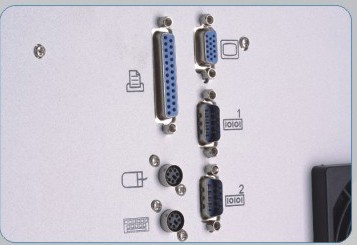

Input / output : RS232, parallel printer and keyboard
Print : Graphic thermal printer with various printing format, optional external printer
Temperature : 18℃ - 30℃,wet ≤ 10-90%
Power supply : 220 V ±22 VAC, 50±1Hz
Dimension : 33 CM ( L ) * 38 CM ( W ) * 43 CM ( H )
Weight : 20 KG
Precision
Parameters linear range CV %
WBC( 10 9 / L ) 0.0 - 99.9 ≤2%
RBC ( 1012 / L ) 0.0 - 9.99 ≤1.5%
MCV ( fL ) 40-150 ≤0.5%
PLT ( 10 9 / L ) 0-999 ≤4.0%
HGB( g/L ) 0.0-300.0 ≤1.5%
Parameters
WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB,HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV,PDW,PCT,L-PCR
3 –histograms : WBC,RBC and PLT
Lab Analyzer
We provide different kinds of Laboratory Analyzer. Some are shown in the following pictures. For more infomation, please refer to our webside: guangzhou-medical.en.alibaba.com.
Our Advantage
1. One stop supplier for medical equipments and laboratory equipments in Guangzhou
2. More than 2000 hospitals have become our partners
3. Superior quality with factory price
4. Quick reply and considerate service
5. CE,ISO,FDA Certificate
6. Fast delivery by air, sea or in other ways
7. More than 10 years in medical machines supply business
8. Exported to more than 109 countries
9. Warranty time: AT LEAST 12 months and Over 8 years' technical and accessories-change support
10.Excellent and immediate after-sale service
Together with client
We have sold 50mA Mobile X-ray Machine MCX-L102 and other medical equipment to more than 109 countries and built long term partnerships with clients such as UK, US, Italy, South Africa, Nigeria, Ghana, Kenya, Turkey, Greece, Philippines, etc
Testimonials
1. From the Biomedical Engineer of Senegal.
hello, the installation of the RX unit was a success. all is ok and i have a very good picture.
THANK YOU
2. From Dr. Salman Hasan, Doctor from Nigeria
Hello we have installed the radio and we are really satisfied with its operation.
3. From Dr. Emma Adapoe, Ghana, Africa.
Mecan Medical Company Limited:
I have tried them for their honesty
I have tested their products for Good Quality
I have experienced their Good and and nice service and customer relations
I endorse Mecan because they stand the test of time.
Please contact us and let’s talk details for the Auto Hematology Analyzer
