Overview
When delays in electrolyte testing impact care, the MECANMED MCL2259 delivers results in <60 seconds. This automatic ISE analyzer ensures precision for primary care clinics and emergency settings, combining robust performance in unstable environments with exceptional ease of use.
Key Features
Rapid, Automated ISE Testing: Utilizing Ion Selective Electrode technology, the analyzer provides precise results for key electrolytes in under 60 seconds. Full automation minimizes error, ideal for urgent care and high-throughput needs.
Built for Challenging Environments: With a wide voltage input (100-240VAC) and an automatic waste collection system, it ensures reliable operation despite power fluctuations and reduces biohazard risks in clinics with limited staff.
Streamlined Operation & Low Cost: The intuitive 7-inch touchscreen and multi-language interface allow for minimal training. The integrated reagent pack and simple maintenance significantly lower the total cost of ownership.
Robust Data Management: Supports 30-day QC data statistics and unlimited data recovery, ensuring traceability and seamless integration with LIS via the RS-232 port for efficient workflow.
Product Specifications
Parameter | Specification |
Methodology | Ion Selective Electrode (ISE) |
Sample Type | Serum, Plasma, Whole Blood, Urine |
Sample Volume | 100-150 μL |
Throughput | < 60 seconds for electrolyte panels |
Key Parameters | K+, Na+, Cl-, nCa⊃2;⁺, iCa⊃2;⁺, TCa, Li+, pH, CO₂, AG |
Power Supply | 100-240VAC, 50/60Hz |
Display | 7-inch color touchscreen |
Data Output | Built-in printer, RS-232 port |
Ideal for Your Workflow
In a Primary Care Clinic, the MCL2259's simplicity enables efficient screening. Its <60s speed is critical for Emergency Department stabilization. The optional 25-position loader enhances batch testing in labs.
Simple Operation Workflow
Setup & Power: Load integrated reagent pack; Connect to 100-240VAC power; system auto-checks on startup.
Prepare Sample: Use serum, plasma, blood, or urine with no complex prep.

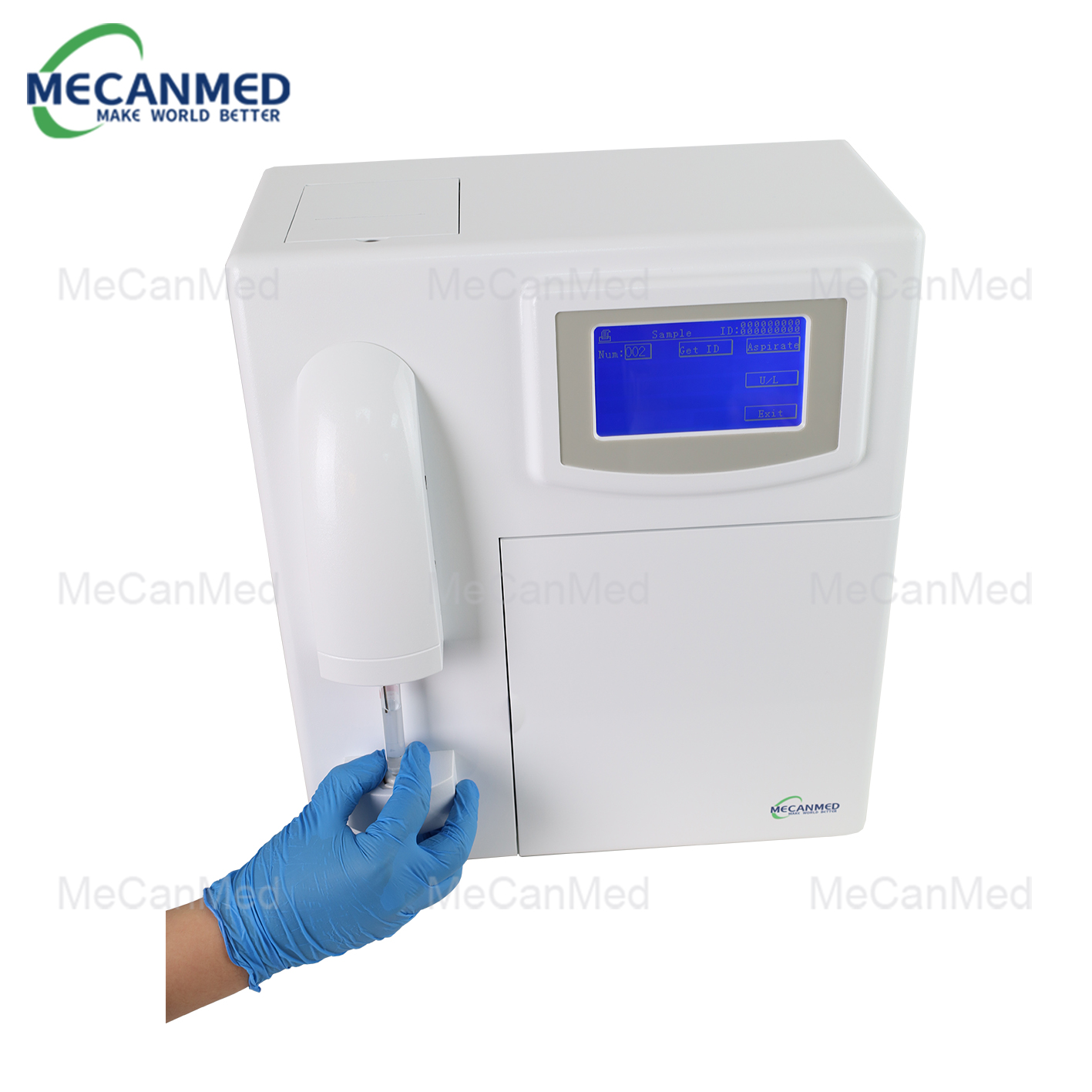

Run Test: Place sample; select test on touchscreen. Results in <60s with automatic waste collection.
FAQ
Q: Ideal for a primary care clinic?
A: Yes. The MCL2259 ISE Electrolyte Analyzer is simple and fast (<60s), perfect for Primary Care Clinic routines.
Q: Benefit of automatic waste collection?
A: The automatic waste collection enhances safety by reducing staff exposure to biohazards.
