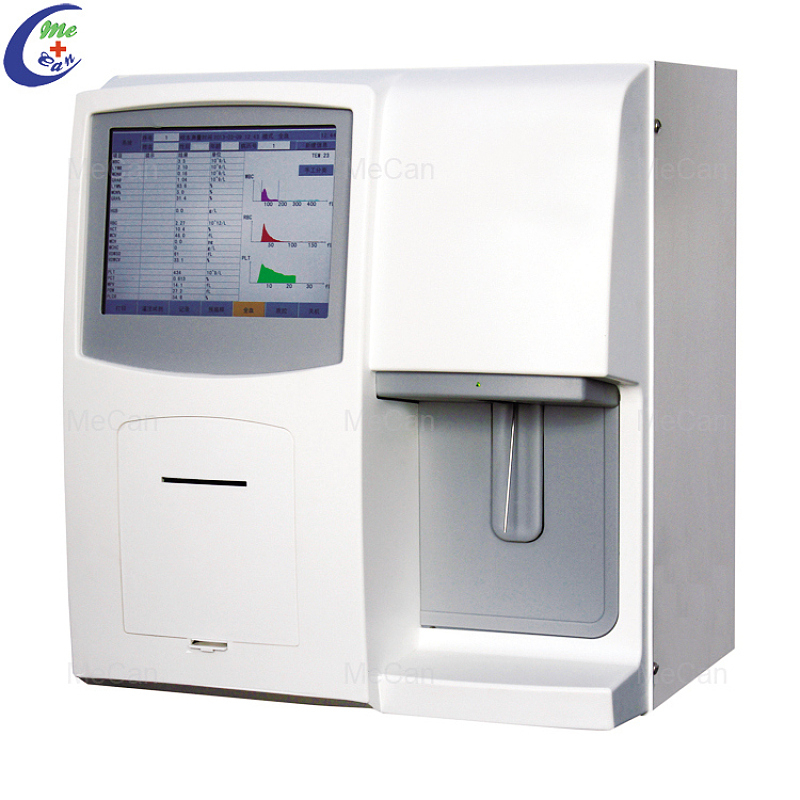

3 Part CBC Machine Blood Hematology Analyzer Full Blood Count Analyzer
  • 3 Part CBC Machine Blood Hematology Analyzer Full Blood Count Analyzer

3 Part CBC Machine Blood Hematology Analyzer Full Blood Count Analyzer

Model NO.:
USD 1760.00-1760.00
Minimum order quantity:
  • Place of Origin:CN;GUA
  • Instrument classification:Class II
  • Properties:Hematology Analyzer
  • Brand Name:MeCan
  • Model Number:MCL-3800

3 Part CBC Machine  Blood Hematology Analyzer Full Blood Count Analyzer


Hematology Analyzer 4 (3).jpg

3-part differential, 23 parameters

Dual-channel, 60 T/H

8.4 inches TFT touchscreen

Data storage:>30000results of sample,including 3 histograms

Cheapest Price!


Click here for more information !!!

What is the detail of our Hematology Analyzer?


Features :

1. Fully digitized process of signals from blood cell, mature design of fluid path to ensure the reliability of measurement.
2. Advanced floating threshold combined with perfect abnormal blood sample expert recognition system
3. Independent hemoglobin detecting system, unique volume metering pipe direct quantify technology; the interference source can be eliminated and precision can be increased.
4. Particle wizard technology: cells’straight-line motion produce pulse to ensure the accuracy of WBC,RBC,PLT counting
5. Bi-directional stereoscopic rotational flow technology: avoiding fluid interfering PLT counting
6.3-part white blood cell differential
7.Dual-channel, 60 T/H
8. Brand-new highly accurate trace blood treating technology
9. Impedance technology, Cyanide methemoglobin method and non-cyanide SFT method
10.8.4 inches TFT touchscreen

Hematology Analyzer 4 (3).png


Click here for more information !!!

Hematology Analyzer 4 (1).jpg

Hematology Analyzer 4 (2).png

Click here for more information !!!

What is the specification of our Hematology Analyzer?



Items Tested

, MCH,  MCHC ;
,  MPV , PDW , PCT ;
, LYM#, LYM% ,MID# ,MID% ,GRA# ,DRA% ,P-LCR ;
(WBC,RBC,PLTHistogram included)

Working Method:

blood cell counting: Impedance Method;

HGB Test: HGB-546nm Colorimetric Method


Clinical function :

3-part differential, 23 parameters




linearity range

RBC  1.00~9.90X10/L
HGB  25~400g/L
WBC  0.5~99.0X10/L
PLT  50~999X10/L


RBC<= 2%
HGB<= 2%
WBC<= 2%
PLT <= 4%
MCV<= 1%

Sample volume:

venous blood 9.7 μL  peripheral blood 20 μL

Dilution Rate:

WBC/HGB   1/400;
RBC/PLT   1/40000

Operation Interface:

8.4 inches TFT touchscreen, English operation interface


Automatic calibration and manualcalibration

Quality control software

Multi-level QC summary, X, SD and CV auto-summary,  auto-calculate average value of MCV, MCH, MCHC, and store QC results


Data storage

>30000results of sample,including 3 histograms

Reporting system:

built-in thermal high-speed printer, EPSON LQ-300K+2 printer connectable

data interface

Two USB interface, one RS-232 interface, one printer interface

Information edition

Patient information can be imported,including name of patient,department,inspector,etc.


330mm X 420mm X 400mm

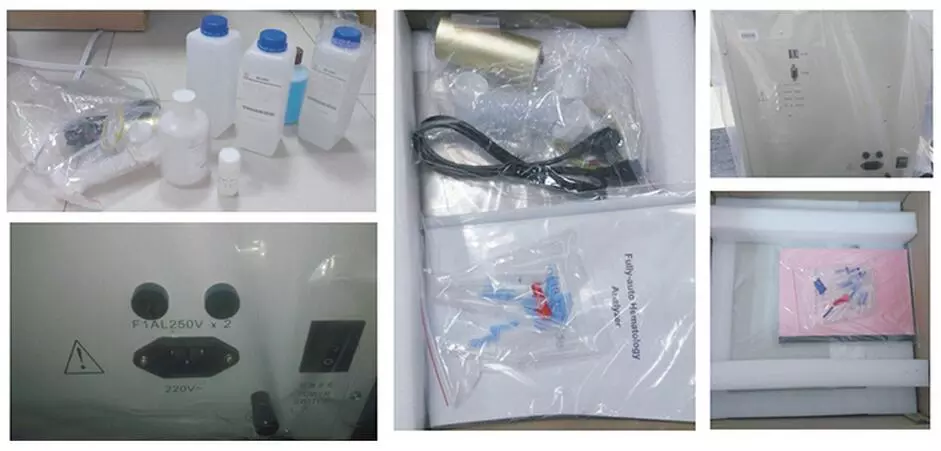

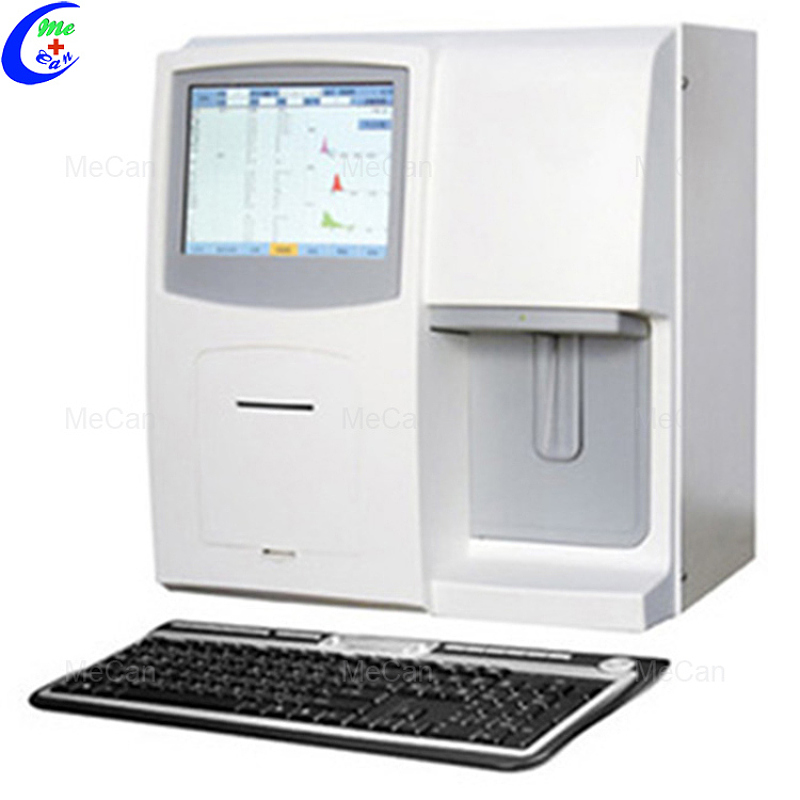

More Pictures Blood Hematology Analyzer?

 Hematology Analyzer (3).JPG


Hematology Analyzer 4 (4).jpg


Hematology Analyzer 4 (5).jpg


Hematology Analyzer (4).JPG




Click here for more information !!!

Hematology analyzer reviews from our customers


analyzer reviews from our customers

Other Equipment


Our Advantage

1. One stop supplier for medical equipments and laboratory equipments in Guangzhou
2. More than 2000 hospitals have become our partners
3. Superior quality with factory price
4. Quick reply and considerate service
5. CE,ISO,FDA Certificate
6. Fast delivery by air, sea or in other ways
7. More than 10 years in medical machines supply business
8. Exported to more than 109 countries
9. Warranty time: AT LEAST 12 months and Over 8 years' technical and accessories-change support
10.Excellent and immediate after-sale service
