Ceiling Mounted Digital X-ray System

Ceiling Mounted Digital X-ray System

Model: MCI0400

Advanced Ceiling Mounted Radiography System for Precision Diagnostics

With a powerful 65.5kW generator and Canon high-speed X-ray tube, This Ceiling Mounted Radiography System delivers high-resolution imaging for chest, limbs, abdomen, and lumbar examinations.

Key Features of Our Ceiling Mounted X-ray System

High-Frequency Generator & X-ray Tube

• 500kHz inverter frequency and 800mA tube current ensure stable, high-quality radiation output.

• The imported Canon X-ray tube has a dual focus of 1.2mm/0.6mm for long-life performance and fast heat dissipation.

17" Ultra-HD Flat Panel Detector (FPD)

• 427mm × 427mm active area with 16-bit A/D conversion for distortion-free, high-resolution images (up to 3.7 lp/mm).

• 30 fps acquisition speed for real-time dynamic imaging.

Intelligent Ceiling-Mounted Design

• ±135° horizontal swing and ±120° vertical rotation for flexible patient positioning.

• Sync tracking between tube and detector improves workflow efficiency.

Automatic Electric Collimator & Dual High-Density Grids

• One-touch beam adjustment and scatter-ray filtration for enhanced image clarity.

• Removable grids for low-dose examinations.

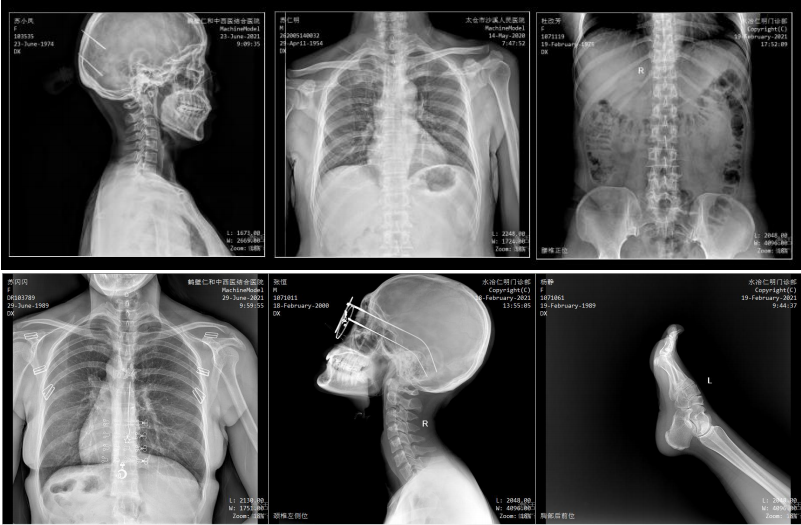

Applications of Ceiling X Ray Machine

Ideal for radiology departments, trauma centers, and health screenings:

• Chest radiography

• Orthopedic imaging (limbs, spine)

• Large-area fracture exams
