Model NO.:
MCL-8000A
Price:
USD 3660.00-7320.00 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
500 piece / Month
Country of Origin:
Guangzhou
  • Place of Origin:CN;GUA
  • Instrument classification:Class II
  • Brand Name:Mecan
  • Model Number:MCL-8000A

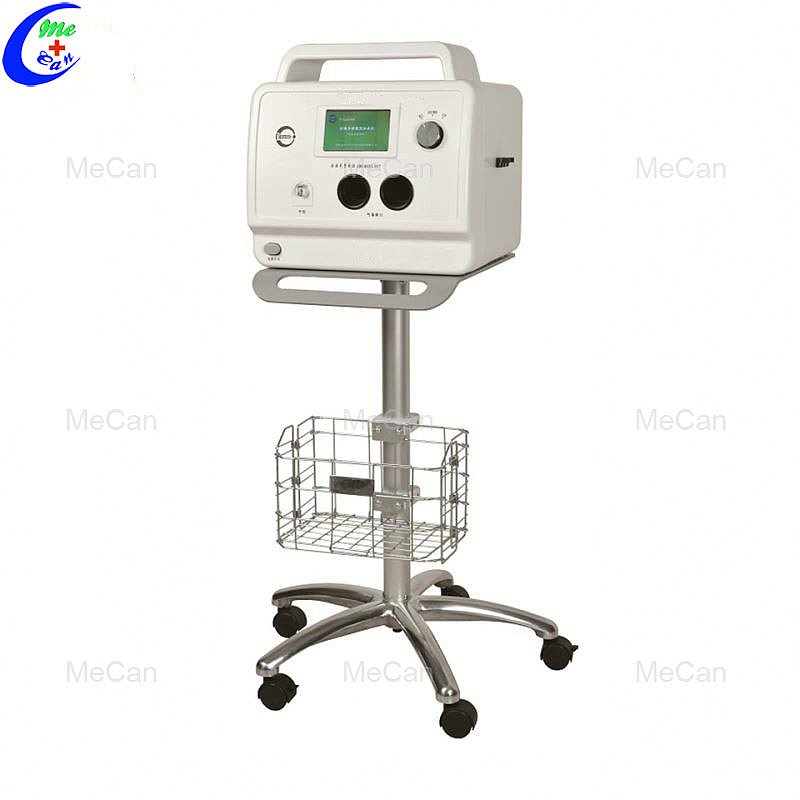

Chest percussion vest airway clearance system treatment

MCL-8000A

Product Functions

Using high frequency of chest wall oscillation to eliminate sputum of respiratory airway. It is suitable for patients who have difficulty in pulmonary secretion excretion or that have pulmonary atelectasis caused by mucus obstruction. It would facilitate airway to clear sputum and improve bronchial drainage.

Structure:standard cabinet cart type(inseparable)

Display: 9.7 inch colorful LCD touch screen, English menu.

Advantages of MCL-8000A airway clearance system

1. ABS engineering plastics with strong corrosion resistance.

2. 9.7 inch color touch screen for MCL-8000A

3 Manual mode, 5 automatic program modes and user-defined mode, making operation professional, flexible and convenient.

4. Equipped with handheld pressure relief device. When patients feel uncomfortable, they can push it to release pressures, convenient and safe.

5. Automatic alarm after the end of the treatment.

6. Equipped with 3 different vests and chest belts, meet different requirements of patients

7. Vest is made up of jacket and air bag. They are detachable for easily cleaning.

Prout nameVest airway clearance system
ModelMCL - 8000A
Environment temperature5°C-40°C
Relative humidity30%-85%
Power voltage220V±10%
Frequency50Hz±1Hz
Pressure in treatment:gear Pressure adjustable range 0.5Kpa--3.2 Kpa
Working modeanual mode, five automatic modes and user-defined mode.
Timing Functionautomatic mode timing 5min-20min,
manual mode timing 1min-99min, step is 1min.
Normal working noises:≤50dB

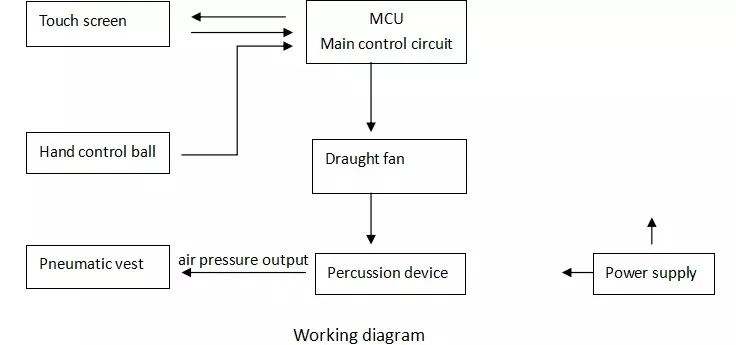

Structure and working principle diagram

MCL-8000A holothoracic multifrequency vibratory sputum excretion machine is composed of host machine, hand control ball, gas guiding hose and pneumatic vest.

Gas guiding hose applies PVC material. Pneumatic vest applies TPU high strength composite fabric.

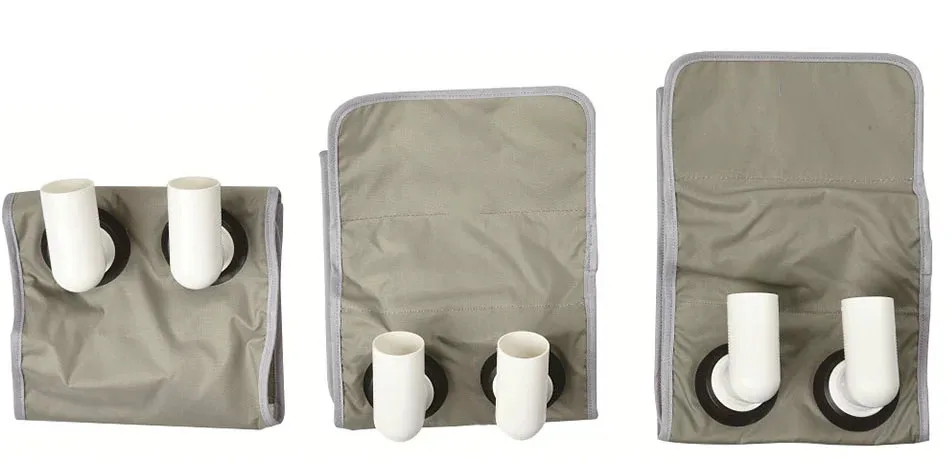

Pneumatic vests are divided into standard holothoracic pneumatic vest and simple hemi-thoracic pneumatic chest strap.

chest percussion vest airway clearance system treatment

chest percussion

Vest sizes: (Unit: mm)

Standard configuration: 3 standard holothoracic pneumatic vests, 3 simple hemithoracic pneumatic chest straps

Size of Adult Vest                       1450 * 6401300* 640   1020* 640
Size of Child Vest                             946*600827*526737*472
Size of Adult Chest Strap                    1350*200 1120*200 920*200
Size of Child Chest Strap                     800*180  650*180 500*180
