Electric Gynecology Operating Bed

MeCan Medical China MCOT-204-1G Electric Gynecology Examination & Operating Table manufacturers - MeCan Medical,Every equipments from MeCan gets passed strict quality inspection,and final passed yield is 100%.



Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Place of Origin:CN;GUA

  • Instrument classification:Class II

  • Brand Name:Mecan (Operating Table)

  • Model Number:MCOT-204-1G

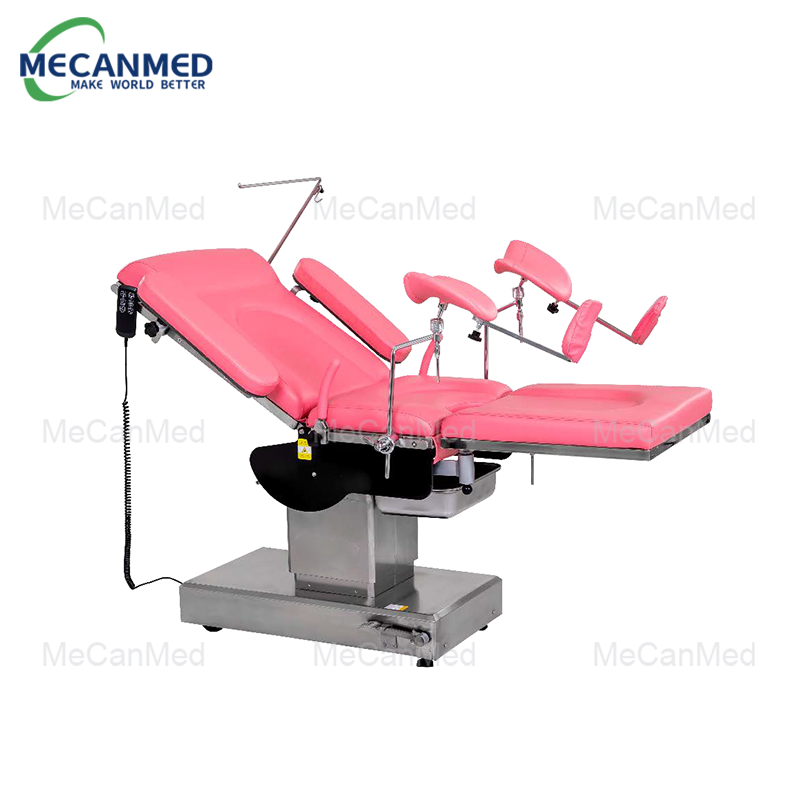

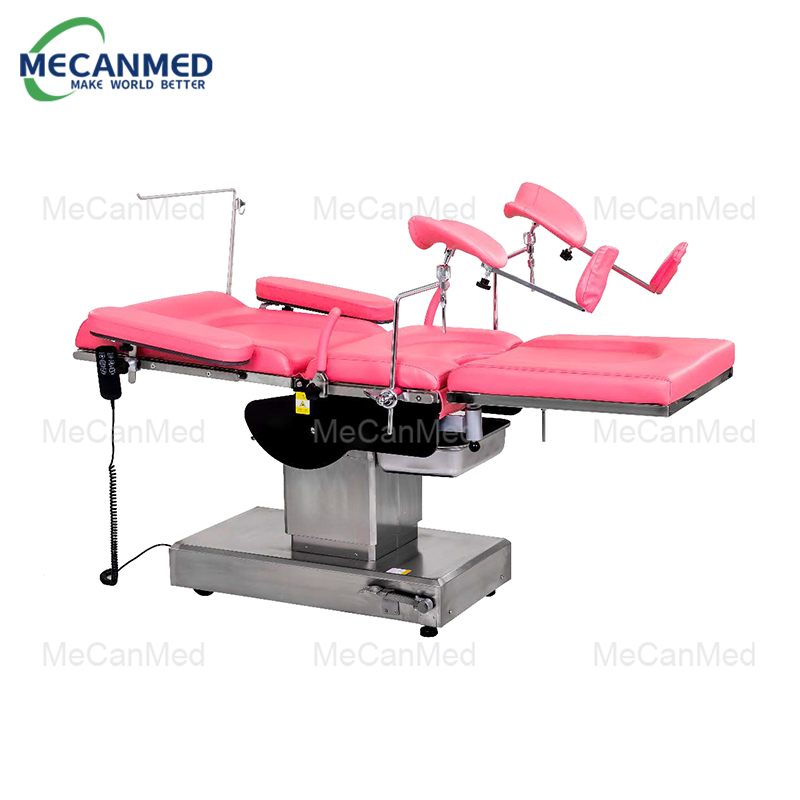

Electric Gynecology Examination & Operating Table

Model: MCOT-204-1D






Scope

The operating table operating table for the all-electric multi-function check for Obstetrics and Gynecology, Urology, Anorectal and other instruments and endoscopic examination of class, diagnosis, surgery, gynecology operating table.



Technical parameter

1.Demension: 1400 mm×600 mm
2.Height Adjustment: 620~870mm  (Electric)
3.Sitting Board  Adjustment: The fold45°,Under the fold10°(Electric)
4.Back Section Adjustment: The fold75°,Under the fold10°(Electric)
5.Legs board size: Long:500 mm,Wide:600 mm
   Linear motor (movement of imports)
6.Power: AC220V,50Hz          Safe working load: 200kg





Standard Accessories

1.Build-in head pillow:1PC
2.Rails:2PCS

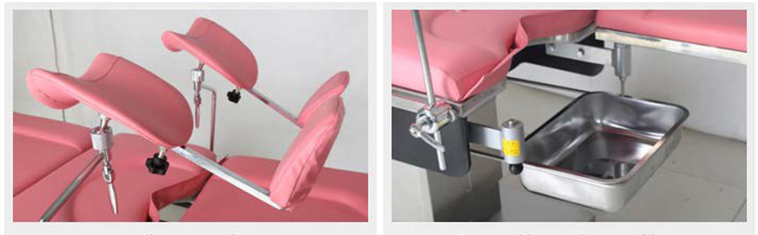

3.Stainless steel drain basin:1PC
4.Arm supports:2PCS
5. Leg board:1PC
6. Leg supports:2PCS
7. Manual controller:1PC
8. External power supply:1SET



Features: Features:
1. Bed: a package with a seamless synthetic leather, ultraviolet irradiation for 50 hours straight does not fade. Flexible, easy to clean, resistant to disinfection, easy maintenance, water pollution and so on.
2. Bed Body: The electrostatic spray plastic materials for medical manufacturing, has the function of absorbing light, chassis # 304 stainless steel using medical, surface brushed with corrosion-resistant, easy to clean, etc.

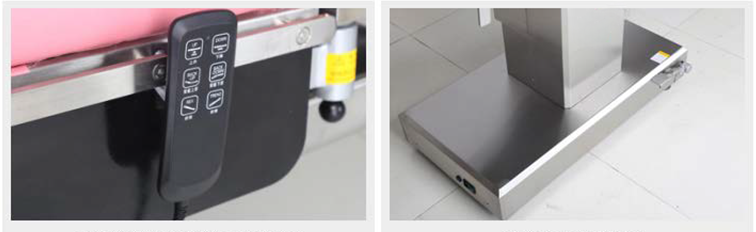

3. Controller: icon-button operation, flexibility, also has locking feature to prevent misuse.
4. Base: foot-brake function, foot 50mm diameter wheel design, the bed base to form operational pin, Dr. Fang Bian implementation of the operation, mobile convenience and strong stability. Also has an external power supply, power switch, power indicator, stable, safe and reliable.
5. The operating table: lift, buttocks plate adjustment, back adjustment by the micro-manipulation of the touch controller, easy to use, flexible, a key part of power system using the linear motor (movement of imports), low noise, stable performance, long life , angle adjustable, convenient for doctors to operate.






Qualification

 The enterprises have passed the national GB/T19001-2008/IS09001-: 2008 quality management system certification; and through the German Rhine EN ISO 13485:2003 + AC: 2007 international quality management system certification, and products through the EU CE certification.



Beside the Electric Operating Table, we offer serials Operation room Equipment:



Operation/Emergency

Hemodialysis Center

Why choose us ?

why choose us-.jpg

How to contact us ?



Click5.jpg to contact us now !!!










The product is characterized by endurance. It is able to perform the same task many times in the same exact way endlessly without any fatigue.

FAQ

1.Technology R & D
We have a professional R&D team that continuously upgrades and innovates products.
2.What is your warranty for the products?
One year for free
3.Quality Control (QC)
we have a professional quality control team to ensure that the final pass rate is 100%.

Advantages

1.MeCan Focus on medical equipments over 15 years since 2006.
2.Every equipments from MeCan gets passed strict quality inspection,and final passed yield is 100%.
3.OEM/ODM, customized according to your requirements.
4.More than 20000 customers choose MeCan.

About MeCan Medical

Guangzhou MeCan Medical Limited is a professional medical and laboratory equipment manufacturer and supplier. For more than ten years, we engage in supplying competitive price and quality products to many hospitals and clinics, research institutions and universities. We satisfy our customers by offering comprehensive support, purchase convenience and in time after sale service. Our main products include Ultrasound Machine, Hearing Aid, CPR Manikins, X-ray Machine and Accessories, Fiber and Video Endoscopy, ECG&EEG Machines, Anesthesia Machines, Ventilators, Hospital furniture, Electric Surgical Unit, Operating Table, Surgical Lights, Dental Chairs and Equipment, Ophthalmology and ENT Equipment, First Aid Equipment, Mortuary Refrigeration Units, Medical Veterinary Equipment.
