Elisa Microplate Reader Analyzer, Elisa Test Plate Reader
  • Elisa Microplate Reader Analyzer, Elisa Test Plate Reader

Elisa Microplate Reader Analyzer, Elisa Test Plate Reader

Model NO.:
MCL-2100
Price:
USD 1600.00-1600.00
Delivery:
FOB
Minimum order quantity:
1
SEND INQUIRY NOW
  • Type:Genes & Life Science Equipments
  • Place of Origin:CN;GUA
  • Instrument classification:Class II
  • Brand Name:MeCan
  • Model Number:MCL-2100

Elisa Microplate Reader Analyzer, Elisa Test Plate Reader

Model: MCL-2100C



Semi Automatic Elisa Analyzer / Micro-plate Elisa Reader

Elisa Analyzer



What is the detail of our Elisa Reader?

Technical Specifications for the Elisa Reader:




Absorbance Range: 0 - 4.000Abs

Resolution: 0.001Abs(displayed),0.0001Abs(calculated)

Accuracy: ±0.1% or ±0.005Abs

Light Source: Halogen lamp, 8V/50W

Wavelength Accuracy: ± 1nm

Band width: 8nm

Wavelengths: 405, 450, 492, 630nm, 4 more filters optional

Type of Micro-plate: Standard with 96-well or other kind of micro-plate and strip

Calculation Method: ABS, %ABS, Cut-Off, Single Standard, Curve,  Multi-Percent, Percent Log, Linear, Exponential, Power, 4PL Regression

Reading Speed: 5 seconds for 96 well plate (single wavelength)

Shaking Plate: Shaking time and speed adjustable

Memory: More than 100 programs, up to 100,000 test results

Printer: All printers compatible with Windows

Interface: RS-232, PSTN (optional)

Display: 6” LCD

Input: Touch panel or mouse

Output: External printer (optional)

Power Supply: AC 110V - 220V ± 10%, 50-60Hz

Net weight: 8Kg

Dimension L×W×H(mm) :460×330×200



General Descriptions for the Elisa analyzer:

1. Semi automatic

2. Easy Windows operation system with touch screen or mouse, large LCD display

3. 8-channel optical fiber system enables 5 secs’ reading for the whole plate

4. Bichromatic measurement, calculation modes including ABS, Cut-off, Curve, Linear,

5. Log and Exponential regression

6. Random positive and negative control setting

7. Multi-assay enables up to 12 different assays on one plate

8. Large memory, up to 100 test protocols and 10,000 can be stored

9. Powerful QC function: Grubs, Westguard Multi-rule, Levey jennings plot (optional)

10. Plate shaking

11. Auto power-on self-check

12. Additional lamp saving

13. Multiform result output including patient comprehensive report

14. Ability to communicate with PC for data management(optional)

15. Easy maintenance



MANU of Elisa Microplate Reader Analyzer

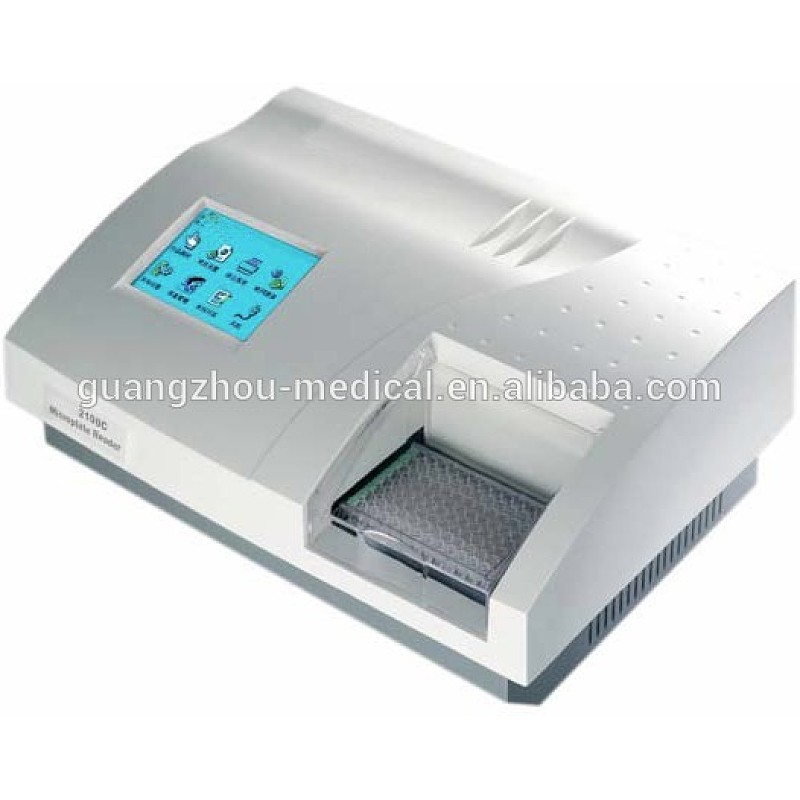

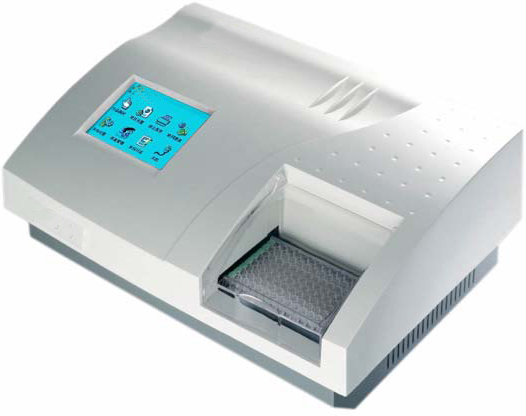

Elisa plate reader.jpg

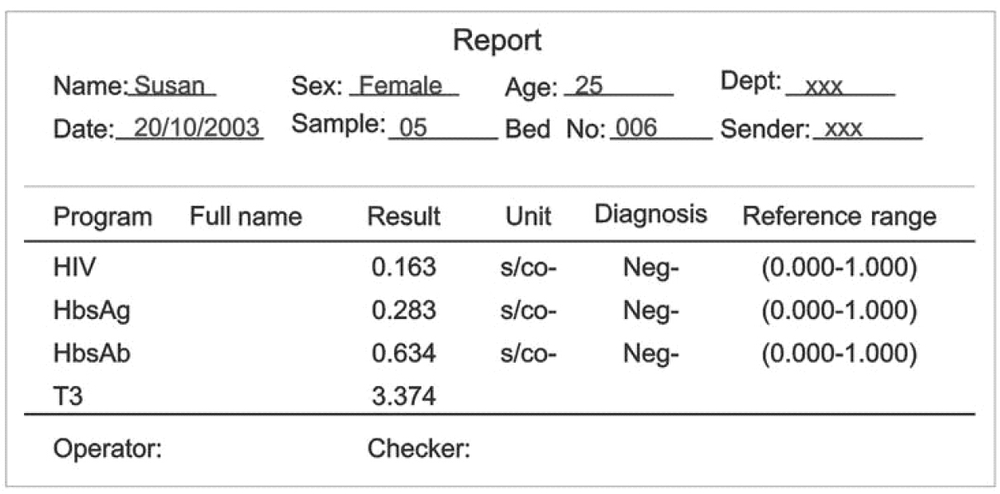

Elisa Reader report.jpg

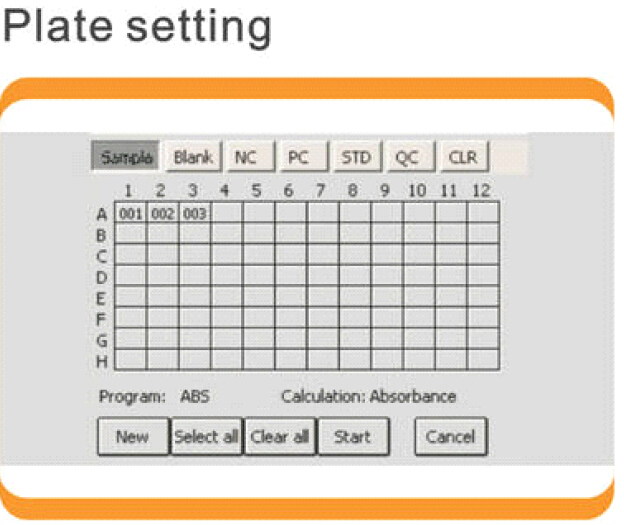

Elisa Reader Plate setting.jpg

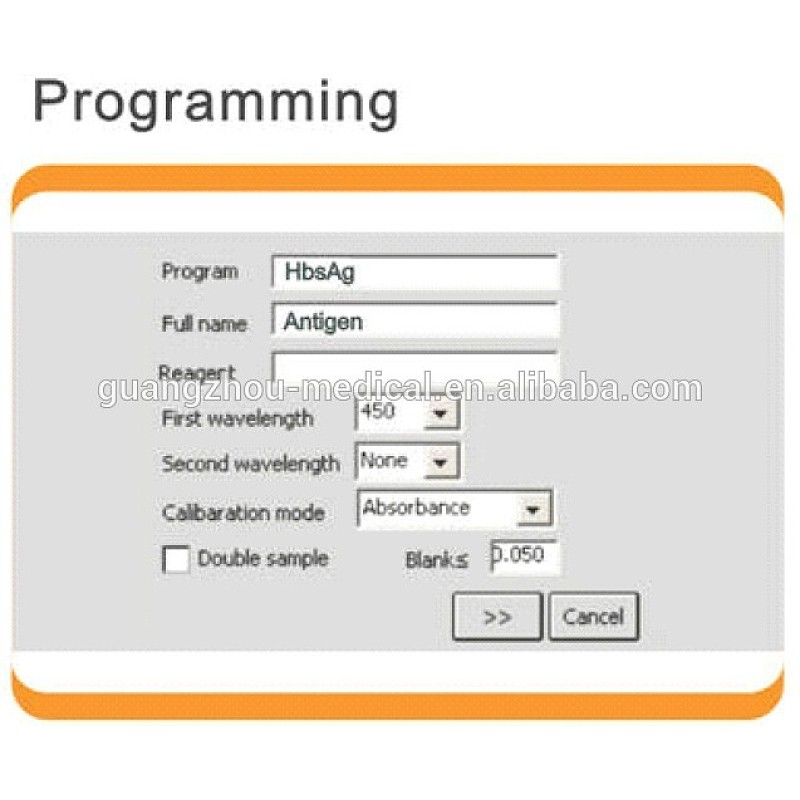

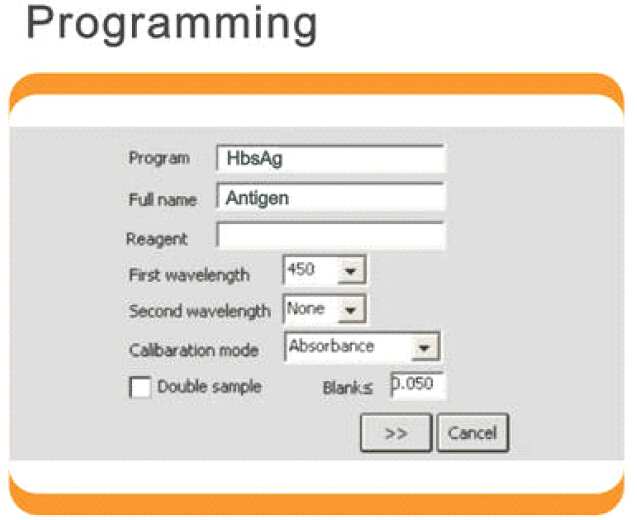

Elisa Analyzer Programming.jpg

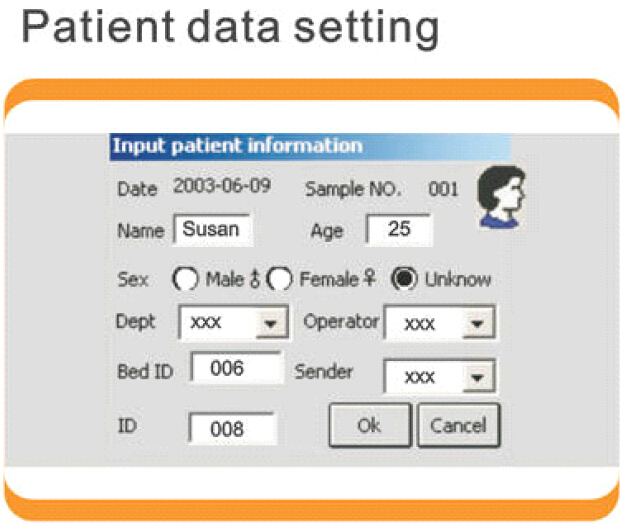

Elisa reader Patient data setting.jpg
