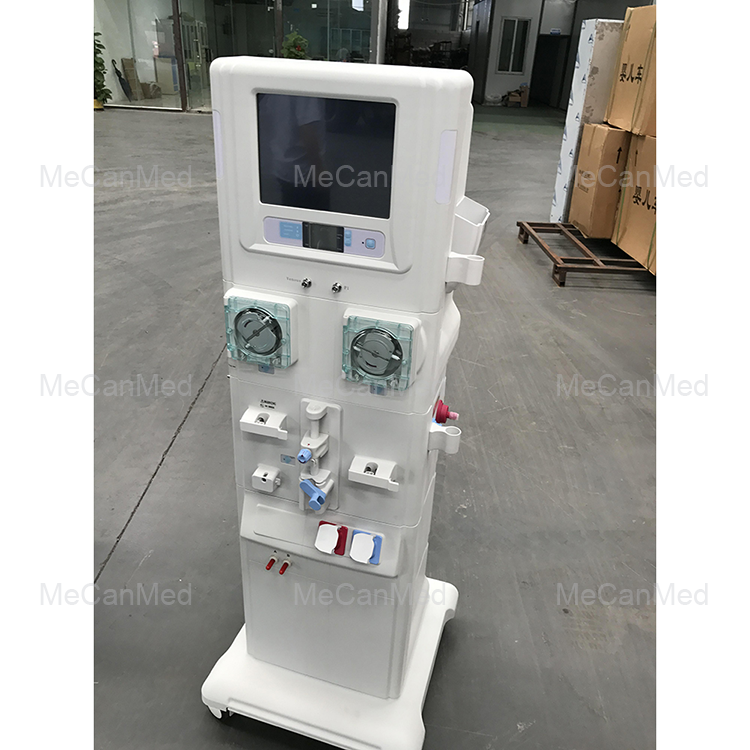

HD Blood Dialysis Device
Model:MC-HD01
The HD Hemodialysis Machine is a state-of-the-art medical device designed for effective renal replacement therapy. Engineered with advanced technology and precision, this machine provides efficient dialysis treatment in both clinical and home settings, ensuring optimal patient outcomes and comfort during therapy.
Function:
Be applicable of hemodialysis treatment,hemoperfusion,Plasma Exchange,Pure ultrafiltration project.
Touch screen was equipped and it can show Naand UF profiles;In addition,the functions ie.backup power supply, Kt/V,HCO3adjustment,single needle,acetate treatment,pyrogen filter port and net connection ect.are optional.
Clinical Application:
◆ Hemodialysis Therapy:same as JH-2000
◆ Pure ultrafiltration Therapy: same as JH-2000
◆ Hemoperfusion Therapy:same as JH-2000
◆ Plasma exchange Therapy:same as JH-2000

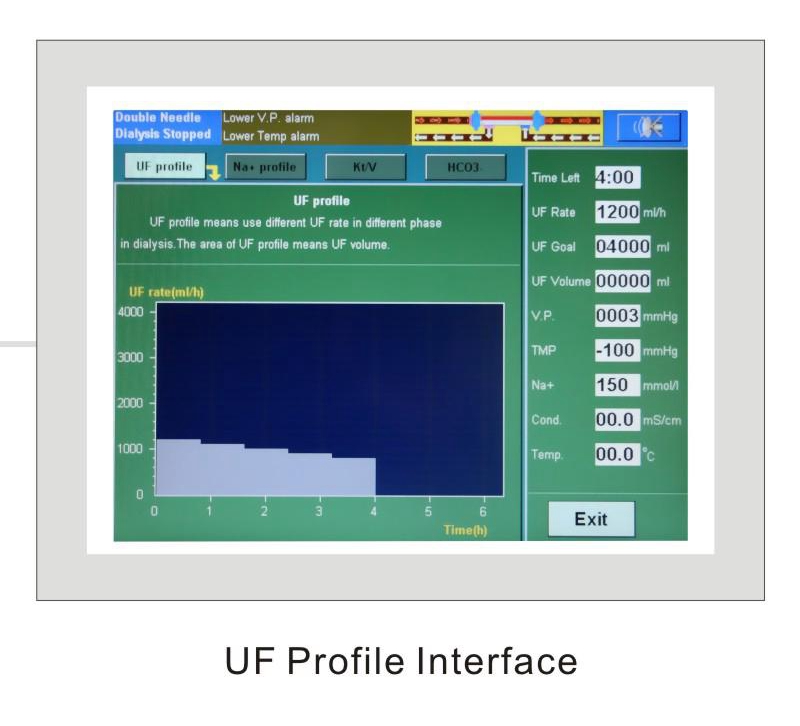

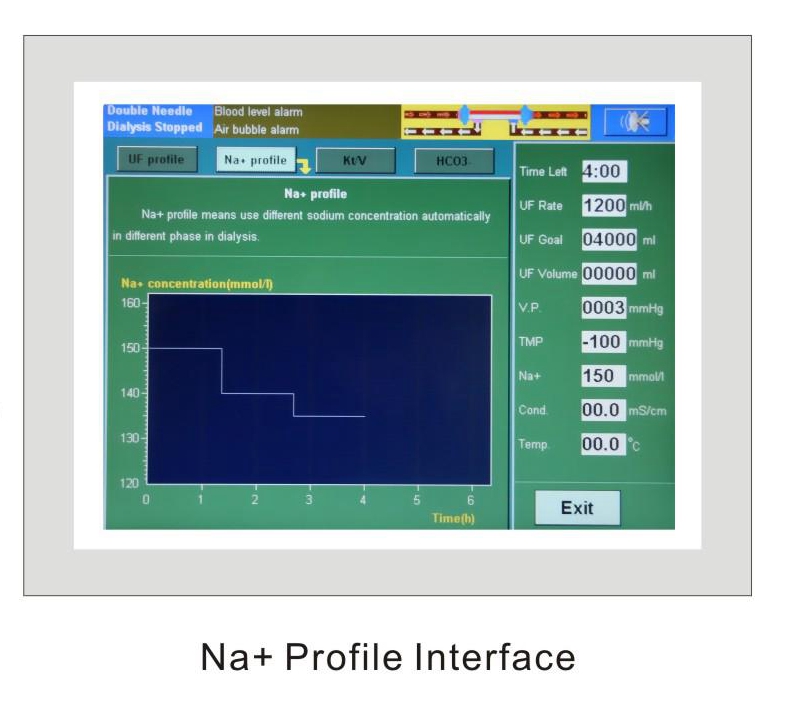

◆ Na＋and UF profiling:
Be applicable for reducing the cases during dialysis treatment such as low/high pressure,
muscle convulsion, headache,nausea,vomit ect.
◆ Kt/V function:
·The sufficiency of dialysis can be reflected by Kt/V.
◆HCO3ˉ adjustment function:
Be applicable for sericous acid toxicosis patient.
Be capable to calibrate the acid toxicosis status according to patient's state of illness.
◆ Backup power-supply:
·It can last for 15-30 minutes after power cut off.
◆ Pyrogen filter port:
Completely filtrating the remained bacteria and endotoxin.(optional)
◆ Net connection:
One computer can audit and control the treatment of maximum 20 units hemodialysis machine
(optional)
Parameters:
◆ Volume (length× width ×height):
·370mm×340mm ×1570mm
◆ Weight: about 90kg
◆ Power supply voltage: AC220V±10%
·Frequency: 50HZ ~ 60 HZ
·Power: 1500W
◆ Blood pump/spare pump:
·Flux: 15 ~ 340ml/min (Ф 6mm)
20 ~ 460 ml/min (Ф 8mm)
◆ Heparin pump:
·Flux: 0.1ml/h～10ml/h(±5%)
·Precise: 0.1ml/h
·Injector size: 20ml/30ml/50ml
10ml/20ml/30ml
(selectable)
◆ Arterial pressure:
·display scope:-300mmHg～+300mmHg
(±10mmHg)
◆ Venous pressure:
·display scope:-50mmHg～+300mmHg
(±10mmHg)
◆ Dialysate flow:
·300ml/min～800ml/min linearity adjustable
(+10%)
（-5%）
·Temperature:35.0℃~39.0℃
·Resolving rate:0.1℃
·Conductivity:13mS/cm~15.5mS/cm
(±0.1 mS/cm)
More detail Pitures:
| ◆ UF flow scope: 0～1800ml/h(±30ml/h )
0～4000ml/h(optional)
◆ ISO UF flow scope:0～2000ml/h(±30ml/h)
◆ TMP
·Scope:-100mmHg～+600mmHg
(±20mmHg)
◆ Blood leakage monitor:
over 1ml blood per liter dialysate
(flow:500ml/min)
◆ Blood level monitor: ultrasonic sensor
◆ Air bubble monitor:
Infrared and response threshold value:
Single air bubble of 200 и I exists when
Blood flux is 200ml/min
◆ Inflow pressure:0MPa～0.6MPa
◆ Inflow temperature: 5℃～30℃
◆ Environment temperature: 10℃～30℃,
· Relative humidity≤70%
◆ Rinse/disinfection: chemical disinfection
(citric acid,peracetic acid and oxalic acid)
◆ Hot rinse: 80℃
◆ Back-up power supply: last for 15-30min after electric-cut．
|
