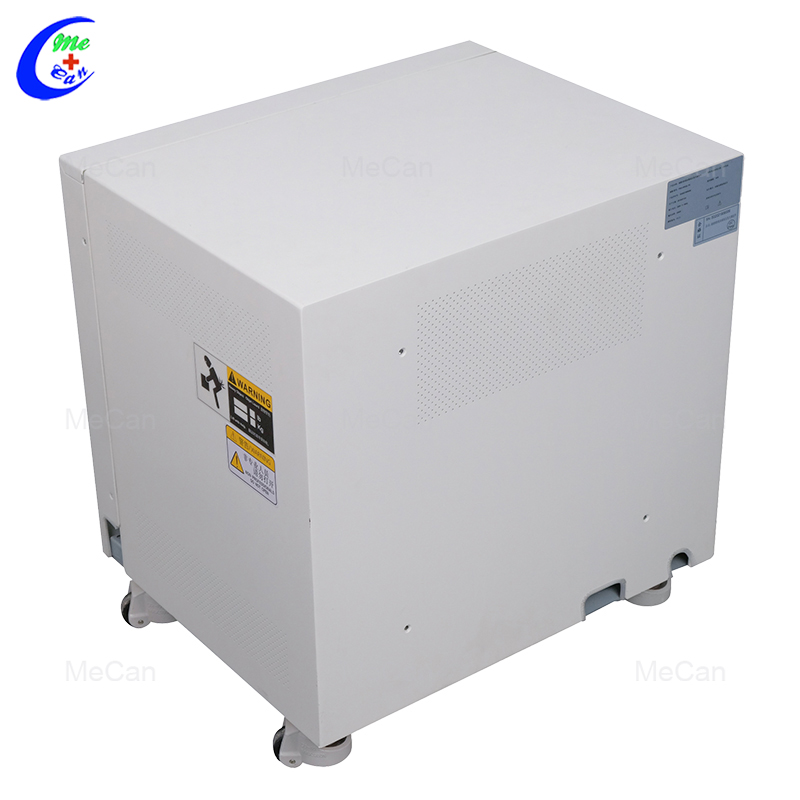

32kW 50kW High Frequency High Voltage X-ray Generator

32kW 50kW High Frequency High Voltage X-ray Generator

Model:  MX-G320A1, MX-G320A2, MX-G500A1, MX-G500A2, MX-G650B1

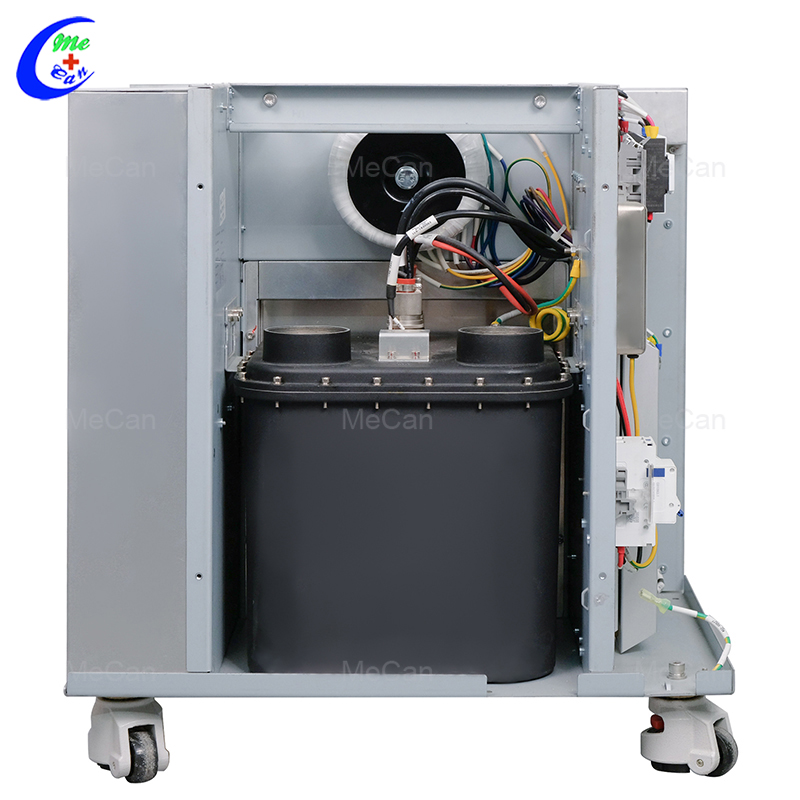

The main function of an X-ray high voltage generator is to supply direct current high voltage to the anode and cathode of the X-ray tube, as well as heating voltage to the filament. It mainly consists of a high voltage transformer, filament transformer, high voltage rectifier, high voltage switching device, transformer oil, and a housing that encloses the aforementioned components. The primary high voltage is stepped up by the high voltage transformer and rectified by the high voltage rectifier to become direct current high voltage, which is then fed to the anode and cathode of the X-ray tube through the high voltage cable. The primary voltage of the filament is stepped down by the filament transformer and fed to the filament of the X-ray tube via the cathode high voltage cable.

Specifications of high frequency x-ray generator

MeCan Medical is the professional manufacturer for high frequency x ray generator, we professional manufacturer many kinds of high frequency x-ray generator for x ray machine, such as portable x ray generator, high frequency mobile x-ray generator for x ray unit, 20kW/32kW veterinary x ray high frequency generator, 32kW/50kW/65kW/80kW high frequency x-ray generator radiology for human, we are in high frequency generator in x ray machine more than 16 years. Welcome to contact us to get more information.
