Intro to High Frequency Surgical Portable Diathermy Machine MeCan

MeCan Medical Intro to High Frequency Surgical Portable Diathermy Machine MeCan Medical,OEM/ODM, customized according to your requirements. MeCan Focus on medical equipments over 15 years since 2006. MeCan offers professional service, our team is well-trained.

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Place of Origin:CN;GUA

  • Model Number:MC-2000IS

  • Brand Name:MeCan

  • Properties:The Basis of Surgical Instruments

  • Instrument classification:Class II

  • Type:Cautery Machine

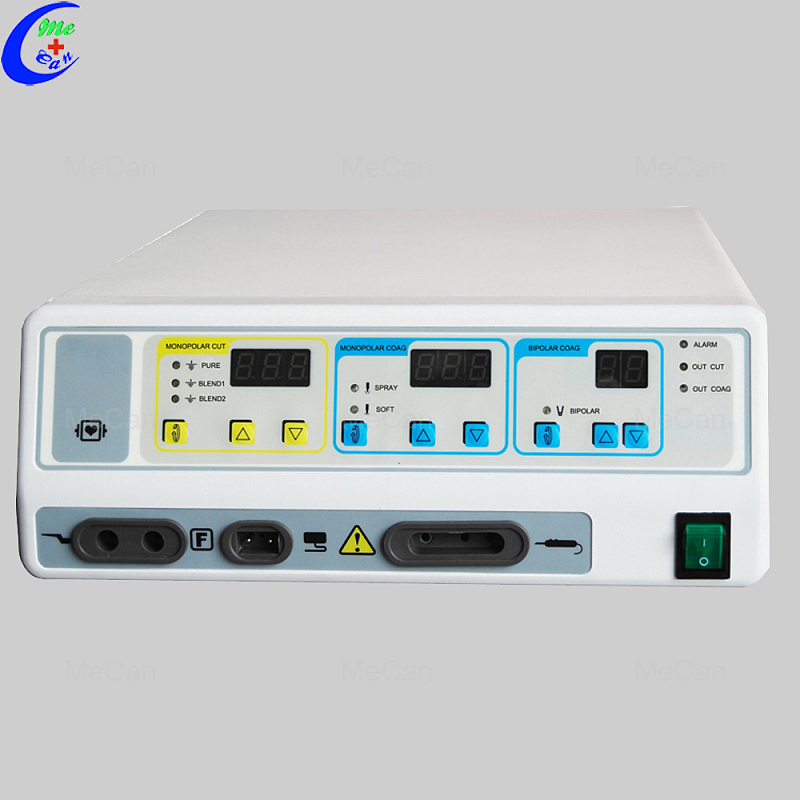

High Frequency Surgical Portable Diathermy Machine




Our surgical diathermy machine is high frequency,its max output is 350W,it has 6 modes,can be applied in general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology(under water TUR), oncology, neurosurgery, etc.



What is the features of our portable diathermy machine?

1.Max 350W Electrosurgical Generator, with mono-polar and bipolarfunction.

2.Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology(under water TUR), oncology, neurosurgery, etc.

3.Six working modes: pure cut, blend1, blend2, forced coag, soft coag, bipolar coag.

4.Microprocessor controlled, digital display. With audible and visual indicators and errors codes during the process of outputting.

5.Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.

6.Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be individually configured.

7.The unit always remember the last setting when it turned off.

8.Remote control function. The surgeon can adjust the outputs by power control ESU pencil.

9.Bothhand and foot controlled.

10.The ESU unit can be connected with laparoscope and endoscope, etc.

11.Protection against over-voltage and over-current.

12.Defibrillation protected.

13.Meets the requirements of international safety standards EN60601-1 and EN60601-2.

14.Mounted on a 4 wheels cart(optional).


What is the specification of our diathermy machine?


Mono-polar Cut

Pure cut:1W~350W( Load 800Ω)

Blend1:1W~200W(Load 800Ω)

Blend2:1W~250W(Load 800Ω)

Mono-polar Coag

Spray Coag:1W~80W( Load 800Ω)

Soft Coag:1W~120W( Load 800Ω)


Bipolar Coagulation: 1W~70W( Load 200Ω)

Power Consumption



220V±22V, 50Hz±1Hz(110V±11V, 60Hz)

Operating frequency


Power rating




What is the standard configuration of our Cautery Machine?


Main unit

1 set

Electrosurgical Pencil

5 pcs

Electrosurgical Pad

10 pcs

Electrosurgical pad cable

1 pc


1 set

Bipolar Forceps

1 pc

Bipolar forceps cable

1 pc



Why choose us ?



Guangzhou MeCan Medical Limited will provide a complete solution for our .


1.What is your after-sales service?
We provide technical support through operating manual and video; Once you have questions, you can get our engineer's prompt response by email,phone call,or training in factory. If it's hardware problem, within the warranty period, we will send you spare parts for free, or you send it back then we repair for you freely.
2.What is your payment term?
Our payment term is Telegraphic Transfer in advance,Western union, MoneyGram,Paypal, Trade Assurance,ect.
3.Quality Control (QC)
we have a professional quality control team to ensure that the final pass rate is 100%.


1.Every equipments from MeCan gets passed strict quality inspection,and final passed yield is 100%.
2.OEM/ODM, customized according to your requirements.
3.More than 20000 customers choose MeCan.
4.MeCan Focus on medical equipments over 15 years since 2006.
