MX-MTSF
MeCan Medical

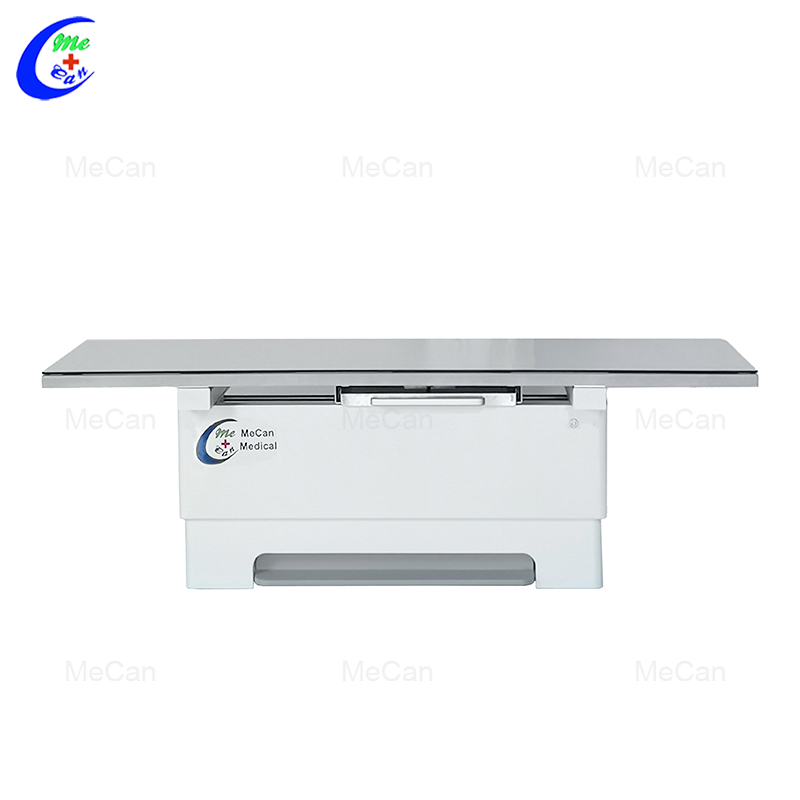

High Quality Practical X Ray Radiographic Table for Medical X-ray Machine
Model: MX-MTSF

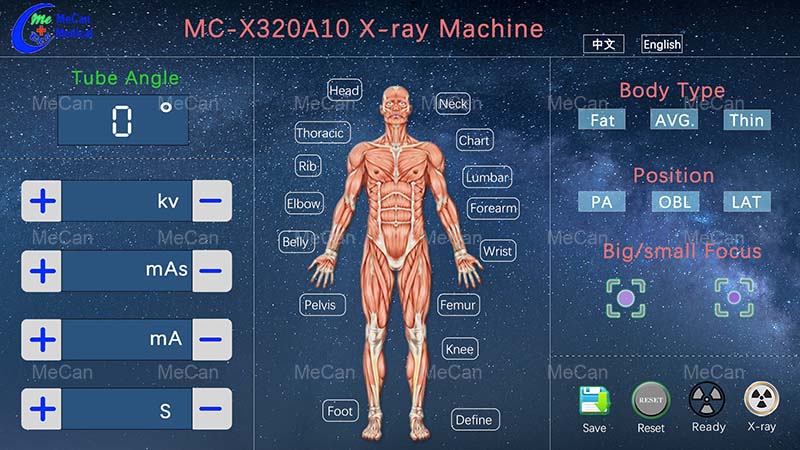

Preseted parameters 14 shooting parts, us Head, Neck, Thoracic, Chart(Chest), Rib, Lumbar, Elbow, Forearm, Belly, Wrist, Pelvis, Femur, Knee, Foot, more shooting parameters can be defined.
More Features of our X-Ray Radiographic Table
1.Tube angle: 360°rotable
2.Up & down tube movement available
3.Left & right movement for both the column and the bucky
4.Extra long floor rail of 2.1M long, mobile tube column & table board to get easier examination for lower limbs
5.Only 5.5 cm between the table board and the detector for better image
6.Mobile table board in 4 directions controlled by foot switch
7.Separable column and bucky
8.Adjustable SID from 180cm for adults to 150cm for children
9.Space-saving design for installation in rooms of only 3M wide
10.Easy to install
11.Manual brake system for adjusting the tube to any height needed
12.Remote service 7*24 hours
Specification of X-Ray Radiographic Table
Name | X Ray Radiology Table |
Table Surface Size | L2000*W730*H623mm |
Application | Mobile x ray, bedside x ray, Fixed x ray |
ODM | Yes |

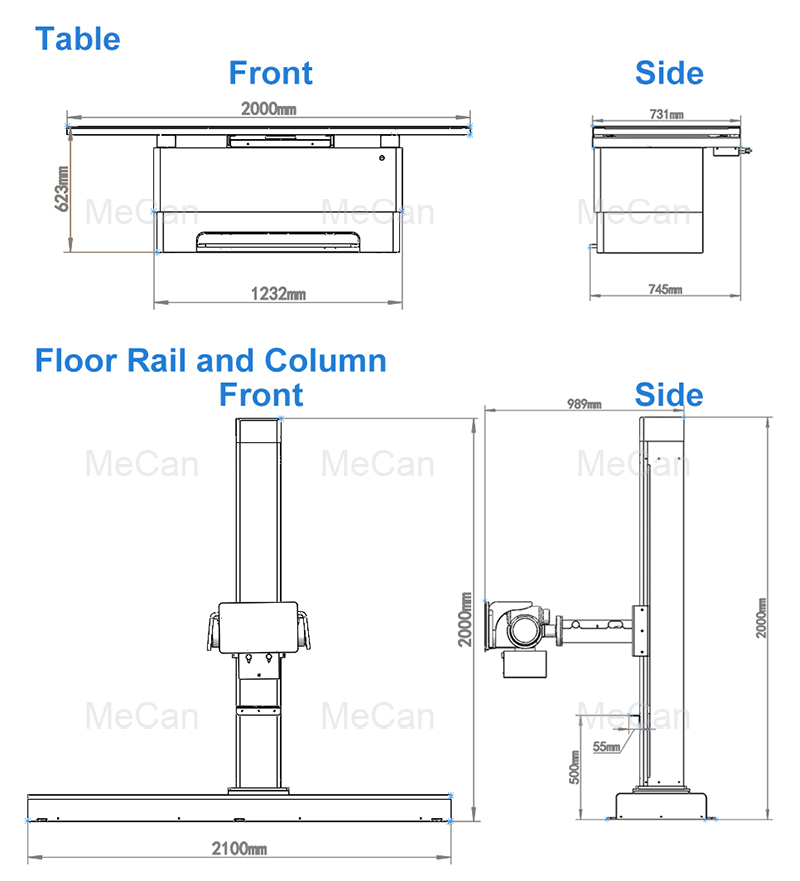

Size of our X-Ray Table MX-MTSF
