Hospital Medical ICU Ventilator with Air Compressor
Model: MCV-3010
Can do invasive ventilator, professional used for the COVID-19, 12.1 inch Touch screen, build-in battery and accessories and nebulizer, with Air compressor and humidifier,support Invasive & Non-invasive, High flow oxygen therapy, with CE approved
Specification
1.Ventilation Mode
IPPV, SIGH, A/C (SIPPV), SIMV, MANUAL, PEEP, CPAP/SPONT (standard)
PCV, PSV, BI-LEVEL, S,T, S/T (optional)
2.Parameters
Tidal volume: 20~2000mL Ventilation volume per minute: 0L~20L
Frequency: 1~100/min I/E Ratio: 4:1~1:8
Holding time: 0~6s O2 concentration: 21~100% adjustable.
CPAP: 0~2.0KPaSafety Pressure ≤12.5KPa
PEEP: 0~3.0KPa Pressure limitation: 0.5~8.0KPa
3.Main Features of the ICU Ventilator:
1. Microprocessor controlled, Pneumatically driven, electronically controlled
2. 12.1"TFT touch screen, user friendly interface
3. Built-in medical air compressor, built-in backup battery up to 3hrs
4. LCD display ventilation parameters, preset parameters alarm indication and breathing waveform
5. Applied for adult and child
6. CE marked
4.Air Compressor Technique Infornation
7. Output pressure: 0.4MPa ±0.1MPa
8. Noise ≤50dB
9. Power: AC 220V ± 10%, 50Hz ± 2%
5.Inspiration Trigger Sensitivity of Medical Ventilator
pressure -2.0KPa (base on PEEP)
flow: 1~30L/min
Sign: 1-5 (per 100 times)
6.Ventilation Monitoring
Tidal volume,Minute ventilation,Frequency,Airway Pressure, inspiration time, PEEP, FiO2, PCV,PSV
Waveform of time-airway Pressure.
7.Alarm (Audible and visible reminding)
No tidal volume, ventilation volume is too high (low) , Airway Pressure is too high (low),
frequency is too high, AC Power off , back up battery voltage is too low
8.Technique Infomation
Gas source: Oxygen, Air
Working Pressure: 0.4Mpa
Reserve Condition: Temperature:-10~40°C,Relative humidity: ≤90%
Working condition: Temperature:5~40 °C, Relative humidity:≤80%
Package: 72*69*122cm, 83kg per unit

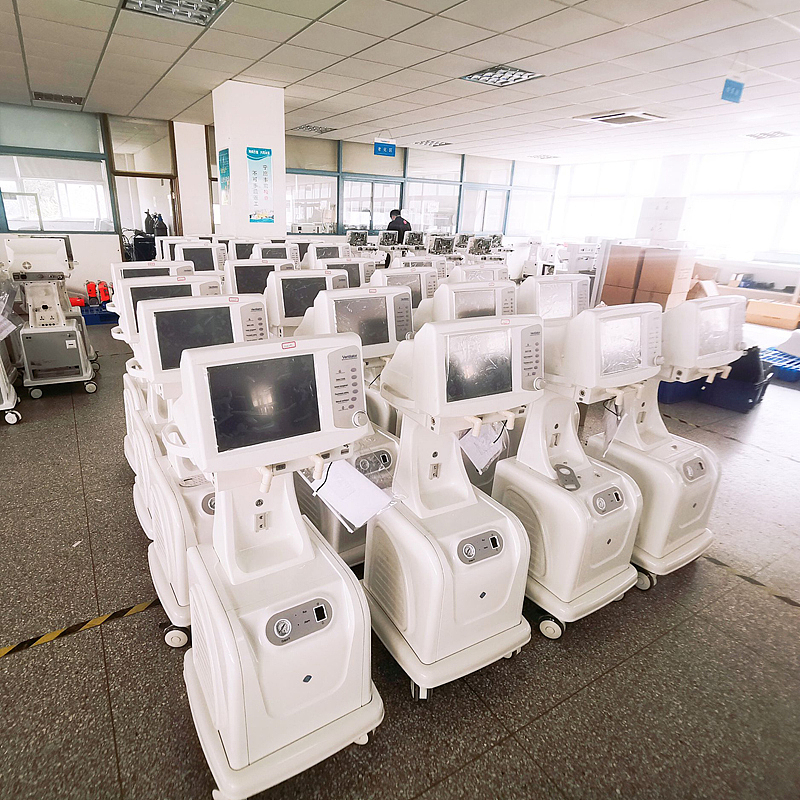

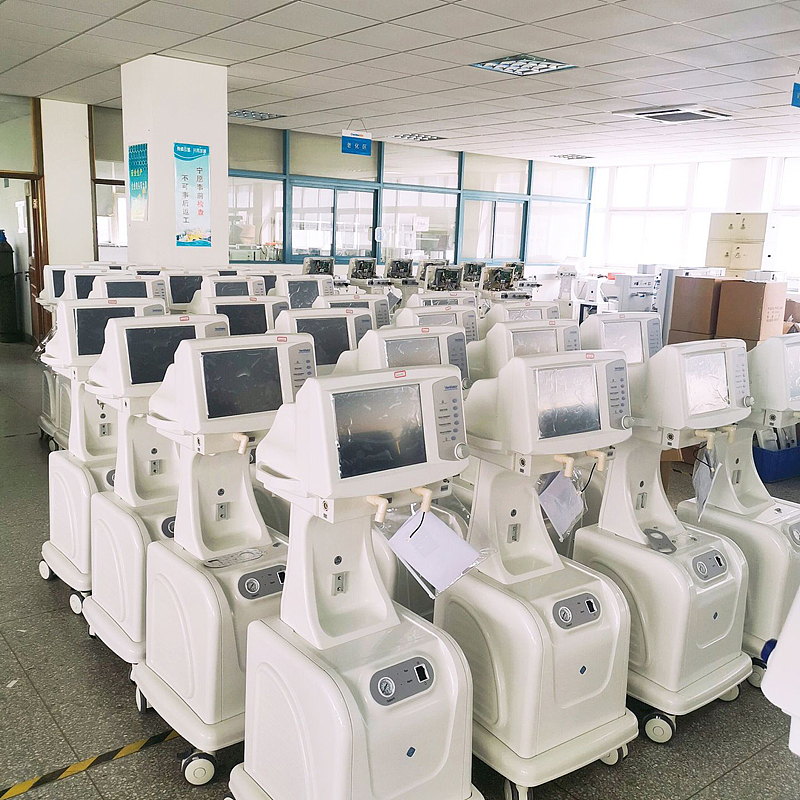

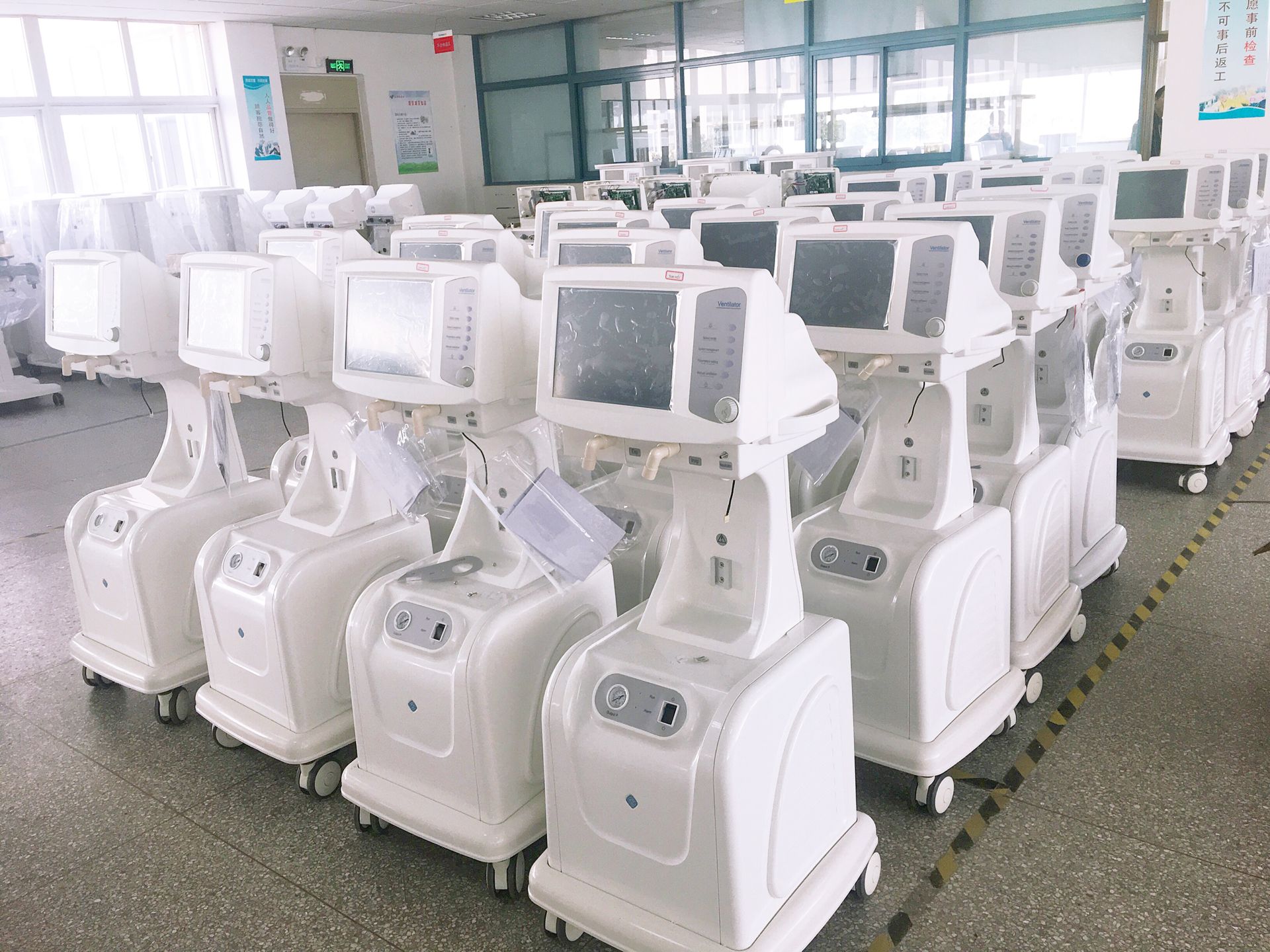

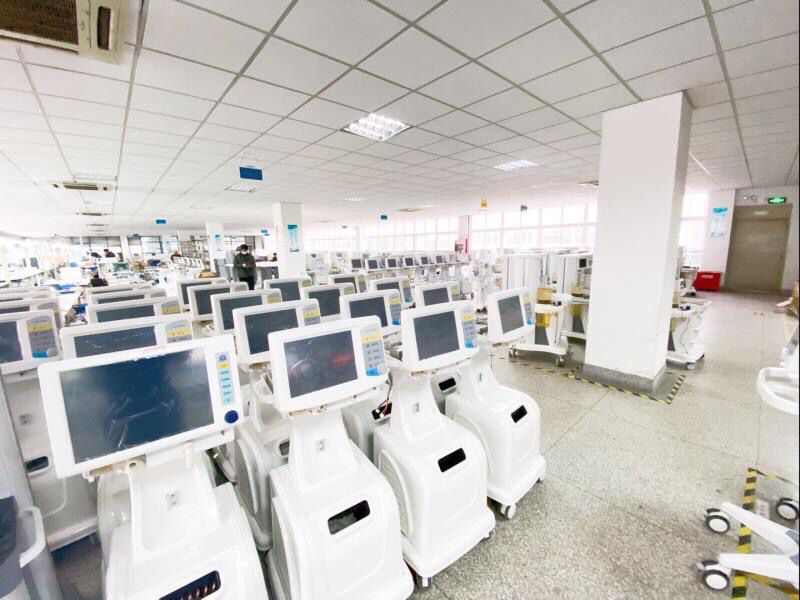

5 units have stock now, welcome to order!
