China High Frequency Dental Portable X-Ray Unit manufacturers - MeCan Medical

MeCan Medical China High Frequency Dental Portable X-Ray Unit manufacturers - MeCan Medical,MeCan offer professional service,our team is well-tained, we are in it more than 15 years, we are very professional and we will provide the best service to you.

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Type:Oral Therapy Equipments & Accessories

  • Place of Origin:CN;GUA

  • Instrument classification:Class II

  • Brand Name:MeCan

  • Model Number:MCL-10

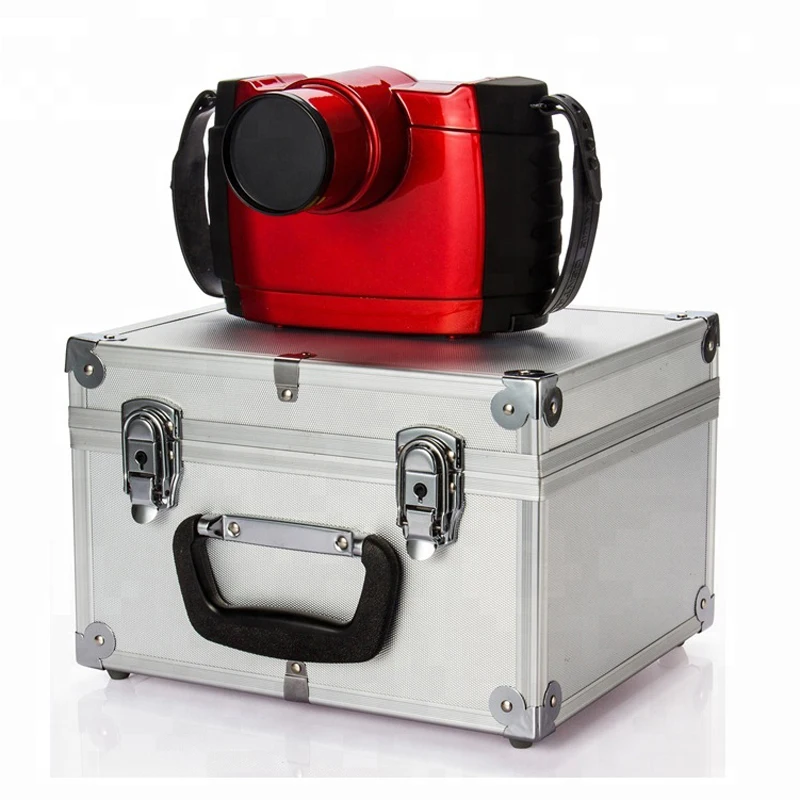

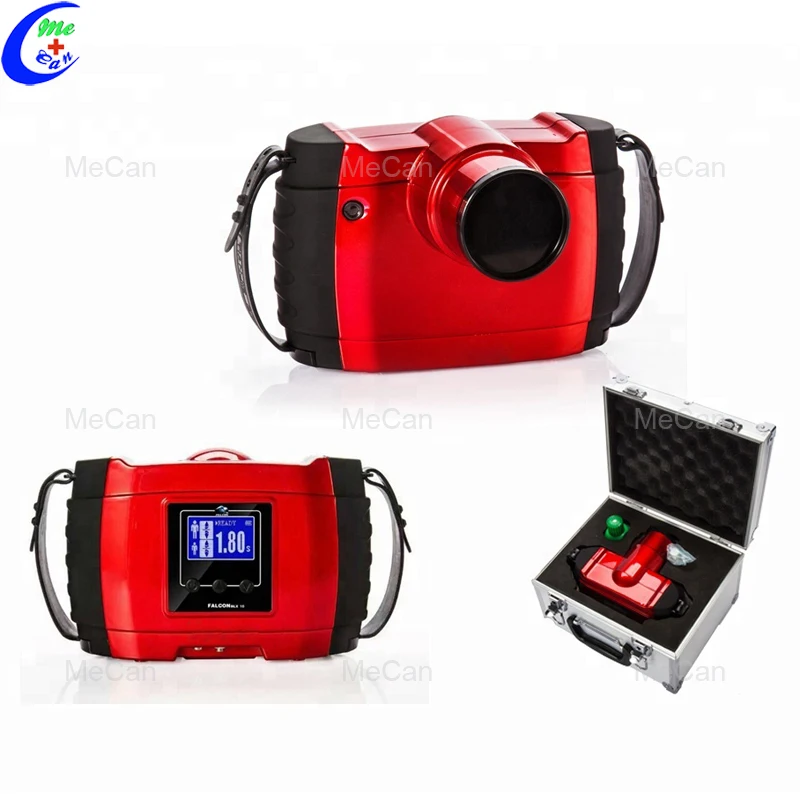

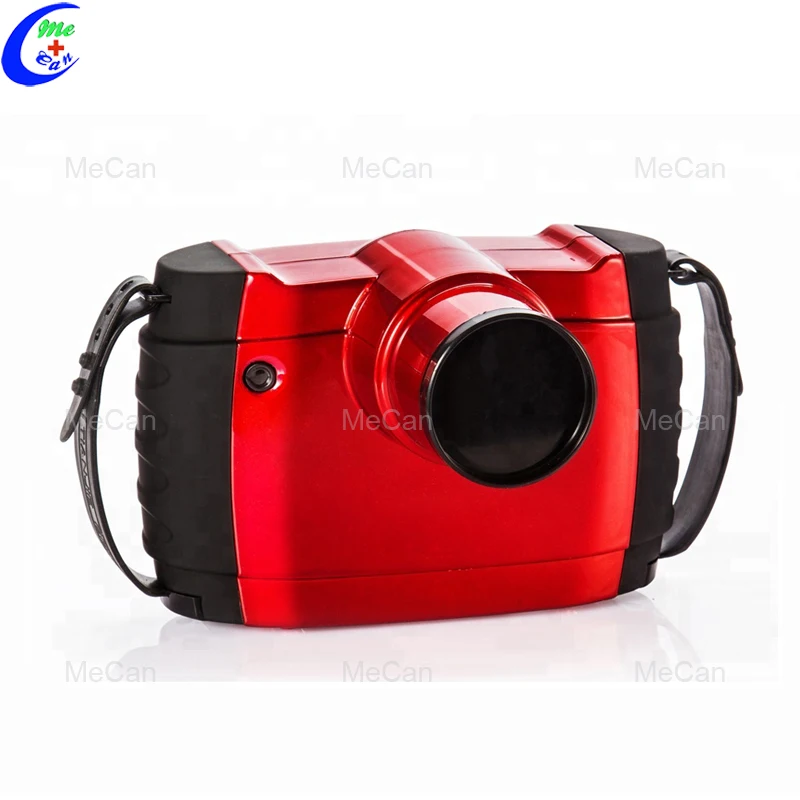

High Frequency Dental Portable X-Ray Unit


Product Description

What is feature of our Dental Portable X-Ray Unit?

1. 5 years warranty
2. Special material--Lead
3. Low radiation
4. Much smaller and lighter
5. Lithium battery
6. Can be used with sensor

1.No protective operation room is needed when installing the complete machine;
2.Flexible adjustment the position and angle of hand piece,simple and easy to handle;
3.Develop dental film in daylight, no darkroom need;
4.Compace in volume, light in weight, convenient for carrying;
5.Time is adjustable, high contrast of picture, imaging in focus;
6.Can be used with sensor;
7.Radiation leakage is in accordance with international standard
8.More intelligent, easy to cooperate with three model
9. In small volume, big screen
10. Shot time in taking photos

Technical specification:
a) The rated parameters of x-ray production device
1. Tube voltage: 70kv (fixed)
2.Tube current: 1MA (fixed)
3. High voltage generating circuit: High frequency switch
4. X-ray control method: Microprocessor control
5. Time setting range: 0.05-1.2 seconds
b) Weight: 1.95kg
c) Size: 215*140*160 mm
d) X-ray tubing
1. Type: bipolar fixed x-ray tube
2. The size of x-ray tube focal spot: 0.3*0.3mm
3. ANODE heating unit: 8.5Khu
4. Maximum tube voltage: 75Kv
5. Target angle: 21°
6. Total filtration: 1.6mmAL (Origin filtration: 0.8mmAL, Additional filtration: 1mmAL)
X-ray irradiation range: 73mm (roundness)
e) Useage voltage: battery 16.8V
f) Charger: Input AC100-240V, Output: 16.8VHigh Frequency Dental X-RayPortable X-Ray UnitPortable Dental X-Ray
