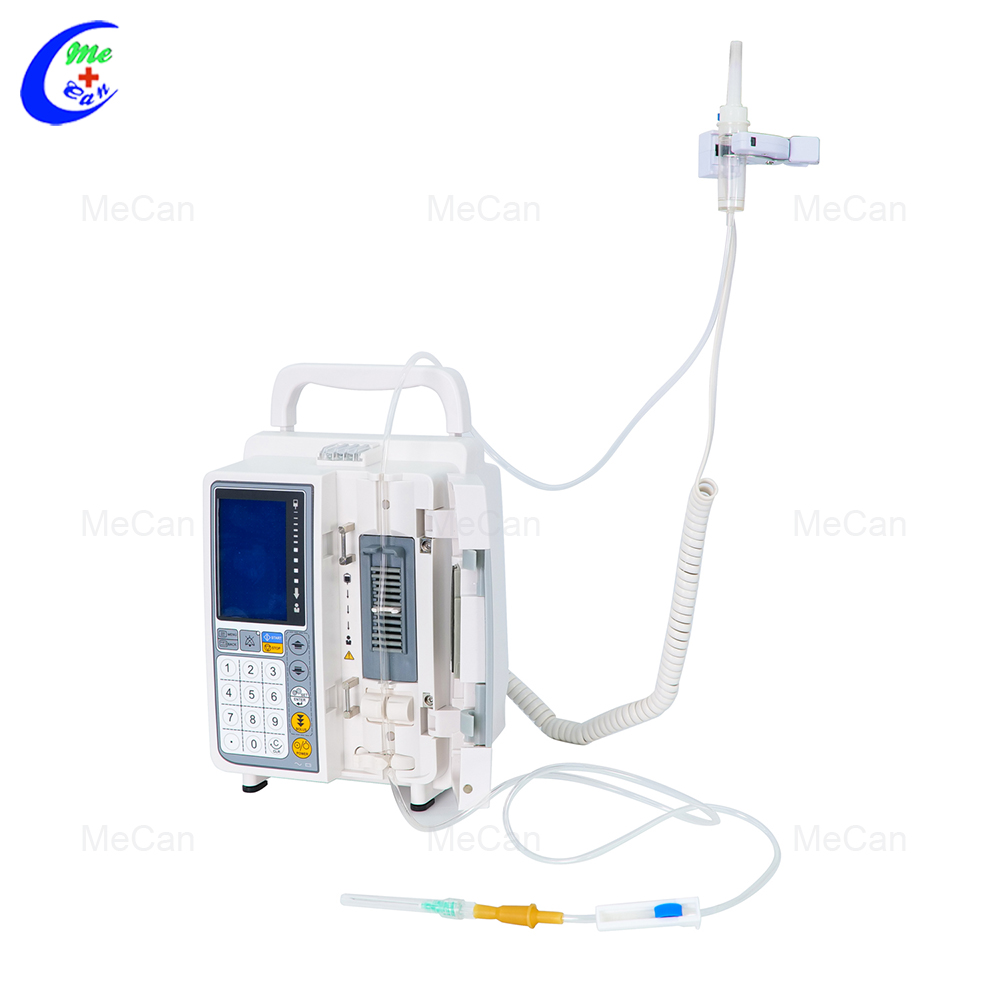

Infusion Pump Medical Device IV Pumps Manufacturer
Model: MCS0194
Product Introduction:
Different adjustable level setting
Two occlusion pressure sensors, dynamic pressure value display, up-occlusion sensor to avoid underflow, 10 adjustable level for occlusion, air bubble and alarm volume to meet different needs in different department.
Long life battery backup
3000mAh Lithium battery, backup time more than 10hours under battery supply to ensure no interruption when no AC power supply or in moving condition.
Easy Operation
Big blue brightness LCD, number Keypad
Double CPU Design
Independent CPU design, reliable data transmission, safer infusion.
Various mode
ml/h, droop/min, volume/time, drug library, smart infusion
Real-time self-testing
Real-time self-testing during startup and infusing process, ensure the safety of each component and each function, safer infusion.
Technical Parameters:
| IV Sets | Standard single use IV sets(20 and 60d/ml, with diameter 3.4~4.5mm) |
| Flow Rate Range | 1.0ml/h with 0.1ml/h; 100-1200ml/h with 1ml/h |
| Flow Rate Increment | 1.0-100ml/h with 0.1ml/h; 100-1200ml/h with 1ml/h |
| Flow Rate Deviation | <±5%(after calibration) |
| VTBI | 0.1~9999ml |
| Infused Volume | 0~999ml |
| Time Setting | 1 min to 99h59min |
| Purge Rate | 600ml/h, displaying purge volume |
| KVO | 1ml/h~5ml/h, adjustable |
| Keypad | Numeric Keypad, user friendly |
| BOLUS Mode | Available for Bolus mode, flow rate adjustable |
| Night Mode | Night mode, No operation for 5mins, LCD brightness lower automatically |
| Occlusion Pressure Detection | Occlusion Pressure Sensor, detection range: 40-140Kpa, 10 levels adjustable, auto pressure release function |
| Air-in-line Detection | Air bubble detected by ultrasonic with 10 setting, 50~300μL |
| Alarm &Volume | 10 settings |
| Anti-reverse Function | Anti-reverse function on motor to prevent upstream |
| IV Set Management | Open System, Can accept all kinds of IV Set after calibration |
| Self-Testing | Self-Testing when start up and during infusing |
| Audio and Visual Alarms | Air-in-line, Door open, occlusion, parameter, IV Ste not calibrated, infusion finished, No operation, Leakage, battery low, Pump error. Motor reverse, AC power lost, etc. |
| Display | 3.5" Brightness LCD |
| AC power | AC:100V~240V, 50Hz/60Hz,≤25VA |
| Battery | Rechargeable Lithium battery: DC11.1V, 3000mAh, life:≥10 hours remaining battery displayed |
| Operation | Temperature: 5ºC~40ºC, Relative humidity:20%~90%, Atmospheric pressure:70~106Kpa |
| Transportation and Storage | Temperature: 20ºC~55ºC, Relative humidity:10%~90%, Atmospheric pressure:70~106Kpa |
| Classification | Class I, CF, IP*3 |
| Dimension | 150mm*10mm*210mm |
| Weight | 1.7KG |

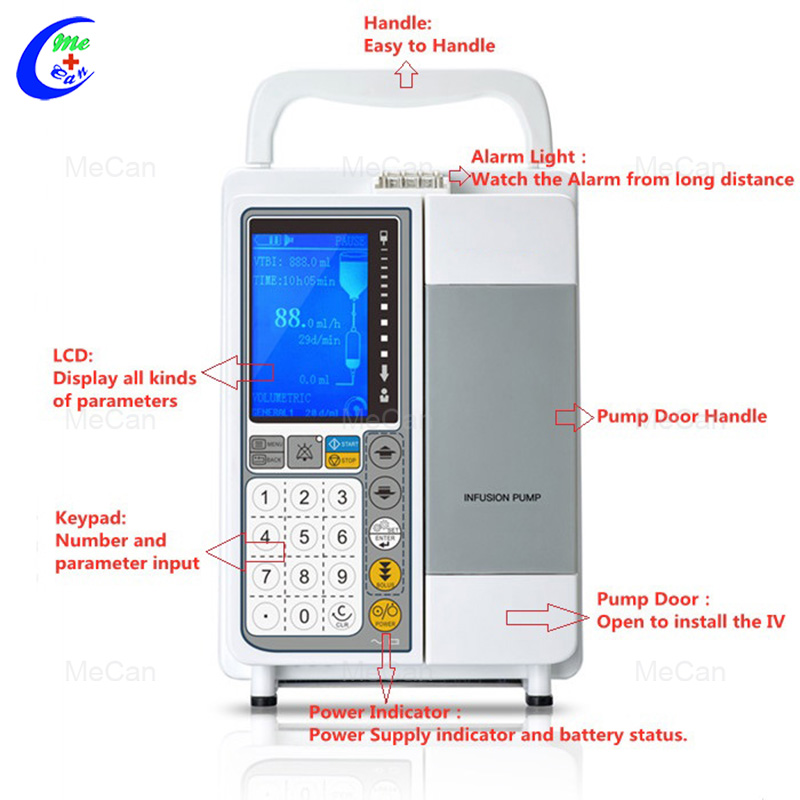

More details of our IV Infusion Pump
Company Advantages
MeCan provide one-stop solutions for new hospitals, clinics, labs and universities, has helped 270 hospitals, 540 clinics,190 vet clinics to set up in Malaysia, Africa, Europe, etc. we can save your time, energy and money. MeCan Focus on medical equipments over 15 years since 2006. More than 20000 customers choose MeCan. Frequently Asked Questions about
Q: What is your warranty for the products?
A: More than 12 months for free
Q: What is the delivery time?
A: We have shipping agent, we can deliver the products to you by express, air freight, sea. Below is some delivery time for your reference: Express: UPS, DHL, TNT, ect (door to door) United States(3 days),Ghana(7 days), Uganda(7-10 days), Kenya(7-10 days), Nigeria(3-9 days) Hand carry Send to your hotel, your friends, your forwarder,your sea port or your warehouse in China. Air freight(from airport to airport) Los Angeles(2-7 days), Accra(7-10 days), Kampala(3-5 days), Lagos(3-5 days), Asuncion(3-10 days)...
Q: What is your lead time of the products?
A: 40% of our products is in stock, 50% of the products need 3-10 days to produce, 10% of the products need 15-30 days to produce.
Q: What is your after-sales service?
A: We provide technical support through operating manual and video, Once you have questions, you can get our engineer's prompt response by email,phone call, or training in factory. If it's hardware problem, within the warranty period, we will send you spare parts for free, or you send it back then we repair for you freely.
Q: Technology R & D
A: We have a professional R&D team that continuously upgrades and innovates products.
