Intelligent Temperature Measurement and Disinfection Channel
Intelligent Temperature Measurement and Disinfection Channel
Intelligent Temperature Measurement and Disinfection Channel
Intelligent Temperature Measurement and Disinfection Channel
Intelligent Temperature Measurement and Disinfection Channel
Intelligent Temperature Measurement and Disinfection Channel
Intelligent Temperature Measurement and Disinfection Channel

Intelligent Temperature Measurement and Disinfection Channel

Model NO.:
MCDD-01
Price:
US $ 1800.00-5700.00 / unit
Delivery:
Minimum order quantity:
1 unit
Supply Ability:
1000 unit / Week
Country of Origin:
Guangzhou
Stock Time:
5 Days
Disinfection Door

Intelligent Temperature Measurement and Disinfection Channel

Model: MCDD-01




Product performance features:
1. Intelligent 8-inch LCD, body temperature display and face comparison function;
2, automatic induction spray function, thinning throttling, do not hurt the human skin;
3. Face recognition, visitors, temperature measurement, attendance function in one;
4. High precision infrared thermal imaging module temperature measurement, abnormal voice sound light alarm;
5. The hand intelligent non-contact spray sterilizer is safe and hygienic and effective in killing the opponent.
6. Disinfection function of sole and wheel;
7. The whole machine is easy to move;
8. Automatic induction of personnel passing function;
9. Removable ramp pedal, suitable for all kinds of people to pass, convenient access;


Working power supply: 100-240Vac 50 / 60Hz;
Rated power: ≤ 60W;
Working environment: temperature 0-35 ℃, humidity ≤ 90%;
Nozzle: 8 atomizing nozzles as standard;
Spray mode: automatic induction spray;
Disinfectant: non toxic and tasteless disinfectant;
Lack of liquid indication: support;
Volume of disinfectant: 25L;
Volume of hand sanitizer: 1000ml;
Display: 7 / 8 inch LCD;
 Audio: stereo speaker;
Temperature measurement range accuracy: 32-45 ℃ ≤ 0.4 ℃;
Detection method: non-contact, infrared thermal imaging;
Living recognition: support, infrared sensing;
Recognition speed: 200-300ms;
Operating noise: ≤ 38dB;
Channel size: W:900 * H:1950 * L: 700mm;
Overall dimension: W: 1100 * H: 2200 * L: 700mm;
Package size: W560 * H:1280 * L: 2270mm;
Net weight of equipment: 95.5kg; floor area: 0.77m2;
Gross weight of equipment: 137kg (including packing box);

Model: MCDD-02




Product performance characteristics:
1. Intelligent 8-inch LCD, body temperature display and face comparison function;
2, automatic induction ultrasonic spray function, thinning throttling, do not hurt the human skin;
3. Face recognition, visitors, temperature measurement, attendance function in one;
4. High precision infrared thermal imaging module temperature measurement, abnormal voice sound light alarm;
5. The hand intelligent non-contact spray sterilizer is safe and hygienic and effective in killing the opponent.
6. Disinfection function of sole and wheel;
7. Movable function of whole machine channel;
8. Automatic access control sensing function;
9. Ultrasonic atomization and omnidirectional spray disinfection;
10. Foldable auxiliary channel, suitable for all kinds of people to pass, convenient access;
11. Glass observation window;
12. Channel lighting function.

Product technical parameters
Rated power: ≤ 300W;
Working power supply: 100-240Vac 50 / 60Hz;
Working environment: temperature 0-35 ℃, humidity ≤ 90%;
Atomizer: ultrasonic atomization;
Atomization time: 0-60s adjustable;
Disinfectant: non toxic and tasteless disinfectant;
Lack of liquid indication: support;
Volume of disinfectant: 25L;
Volume of hand sanitizer: 1000ml;
Display :8 inch LCD;
Audio stereo speaker;
The accuracy of temperature measurement range is 32-45 ℃ ≤ 0.4 ℃;
Detection method: non-contact, infrared thermal imaging;
Live recognition: support, infrared sensing
Recognition speed: 200-300ms;
Operating noise: ≤ 38dB;
Equipment weight: About 365kg
Floor area: 3.5 square meters;
Channel size: W: 700 * H:1900 * L: 1800mm;
Boundary dimension: W: 1100 * H:2230 *  L:1800mm;
Package size:  W: 1140 * H:2300 *  L:1930mm;

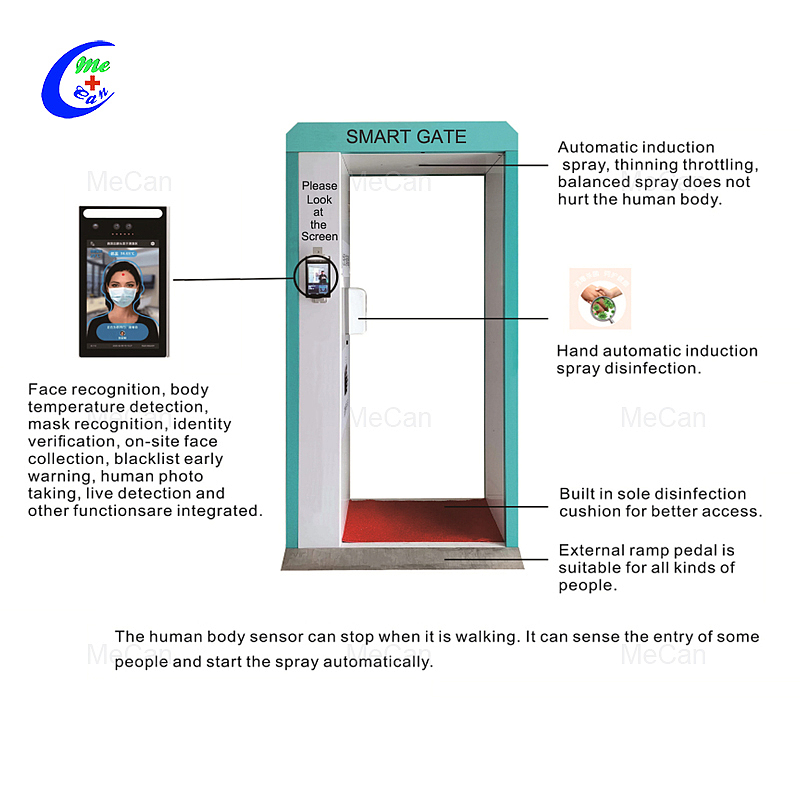

How to work of our Disinfection Door ?
