MeCan Medical Best Quality Laboratory Equipment Blood Semi-autoBiochemistry AnalyzerFactory,MeCan Focus on medical equipments over 15 years since 2006. Every equipments from MeCan gets passed strict quality inspection,and final passed yield is over 99.9%.
Place of Origin:CN;GUA
Model Number:MCL-301
Brand Name:Mecan
Type:Biochemical Analysis System
Instrument classification:Class II
Model: MCL-301

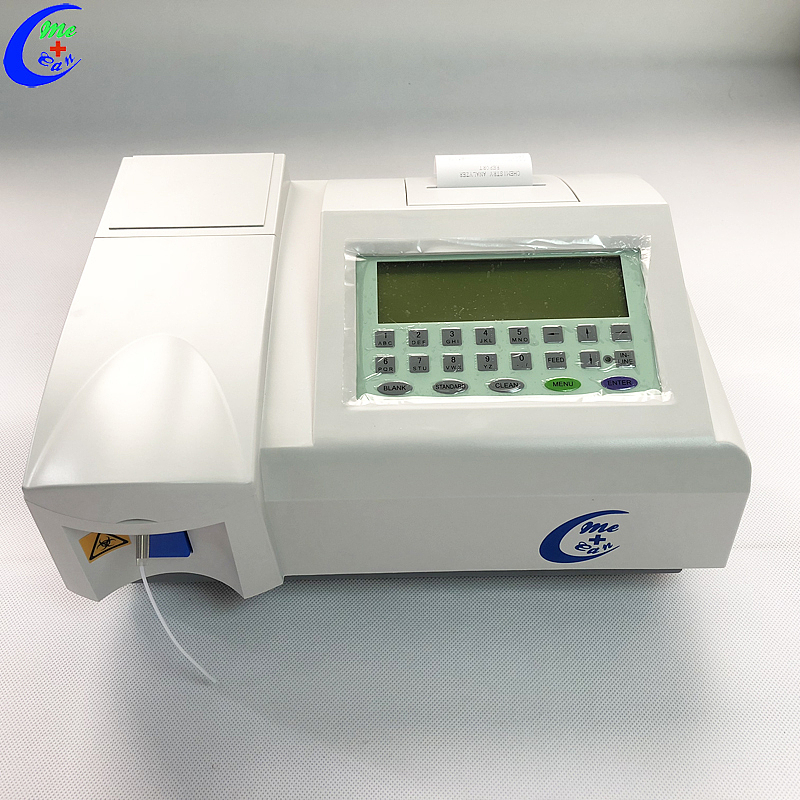

Our Blood Biochemistry Analyzer is semi-auto,it has more than 70 test items,its reagents is open,you can buy reagents in your local market.
6 detecting wavelengths: 450-492-510-546-578-630nm
Up to 70 test items
Analytical modes: end-point, absorbance.

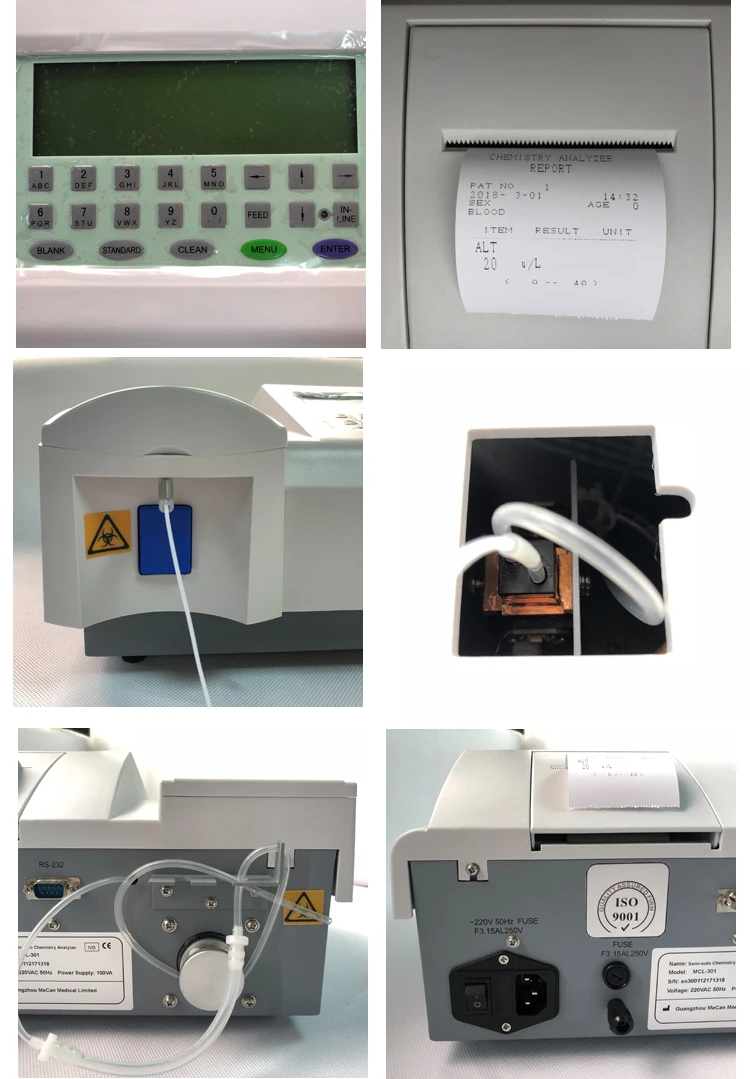

Large LCD. menu operation, hospital and patient information editing available
Inner thermal-sensitive printer. English comprehensive report available, including refer range
Memory for 10000 sample results
Few reagent needing, low detecting cost.
Open reagents
Test project |
≥70 |
Wavelength |
450,492,510,546,578,630nm |
Flow cell |
32uL,quartz glass |
Liquid volume |
200-3000uL |
Resolution |
0.001Abs(display),0.0001Abs(calculation) |
Carryover |
<1% |
Repeatability |
<1% |
Printer |
Internal thermal-sensitive printer, 58nm paper width |
Display |
240*64 LCD |
Communication |
RS-232 serial cable |
Power supply |
220/110VAC±15%,50/60Hz 80W |
Temperature |
15℃-30℃ wet≤90% |
Dimension |
380mm(L)*330mm(W)160mm(H) |
Weight |
7Kg |
