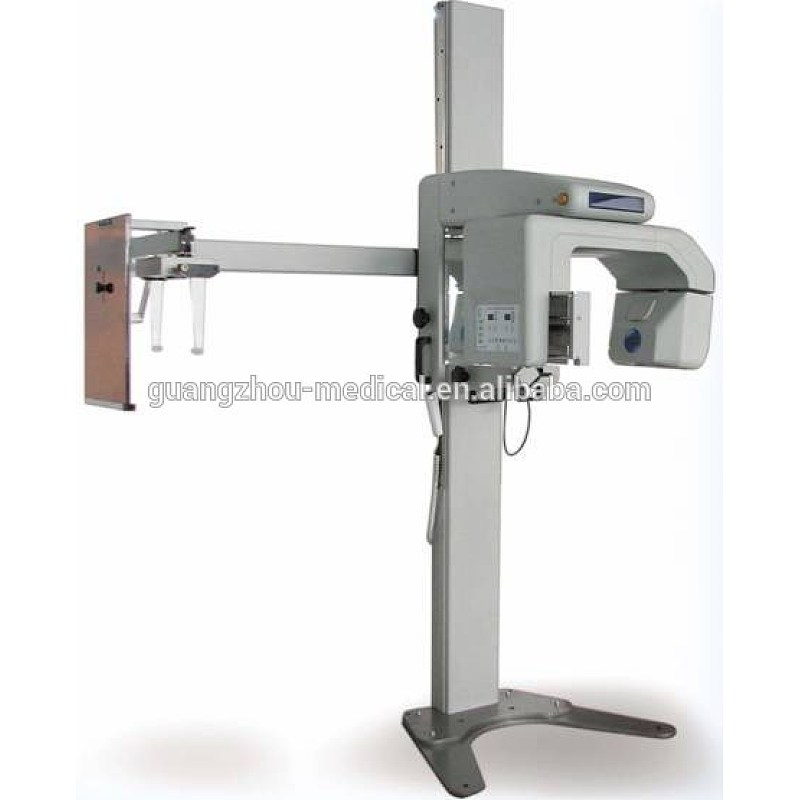

Panoramic Radiography Equipment

MeCan Medical Professional MCX-D02 Panoramic Radiography Equipment manufacturers,OEM/ODM, customized according to your requirements, we are in it more than 15 years, we are very professional and we will provide the best service to you.


facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Place of Origin:CN;GUA

  • Model Number:MCX-D02

  • Brand Name:MeCan

  • Properties:Medical X-ray Equipments & Accessories

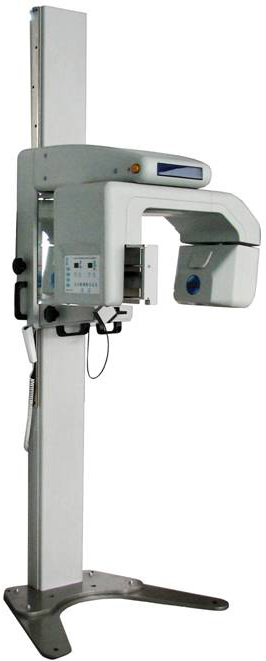

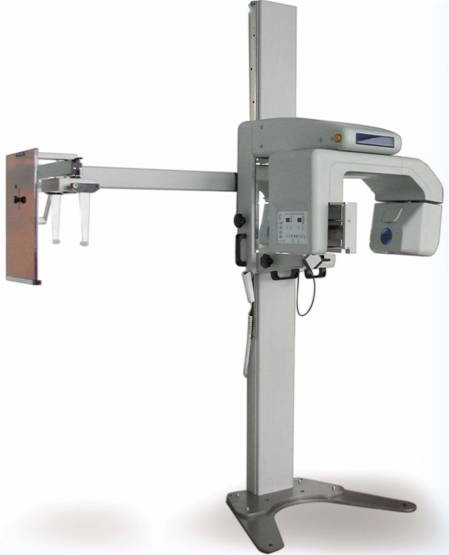

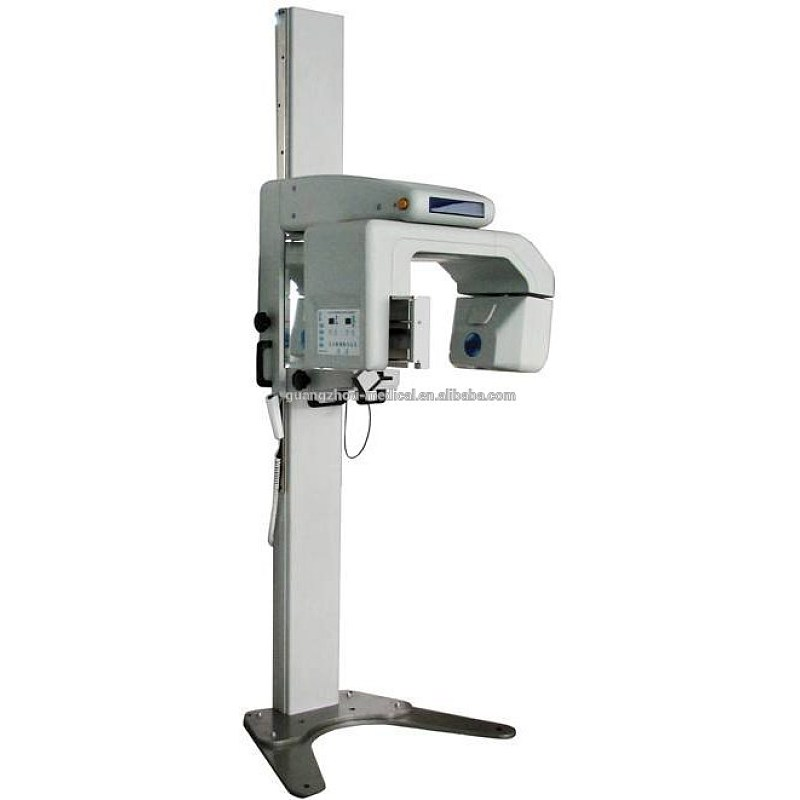

Panoramic Radiography Equipment



Packing size: 1250×950×650cm
Gross Weight: 140KG.



Packing size: 2300×300×200cm
Gross Weight: 120KG.



 Panoramic Parameters

IEC Classification: Class I, type B

   Power Supply: 230V,50/60Hz,8 A

                           115V, 50/60Hz,16 A

Mains Resistance: <2 ohm at 230 V

X-ray generator: Multipulse at 20 kHz

Anodic Voltage:60-86 kV, Constant Potential

Anodic Current:4-10 mA,Direct Current

Focus size:0.5 IEC 336

Inherent Filtration:2,5 mm Al

Column Height: 234 cm

Displacement :93 cm, from 88.5 to 181.5 cm


Vertical Movement: Manual Adjustment

Patient Positioning: Manual Carriage Adjustment

Centering Light Lateral

Centering Chin rest

Reference with bite wing


                                     Pan                     Ceph

Focus Film                  51 cm               158 cm



Exposure time     19 s                                 0.2 to 3.5s(12 steps) mAs from 2 to 35

Projections:      Adult(19 s)                          Antero Posterior

                        Children(15 s)

                        Half left(10 s)                        Latero lateral

                         Half Right(10 s )                 with soft tissue filter

                         Frontal Teeth(8 s)

                         TMJ opened and closed

                         Mouth(4*4 s)

                        Frontal Sinuses(8 s)

Cooling pause:     automatically controlled,    automatically controlled,

                                  6 min max                       60 s max

Film size:         15*30 cm, flat cassette        18*24 cm or 8*10”

Weight:               120kg                                        140kg

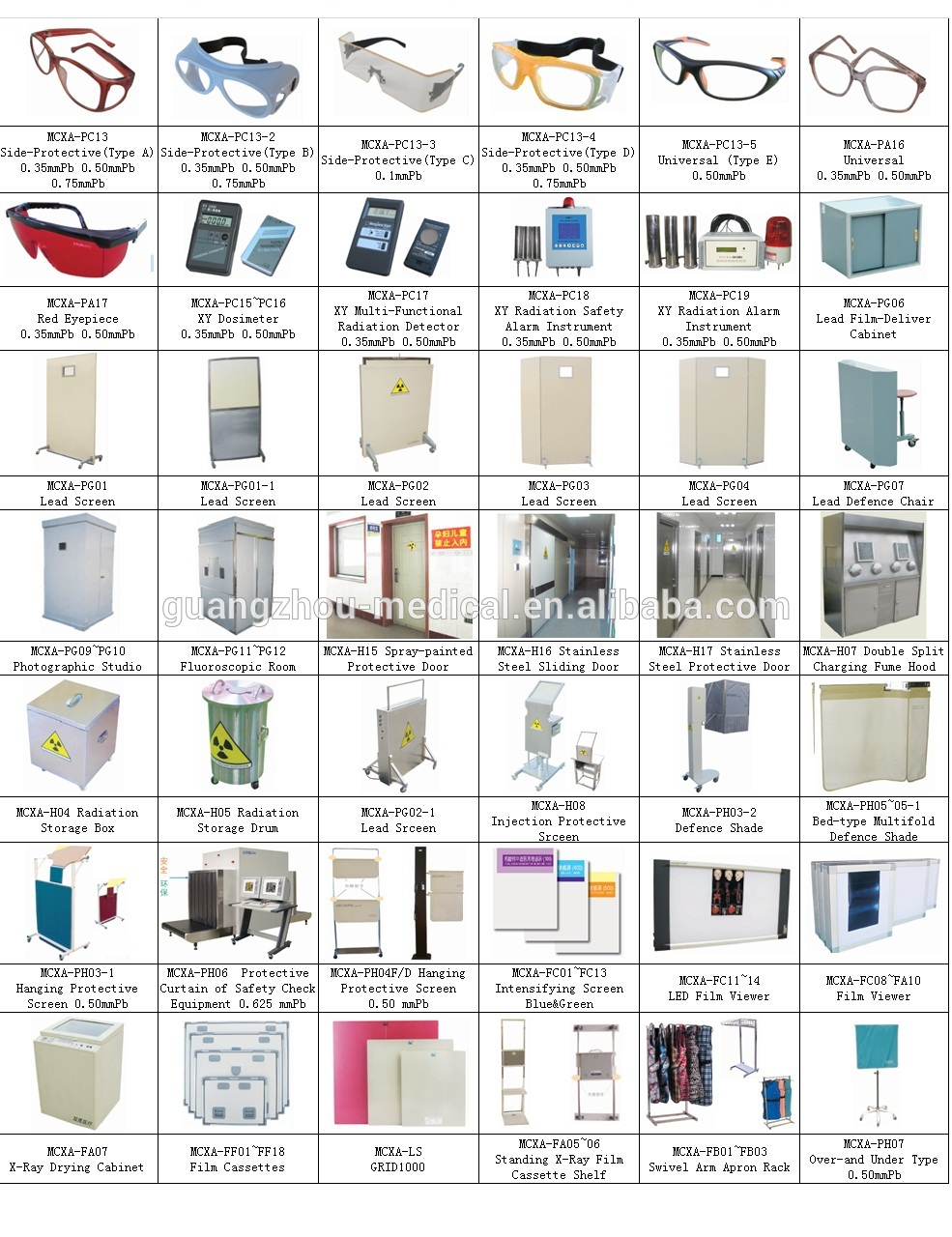

We provide different kinds of X-ray machines and accessories of X-ray machines. Some are shown in the following pictures. For more infomation, please refer to our webside:

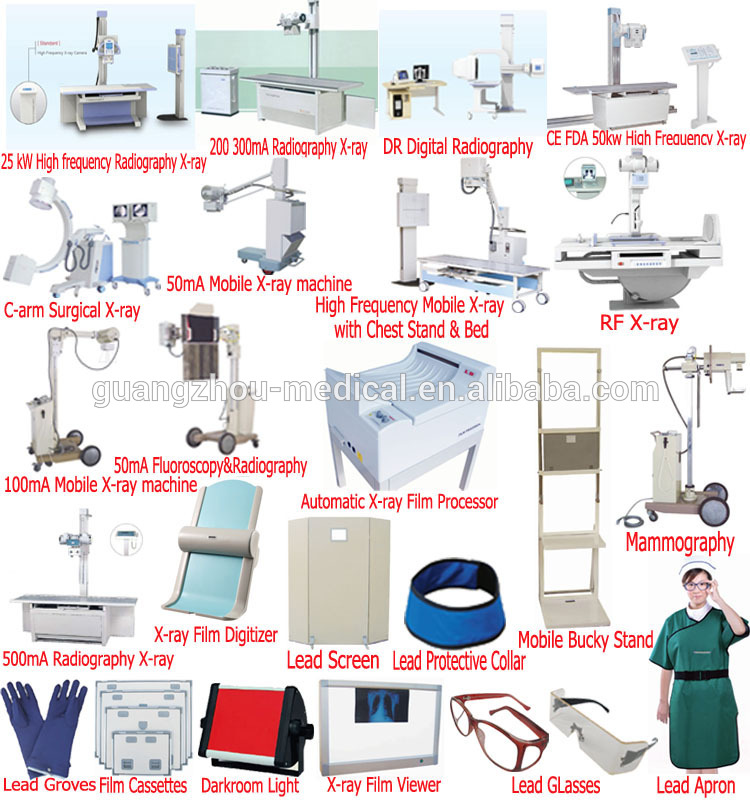

X-ray Machine Series

We provide different kinds of X-ray machines and accessories of X-ray machines. Some are shown in the following pictures. For more infomation, please refer to our webside:

X-ray machine series.jpg

X-ray .jpg

X-ray .jpg

One Stop Supplier


Our Advantage

1. One stop supplier for medical equipments and laboratory equipments in Guangzhou
2. More than 2000 hospitals have become our partners
3. Superior quality with factory price
4. Quick reply and considerate service
5. CE,ISO,FDA Certificate
6. Fast delivery by air, sea or in other ways
7. More than 10 years in medical machines supply business
8. Exported to more than 109 countries
9. Warranty time: AT LEAST 12 months and Over 8 years' technical and accessories-change support
10.Excellent and immediate after-sale service


Together with client

We have sold 50mA Mobile X-ray Machine MCX-L102 and other medical equipment to more than 109 countries and built long term partnerships with clients such as UK, US, Italy, South Africa, Nigeria, Ghana, Kenya, Turkey, Greece, Philippines, etc



1. From the Biomedical Engineer of Senegal.

hello, the installation of the RX unit was a success. all is ok and i have a very good picture.



2. From Dr. Salman Hasan, Doctor from Nigeria

Hello we have installed the radio and we are really satisfied with its operation.


3. From Dr. Emma Adapoe, Ghana, Africa.

 Mecan Medical Company Limited:

I have tried them for their honesty

I have tested their products for Good Quality

I have experienced their Good and and nice service and customer relations

I endorse Mecan because they stand the test of time.


Please contact us and let’s talk details for the  MCX-D02 Panoramic Radiography Equipment






People will appreciate the benefit of its high energy efficiency which helps them save a lot in monthly utility bills.


1.What is your after-sales service?
We provide technical support through operating manual and video; Once you have questions, you can get our engineer's prompt response by email,phone call,or training in factory. If it's hardware problem, within the warranty period, we will send you spare parts for free, or you send it back then we repair for you freely.
2.What is the delivery time?
We have shipping agent,we can deliver the products to you by express,air freight,sea.Below is some delivery time for your reference:  Express:UPS,DHL,TNT,ect (door to door)  United States(3 days),Ghana(7 days),Uganda(7-10 days),Kenya(7-10 days),Nigeria(3-9 days)  Hand carry  Send to your hotel,your friends,your forwarder,your sea port or your warehouse in China.  Air freight(from airport to airport)  Los Angeles(2-7 days),Accra(7-10 days),Kampala(3-5 days),Lagos(3-5 days),Asuncion(3-10 days)  Se
3.What is your lead time of the products?
40% of our products is in stock,50% of the products need 3-10 days to produce,10%of the products need 15-30 days to produce.


1.OEM/ODM, customized according to your requirements.
2.Every equipments from MeCan gets passed strict quality inspection,and final passed yield is 100%.
3.MeCan Focus on medical equipments over 15 years since 2006.
4.MeCan provide one-stop solutions for new hospitals,clinics,labs and universities,has helped 270 hospitals,540 clinics,190 vet clinics to set up in Malaysia,Africa,Europe,etc.we can save your time,energy and money.

About MeCan Medical

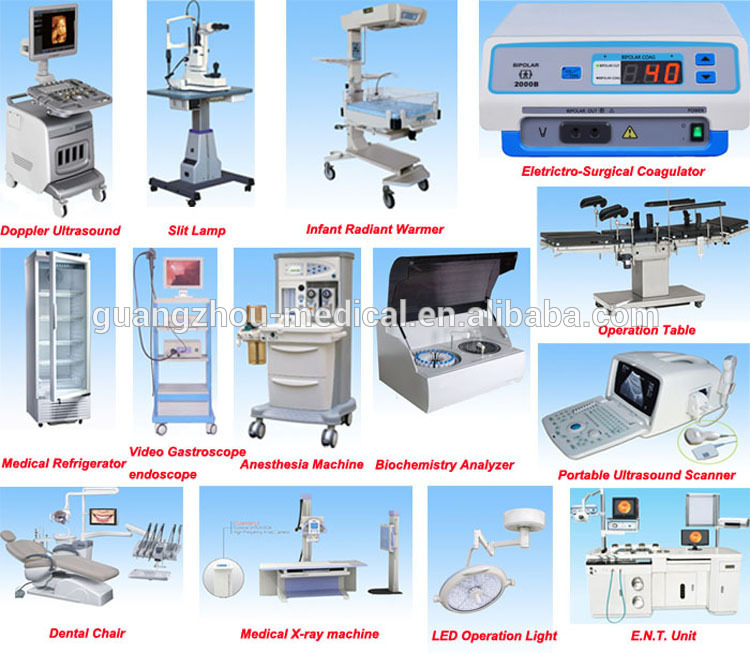

Guangzhou MeCan Medical Limited is a professional medical and laboratory equipment manufacturer and supplier. For more than ten years, we engage in supplying competitive price and quality products to many hospitals and clinics, research institutions and universities. We satisfy our customers by offering comprehensive support, purchase convenience and in time after sale service. Our main products include Ultrasound Machine, Hearing Aid, CPR Manikins, X-ray Machine and Accessories, Fiber and Video Endoscopy, ECG&EEG Machines, Anesthesia Machines, Ventilators, Hospital furniture, Electric Surgical Unit, Operating Table, Surgical Lights, Dental Chairs and Equipment, Ophthalmology and ENT Equipment, First Aid Equipment, Mortuary Refrigeration Units, Medical Veterinary Equipment.
