MCX-DR52 High Frequency Mobile Digital Radiography System
MCX-DR52 High Frequency Mobile Digital Radiography System

MCX-DR52 High Frequency Mobile Digital Radiography System

Model NO.:
MCX-DR52
Price:
USD 8000.00-8000.00
Delivery:
FOB
Minimum order quantity:
1
  • Properties:Medical X-ray Equipments & Accessories
  • Place of Origin:CN;GUA
  • Instrument classification:Class II
  • Brand Name:MeCan
  • Model Number:MCX-DR52

High Frequency Mobile Digital Radiography System

Model:MCX-DR52



PLX5200 CUT.jpg

Usage

This unit is high frequency combined digital X-ray radiography medical diagnostic equipment, it is used in radiography department, orthopedics, wards, emergency room, operation room, ICU, etc. It can satisfy the requirement of parts of body such as head, limbs, chest, spine, lunmer, stomach.



Basic configuration

1. High quality combined high frequency high voltage generator

2. Color graphical touch LCD control system

3. Panel detector with free movement

4. High quality IPC

5. Large size medical LCD display

6. New type mobile column rack

7. Symmetric adjustable, wireless ranging rotatable collimator with lamp

8. Electric assistance drive system

9. Cable exposure hand brake

10. Wireless remote control exposure device








X-ray generator
1.25KW compact x-ray generator
2.High frequency of 60Khz
3.With high technology to reduce the radiation





Unique Power supply way
1.Supers capacitor to supply power in photography and durable life;
2.Li-Battery to supply power in mechanical movement







Mechanical movement
1.The horizon arm can be contracted freely;
2.The pillar has the electronic up and down movement; and be rotated 360 degree;
3.X-ray tube is rotary and moves left and right with 90 degree;
4.Collimator can be rotated left and right with 90 degree;
5.Comprehensive integration control drive

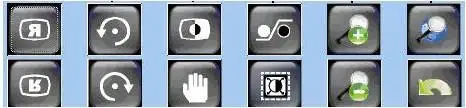

Software

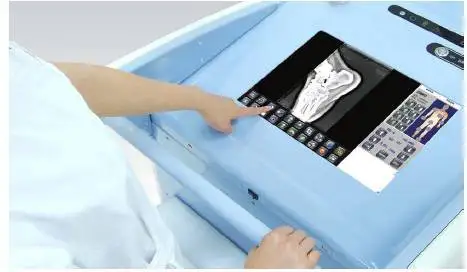

LCD touch screen operation panel to control the machine conveniently









Technical parameters



Type

Item

Spec

Hige frequency X-ray

Max output power

25kW

Main Inverter Frequency

60kHz

X-ray tube

Focus

Small focus:0.6; Large focus:1.3

Rotation anode speed

3000rpm

Heat capacity

900kJ (1200kHU)

Tube current

200mA

Tube voltage

40-125kV

MAS

0.4-360mAs

Digital image system

Digital detecotr

Detector

Amorphous silicon detector

scintillator

cesium iodide

View

14″×17″

Pixel

3000×2400

Max spatial resolution

3.5Lp/mm

Pixel size

144μm

Output gray-scale

16bits

DQE

75%

Workstation

Acquisition module

Gigabit nets collection

Image processing modle



Built-in CONTEXTVISION

GOPVIEW XR2 Enhance module, parameeters choosen

according to particular part

Image information management

Dicom Storage

Dicom Print

Dicom transmission

Physical construction

performance

Distance from floor to focus

Max:193cm; Min:73cm

Distance from focus to pillar

Max:122cm; Min:72cm

X-ray Tube components can rotate

around the telescopic boom axis

±90º

Collimator rotate around vertical axis

±90°

Rotation range of pillar

0°~360°

Power supply

220V±10%   50/60Hz
