Overview

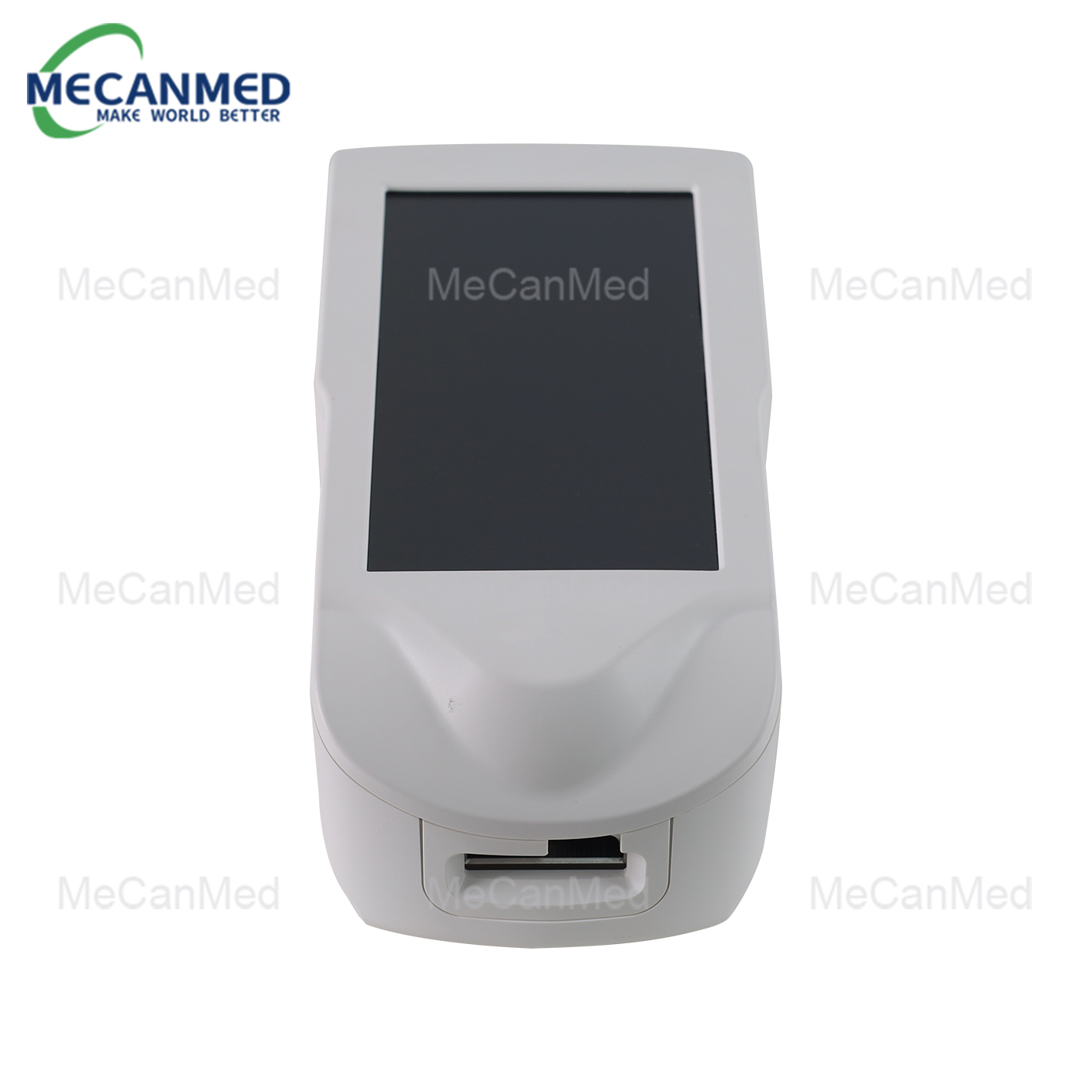

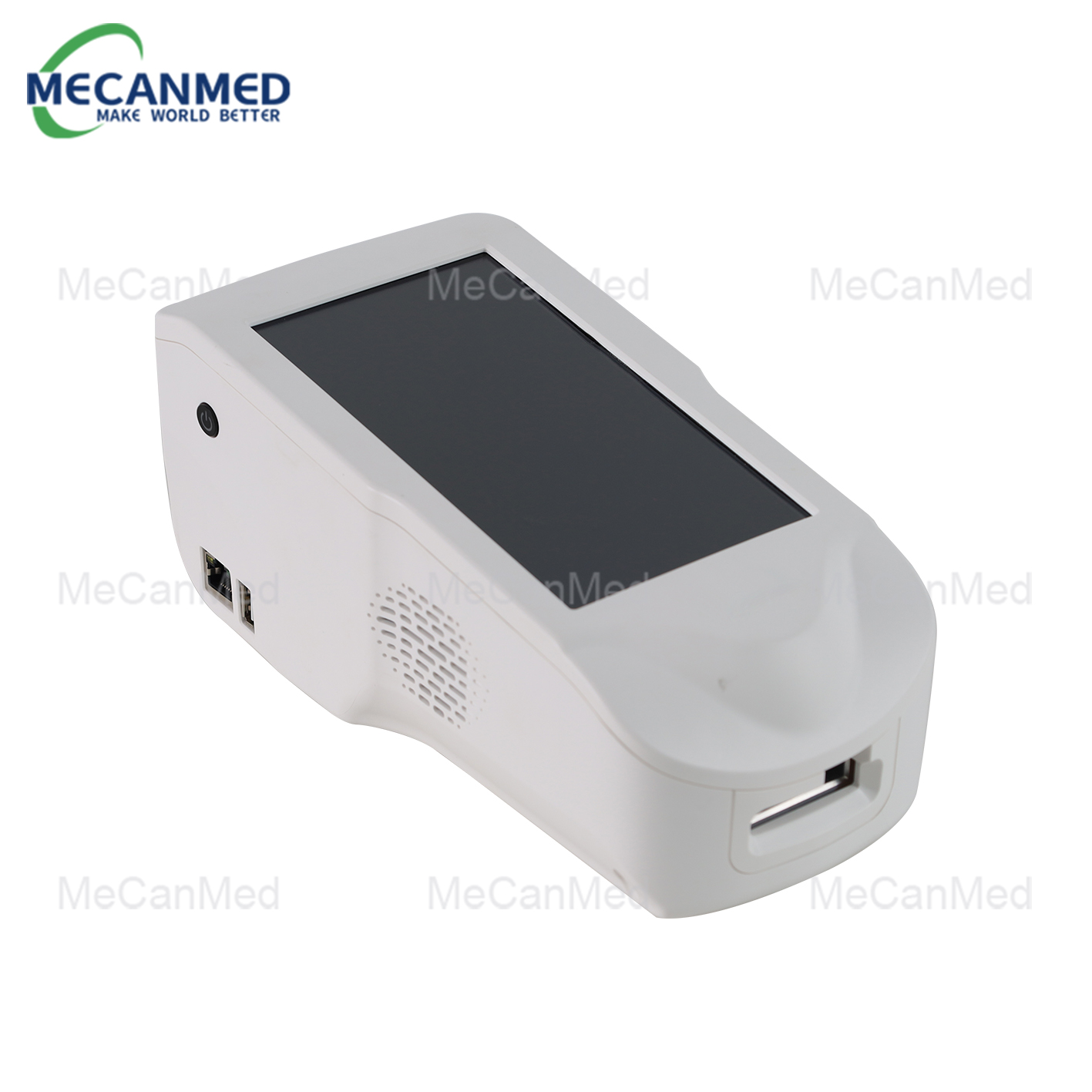

In emerging markets like the Philippines and Africa, where power instability, high staff turnover, and extreme climates are common, the MECANMED MCL0699 Portable Dry Electrolyte Analyzer provides a robust solution for fast electrolyte testing. Weighing only 1.5 kg and featuring dry cartridge technology, it ensures precise K⁺, Na⁺, Cl⁻, iCa⊃2;⁺, and iMg⊃2;⁺ results in 5 minutes—ideal for emergency and mobile settings.
Key Features
Rapid & Accurate: 5-minute detection with ≤±3.0% accuracy (K⁺/Na⁺/Cl⁻), leveraging dry electrochemical sensors for lab-grade reliability.
Portable & Resilient: Compact design (1.5 kg) supports 50+ tests on a single charge, operating in 10–30°C and 10–85% humidity.
Simple Workflow: Touchscreen-guided "scan-load-insert" process reduces training needs, critical for high-turnover clinics.
Low-Cost Operation: Single-use cartridges require no cold storage, cutting maintenance and logistics burdens.
Specifications Overview
Parameter | Details |
Detection Parameters | K⁺, Na⁺, Cl⁻, iCa⊃2;⁺, iMg⊃2;⁺ |
Detection Time | 5±0.5 minutes |
Battery Life | Supports ≥50 continuous tests |
Weight | 1.5±0.5 kg |
Sample Volume | 100–120 μL venous blood/plasma/serum |
Accuracy | K⁺/Na⁺/Cl⁻ ≤±3.0%; iCa⊃2;⁺/iMg⊃2;⁺ ≤±5.0% or ±0.05 mmol/L |
Data Storage | 99,999 records |
Operating Environment | 10-30°C, 10-85% humidity |
Application Scenarios
Emergency Department: Quick electrolyte assessment for critical cases like poisoning or trauma.
Mobile Medical Units: Battery-powered operation enables testing in remote areas with unreliable grid power.
FAQ
Q: How does the Portable Electrolyte Analyzer handle high humidity in tropical climates?
A: The device operates in 10–85% humidity (non-condensing), with components resisting moisture—key for African/Philippine settings.
Q: Is specialized training needed for the Dry Electrolyte Analyzer?
A: No. The simplified workflow and touchscreen allow rapid onboarding, reducing dependency on skilled staff.
Q: Can the analyzer be used in a Mobile Medical Unit without stable power?
A: Yes. The built-in battery supports 50+ tests, ensuring uninterrupted operation during outreach missions.
