Medical Infusion Pumps
Model: MCS2530
The MCS2530 infusion pump is an advanced device specifically designed for medical infusion needs, dedicated to providing healthcare providers with a convenient, safe, and efficient infusion operation experience, ensuring the accuracy and reliability of the patient's infusion process.
Product Features
(I) Easy to Use
1. Compact and Lightweight Design: The compact and lightweight body design allows healthcare providers to easily move and transfer the device. Whether it is adjusting the position within the ward or transporting patients between different departments, it can be easily handled.
2. Flexible Installation and Removal: Equipped with a rotatable pole clamp, healthcare providers can quickly and easily install or remove the infusion pump from the infusion pole without the need for complex tools.
3. Modular Stacking Design: The innovative modular design enables vertical stacking of 2 - 12 infusion pumps without the need for additional tools, effectively saving space and allowing healthcare providers to flexibly combine and manage multiple infusion channels according to actual needs.
4. Automatic Pump Door: The automatic pump door function further simplifies the operation process, improves work efficiency, and reduces the operational steps for healthcare providers.
(II) Enhanced Safety
1. Audible and Visual Alarm System: Equipped with a clear audible and visual alarm device, when abnormal situations occur (such as infusion blockage, infusion completion, low battery power, etc.), it can promptly issue an alarm to ensure that healthcare providers can detect and handle the problem in a timely manner, ensuring patient safety.
2. Automatic Anti-Free-Flow Design: Effectively prevents the accidental free flow of liquid during the infusion process, ensuring the accurate control of the infusion dose and avoiding risks such as drug overdose or underdose caused by free flow.
3. Rich Drug Library: Built-in with information on more than 1000 drugs and providing recommended dose limits, helping healthcare providers quickly and accurately set infusion parameters and reducing the risk of medication errors.
4. Large Capacity History Record: Capable of storing more than 30,000 historical records, facilitating healthcare providers to review the patient's infusion history at any time and providing a reference for subsequent treatments.
(III) Simplified Workflow
1. Wireless Connectivity Technology: Supports wireless connection function, enabling seamless docking with the infusion monitoring system and full interoperability with the Hospital Information System (HIS) and Clinical Information System (CIS). Healthcare providers can remotely monitor the infusion status in real-time, obtain patient infusion information in a timely manner, improve work efficiency, and reduce the inconvenience and errors caused by manual inspections.
Application Scenarios
Suitable for all types of medical institutions, including but not limited to general wards, intensive care units, operating rooms, emergency departments in hospitals, as well as community medical service centers and clinics, providing accurate, safe, and convenient infusion treatment for patients.

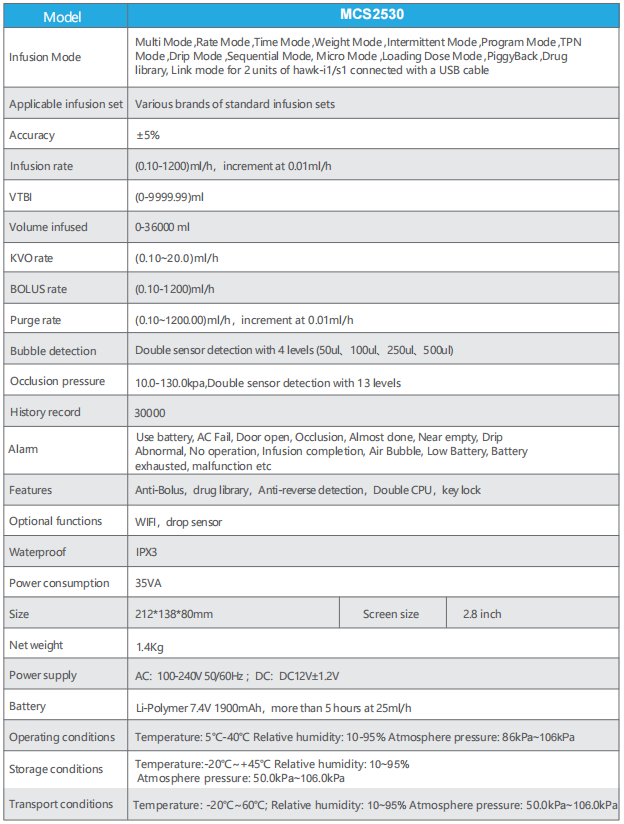

Technical Specifications
Usage Instructions
1. Installation of the Infusion Pump: Fix the infusion pump at the appropriate position on the infusion pole through the rotating pole clamp.
2. Preparation for Infusion: Prepare the infusion tubing and drugs according to the routine operation and connect them to the corresponding interfaces of the infusion pump.
3. Parameter Setting: Enter the drug name (selectable from the drug library), infusion rate, infusion volume, and other parameters through the device interface according to the patient's condition and doctor's orders.
4. Infusion Start: After confirming that the parameters are correct, start the infusion pump to begin the infusion.
5. Monitoring and Management: Healthcare providers can view the infusion status in real-time through the device display screen and can also monitor the infusion process remotely through the wireless connection. In case of an alarm, handle the corresponding problem promptly.
Precautions
1. Before use, ensure that the infusion pump is correctly installed and calibrated.
2. Regularly check the performance of the device, including battery power, infusion accuracy, etc., and repair or replace it in a timely manner if there is any abnormality.
3. Strictly follow the operating procedures to set the infusion parameters to avoid infusion accidents caused by misoperation.
4. Keep the device clean and avoid liquid splashing into the interior of the device to damage the electronic components.
