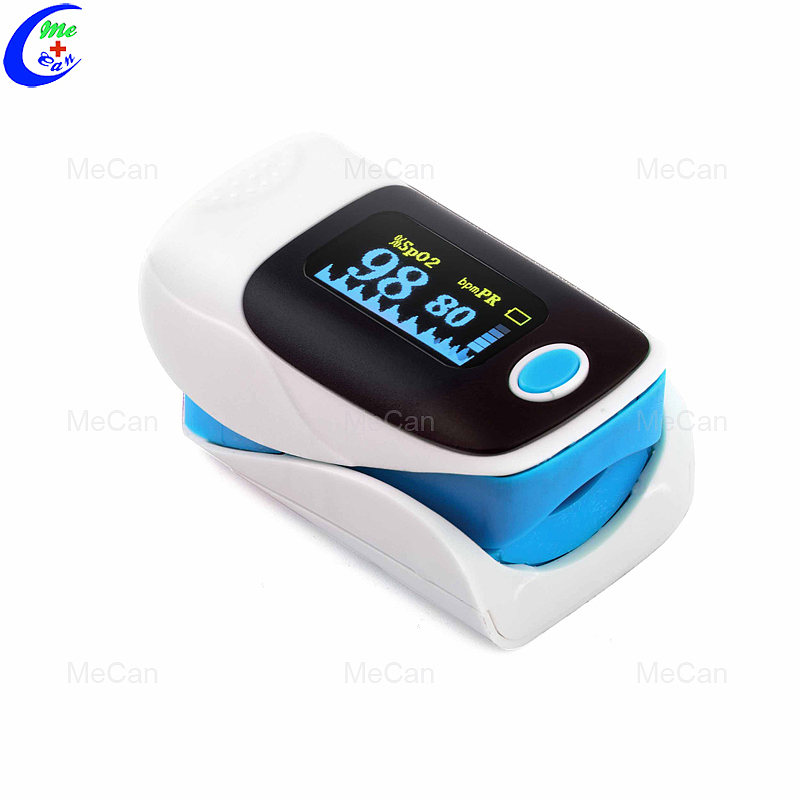

Pulse Oximeter Finger Type Pulse Oximeter Finger Tip Pulse Oximeter
Model:MC-403
Click here for more information !!!
The Advantages Of Our Fingertip Pulse Oximeter?
1. Operating area non-slip design,Considerate and comfortable
2. Top grade LED ,Clearly display
3.One key operation,Easy to use
4. More color for chosse: Yellow&Blue or customized
Approved By: CE, RoHS,ISO 13485
Click here for more information !!!
What's the Specifications Of Fingertip Pulse Oximeter?
Quick Details
• Type: Blood Testing Equipments
• Place of Origin: Guangdong, China (Mainland)
• Model :MC-403
• Color: Yellow&Blue or customized
• Material: ABS Plastic
• Warranty: One year
• Quality Condition: Zero Complainment
• Monitoring: Pulse. Spo2 . Pulse rate
• Patent Range: Adult
• Battery: 2*AAA Alkaline Battery
• Displaly Mode: OLED Sreen Display
• Product Name: Finger plus oximeter
• Approved By: CE, RoHS,ISO 13485
Specifications
Finger plus oximeter
Integrated with SPO2 probe
Processing display module
Hospital home community medical treatment
Instructions
Principle of the Pulse Oximeter is as follows:
The Pulse Oximeter can be used in measuring the pulse oxygen saturation and pulse rate through finger.The product is suitable for being used in family, hospital, oxygen bar, community healthcare, physical care in sports (It can be used before or after doing sports, and it is not recommended to use the device during the process of having sport) and etc.
Features
Integrated with SPO2 probe and processing display module |
Can be used in: hospital, home, community medical treatment, sports healthcare, etc. |
Can measure SPO2 and PR accurately |
SPO2 and PR display, bargraph display |
Battery voltage low indication |
Low power consumption; shut off automatically when no signal |
Small volume(57(L) × 33(W) ×32(H) mm)light,convenient to carry |
Click here for more information !!!
Main performance
Display Mode:LED display
SpO2 Measuring Range:0%~100%, (the resolution is 1%).
Accuracy:70%~100%:±2% ,Below 70% unspecified.
PR Measuring Range:30bpm~250bpm, (the resolution is 1bpm)
Accuracy:±2bpm or ±2% (select larger)
Measurement Performance in Weak Filling Condition:SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).
Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.
Power Consumption:less than 25mA
Voltage:DC 2.6V~3.6V
Power Supply:1.5V (AAA size) alkaline batteries * 2
Battery working hour:The minimum continually work time is 24 hours ,theoretical number is
56 hours.
Safety Type:Interior Battery,BF Type
Accessories
Sell in standard
*a hanging rope
*a user manual
Physical Identity
Dimension:66(L) * 36(W) * 33(H) mm
Weight:About 50g (with the batteries)
Click here for more information !!!
Our Other Types Of Fingertip Pulse Oximeter !
1.Basic and economic type
Click here for more information !!!
2.Hypoxemia Warning Type
Click here for more information !!!
