Best Quality Multifrequency hospital physiotherapy vibration therapy device equipment Factory

What is applications of our vibration sputum elimination aparatus?

Multifrequency vibration sputum excretion machine adopts mechanical vibration force, using its unique function of vibration, simulating manual method of percussion, tremor and shove, assisting postoperative or weak patients in strengthening their ability to row secretions such as sputum in respiratory system, improving blood circulation of lung, preventing and reducing complications of respiratory system.

Structure: single-way support rod type for adult use(Desktop cart is optional)

ABS engineering plastic chassis, entire mold-built streamlined appearance.

Display: fully computer-controlled LCD display, English menu.

What is advantage of our vibration sputum elimination aparatus?

1. Apply unique 24V safety operation voltage to keep the operator and patient absolutely safe in the course of treatment.
2. servo system circuit design, so that the setting vibration frequency is consistent with the actual output vibration frequency, without power decay.

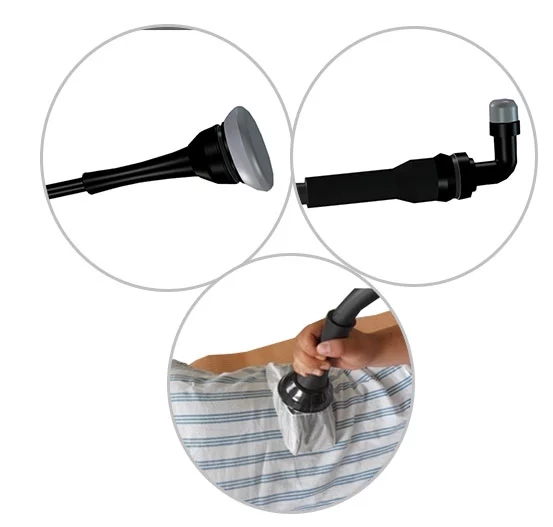

3. The handle can be rotated freely in 360 degrees in operation, This kind of structural rotation makes operations of medical staff more flexible and convenient, greatly improving the working strength of the operator, adapting to the patient's various position drainage requirements, and meanwhile the soft shaft is not easy to broken.
Most of the handle of other manufacturers can only rotate at 180 degrees, and some products handle cannot rotate freely.
4. LCD display, Shuttle button simple and quick to operate.
5. manual mode and automatic mode, besides the manual speed regulation mode, there are four kinds of built-in intelligent program designed for the Asian crowd, which make the operation professional and convenient.

Main technical parameters
1. Transportation and Storage Conditions:
a) Environmental Temperature Range: - 40 °C ~ 50 °C;

b) Relative Humidity Range: 10% ~ 80%;

c) Atmospheric Pressure Range: 500 hpa - 1060 hpa;

Normal Working Conditions:

a) Environmental Temperature: 5 °C~ 40 °C;

b) Relative Humidity: 30% ~ 85%;

c) Atmospheric Pressure: 860 hpa - 1060 hpa;

d) Power Requirement: AC220V±10%, 50 HHZ±2%;

e) Input Power: Single way 90A, double way 180VA;

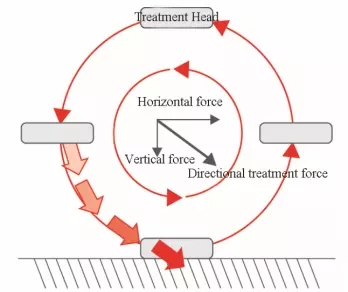

Structure principles

According to the principle of clinical chest physical therapy, it can produce specific directionaspection treatment force around patient's body. The percussion and tremors produced by the treatment force from vertical can make mucus and metabolites of mucosal surface relaxed and liquefied, the shove and tremor produced by the treatment force from horizontal help the liquefied mucus excrete out body according to chosen direction (such as: Bronchiole - Bronchus- Tracheal)

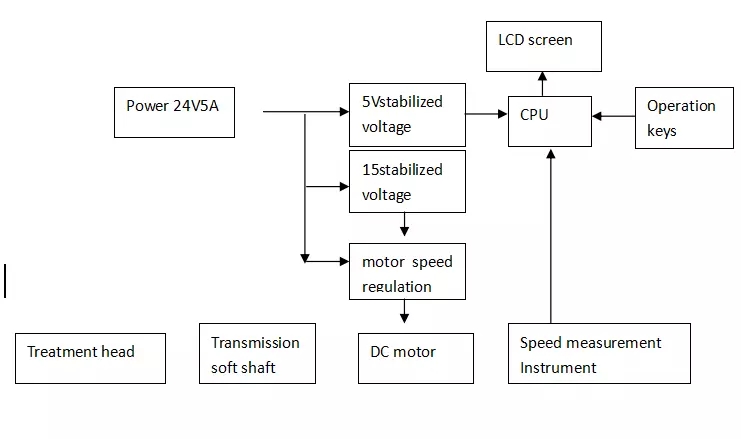

Circuit principles
