1.The main technical specifications: 1.1 Battery: 7.2V/1400mAh 1.2 Adapter: ~100V-240V 50Hz/60Hz 1.3 Revolving speed: 200~600rpm 1.4 Torsion: 0.6~4.0 N.cm 1.5 Buzzer alert: The buzzer will alert when the file is less than 2mm closed to the apex. 1.6 Operation condition Advantage: a) Environment temperature: 0~40ºC b) Relative humidity: 10~85%RH. c) Atmosphere pressure: 60kPa~106kPa
Description of the device. 2.1 Dental Apex Locator is a supporting device of endodontic treatment, through enlarging root-canal in the process, helping dentists to finish the endodontic treatment. a) With Multi-Frequency length measuring technology and the function of root-canal length measuring and enlargement. b) Large colorful LED screen, all angles visible c) Four operation models and six functions including Reciprocating motion, Automatic deceleration in apical zone, Automatic inversion and stopping in apical zone, Automatic start/stop of motor, Automatic inversion of torque, both root-canal length measuring and enlargement Main accessories include: Contra-angle handpiece, File clip, Lip hook and Measuring file, which can be sterilized in high temperature and pressure to avoid cross infection

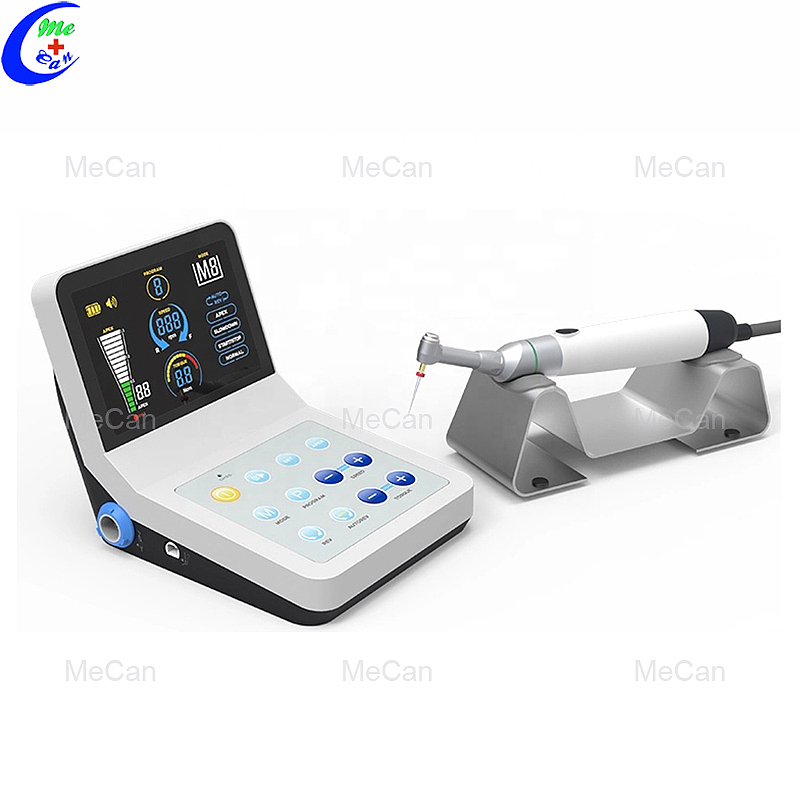

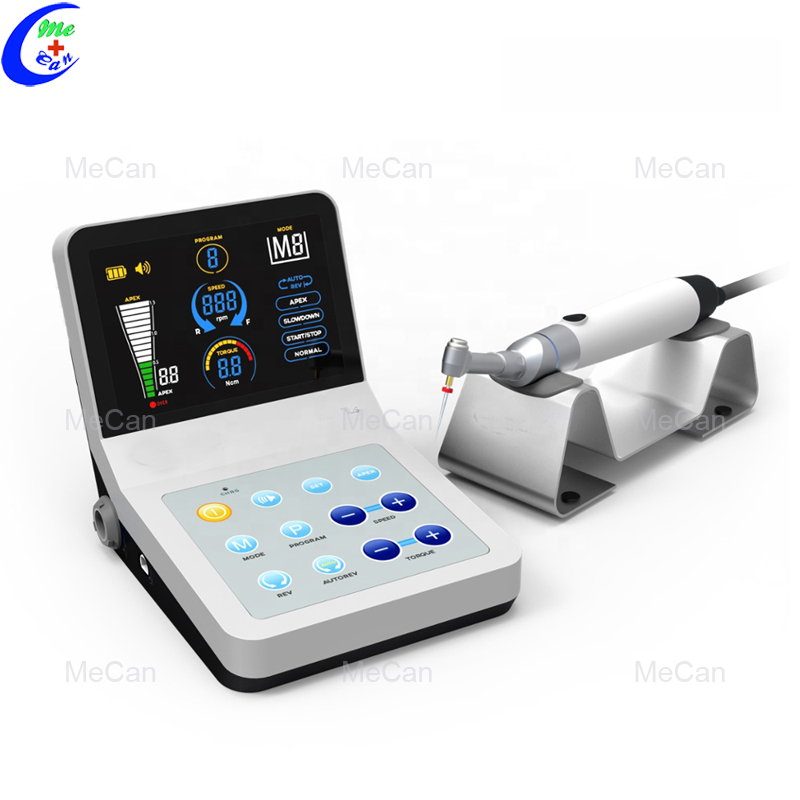

Structure composed of main unit, handpiece, contra-angle, measuring wire, file clip, measuring file, adapter and handpiece stand. Intended use Dental Apex Locator is an electronic device used for enlarging root canal. This product must only be used in hospital environments, clinics or dental offices by qualified dental personnel.
Contraindications a) In patients who have a pacemaker or other implanted electrical devices, or have been cautioned by their physicians against the use of small electric appliances such as shavers, hair dryers, etc b) In patients allergic to metals. c) In children.
