- Place of Origin:CN;GUA
- Model Number:KR-9000/RM-9000
- Brand Name:Mecan
- Type:Ophthalmic Optical Equipments
- Instrument classification:Class II

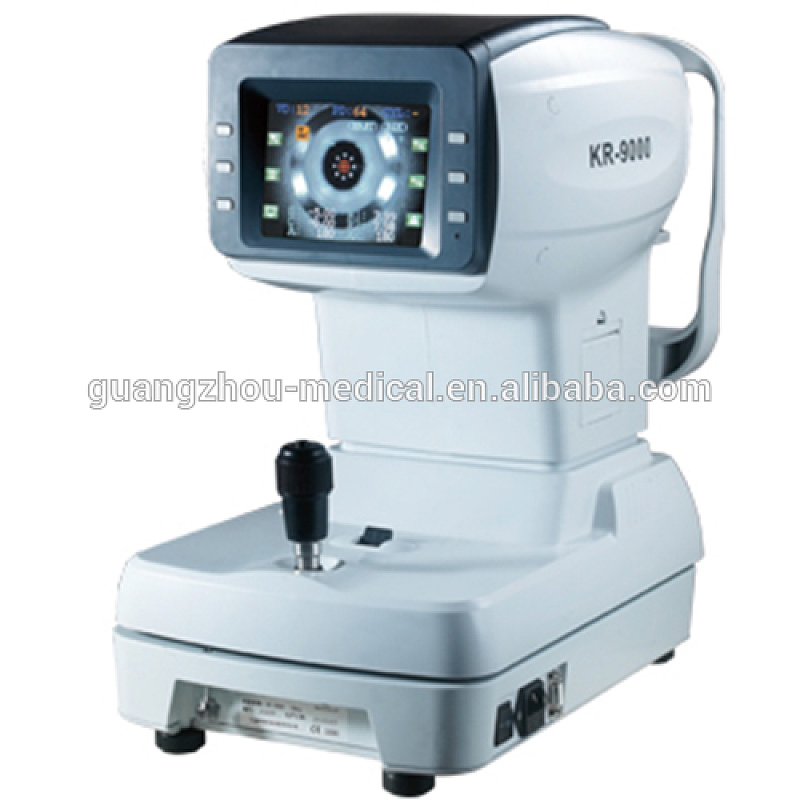

Ophthalmic auto refractometer keratometer for sale
Model: KR-9000/RM-9000

Product specification

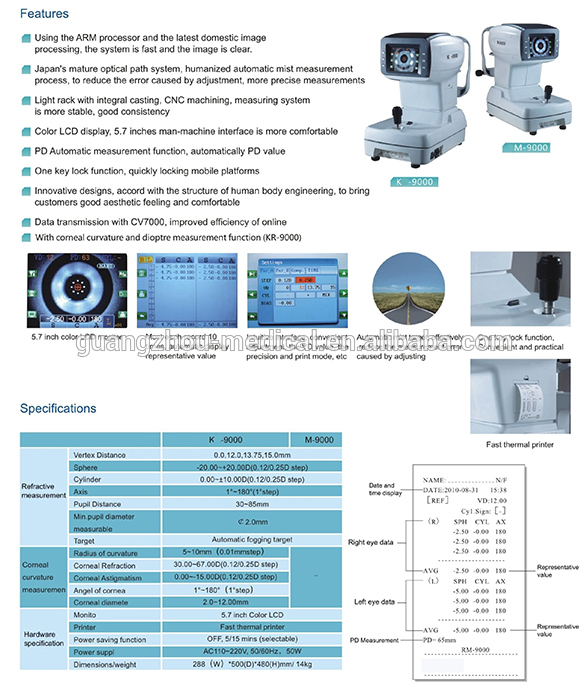

Features:
1.With corneal curvature and dioptre measurement function;
2.Using the ARM processor and the latest domestic image processing, the system is fast and the image is clear;
3.Japan's mature optical path system, humanized automatic mist measurement process, to reduc e the error caused by adjustment, more precise measurements;
4.Light rack with integral casting, CNC machining,measuring system is more stable, good consi stency;
5.Color LCD display, 5.7 inches man-machine interface is more comfortable;
6.PD Automatic measurement function, automatically PD value;
7.One key lock function, quickly locking mobile platforms;
8.Innovative designs, accord with the structure of human body engineering, to bring customers good aesthetic feeling and comfortable;
9.Data transmission with CV7000, improved efficiency of online.
Measurement mode | K/R mode | Refractive and Keratometer measurement. (RM-9000 wihout the keratometer) |
REF mode | Refractive measurement |
KEF mode | Corneal curvature measurement (RM-9000 wihout the keratometer) |
Refractive measurement | Vertex Distance | 0.0,12.0,13.75,15.0 mm |
Sphere | -20.00~+20.00D (0.12/0.25D step)(VD=12mm) |
Cylinder | 0.00~±10.00D (0.12/0.25D step) |
Axis | 1°~180°(1° step) |
Pupil Distance | 30~85 mm |
Min. pupil diameter measurable | 2.0mm |
Target | Automatic fogging target |
Corneal curvature measurement | Radius of curvature | 5~10mm(0.01mmstep) |
Corneal Refraction | 33.00~67.00D(0.12/0.25Dstep) |
Corneal Astigmatism | 0.00~-15.00D(0.12/0.25Dstep) |
Angle of corneal | 1°~180°(1°step) |
Corneal diameter | 2.0~12.00mm |
Hardware specification | Monitor | 5.7 inch Color LCD |
Printer | Fast thermal printer |
Power saving function | OFF, 5, 15 mins (selectable) |
Power supply | AC110~220 V,50/60HZ |
Dimensions/weight | 288(W)*500(D)*480(H)mm/14kg |
